Honeywell MC-TDIY22 51204160-175 Spare for TDC 3000 Automation

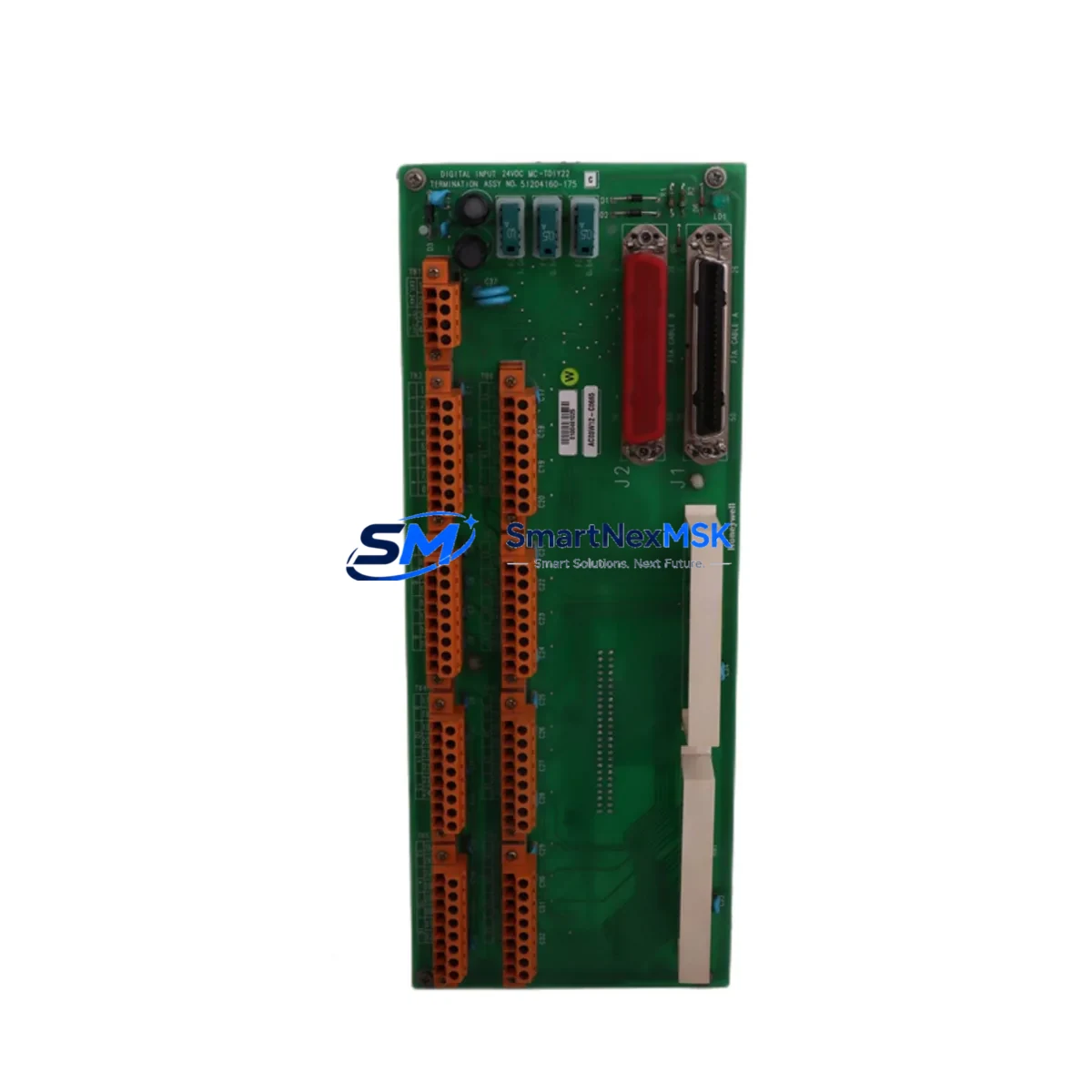

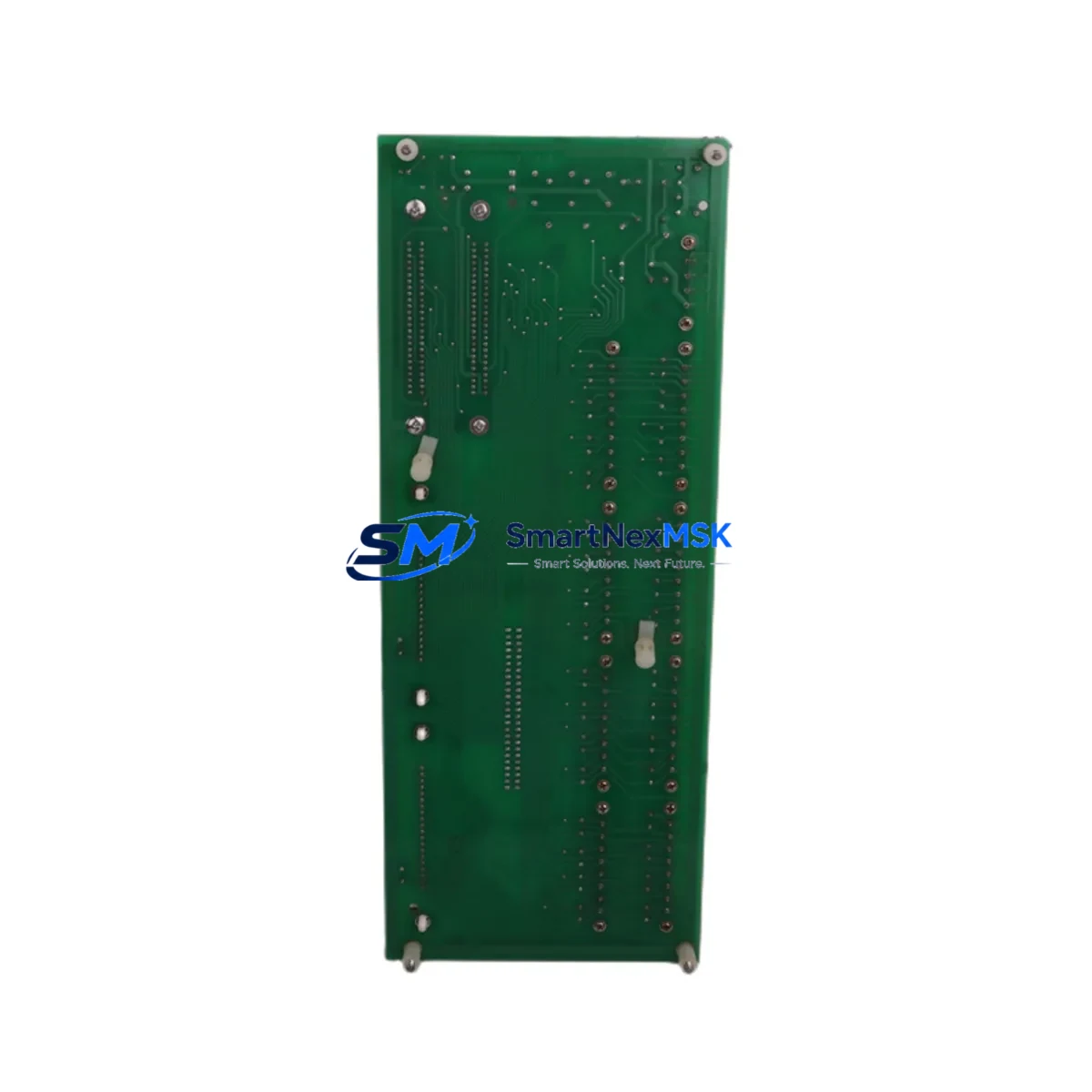

The Honeywell MC-TDIY22 (P/N 51204160-175) is a Digital Input Field Termination Assembly (DI FTA) engineered for the TDC 3000 Distributed Control System platform. In process industries — refining, petrochemical, power generation, and pulp and paper — the TDC 3000 remains a backbone control architecture that must be maintained with precision-matched spare parts. A failed or degraded DI FTA can interrupt signal acquisition from field instruments, triggering nuisance alarms, false shutdowns, or undetected process deviations. Stocking a verified replacement MC-TDIY22 51204160-175 is a fundamental element of any responsible maintenance strategy for TDC 3000 installations.
Every unit supplied by SMARTNEXMSK is sourced from authorized channels, subjected to pre-shipment functional verification, and backed by a 12-month warranty. Our inventory is maintained to support both planned turnaround maintenance and emergency breakdown recovery, with rapid dispatch capability to minimize your downtime exposure.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number | MC-TDIY22 / 51204160-175 |
| Manufacturer | Honeywell Process Solutions |
| Module Type | Digital Input Field Termination Assembly (DI FTA) |
| Compatible Platform | Honeywell TDC 3000 DCS |
| Compatible I/O Module | MC-DIOY22 Digital I/O Module (and compatible variants) |
| Input Channels | 32-channel digital input termination |
| Signal Type | Discrete / Digital Input (DI) |
| Termination Style | Screw-terminal field wiring termination |
| Operating Voltage | 24 VDC nominal field supply |
| Installation | DIN rail / cabinet backplane mount, TDC 3000 standard enclosure |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Application Environment | Industrial process control, DCS cabinet, hazardous area interface |
| Maintenance Recommendation | Inspect terminal torque, wiring insulation, and channel continuity during scheduled PM |
| Origin | USA (Honeywell Process Solutions) |
| Warranty | 12 Months — covers functional failure under normal operating conditions |
Maintenance Planning for Continuous Operation
When a maintenance or reliability engineer schedules replacement of the MC-TDIY22 51204160-175, the scope of inspection should extend beyond the FTA itself. The DI FTA is the termination interface between field wiring and the TDC 3000 I/O subsystem; its condition is directly affected by — and affects — a chain of upstream and downstream components.
Begin with the associated MC-DIOY22 Digital I/O Module, which interfaces directly with the FTA. A degraded I/O module can cause intermittent channel faults that mimic FTA failure; both should be evaluated together. Inspect the MC-PAOY22 Power Adapter or equivalent 24 VDC field power supply feeding the termination assembly — voltage sag or ripple at the power rail is a common root cause of digital input misread. Check the MC-TAOY22 Analog Termination Assembly if installed in adjacent slots, as shared cabinet power distribution can affect multiple FTA types simultaneously.
Review the condition of field wiring cables and cable shields connected to the screw terminals. Loose terminations, corroded conductors, or compromised cable insulation are leading causes of DI channel noise and false state transitions. Inspect terminal blocks and DIN rail mounting hardware for mechanical integrity — vibration in heavy industrial environments can loosen terminal screws over time.
For TDC 3000 systems with communication-intensive architectures, verify the status of the Local Control Network (LCN) interface modules and Highway Gateway (HG) units that aggregate I/O data upstream. A healthy FTA feeding a degraded communication path will still produce unreliable process data. Where signal isolation is required between field instruments and the DCS, inspect any installed signal isolators or barriers (such as Zener barriers or galvanic isolators) in the field junction boxes.
Finally, confirm that the TDC 3000 Universal Station (US) or Application Module (AM) is correctly configured to recognize the replacement FTA after installation. Configuration database consistency is critical — a hardware swap without a corresponding software verification step can leave the system in a degraded or alarm state even after a successful physical replacement.
Site Replacement Workflow
Step 1 — Pre-replacement verification: Confirm the replacement MC-TDIY22 51204160-175 part number and revision against the installed unit. Cross-reference with the TDC 3000 system configuration database to ensure compatibility with the associated I/O module firmware revision.
Step 2 — Safe isolation: Follow your site’s Lock-Out/Tag-Out (LOTO) procedure. De-energize the field power supply to the FTA. Do not rely solely on software inhibit — physically isolate the 24 VDC field supply at the cabinet power distribution terminal.
Step 3 — Field wiring documentation: Photograph or record all field wiring terminations before disconnection. Label each conductor if not already marked. This step is critical for multi-channel FTAs where incorrect re-termination can cause systematic channel mapping errors.
Step 4 — Module removal and installation: Remove the failed FTA from the DIN rail or backplane mount. Install the replacement MC-TDIY22 51204160-175, ensuring correct seating and mechanical retention. Re-terminate field wiring per the documented channel map, applying correct torque to screw terminals (refer to Honeywell installation specification).
Step 5 — Power-up and functional test: Re-energize the field supply. From the TDC 3000 operator station or engineering workstation, verify that all 32 DI channels report correct state. Exercise each channel if process conditions permit. Confirm that no spurious alarms are generated and that the system configuration database reflects the replacement without errors.
Step 6 — Documentation and spare replenishment: Record the replacement in your CMMS (Computerized Maintenance Management System). Immediately initiate a purchase order to replenish the consumed spare — maintaining at least one buffer unit of the MC-TDIY22 51204160-175 is recommended for any site with active TDC 3000 installations.
Spare Parts Support FAQ
Q1: Is the MC-TDIY22 51204160-175 still available as a new original spare?
Yes. SMARTNEXMSK maintains stock of original Honeywell MC-TDIY22 51204160-175 units. Each unit is pre-tested prior to shipment and supplied with a 12-month warranty covering functional failure under normal operating conditions. We support both single-unit emergency orders and bulk procurement for planned maintenance programs.
Q2: How do I verify compatibility with my installed TDC 3000 system before ordering?
Provide your existing FTA part number, the associated I/O module model (typically MC-DIOY22 or compatible), and your TDC 3000 system revision. Our technical team will confirm compatibility before shipment. We recommend cross-referencing the Honeywell TDC 3000 I/O subsystem documentation for your specific system build.
Q3: What testing is performed before shipment?
All MC-TDIY22 51204160-175 units undergo functional verification prior to dispatch. Testing covers channel continuity, terminal integrity, and basic I/O signal response. Units that do not pass verification are not shipped. A test report can be provided upon request for critical applications.
Q4: What is your long-term supply commitment for legacy TDC 3000 spare parts?
SMARTNEXMSK specializes in long-term supply of legacy DCS and PLC spare parts, including the full Honeywell TDC 3000 portfolio. We maintain strategic inventory to support sites extending the operational life of TDC 3000 systems beyond OEM end-of-life announcements. Contact us to discuss a dedicated spare parts agreement for your site.
