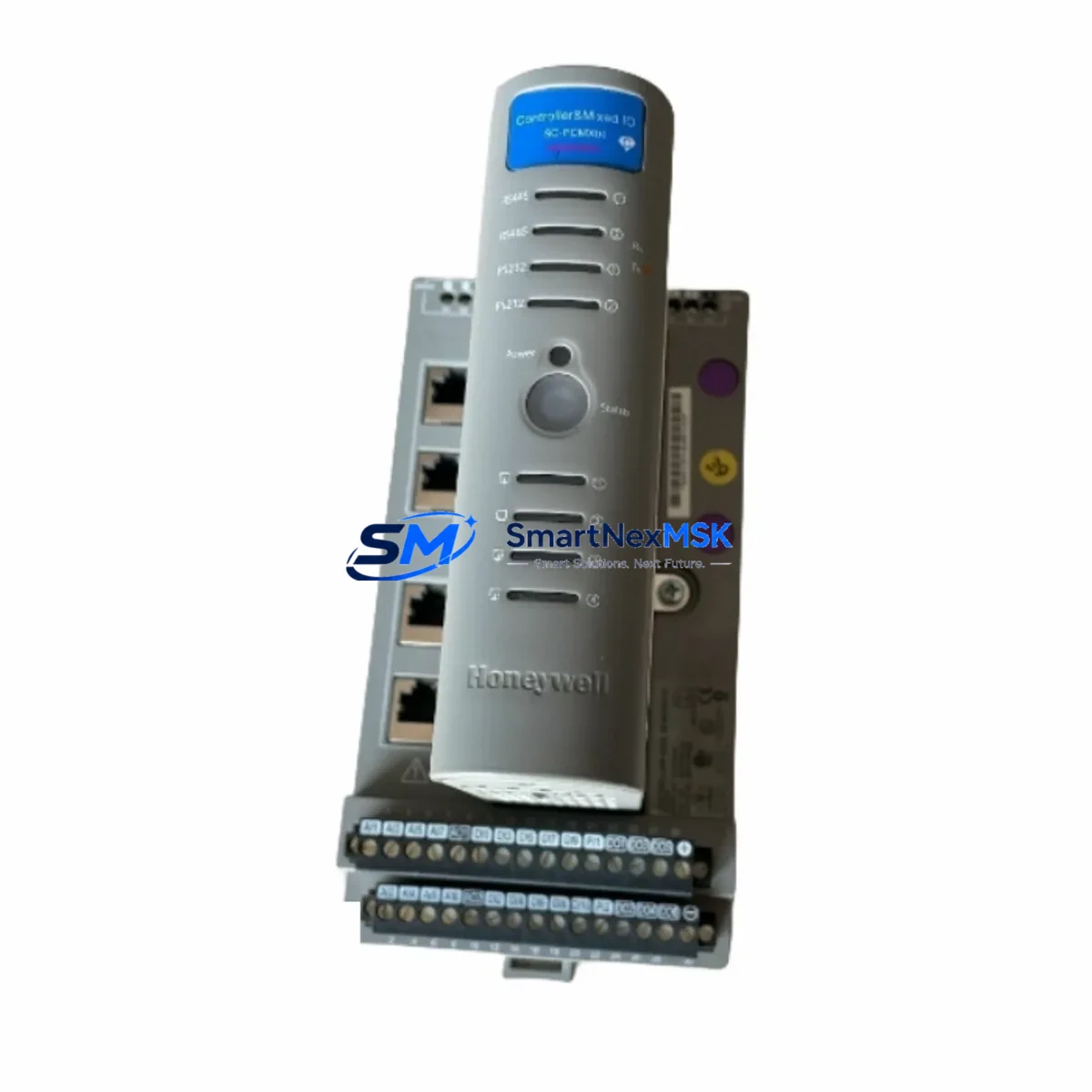

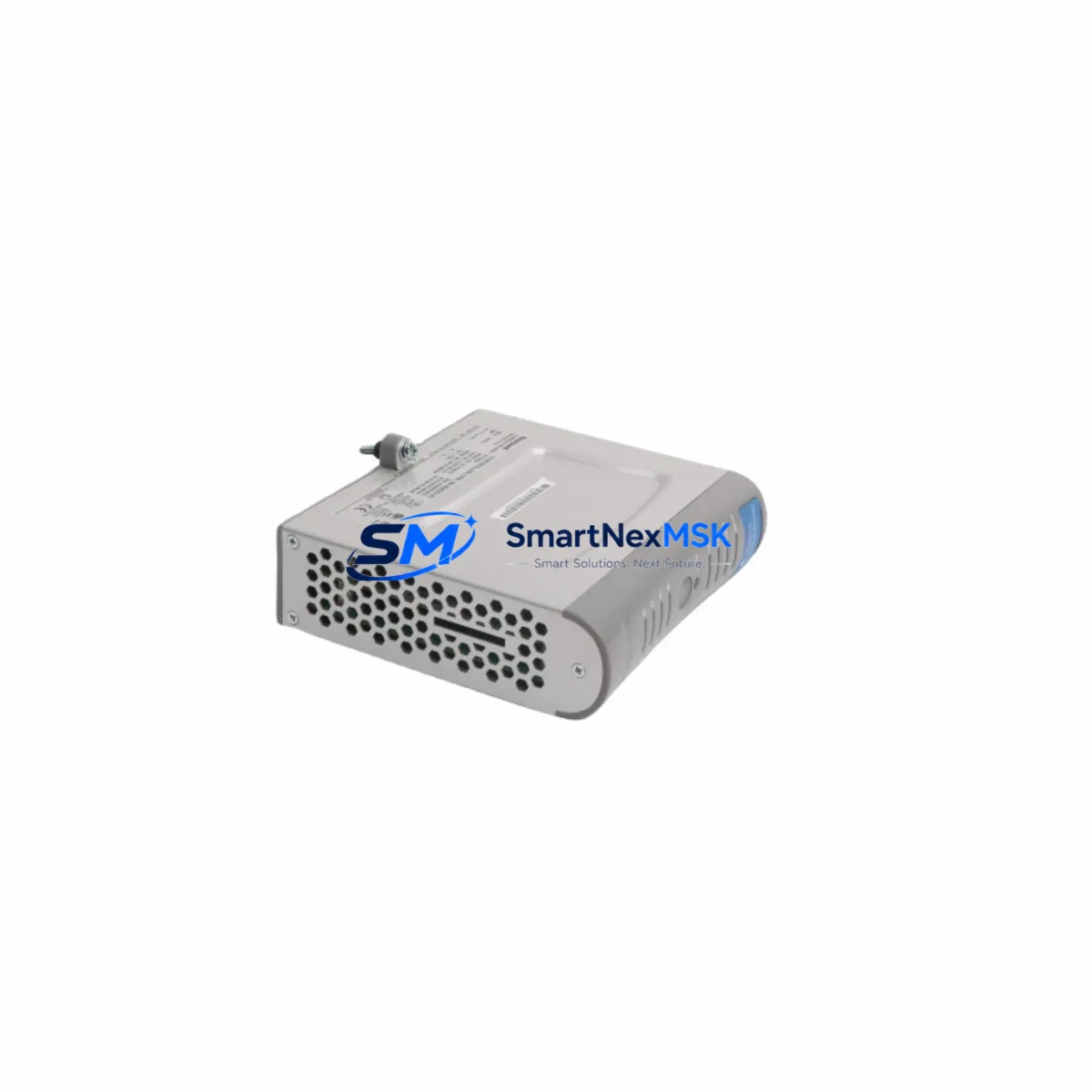

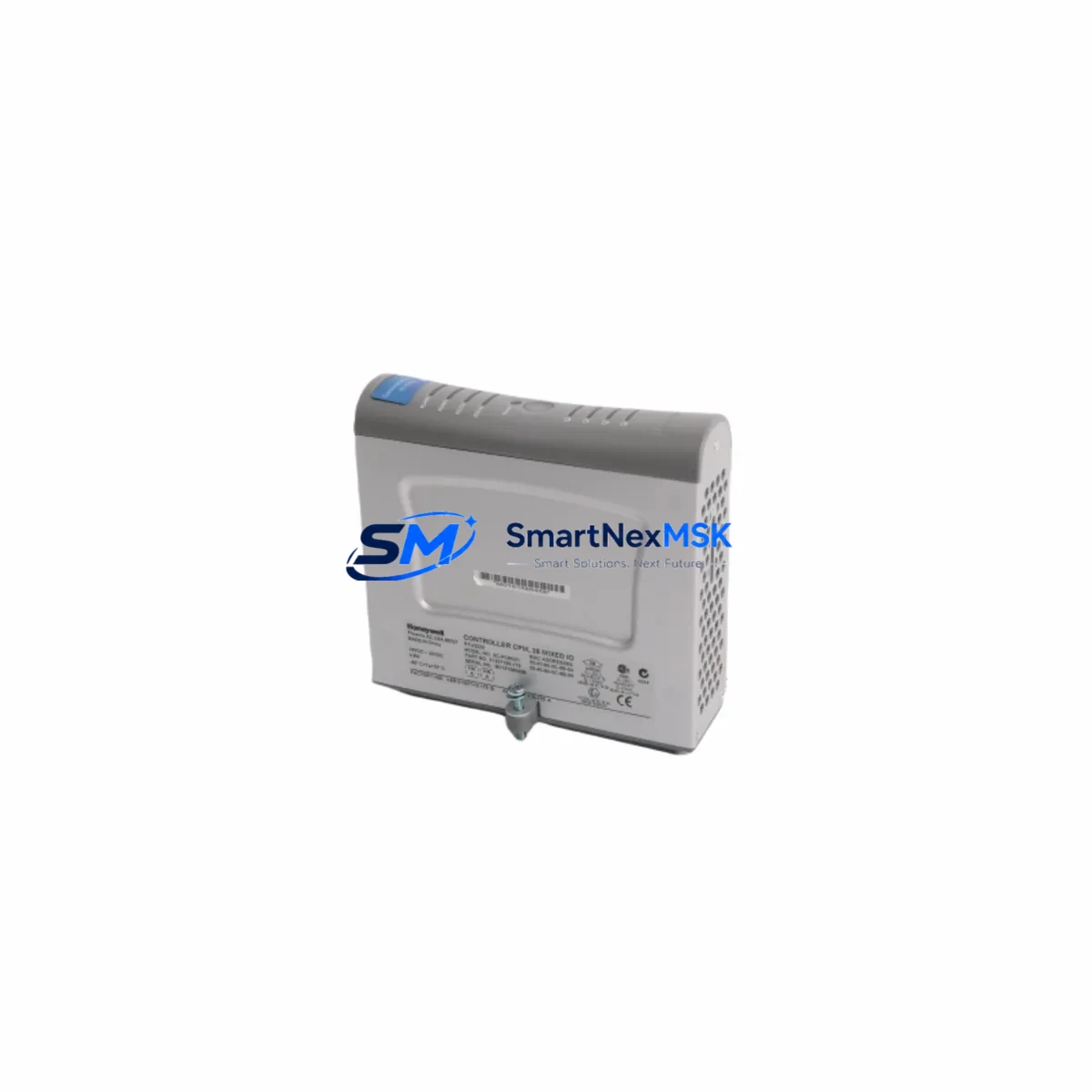

Honeywell SC-PCMX01 51307195-175 Retrofit-Ready DCS Carrier

Honeywell SC-PCMX01 51307195-175 Retrofit-Ready DCS Carrier for Experion PKS Control Systems

When aging Honeywell Experion PKS or TPS (Total Plant Solution) control systems require modernization, the Honeywell SC-PCMX01 (51307195-175) DCS Termination Carrier stands as one of the most critical components in any successful retrofit or upgrade project. As a direct-replacement termination carrier designed for the Experion PKS platform, this module bridges legacy field wiring infrastructure with current control architecture — enabling engineers to extend system life, reduce rewiring costs, and maintain process continuity without a full control system overhaul.

The SC-PCMX01 serves as the physical and electrical interface between field instrument cables and the Honeywell C200/C300 controller family. Its role in the control cabinet is foundational: it accepts marshalled wiring from field devices and routes signals cleanly to the associated I/O modules mounted on the same carrier assembly. In retrofit scenarios where the original termination carrier has degraded, suffered connector damage, or simply reached end-of-service life, replacing it with a verified SC-PCMX01 restores full signal integrity without requiring reprogramming of the upstream controller logic.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful SC-PCMX01 retrofit requires a structured approach that accounts for every component in the control cabinet ecosystem. Before removing the failed or degraded termination carrier, maintenance engineers should document the existing field wiring layout using the original as-built drawings. Terminal numbering on the SC-PCMX01 follows Honeywell’s standard marshalling convention, but cross-referencing against site-specific loop diagrams is essential to avoid signal misassignment during reinstallation.

Power supply integrity is the first checkpoint. The Honeywell SC-PWRR1 redundant power supply module feeding the I/O cabinet should be verified for stable 24VDC output before the carrier swap begins. A marginal power supply can cause intermittent faults that are easily misdiagnosed as carrier failure. Similarly, the Honeywell SC-XICM04 I/O link communication module mounted on the same chassis should be inspected for firmware version compatibility with the replacement carrier.

Field-side signal isolation is another area requiring attention. Where the existing installation uses Honeywell SC-AI16 analog input modules or SC-AO08 analog output modules, engineers should confirm that the new carrier’s terminal assignments align with the existing module slot configuration. Mismatched slot addressing will cause the Experion PKS server to report I/O faults even if the physical wiring is correct.

For sites running legacy TPS hardware alongside Experion PKS in a hybrid architecture, the Honeywell HPM (High-Performance Process Manager) I/O subsystem may share the same marshalling cabinet. In these environments, the SC-PCMX01 retrofit must be coordinated with the HPM I/O termination assemblies to avoid disrupting shared field loops. The Honeywell FTA (Field Termination Assembly) panels connected to HPM I/O cards should remain undisturbed during the Experion-side carrier replacement.

Communication continuity depends on the health of the Honeywell ESVT (Experion Server) FTE network. Before the carrier swap, verify that the FTE switch ports connected to the affected C200/C300 controller node are active and fault-free. A carrier replacement that coincides with an FTE network fault can complicate post-installation diagnostics. Additionally, if the control cabinet houses a Honeywell CC-PCNT01 pulse counter or specialty I/O module, confirm that its wiring harness does not share terminal blocks with the SC-PCMX01 being replaced.

HMI display verification is the final step before returning the loop to service. After the SC-PCMX01 is installed and the I/O configuration is re-downloaded from Experion Builder, operators should confirm that all associated process variables appear correctly on the Experion PKS Station operator console. Any points showing BAD or UNCERTAIN quality should be investigated at the field wiring level before declaring the retrofit complete.

Downtime Control During System Migration

Minimizing unplanned downtime during an SC-PCMX01 replacement requires pre-staging the replacement carrier, pre-labeling all field wiring terminals, and preparing a rollback plan before the maintenance window begins. The SC-PCMX01’s screw-terminal field wiring interface allows experienced technicians to complete a carrier swap in under two hours on a well-documented loop, provided the replacement unit has been pre-tested and the Experion Builder configuration backup is current.

To protect original program logic, engineers should export a full controller checkpoint from the Experion PKS server before beginning any hardware work. This checkpoint preserves all control strategy downloads, I/O assignments, and alarm configurations. If the replacement carrier triggers any unexpected I/O faults post-installation, the checkpoint allows rapid restoration of the last known-good configuration without manual re-entry of control parameters.

For continuous process industries — including refining, petrochemical, power generation, and water treatment — where even brief control interruptions carry significant operational risk, a hot-standby approach using a pre-configured spare SC-PCMX01 carrier is strongly recommended. Keeping one verified spare in the site’s critical spares inventory eliminates the lead-time risk associated with emergency procurement and ensures that any future carrier failure can be resolved within a single shift.

All SC-PCMX01 units supplied by SMARTNEXMSK are functionally tested prior to shipment, with test records available upon request. Each unit is shipped with protective packaging to prevent connector damage in transit, and is covered by a 12-month warranty from the date of delivery.

Retrofit Support FAQ

Q1: Is the SC-PCMX01 (51307195-175) a direct replacement for the original Honeywell part?
Yes. The SC-PCMX01 with part number 51307195-175 is a direct form-fit-function replacement for the original Honeywell termination carrier used in Experion PKS and TPS control systems. No mechanical modification or wiring adaptation is required for standard installations.

Q2: What compatibility checks should be performed before installation?
Verify the I/O module types mounted on the carrier (AI, AO, DI, DO), confirm terminal numbering against the original wiring diagram, check the Experion Builder I/O configuration for slot assignments, and ensure the cabinet power supply is within specification. Post-installation, re-download the I/O configuration and verify all process variable quality indicators on the operator station.

Q3: How is the unit tested before shipment?
Each SC-PCMX01 undergoes functional testing covering connector integrity, terminal continuity, and backplane interface verification before shipment. A test report is available upon request. Units are shipped in anti-static protective packaging with all connectors protected.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, functional failures under normal operating conditions, and connector or terminal integrity issues. Warranty claims are supported by SMARTNEXMSK’s technical team, with replacement units dispatched from stock to minimize site downtime. Long-term supply continuity is maintained for this part number to support ongoing maintenance programs.
