Honeywell TC-IDA161 Retrofit-Ready 16-Ch AC DI for Experion PKS

Honeywell TC-IDA161 Retrofit-Ready 16-Ch AC Digital Input Module for Experion PKS Control Systems

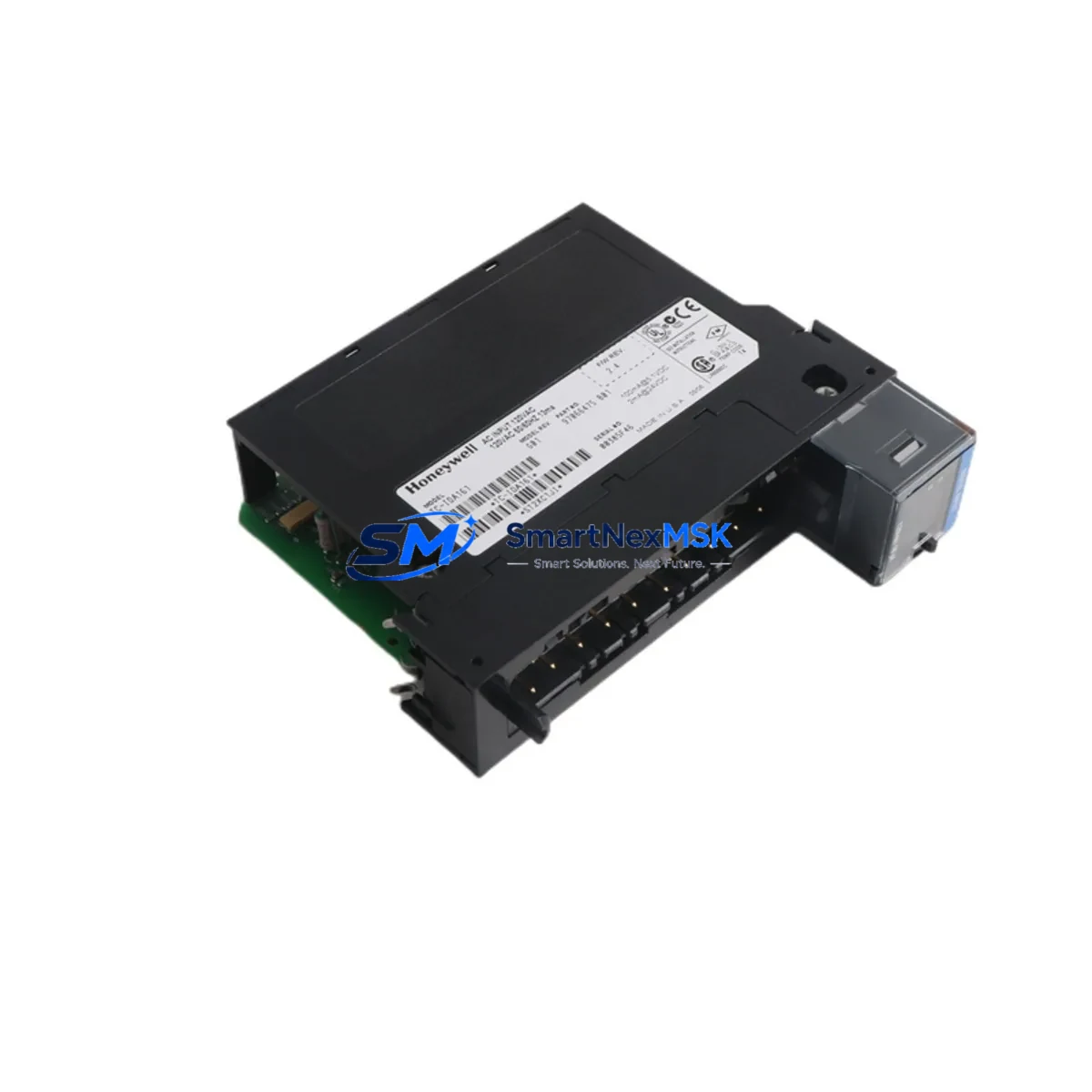

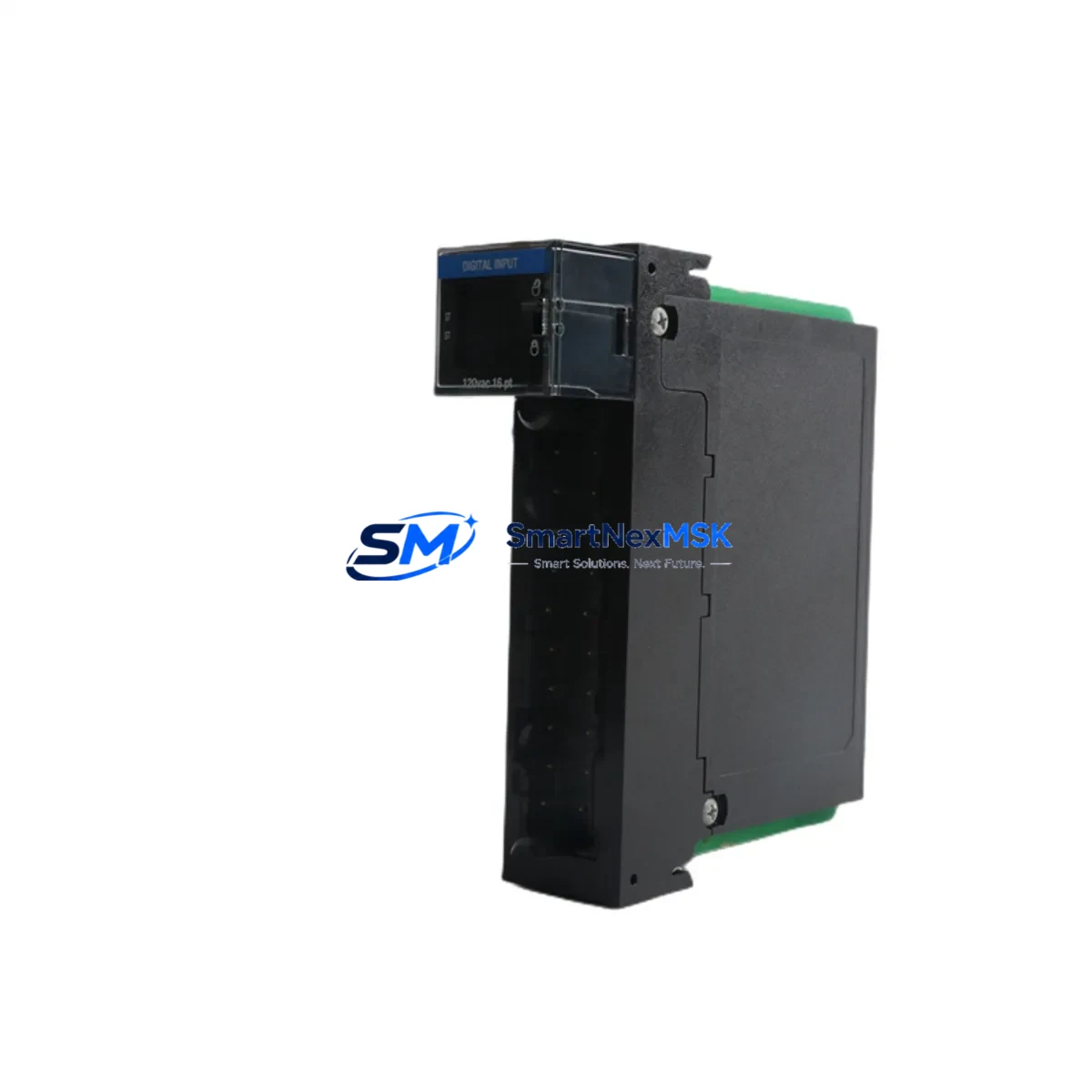

The Honeywell TC-IDA161 is a 16-channel AC Digital Input Module engineered for the Experion PKS distributed control system platform. Designed for seamless integration into C300 controller-based architectures, this module serves as a verified drop-in replacement for aging or discontinued DI modules in legacy Honeywell DCS installations. Whether you are executing a planned control system upgrade, recovering from an unplanned failure, or modernizing a brownfield facility, the TC-IDA161 delivers the signal acquisition reliability and backplane compatibility your process demands.

At SMARTNEXMSK, every TC-IDA161 unit is sourced from verified supply channels, pre-shipment tested against Honeywell factory specifications, and backed by a 12-month warranty. We maintain ready stock to support urgent retrofit timelines and minimize unplanned downtime across petrochemical, power generation, pharmaceutical, and discrete manufacturing environments.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a TC-IDA161 in an active Experion PKS installation requires a structured approach that accounts for both hardware compatibility and software configuration. Before removing the existing module, engineers should document the current I/O channel assignments within Honeywell Control Builder and verify that the replacement module’s firmware revision is compatible with the installed C300 controller version. The C300 controller communicates with I/O modules over the Experion PKS I/O Link, and any mismatch in module addressing or FTA wiring can result in process alarms or loss of field signal acquisition.

The TC-IDA161 mounts directly onto the Honeywell I/O chassis (also referred to as the I/O carrier or backplane assembly). Confirm that the chassis slot assignment matches the original module’s configured address in the system database. If the chassis is shared with other modules — such as the TC-ODJ161 (16-channel DC Digital Output) or the TC-IAH161 (16-channel AC Digital Input, high-density variant) — verify that adjacent module configurations are not disrupted during the swap.

Field termination is handled through the associated FTA (Field Termination Assembly), typically a TC-FTA161 or equivalent terminal block assembly. Inspect all terminal screws for torque compliance and verify that AC field wiring is correctly routed and isolated from DC signal circuits. For installations where the original FTA has aged or shows signs of terminal oxidation, replacement of the FTA in parallel with the TC-IDA161 module is strongly recommended to avoid intermittent signal faults post-commissioning.

In multi-cabinet control room configurations, the retrofit may also involve reviewing the Experion PKS SCADA/HMI display pages to confirm that point names, alarm limits, and engineering unit conversions remain intact after the module replacement. If the site uses Honeywell Station or a third-party HMI linked via OPC-DA or OPC-UA, verify that the data server tag mapping is unaffected. For sites migrating from older Honeywell TDC 3000 or PlantScape platforms to Experion PKS, the TC-IDA161 is a key component in the I/O migration path, often installed alongside TC-CCR014 communication control modules and TC-PRS021 power supply modules to complete the new I/O subsystem.

Where the retrofit involves expanding I/O capacity — for example, adding new field instruments during a process line extension — the TC-IDA161 can be installed in available chassis slots alongside existing TC-IAH161 or TC-OAH161 (AC Digital Output) modules. Confirm available power budget on the chassis power supply before adding modules; the TC-PRS021 or equivalent redundant power supply pair must support the aggregate module load. For sites requiring additional analog I/O in the same retrofit scope, the TC-IAH081 (8-channel Analog Input) is commonly deployed in the same chassis to consolidate field wiring.

Downtime Control During System Migration

Minimizing process downtime during a TC-IDA161 replacement begins with pre-staging the replacement module and verifying its configuration offline before the maintenance window opens. Use Honeywell Control Builder to export the current module configuration, including channel enable/disable states, filter time constants, and alarm setpoints. This configuration file serves as the restoration baseline if the replacement module requires re-parameterization after installation.

For processes that cannot tolerate a full I/O blackout, coordinate with the control room operator to place affected control loops in manual mode prior to module removal. The C300 controller will detect the module absence and generate a hardware fault alarm; pre-acknowledging this alarm sequence with the operations team prevents unnecessary process interventions. Once the TC-IDA161 is seated and the I/O Link connection is re-established, the C300 will automatically re-scan the module and restore channel data — typically within seconds of backplane re-engagement.

Post-installation, perform a channel-by-channel signal verification by actuating each field device connected to the module’s 16 AC input channels and confirming correct state change in the Experion PKS operator station. Document the verification results and return all control loops to automatic mode only after all 16 channels have been confirmed healthy. This structured commissioning approach protects original program logic, preserves HMI display integrity, and ensures continuous field control without residual fault states.

Retrofit Support FAQ

Q1: Is the TC-IDA161 a direct drop-in replacement for the original module in my Experion PKS system?
Yes. The TC-IDA161 is designed for direct backplane replacement within the Experion PKS I/O chassis. No hardware modification is required. Module addressing is retained from the original configuration in Control Builder, and the FTA wiring remains unchanged. Confirm firmware compatibility with your C300 controller revision before installation.

Q2: What pre-shipment testing is performed on each TC-IDA161 unit?
Every unit shipped by SMARTNEXMSK undergoes functional verification against Honeywell factory test parameters, including channel-level input signal acquisition, backplane communication handshake, and power consumption validation. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q3: Can the TC-IDA161 be used in a mixed-voltage I/O chassis alongside DC digital input or analog modules?
Yes, provided the chassis and power supply support the aggregate load. The TC-IDA161 occupies a standard I/O slot and does not impose restrictions on adjacent module types. Ensure that AC field wiring is properly segregated from DC and analog signal wiring within the cabinet to prevent interference. Consult the Experion PKS I/O Installation Guide for slot assignment and wiring segregation requirements.

Q4: What is the lead time and warranty coverage for the TC-IDA161?
In-stock units ship within 1–3 business days globally. For urgent retrofit requirements, expedited shipping is available. All TC-IDA161 modules supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed directly through our technical support team at sales@smartnexmsk.com.
