ICS TRIPLEX T3419 Spare for Trusted TMR Automation

ICS TRIPLEX T3419 Spare for Trusted TMR Automation: Spare Replacement & Industrial Downtime Risk Control

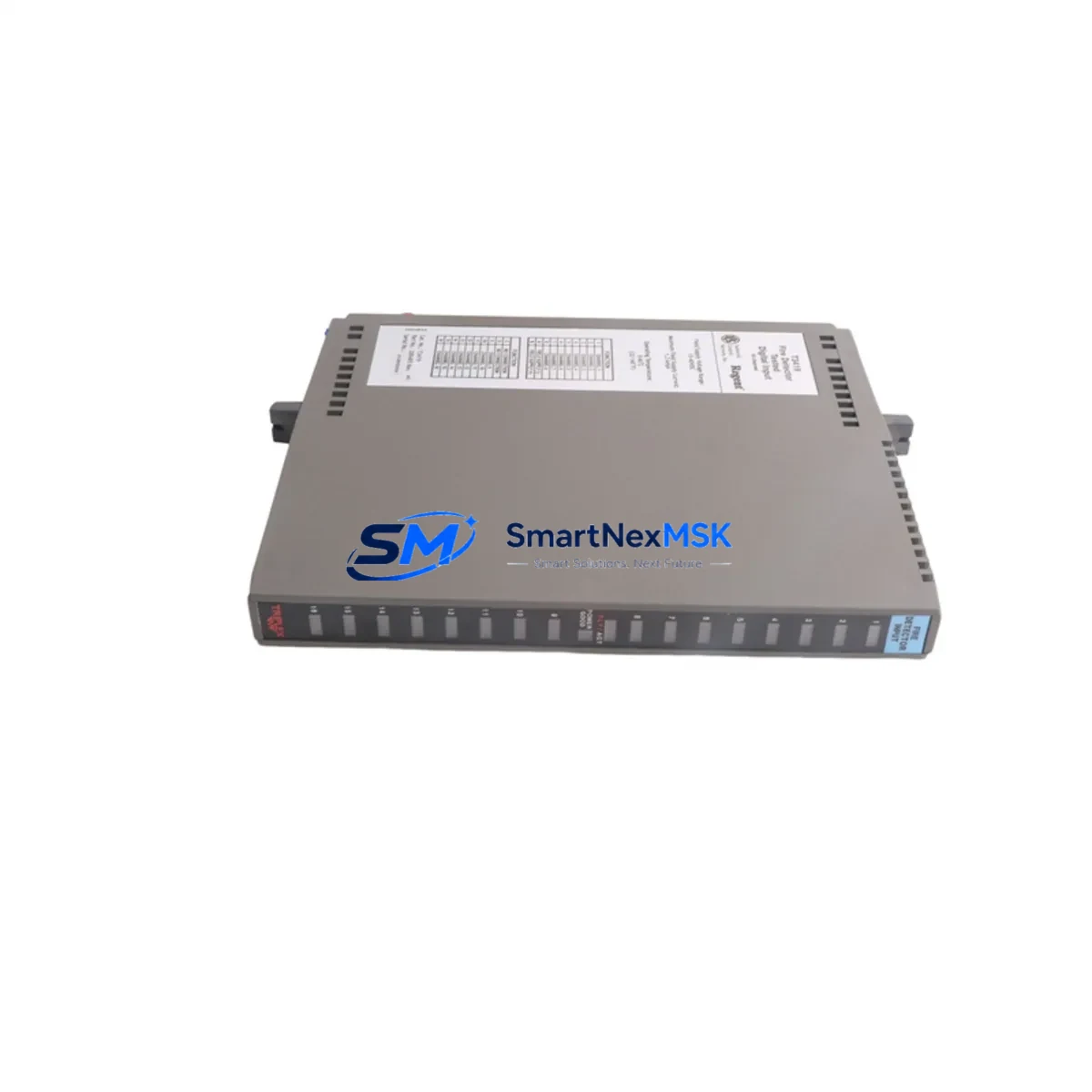

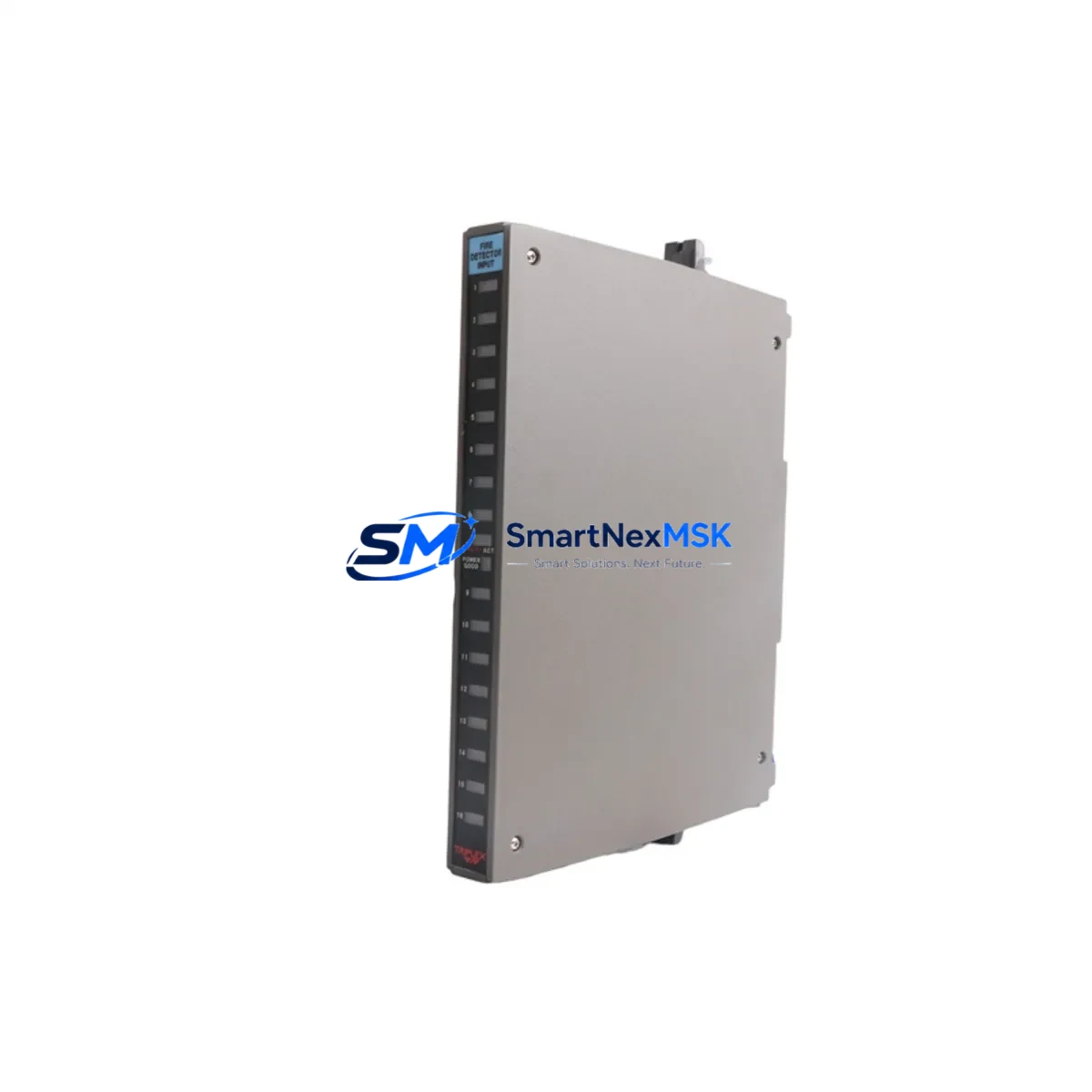

The ICS TRIPLEX T3419 is a Triple Modular Redundant (TMR) Digital Input Module designed for use within the Trusted TMR Safety Instrumented System platform. Engineered to IEC 61511 SIL 2 requirements, this module serves as a critical front-end interface between field sensors, process switches, and the safety logic solver in high-availability process control environments. When a T3419 module fails or reaches end-of-service life, rapid replacement is essential to restore SIS integrity and avoid prolonged process shutdown.

At SMARTNEXMSK, every T3419 unit is sourced from verified supply channels, functionally tested prior to dispatch, and backed by a 12-month warranty. We maintain long-term stock availability to support both emergency replacement and planned maintenance cycles for refineries, petrochemical plants, offshore platforms, and power generation facilities running legacy Trusted TMR architectures.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a T3419 Digital Input Module is flagged for replacement during a scheduled proof test or emergency fault isolation, maintenance engineers should treat the event as an opportunity to audit the broader Trusted TMR system health. The T3419 interfaces directly with field wiring through terminal assemblies and marshalling cabinets — any replacement should be accompanied by a thorough inspection of the associated field terminal modules (FTMs) and cable harnesses to rule out wiring degradation or connector corrosion as the root cause of input faults.

Within the same control cabinet, engineers should verify the operational status of the T3401 TMR Power Supply Module, which provides regulated backplane power to all installed modules. A marginal power supply can cause intermittent digital input read errors that mimic module failure. Similarly, the T3481 TMR Digital Output Module in the same chassis should be inspected for output relay wear if the system has been in service for more than five years.

For systems using the Trusted TMR platform in Emergency Shutdown (ESD) or Fire & Gas (F&G) applications, the T3461 Analogue Input Module and T3431 Analogue Output Module are commonly co-located in the same chassis and should be included in the same maintenance window. Proof testing these modules concurrently reduces total system downtime and aligns with IEC 61511 proof test interval requirements.

Communication integrity between the Trusted TMR controller and the DCS or SCADA layer should also be validated. The T3310 Communication Interface Module or equivalent gateway module handles Modbus or proprietary protocol bridging — a firmware version check and loopback test is recommended whenever a DI module is replaced. If the plant uses a Yokogawa CENTUM VP or Honeywell Experion PKS DCS as the supervisory layer, confirm that the SIS-DCS data highway remains healthy after module hot-swap.

Fuse integrity on the field input loop — typically 0.5 A or 1 A glass fuses on the FTM — should be verified before re-energising the replacement T3419. Blown fuses caused by field wiring short circuits are a common cause of repeat module failures. Additionally, signal isolators or Zener barriers protecting intrinsically safe field devices connected to the DI inputs should be tested for correct clamping voltage and leakage current. Replacing a T3419 without checking upstream MTL or P+F Zener barriers can result in immediate re-failure if the field loop fault has not been cleared.

For sites maintaining a minimum spare parts inventory, a recommended kit alongside the T3419 includes: one spare FTM (Field Termination Module) matched to the T3419 variant, a set of replacement fuses for the input loop, and a tested spare T3401 Power Supply Module. This kit approach ensures that any single-point failure in the DI subsystem can be resolved within one maintenance shift without waiting for additional parts procurement.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the T3419 fault via the Trusted TMR system diagnostics console. Document the active fault code and affected input channel map. Verify that the replacement unit carries the same hardware revision and firmware baseline as the installed module to ensure seamless compatibility.

Step 2 — Bypass & Inhibit: Apply the appropriate SIS bypass or inhibit in accordance with the site Management of Change (MOC) procedure. Notify the control room and obtain a Permit to Work (PTW) before proceeding. The TMR architecture allows online module replacement without full system shutdown in most configurations — confirm this with the site SIS engineer before hot-swapping.

Step 3 — Module Extraction & Inspection: Remove the faulty T3419 from the chassis slot. Inspect the backplane connector for bent pins, oxidation, or debris. Clean the slot with dry compressed air if contamination is present. Inspect the FTM wiring for insulation damage or terminal looseness.

Step 4 — Replacement Installation: Insert the replacement T3419 firmly into the chassis slot until the locking latch engages. The module will perform a self-test sequence on power-up. Monitor the system diagnostics console for successful module recognition and channel initialisation. Confirm that all 32 input channels report correct field states matching the pre-fault baseline.

Step 5 — Functional Test & Proof Test: Perform a channel-by-channel functional test by simulating field input signals at the FTM terminals. Verify correct state change detection and voting logic response. Update the proof test record and close the MOC. Remove the bypass/inhibit and return the SIS loop to normal operation.

Step 6 — Documentation: Record the replaced module serial number, installation date, and test results in the plant CMMS (e.g., SAP PM or Maximo). Schedule the next proof test interval per the SIS Safety Requirements Specification (SRS).

Spare Parts Support FAQ

Q1: Is the T3419 still available as a new or refurbished spare, and what is the expected lead time?
Yes. SMARTNEXMSK maintains stock of the ICS TRIPLEX T3419 in both new-surplus and professionally refurbished condition. Standard lead time for in-stock units is 3–7 business days for international shipment. Emergency same-day dispatch is available for critical shutdown situations. Contact [email protected] with your urgency level and shipping destination for a confirmed availability and lead time quote.

Q2: How do I verify hardware revision compatibility before ordering?
Provide your existing module’s hardware revision label (typically printed on the module faceplate or side label) when placing your order. Our technical team will cross-reference the revision against our inventory to ensure the replacement unit is compatible with your chassis firmware and FTM variant. We do not ship mismatched revisions without prior customer confirmation.

Q3: What testing is performed on each T3419 before shipment?
Every T3419 unit undergoes a functional bench test using a Trusted TMR test chassis prior to dispatch. The test verifies power-up self-test pass, all input channel read functions, backplane communication integrity, and diagnostic reporting. A test report is available upon request. All units are shipped with ESD-protective packaging and a 12-month warranty from the date of invoice.

Q4: Can the T3419 be used as a direct replacement for earlier TMR Digital Input Module variants in the Trusted platform?
The T3419 is designed for the Trusted TMR platform and is generally backward-compatible with earlier chassis generations, subject to firmware version alignment. However, cross-variant substitution (e.g., replacing a T3411 or T3415 with a T3419) requires engineering review, as channel count, input voltage range, and FTM wiring may differ. SMARTNEXMSK recommends consulting the ICS TRIPLEX Trusted System Configuration Guide or contacting our technical team before substituting across module variants.
