ICS Triplex T8110B Maintenance-Ready Spare Trusted TMR

ICS Triplex T8110B Maintenance-Ready Spare Trusted TMR: Spare Replacement & Industrial Downtime Risk Control

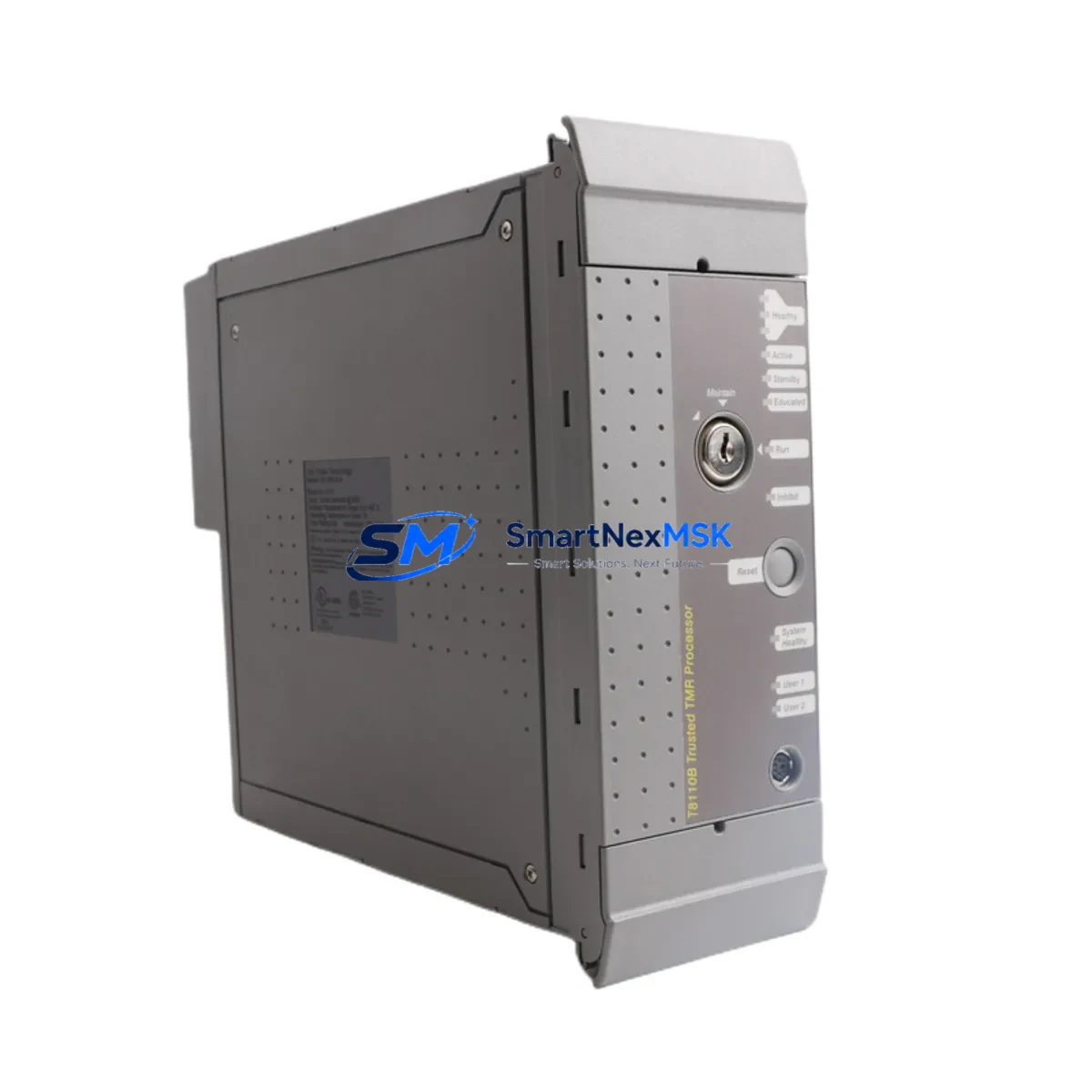

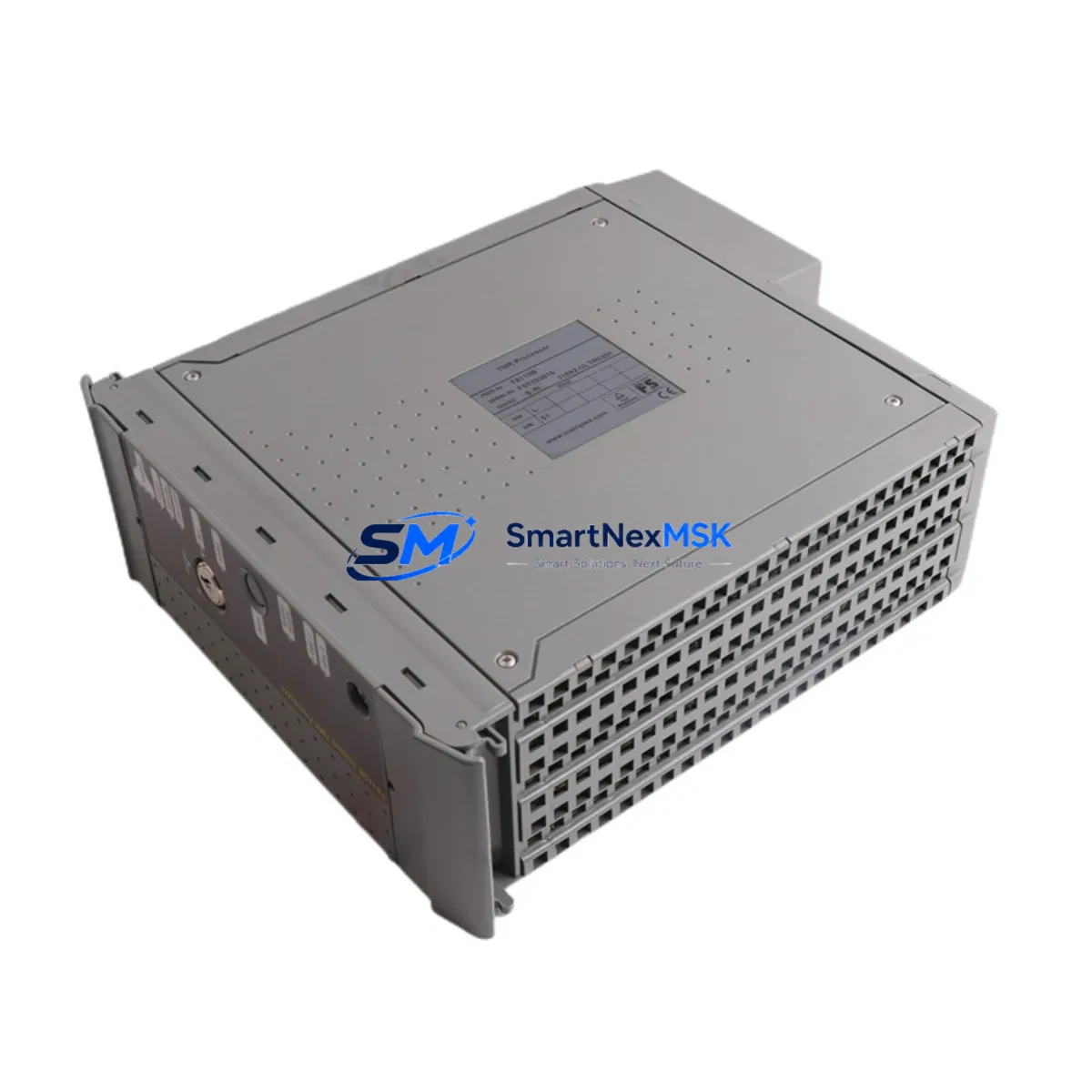

The ICS Triplex T8110B is the core Trusted TMR (Triple Modular Redundant) Safety PLC Processor Module within the ICS Triplex Trusted platform — a safety-critical controller architecture widely deployed in oil & gas, petrochemical, power generation, and continuous process industries. When a T8110B processor fails or approaches end-of-life, the entire safety instrumented system (SIS) is at risk. Maintaining a verified, pre-tested spare on the shelf is not optional — it is a fundamental element of any credible maintenance strategy for SIL 2 and SIL 3 certified installations.

This listing provides an original ICS Triplex T8110B processor module, sourced, inspected, and dispatched with full functional verification. It is a direct maintenance replacement for the T8110 and T8110A, preserving system architecture, I/O mapping, and safety logic without requiring re-engineering. For maintenance engineers managing aging Trusted TMR systems, this spare eliminates the lead-time risk that turns a planned replacement into an unplanned shutdown.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing a T8110B processor in a live Trusted TMR system is rarely an isolated task. Experienced maintenance engineers know that a processor fault often signals stress across adjacent modules. Before or during a T8110B replacement, a thorough inspection of the surrounding control cabinet is essential to prevent repeat failures and ensure the restored system meets its SIL rating.

Start with the T8110 power supply modules — the T8151 and T8152 Trusted power supplies feed the processor directly, and a degraded supply is a common root cause of processor instability. Verify output voltage stability and ripple under load before commissioning the new T8110B. Next, inspect the T8431 and T8432 digital input modules: these I/O cards share the backplane with the processor and should be checked for contact wear, field wiring integrity, and correct termination at the T8891 field termination assemblies (FTAs).

For systems with analog process inputs, the T8461 analog input module should be calibrated and loop-checked after processor replacement, as re-initialization can affect channel scaling. If the installation includes T8481 digital output modules driving solenoid valves or relay outputs, verify that output forcing is cleared and that the safety logic download to the new T8110B is complete and validated.

Communication continuity is equally critical. Confirm that the T8831 communication module or equivalent gateway is correctly re-linked to the DCS or SCADA host after processor swap. In installations using signal isolators or barriers — such as Zener barriers or galvanic isolators on intrinsically safe loops — inspect for signs of thermal stress or degraded isolation resistance, as these components are often overlooked during processor-focused maintenance events.

Finally, review the chassis backplane connectors and module retention latches for mechanical wear. In high-vibration environments, loose backplane seating is a recurring cause of intermittent processor faults that are misdiagnosed as processor failures. A complete cabinet inspection — covering power, I/O, communications, field terminations, and mechanical integrity — transforms a reactive replacement into a proactive maintenance event that extends system life and defers costly system upgrades.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the installed module is T8110B (not T8110 or T8110A) by reading the module label and firmware version via the Trusted engineering workstation. If the installed unit is a T8110 or T8110A, the T8110B is a direct functional replacement — no hardware modification is required, but confirm firmware compatibility with your system integrator or the current Trusted software version.

Step 2 — Safety state management: Place the SIS in a safe state or bypass per your site Management of Change (MOC) procedure. For TMR systems, the 2oo3 voting architecture allows one channel to be taken offline without a full system trip, but this must be confirmed against your specific safety case documentation.

Step 3 — Module extraction and installation: Power down the affected chassis slot per the Trusted maintenance manual. Extract the faulty T8110B using the module ejector handles. Insert the replacement T8110B, ensuring full backplane engagement. Restore slot power and observe the module status LEDs for normal initialization sequence.

Step 4 — Logic download and validation: Using the Trusted engineering workstation, download the validated safety application to the replacement processor. Perform a full I/O checkout and confirm that all safety function outputs respond correctly to simulated process inputs before returning the system to operational status.

Step 5 — Documentation: Update the maintenance management system (CMMS) with the replacement date, module serial number, and post-replacement test results. Retain the faulty T8110B for failure analysis if required by your site reliability program.

This workflow minimizes downtime, maintains SIL compliance, and ensures the replacement is fully traceable — critical for functional safety audits and insurance requirements.

Spare Parts Support FAQ

Q1: Is the T8110B compatible with my existing T8110 or T8110A installation?
Yes. The T8110B is the current-generation processor for the ICS Triplex Trusted TMR platform and is a direct replacement for both the T8110 and T8110A. It fits the same chassis slot, uses the same backplane interface, and accepts the same safety application download. Confirm firmware version compatibility with your Trusted engineering workstation before installation.

Q2: What pre-shipment testing is performed on the T8110B?
Every T8110B dispatched undergoes full functional verification: power-on self-test, backplane communication check, and I/O channel integrity test. A test report is available upon request. All units are shipped with ESD-protective packaging and are covered by a 12-month warranty from the date of delivery.

Q3: How should I manage T8110B spare inventory for a multi-site operation?
For critical SIS applications, industry best practice recommends holding a minimum of one T8110B spare per installed system, with a centralized pool spare for multi-site operations. Given the long lead times historically associated with Trusted TMR components, pre-positioning verified spares eliminates the risk of extended downtime during an unplanned failure event. We support blanket order arrangements and long-term supply agreements for MRO procurement teams.

Q4: What is the warranty coverage and return process?
All T8110B units carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. If a unit fails within the warranty period, contact our technical support team with the module serial number and failure description. We will arrange priority replacement dispatch to minimize your system downtime. Units must be returned in original ESD packaging with a completed RMA form.
