ICS Triplex T8310C Retrofit-Ready Expander for Trusted TMR

ICS Triplex T8310C Retrofit-Ready Expander Processor for Trusted TMR Control Systems

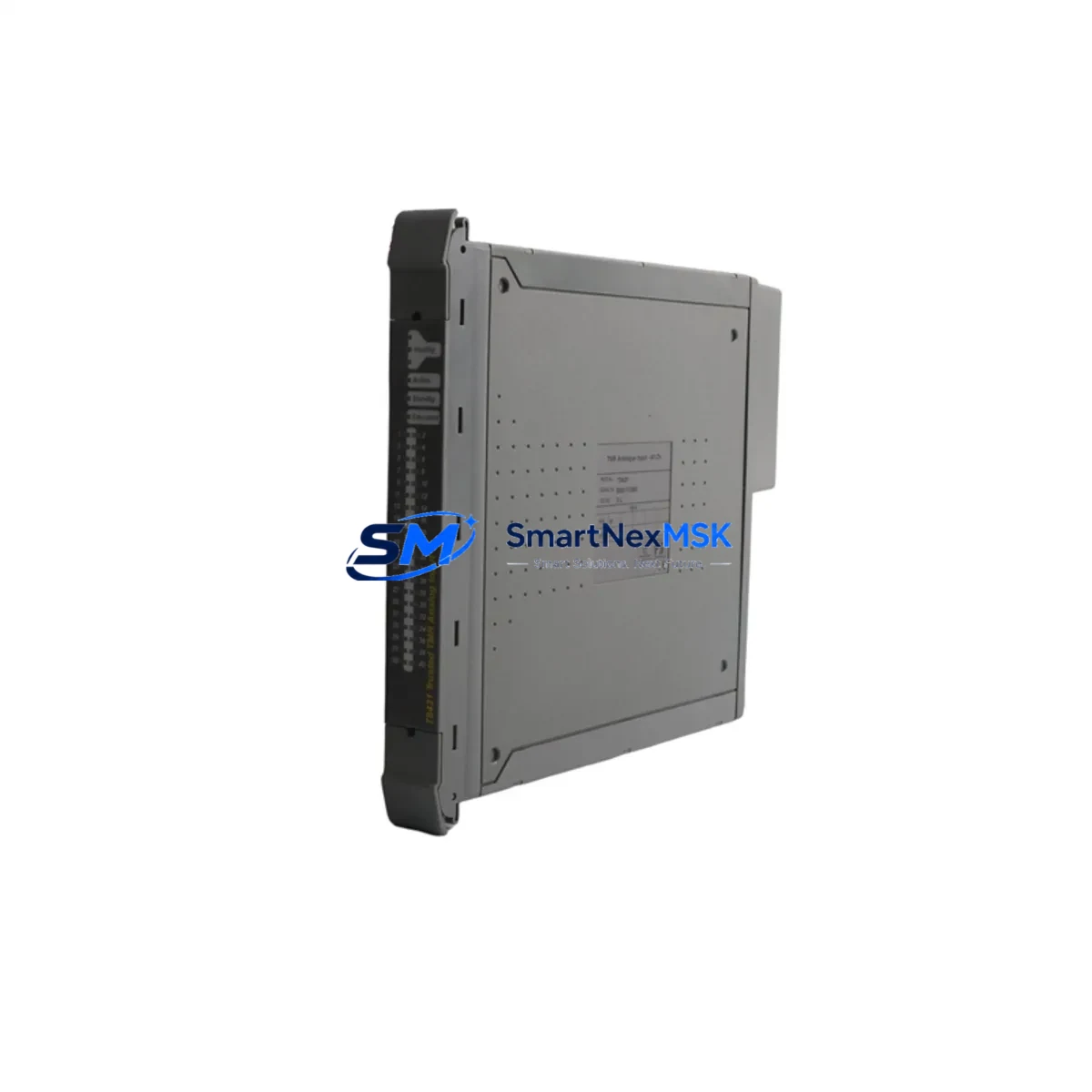

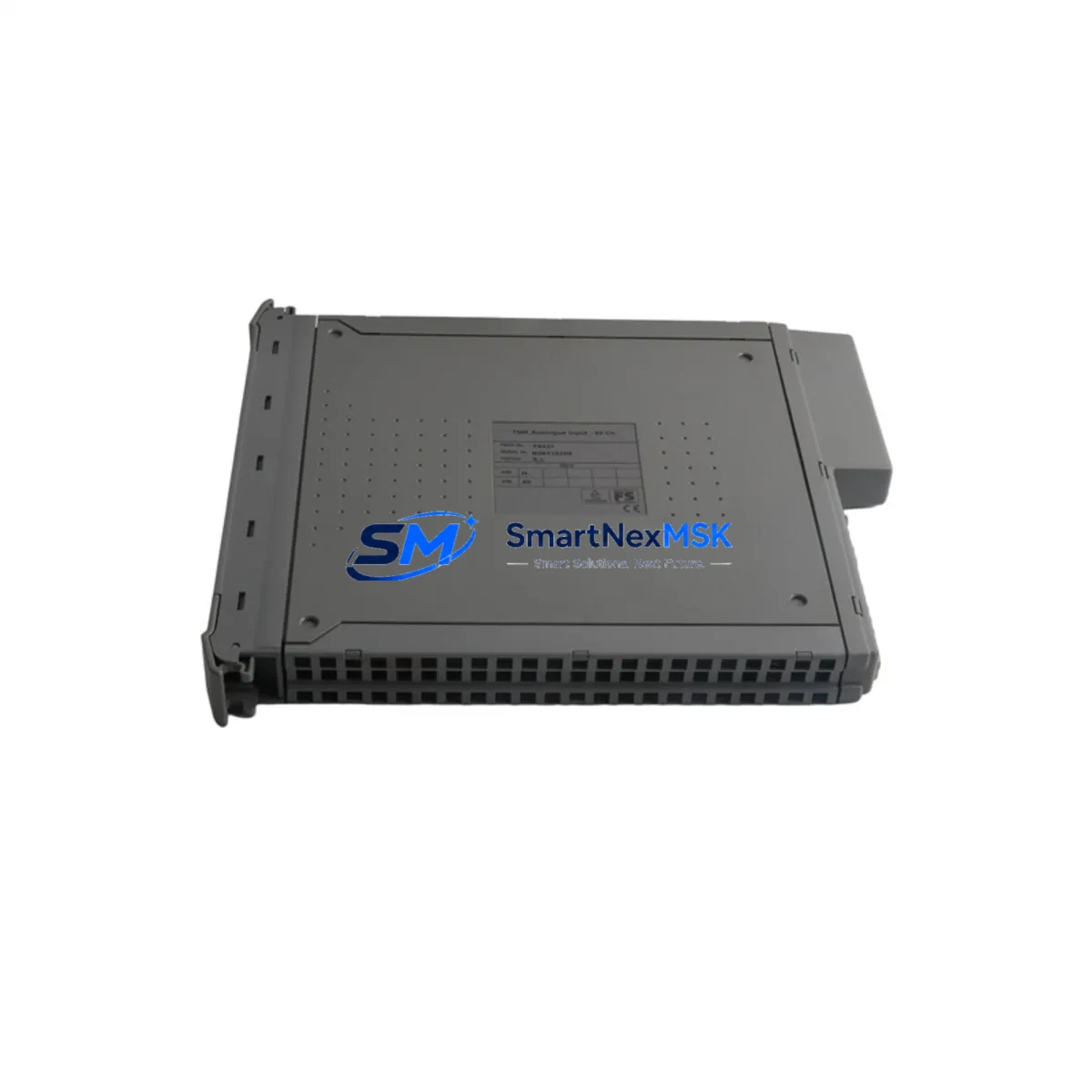

The ICS Triplex T8310C is a Triple Modular Redundant (TMR) Expander Processor Module designed for use within the Trusted Series safety-critical control platform. As legacy Trusted TMR systems approach end-of-life and original spare parts become increasingly difficult to source, the T8310C has become one of the most sought-after retrofit components for engineers tasked with extending the operational life of existing safety instrumented systems (SIS) and emergency shutdown (ESD) installations.

Whether you are managing a planned turnaround, responding to an unplanned module failure, or executing a phased control system modernization, the T8310C provides a verified drop-in replacement path that preserves your existing rack architecture, terminal wiring, and application logic. This module is fully compatible with the Trusted TMR chassis backplane and communicates natively with the Trusted system’s internal communication bus, eliminating the need for protocol conversion or gateway hardware during the replacement process.

Before committing to a T8310C swap in a live or recently de-energized system, engineers should verify several critical parameters. First, confirm that the host chassis — typically a Trusted T8100 series rack or T8110 expansion chassis — has sufficient backplane slot capacity and that the power supply module, such as the T8800 or T8810 series, can support the additional load introduced by the expander processor. Power budget calculations should account for all installed I/O modules, including analog input cards like the T8431 or T8451, digital output modules such as the T8461, and any communication interface cards currently occupying the rack.

Terminal wiring compatibility is a key advantage of the T8310C retrofit path. The module’s field termination assignments align with the original Trusted TMR wiring schedule, meaning that marshalling cabinet rewiring is typically not required. However, engineers should cross-reference the as-built wiring documentation against the T8310C terminal block pinout to confirm that any site-specific modifications made during the original commissioning have been captured. Pay particular attention to shield grounding practices and cable segregation requirements, which are especially important in high-noise industrial environments such as offshore platforms, petrochemical plants, and power generation facilities.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful T8310C retrofit begins well before the module arrives on site. The engineering team should prepare a detailed replacement plan that addresses module addressing, program backup, and I/O verification. Within the Trusted ToolSuite environment, the existing application program should be exported and archived before any hardware changes are made. This backup serves as the recovery baseline if the new module requires re-commissioning or if a configuration mismatch is detected during startup.

Module addressing within the Trusted TMR architecture is managed through the backplane slot assignment and the system configuration database. When inserting the T8310C into a previously occupied slot, the system should automatically recognize the module type and apply the stored configuration. However, in cases where the original module experienced a catastrophic failure that corrupted the backplane configuration, a manual address assignment via Trusted ToolSuite may be required. Engineers should have a laptop loaded with the correct version of Trusted ToolSuite and the appropriate project file available on site during the swap.

The retrofit plan should also account for associated modules that may need attention during the same maintenance window. Analog input modules such as the T8431 (8-channel AI) and T8451 (16-channel AI) should be inspected for terminal corrosion and calibration drift. Digital input modules like the T8420 and digital output modules such as the T8461 should be function-tested before the system is returned to service. If the installation includes a T8920 or T8930 communication module for Modbus or PROFIBUS connectivity, verify that the communication parameters — baud rate, parity, station address — are correctly configured and that the host SCADA or DCS system is receiving valid data after the T8310C is installed.

For systems that include an HMI interface, such as a Wonderware InTouch or Ignition-based operator station connected via OPC-DA or OPC-UA, the HMI tag database should be validated after the retrofit to confirm that all process variable tags are updating correctly. Any alarm setpoints or interlock logic that references the expander processor’s I/O channels should be verified against the original functional safety specification before the system is declared ready for service.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing a TMR expander processor in a live safety system. The T8310C’s hot-swap capability — where supported by the installed firmware revision and chassis configuration — allows the module to be replaced without a full system shutdown, provided that the remaining TMR voting channels maintain process control continuity during the swap interval. Before attempting a hot-swap, confirm with the site safety authority that the reduced-redundancy operating window is acceptable under the applicable functional safety standard, such as IEC 61511 or IEC 61508.

Where a cold swap is required, the shutdown sequence should be coordinated with the control room to ensure that all field devices are placed in a safe state before the module is removed. The T8310C should be handled using appropriate ESD precautions — grounded wrist strap and anti-static packaging — to prevent damage to the module’s internal processor and memory components. Upon reinsertion, allow the module sufficient time to complete its self-test and synchronization cycle before initiating the system startup sequence.

To further protect the original program logic, ensure that the Trusted ToolSuite project file version matches the firmware version running on the T8310C. A version mismatch between the engineering software and the module firmware is one of the most common causes of extended commissioning time during retrofit projects. Keeping a validated, version-controlled copy of the project file in a secure engineering document management system eliminates this risk and allows the site team to restore normal operation with confidence.

Retrofit Support FAQ

Q: Is the T8310C a direct drop-in replacement for the T8310 and T8310B?
A: Yes. The T8310C is backward compatible with earlier T8310 series expander processor revisions. It installs into the same backplane slot, uses the same terminal wiring, and is recognized by the Trusted ToolSuite software without requiring a project file modification in most standard configurations. Minor firmware differences between revisions should be reviewed in the ICS Triplex release notes prior to installation.

Q: What pre-shipment testing is performed on the T8310C?
A: Each T8310C unit undergoes functional power-on testing and diagnostic verification prior to dispatch. The module is confirmed to complete its internal self-test sequence and communicate correctly on the Trusted TMR backplane bus. A test report is available upon request. All units are covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions.

Q: How do I verify wiring compatibility before installing the T8310C?
A: Cross-reference the T8310C terminal block pinout diagram (available in the ICS Triplex Trusted TMR hardware manual) against your as-built wiring schedule. Pay particular attention to power input terminals, backplane connector alignment, and any site-specific wiring modifications. If the original module was installed with a T8920 communication interface or T8461 digital output module in adjacent slots, confirm that the backplane connector seating is correct for all adjacent modules after the T8310C is inserted.

Q: What is the lead time and warranty coverage for the T8310C?
A: Units held in stock are available for same-day or next-business-day dispatch. International shipments are supported with full export documentation. The T8310C is covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed directly — contact our technical team for RMA authorization and return instructions.
