ICS Triplex T8311C Spare for T8000 TMR Automation

ICS Triplex T8311C Spare for T8000 TMR Automation: Spare Replacement & Industrial Downtime Risk Control

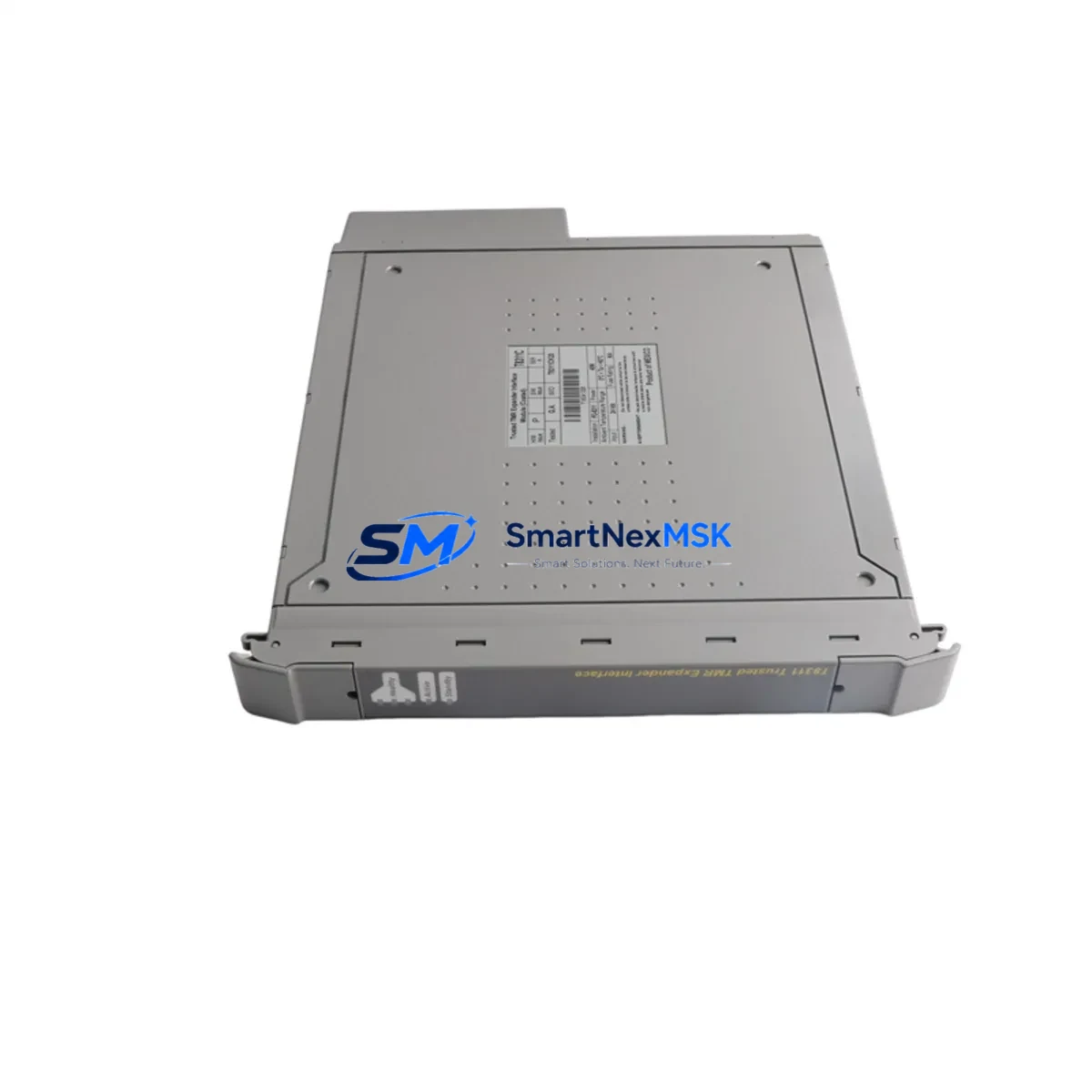

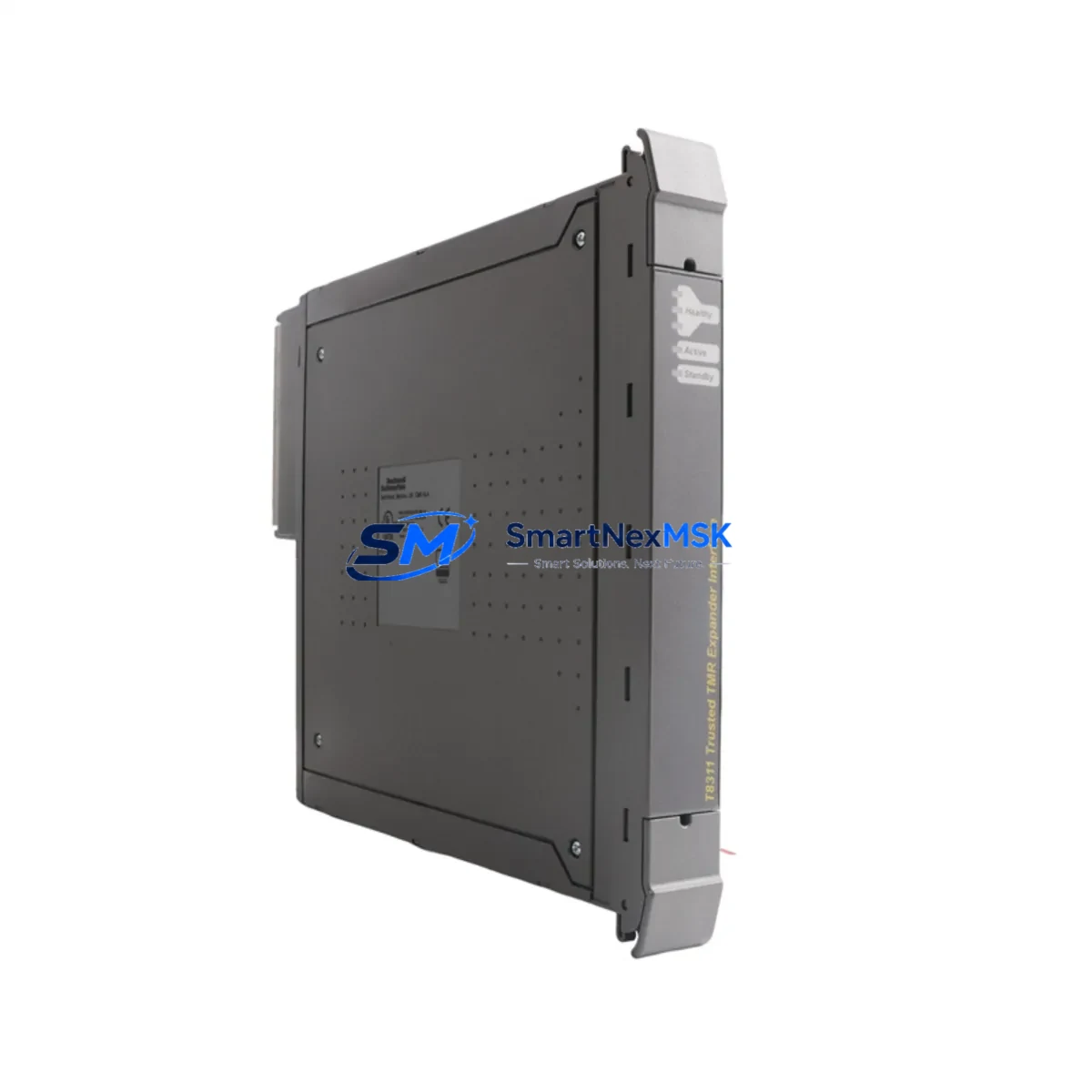

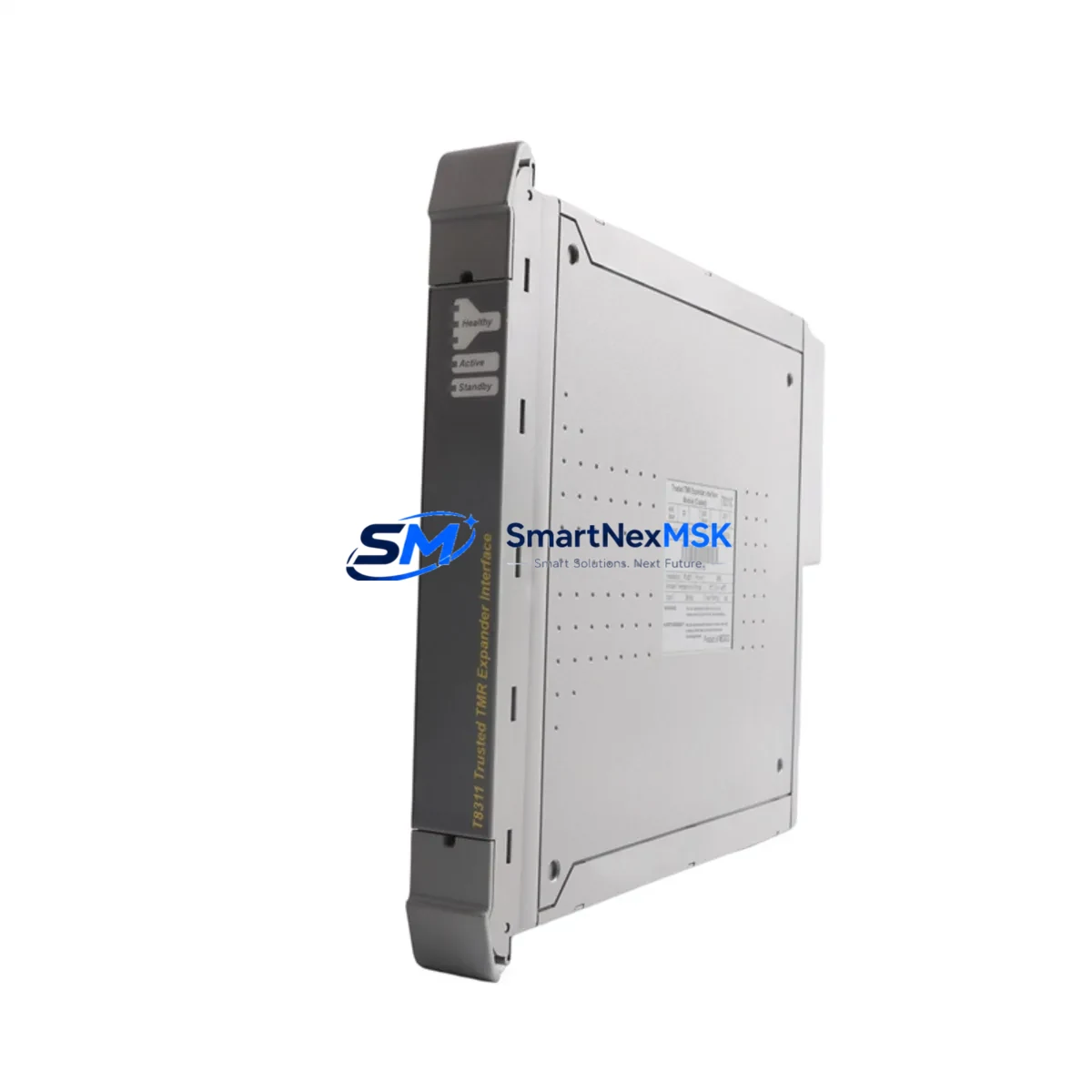

The ICS Triplex T8311C is a Triple Modular Redundancy (TMR) Expander Interface Module designed for use within the ICS Triplex T8000 series safety system architecture. As a SIL 3-certified original spare, the T8311C plays a critical role in maintaining the integrity of safety-instrumented systems (SIS) across oil & gas, petrochemical, power generation, and heavy industrial environments. When a T8311C fails or reaches end-of-service life, rapid replacement is essential to restore full TMR voting logic and prevent unplanned process shutdowns.

Maintenance engineers and procurement teams sourcing a replacement T8311C should verify that the unit is an original ICS Triplex component — not a counterfeit or incompatible substitute. Our T8311C units are sourced from authorized channels, tested prior to dispatch, and shipped with a 12-month warranty to support your spare parts lifecycle strategy.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the T8311C in a live T8000 TMR safety system, a disciplined maintenance approach minimizes risk and ensures the system returns to full SIL 3 operational status. Maintenance engineers should treat the T8311C replacement as part of a broader control cabinet inspection rather than an isolated swap.

Begin by verifying the health of the T8110 TMR Power Supply Module — a degraded power supply is a common root cause of expander interface faults and should be inspected or replaced concurrently. Check the T8100 TMR Processor Module for firmware version compatibility with the replacement T8311C, as mismatched firmware can cause communication faults on the TMR backplane.

Inspect all T8431 Digital Input Modules and T8451 Digital Output Modules connected through the expander interface for signal integrity. Loose field wiring, corroded terminal blocks, or degraded I/O modules can cause false diagnostics that are incorrectly attributed to the expander interface itself. Terminal blocks and field wiring connectors should be torqued to specification and visually inspected for oxidation.

For systems with communication-intensive architectures, verify the status of the T8831 Communication Interface Module and any associated Modbus or PROFIBUS gateway modules in the cabinet. A faulty communication module can mask or amplify faults originating in the expander interface layer. If the T8000 system interfaces with a Triconex or Yokogawa CENTUM VP DCS via hardwired I/O or serial links, confirm that signal levels and handshake protocols remain within specification after the T8311C replacement.

Signal isolators installed between the T8311C expander outputs and field devices — particularly in hazardous area installations — should be tested for loop integrity. Aging Pepperl+Fuchs or MTL signal isolators in the same cabinet may introduce ground loops or signal drift that complicate post-replacement commissioning. Fuse ratings on the expander interface power rails should also be verified; a blown or undersized fuse can cause intermittent module resets that mimic hardware failure.

Finally, if the T8000 system includes an operator interface, confirm that the HMI display or engineering workstation running ICS Triplex TriStation 1131 software correctly reflects the restored TMR module status after the T8311C is seated and the system performs its self-test cycle. Document the replacement in your maintenance management system (CMMS) and update the spare parts register accordingly.

Site Replacement Workflow

The T8311C is designed for hot-swap replacement within the T8000 TMR chassis, allowing maintenance teams to restore full TMR redundancy without a full system shutdown in most configurations. However, site-specific safety procedures and permit-to-work requirements must always be followed before any module is removed from a live SIS cabinet.

Step 1 — Pre-replacement verification: Confirm the T8311C fault via the TriStation 1131 diagnostic interface. Log the fault code and verify that the remaining two TMR channels are operating correctly before proceeding. Do not replace the module if two or more channels are simultaneously faulted — escalate to a full system review.

Step 2 — Spare verification: Confirm the replacement T8311C part number, firmware label, and hardware revision match the installed unit. Our units are pre-tested and shipped with a test certificate. Retain the original packaging and documentation for traceability.

Step 3 — Module swap: Following ICS Triplex hot-swap procedures, extract the faulted T8311C and insert the replacement unit. The T8000 backplane will initiate an automatic self-test and synchronization sequence. Monitor the TriStation 1131 interface for successful module recognition and TMR voting restoration.

Step 4 — Post-replacement validation: Verify all I/O channels connected through the expander interface are reading correctly. Perform a loop check on critical field signals. Confirm SIL 3 voting integrity is restored across all three TMR channels before closing the work permit.

Step 5 — Documentation: Record the replacement in your CMMS, update the spare parts inventory, and order a replacement T8311C to restore your on-site buffer stock. Long-term supply continuity for legacy T8000 series modules requires proactive procurement — lead times for original ICS Triplex spares can extend significantly as the platform ages.

Spare Parts Support FAQ

Q1: Is the T8311C still available as a new original spare, or only as refurbished stock?
We supply original ICS Triplex T8311C units sourced from authorized distribution channels. Each unit undergoes functional testing prior to dispatch. Where new stock is unavailable, we supply fully tested original units with equivalent performance and the same 12-month warranty. Condition is clearly stated on the order confirmation.

Q2: How do I verify compatibility between a replacement T8311C and my existing T8000 TMR system?
Compatibility is determined by hardware revision and firmware version. Provide your existing T8311C part label details (including any suffix codes) and your TriStation 1131 software version when placing your order. Our technical team will confirm compatibility before shipment. In most cases, the T8311C is backward-compatible across T8000 series chassis generations.

Q3: What pre-shipment testing is performed on the T8311C?
Each T8311C is powered up and subjected to functional diagnostics prior to dispatch. We verify module self-test pass status, backplane communication integrity, and I/O channel response. A test record is available upon request. Units are packed in anti-static ESD-safe packaging for transit protection.

Q4: What is the recommended spare parts stocking strategy for T8000 series TMR systems?
For critical SIS applications, we recommend maintaining a minimum of one T8311C on-site as a cold standby spare, with a second unit held at your regional maintenance hub. Given the aging T8000 platform and tightening global supply of original ICS Triplex modules, procurement teams should consider securing a 2–3 year forward stock position. We offer long-term supply agreements and reserved inventory programs for high-volume customers.
