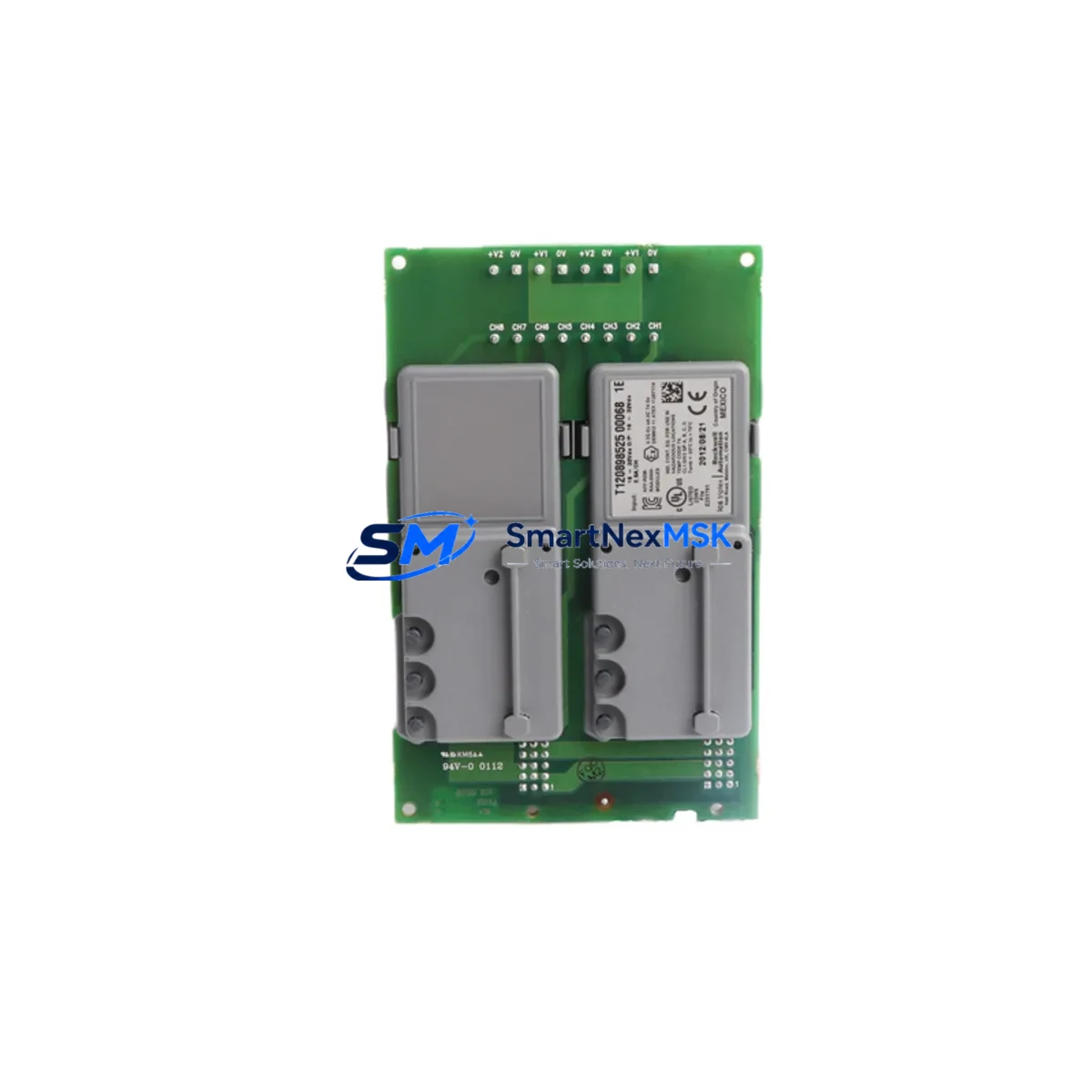

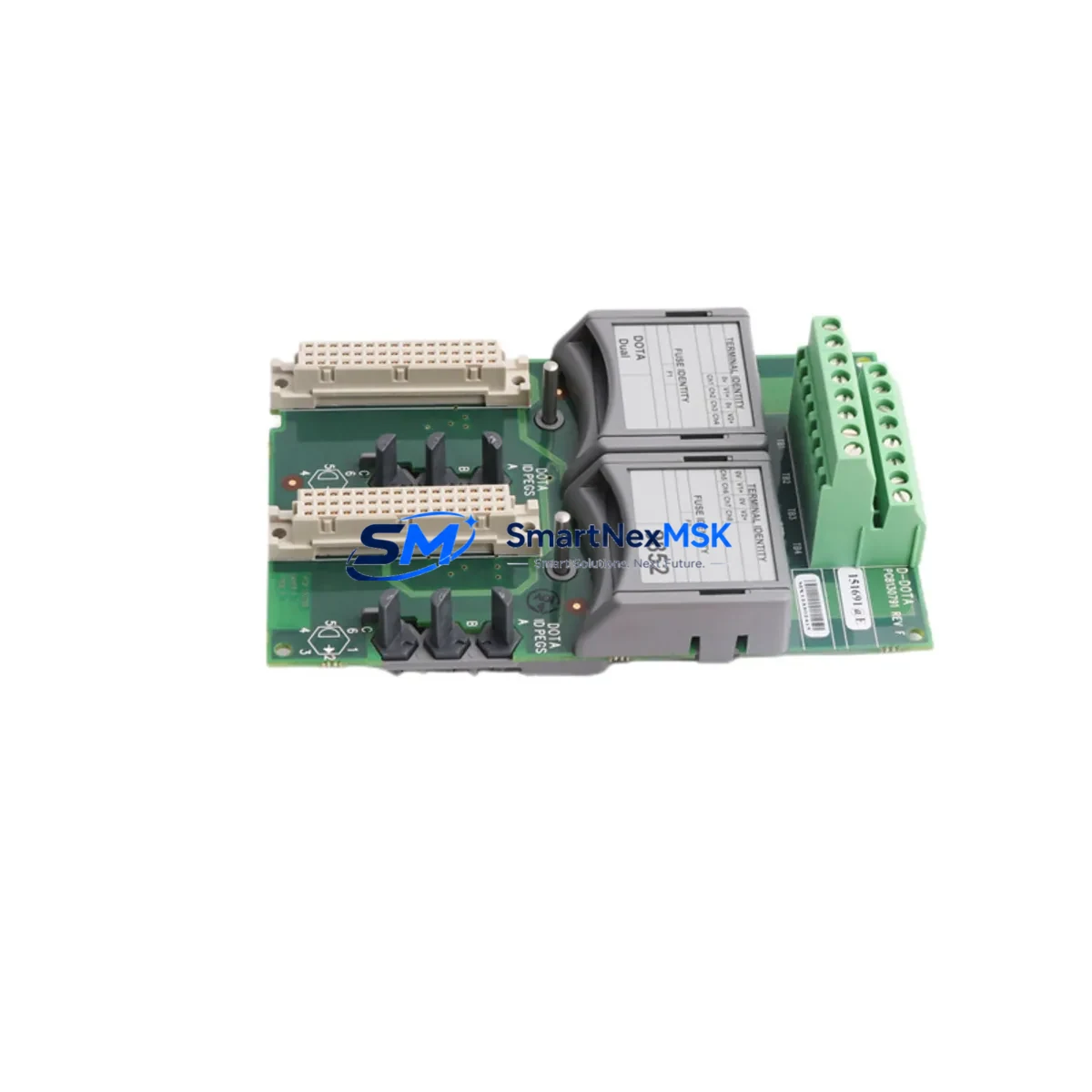

ICS Triplex T9852 Safety-Enhanced Digital Output Module

ICS Triplex T9852 Safety-Enhanced Digital Output Module: Reliable Control for Harsh Industrial Sites

The ICS Triplex T9852 is a Triple Modular Redundancy (TMR) digital output module engineered for Safety Instrumented Systems (SIS) operating in the most demanding industrial environments. Designed to meet IEC 61511 and IEC 61508 functional safety standards, the T9852 delivers continuous, fault-tolerant output control across petrochemical plants, power generation facilities, offshore platforms, mining operations, and heavy manufacturing sites where control loop integrity is non-negotiable.

In high-load, high-interference production environments, a single point of output failure can cascade into unplanned shutdowns, process upsets, or — in the worst case — safety-critical incidents. The T9852 eliminates this risk through its TMR architecture: three independent output channels vote continuously, ensuring that any single-channel fault is detected, isolated, and overridden without interrupting the output signal to field actuators. This architecture is the foundation of its SIL 2 / SIL 3 capability and makes it the preferred choice for critical interlock loops, emergency shutdown (ESD) systems, and fire-and-gas (F&G) control cabinets.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered safety control cabinet, the T9852 digital output module does not operate in isolation — it is one critical node in a layered protection architecture. When integrated into an ICS Triplex Trusted® TMR chassis, the T9852 works in concert with the ICS Triplex T9110 TMR Processor Module, which handles the safety logic execution and voting arbitration. The processor continuously monitors the health of each output channel on the T9852, flagging any deviation before it can propagate to a field device.

Power integrity is equally critical. The T9852 is typically powered through a ICS Triplex T9200 Power Supply Module or equivalent redundant DC power distribution unit, ensuring that power rail fluctuations — common in heavy industrial environments with large motor drives and welding equipment — do not induce spurious output trips or module lockouts. Upstream, a quality 24 VDC redundant power supply with active current sharing further buffers the module from transient voltage events.

Signal integrity between the T9852 and field actuators — solenoid valves, motor starters, relay coils — is protected by proper cable segregation and, where required, galvanically isolated signal conditioners or intrinsic safety barriers (such as Zener barriers or galvanic isolators) for installations in Zone 1 or Zone 2 hazardous areas. In high-noise environments with variable frequency drives (VFDs) or large contactors, shielded twisted-pair field wiring and proper cabinet grounding are essential companions to the T9852’s built-in EMI immunity.

For communication redundancy, the T9852 operates within the Trusted® system’s dual-redundant communication backplane, which ensures that a single backplane fault does not interrupt the output command path. Alongside the T9852, engineers frequently deploy the ICS Triplex T9700 Digital Input Module to close the safety loop — reading field feedback signals (valve position, motor status) and feeding them back to the TMR processor for interlock verification. In mixed analog-digital safety loops, the ICS Triplex T9851 Analog Output Module or T9701 Analog Input Module may also be present in the same chassis, sharing the same redundant power and communication infrastructure.

For installations requiring HART pass-through on output channels, or where field device diagnostics are integrated into the safety system, the T9852 is often paired with a HART multiplexer connected to the Trusted® system’s maintenance port, enabling non-intrusive field device health monitoring without breaking the safety loop. This comprehensive cabinet architecture — combining the T9852 with redundant processors, power supplies, input modules, and communication infrastructure — forms a robust, multi-layer defense against control interruption, signal drift, and unplanned process shutdown.

Critical Industrial Safety Applications

The ICS Triplex T9852 has a proven deployment record across the most demanding safety-critical industries worldwide.

Petrochemical and Refining: In crude distillation units, hydrocracker reactors, and LNG liquefaction trains, the T9852 drives ESD solenoid valves and high-integrity pressure protection system (HIPPS) actuators. Its TMR voting architecture ensures that a single output channel fault — caused by thermal stress, vibration, or electrical transient — does not result in a spurious trip or, worse, a failure to trip on demand. SIL 3 capability makes it suitable for the highest-consequence interlock loops in these facilities.

Power Generation: In gas turbine control systems, boiler management systems (BMS), and nuclear auxiliary systems, the T9852 provides the reliable digital output switching required for burner management interlocks, turbine trip circuits, and generator protection relays. Its continuous self-diagnostics and fault annunciation allow maintenance teams to identify degraded channels during scheduled maintenance windows without taking the safety system offline.

Mining and Minerals Processing: Underground mining environments subject control hardware to extreme vibration, dust ingress, and wide temperature swings. The T9852’s ruggedized design and wide operating temperature range make it suitable for conveyor interlock systems, ventilation fan control, and hoisting safety circuits in these harsh conditions.

Water and Wastewater Treatment: In large municipal water treatment plants and industrial effluent systems, the T9852 controls pump trip circuits, chemical dosing interlock valves, and overflow prevention systems. Its high EMI immunity is particularly valuable in facilities with large submersible pump motors and variable speed drives that generate significant electrical noise.

Metallurgy and Steel Production: Continuous casting lines, electric arc furnaces, and rolling mill control systems demand output modules that can withstand intense electromagnetic interference from high-current switching equipment. The T9852’s IEC 61000-4-3 and IEC 61000-4-5 compliance ensures stable output performance even in close proximity to high-power induction heating and arc furnace equipment.

Port and Terminal Automation: In automated container terminals and bulk liquid terminals, the T9852 is used in fire suppression system control panels, emergency stop circuits for ship-to-shore cranes, and loading arm interlock systems — applications where a missed output command could result in significant safety or environmental consequences.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the ICS Triplex T9852?
The 12-month warranty covers all manufacturing defects, component failures, and functional output faults under normal operating conditions. If the module fails to perform its specified digital output switching function within the warranty period, we will repair or replace it at no charge. The warranty period begins from the date of shipment and is supported by our technical team throughout.

Q2: What pre-shipment testing is performed on the T9852 before dispatch?
Every ICS Triplex T9852 unit undergoes a full functional verification test prior to shipment. This includes output channel switching tests across all 8 channels, TMR voting logic verification, power supply input range testing, and diagnostic self-test confirmation. Units that do not pass all test criteria are quarantined and not dispatched. A test record is available upon request.

Q3: Is the T9852 compatible with my existing ICS Triplex Trusted® system?
Yes. The T9852 is designed for direct installation into the ICS Triplex Trusted® TMR chassis and is compatible with the T9000-series system backplane. It is backward-compatible with existing Trusted® system configurations and does not require firmware changes to the T9110 processor module in most standard installations. If you have a specific chassis revision or firmware version, our technical team can confirm compatibility before shipment.

Q4: Can you guarantee long-term supply and replacement support for the T9852?
Yes. We maintain dedicated stock of the ICS Triplex T9852 and key companion modules to support both planned maintenance programs and emergency replacement requirements. For facilities with long operational lifecycles — refineries, power plants, and continuous process plants — we recommend establishing a consignment stock or scheduled replenishment agreement to ensure spare availability. Our team can provide lead time commitments and support multi-year supply planning for critical spare parts programs.
