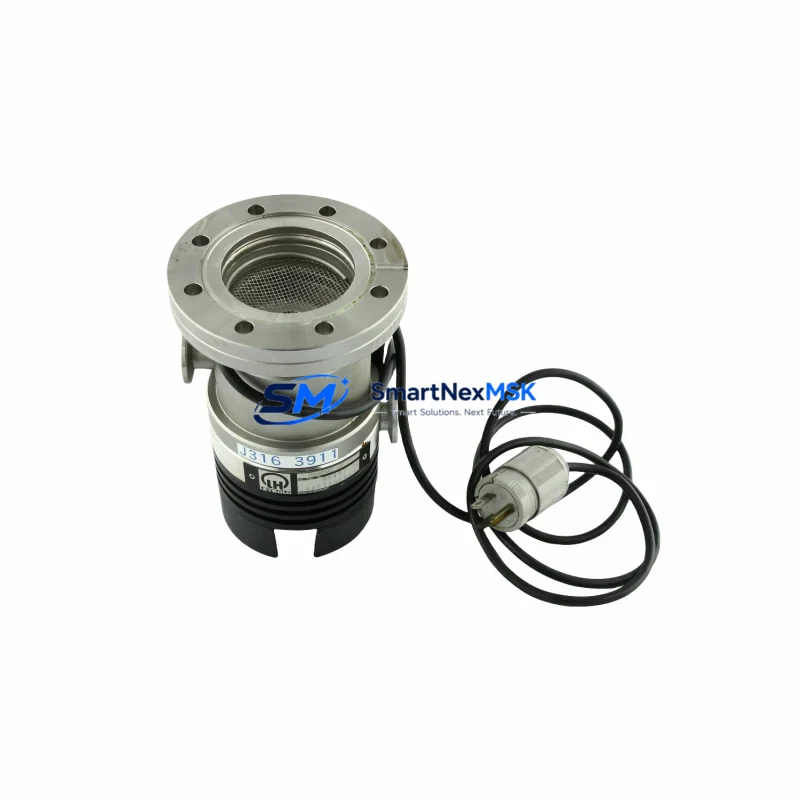

Leybold 300S0042-03 Retrofit-Ready Sensor for TURBOVAC 50 Control Systems
The Leybold 300S0042-03 is a precision turbomolecular pump sensor engineered for seamless retrofit integration into TURBOVAC 50 Series vacuum systems. Designed as a direct-compatible replacement for aging or discontinued sensor assemblies, this 7-stage S2-48 configuration delivers 220W operational performance with full mechanical and electrical compatibility to the original TURBOVAC 50 platform. Whether you are managing a scheduled overhaul, responding to an unplanned sensor failure, or executing a broader vacuum system modernization, the 300S0042-03 provides a verified drop-in upgrade path that minimizes engineering risk and reduces total downtime.
Sourced directly from Leybold-authorized supply channels and shipped from verified stock, each unit undergoes pre-shipment functional verification before dispatch. A 12-month warranty is included as standard, covering manufacturing defects and performance deviations under normal operating conditions.
Upgrade Compatibility Table
| Parameter | Specification / Retrofit Guidance |
|---|---|
| Part Number | 300S0042-03 (Leybold OEM Reference) |
| Compatible Platform | TURBOVAC 50 Series Turbomolecular Pump |
| Stage Configuration | 7-Stage S2-48 |
| Power Rating | 220W |
| Mounting Interface | Direct flange-mount; compatible with standard TURBOVAC 50 bearing housing |
| Electrical Interface | Connector-compatible with TURBOVAC 50 frequency converter and TC 110 / TC 600 controllers |
| Communication Compatibility | RS-232 / RS-485 interface via Leybold TC-series drive electronics; no protocol migration required |
| Replacement Recommendation | Direct replacement for worn or failed 300S0042-03 assemblies; verify rotor clearance before installation |
| Commissioning Notes | Re-zero speed reference in TC controller after installation; confirm bearing temperature within 15 min of first spin-up |
| Warranty | 12 months from date of shipment; covers manufacturing defects under normal operating conditions |
Retrofit Planning for Existing Automation Systems
Integrating the 300S0042-03 into an existing vacuum automation line requires a structured pre-installation review. Begin by confirming that the host system’s Leybold TC 110 or TC 600 frequency converter is firmware-current, as older firmware revisions may not correctly interpret the sensor’s speed feedback signal. If the system uses a TURBOVAC 50i variant with integrated electronics, verify that the internal PCB revision is compatible with the S2-48 rotor geometry before proceeding.
For facilities running the TURBOVAC 50 alongside a broader vacuum network — for example, a backing pump such as the Leybold TRIVAC D 2.5E or SOGEVAC SV 10 — confirm that the foreline pressure remains within the turbopump’s inlet tolerance during the transition period. A temporary bypass valve or isolation gate valve should be staged before the sensor swap to protect the rotor during venting and re-evacuation cycles.
Wiring adaptation is straightforward for most TURBOVAC 50 installations. The sensor harness connects to the TC controller’s standard 15-pin D-sub interface. If the existing cable assembly shows insulation degradation — common in systems operating above 60°C ambient — replace the cable with a shielded equivalent rated for the environment. The Leybold 200 54 000 accessory cable set is a compatible option for extended-reach installations.
Facilities that monitor vacuum levels via a Leybold IONIVAC ITR 90 or PENNINGVAC PTR 90 gauge should recalibrate the gauge zero after the sensor replacement, as rotor geometry changes can subtly affect the pumping speed curve at pressures below 10⁻⁴ mbar. If the control system feeds vacuum data to a PLC — such as a Siemens S7-300 or Allen-Bradley ControlLogix — verify that the analog output scaling from the TC controller remains within the PLC’s configured input range after commissioning.
For systems where the TURBOVAC 50 is rack-mounted in a Leybold MAG.DRIVE or custom control cabinet, confirm that the cabinet’s 24VDC auxiliary rail can sustain the sensor’s startup inrush without triggering the cabinet’s overcurrent protection. The 300S0042-03 draws a brief 3–5A inrush during rotor acceleration; most standard 10A DIN rail breakers handle this without adjustment, but aging breakers with reduced trip thresholds may require replacement.
Downtime Control During System Migration
Minimizing production downtime during a TURBOVAC 50 sensor replacement begins with pre-staging all components before the maintenance window opens. Confirm that the replacement 300S0042-03 unit, the TC controller configuration backup, and any required tooling — including the Leybold rotor extraction tool and torque wrench set — are on-site before venting the system.
Back up the TC 110 or TC 600 controller parameters using the Leybold LeyboldService software or a direct RS-232 terminal session before disconnecting any hardware. This preserves the speed setpoint, ramp rate, vent valve timing, and interlock logic that may have been customized for the specific process. Restoring these parameters after sensor installation takes less than five minutes and eliminates the risk of re-commissioning errors.
During the physical swap, vent the system to dry nitrogen rather than ambient air wherever possible. This protects the new rotor’s bearing surfaces from moisture contamination and reduces the pump-down time required to reach base pressure after reassembly. A typical TURBOVAC 50 system reaches 10⁻⁵ mbar within 45–90 minutes of restart when vented with dry nitrogen, compared to 2–4 hours when vented to humid ambient air.
After installation, perform a controlled spin-up sequence: allow the rotor to reach 50% of rated speed before enabling the full acceleration ramp. Monitor bearing temperature via the TC controller’s diagnostic display. If temperature stabilizes within ±5°C of the pre-replacement baseline within 20 minutes, the installation is confirmed successful. Log the commissioning data — spin-up time, bearing temperature, base pressure achieved — for the maintenance record and warranty documentation.
Retrofit Support FAQ
Q: Is the 300S0042-03 a direct drop-in replacement for the original TURBOVAC 50 sensor assembly?
A: Yes. The 300S0042-03 is dimensionally and electrically compatible with the original TURBOVAC 50 sensor housing. No mechanical adaptation or wiring modification is required for standard installations. Verify rotor clearance and bearing housing condition before installation to ensure the replacement seats correctly.
Q: What commissioning steps are required after installation?
A: After physical installation, restore the TC controller parameters from your pre-maintenance backup, perform a controlled spin-up to 50% speed, and confirm bearing temperature stability within 20 minutes. Recalibrate any connected vacuum gauges if the system operates below 10⁻⁴ mbar. Full commissioning typically takes 60–90 minutes for an experienced technician.
Q: Can this sensor be used with third-party frequency converters or non-Leybold TC controllers?
A: The 300S0042-03 is optimized for use with Leybold TC 110 and TC 600 series controllers. Use with third-party drives is possible in principle but requires verification of the speed feedback signal format and connector pinout compatibility. Contact our technical team for application-specific guidance before proceeding with non-standard controller pairings.
Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and performance deviations under normal operating conditions from the date of shipment. It does not cover damage resulting from improper installation, contamination, operation outside rated parameters, or physical impact. Each unit is functionally tested before dispatch; test records are available upon request.
