MCGS TPC1062K Safety-Enhanced HMI for Harsh Industrial Sites

MCGS TPC1062K Safety-Enhanced HMI for Harsh Industrial Sites

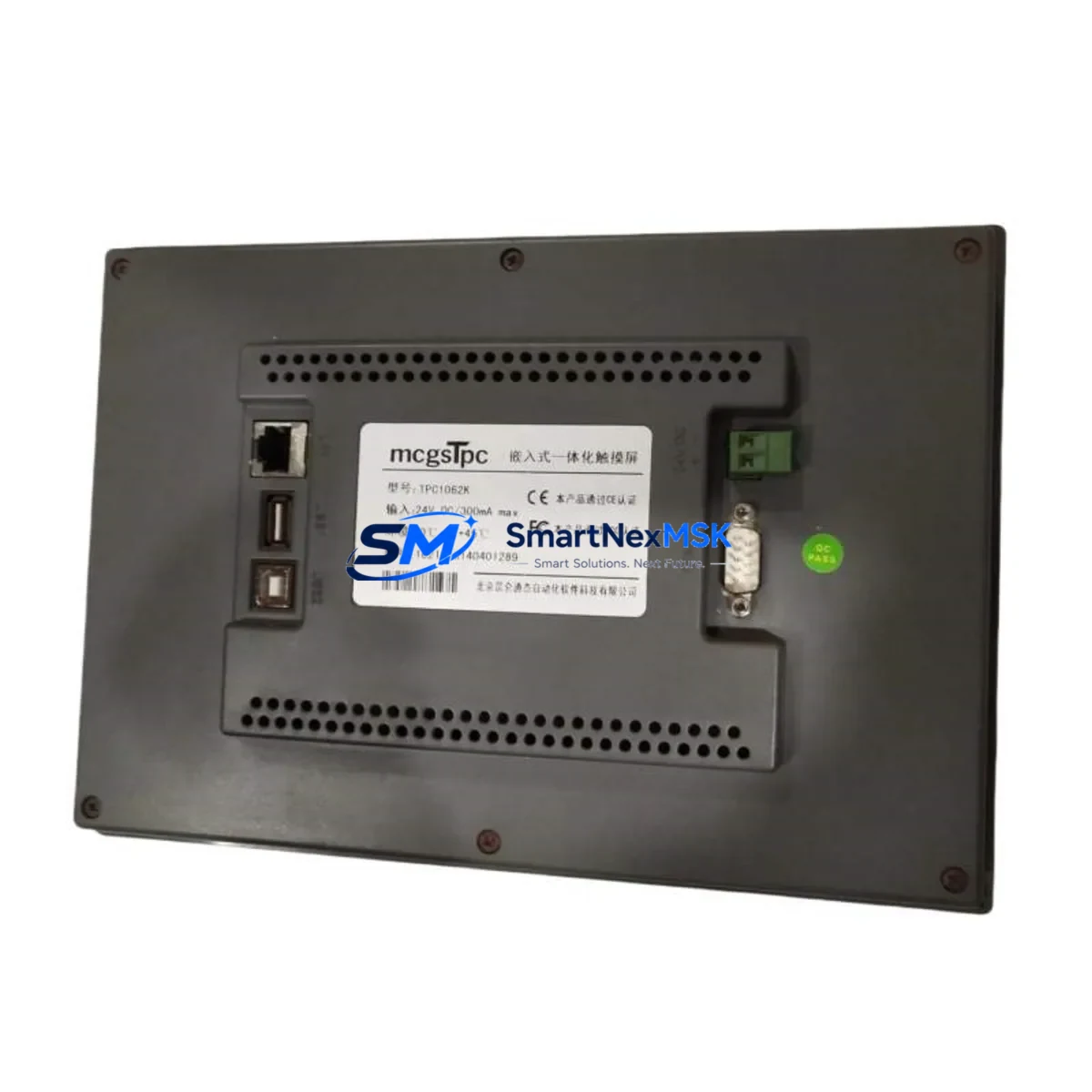

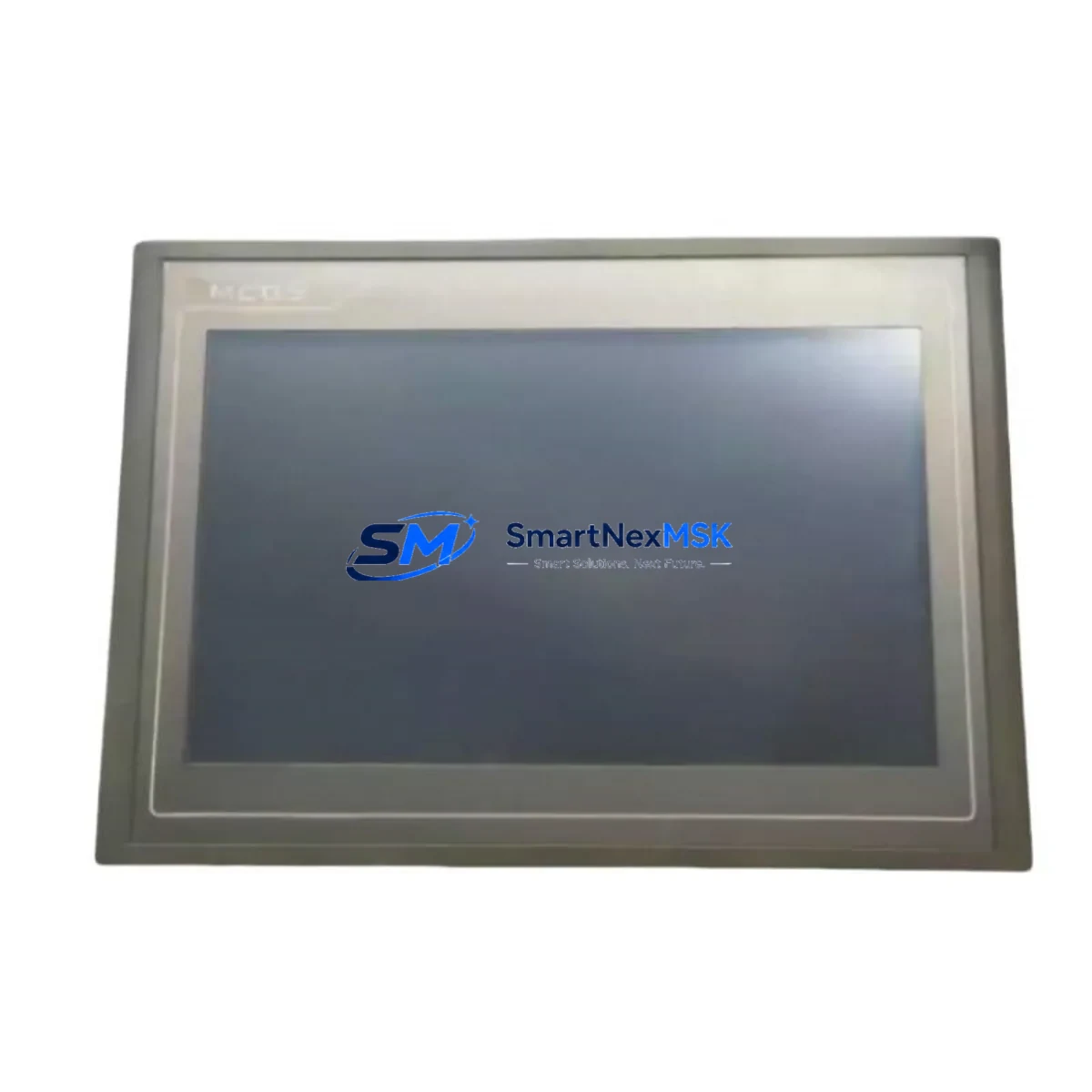

The MCGS TPC1062K is a 10.2-inch ruggedized Human-Machine Interface (HMI) touch panel engineered for mission-critical industrial control environments where safety, signal integrity, and continuous uptime are non-negotiable. Designed under MCGS’s Kunlun TPC Series platform, the TPC1062K delivers robust, safety-grade operator interaction for control cabinets, distributed control systems, and critical interlock loops operating in petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical processes, port logistics, and continuous manufacturing lines.

In high-load, high-interference industrial environments, the TPC1062K’s reinforced aluminum alloy housing and IP65-rated front panel provide a reliable physical barrier against dust ingress, water splash, and mechanical shock — common hazards in heavy industrial control cabinets. Its wide operating temperature range (typically -20°C to +60°C) ensures stable display and touch response even in outdoor substations, cold-chain facilities, or high-heat furnace control rooms where standard commercial HMIs would fail prematurely.

Signal integrity is a primary safety concern in industrial automation. The TPC1062K incorporates EMI-resistant circuitry and shielded communication ports, significantly reducing the risk of signal drift, spurious touch events, and communication anomalies that can trigger unintended actuator responses or mask critical alarm states. When integrated with MCGS MCGSPRO configuration software, operators gain real-time visibility into process variables, alarm histories, and interlock status — enabling faster, safer decision-making during abnormal operating conditions.

Power supply stability directly impacts HMI reliability. The TPC1062K accepts a wide DC input range (typically 24VDC ±20%), providing tolerance against power fluctuations and voltage surges common in industrial environments with large motor loads or frequent switching operations. This wide-range power acceptance, combined with internal surge protection, reduces the risk of unexpected HMI reboots that could leave operators without process visibility during critical transitions.

For control cabinet integration, the TPC1062K is commonly deployed alongside MCGS MCGSPRO-compatible I/O expansion modules, MCGS communication gateways, and third-party PLCs such as Siemens S7-1200, Mitsubishi FX5U, or Omron NX/NJ series controllers via RS-485 Modbus RTU or Ethernet Modbus TCP protocols. In safety interlock architectures, the HMI serves as the operator interface layer above the safety PLC (SIS), displaying permissive states, bypass status, and emergency shutdown (ESD) triggers without interfering with the hardwired safety logic. Pairing the TPC1062K with a reliable 24VDC DIN-rail power supply — such as a MEAN WELL SDR-120-24 or equivalent — and a quality surge protection device (SPD) on the incoming power rail further hardens the installation against transient overvoltage events.

In distributed control architectures, the TPC1062K can communicate with remote I/O stations, field transmitters, and SCADA servers over industrial Ethernet, enabling centralized monitoring of multiple process units from a single operator station. When used in conjunction with fiber optic Ethernet switches or managed industrial switches (e.g., Moxa EDS series), the communication path is isolated from electrical noise generated by variable frequency drives (VFDs), contactors, and high-current bus bars — a critical consideration in steel mills, cement plants, and chemical reactors where electromagnetic interference levels are extreme.

Replacement and spare parts availability is a key factor in industrial safety planning. SMARTNEXMSK maintains verified stock of the MCGS TPC1062K and compatible Kunlun TPC Series HMIs, including the TPC1061Ti, TPC1070Ti, and TPC1562Ti, ensuring rapid spare deployment to minimize mean time to repair (MTTR) in the event of HMI failure. All units undergo pre-shipment functional testing covering display uniformity, touch calibration, communication port integrity, and power input range verification before dispatch.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust industrial control cabinet built around the MCGS TPC1062K requires a layered protection strategy that addresses power quality, signal integrity, communication reliability, and thermal management simultaneously. At the power entry point, a quality DIN-rail surge protection device (SPD) — such as a Phoenix Contact TRABTECH or equivalent Class II SPD — should be installed to clamp transient overvoltages before they reach the HMI’s 24VDC power supply. A MEAN WELL SDR-120-24 or SDR-240-24 DIN-rail power supply provides stable, regulated 24VDC with active power factor correction and built-in overload protection, ensuring the TPC1062K and co-located I/O modules receive clean, stable power even during grid disturbances.

For communication integrity, RS-485 signal lines connecting the TPC1062K to downstream PLCs — such as a Siemens S7-1200 CPU 1214C or Mitsubishi FX5U-32MT — should be routed in shielded twisted-pair cables, grounded at one end only, and physically separated from high-voltage AC wiring by a minimum of 200mm or by a grounded metal cable tray divider. Where Ethernet communication is used, a managed industrial Ethernet switch with port isolation and VLAN support (e.g., Moxa EDS-308 or Hirschmann RS20) prevents broadcast storms and isolates the HMI network segment from the plant-wide IT network.

In safety interlock applications, the TPC1062K operator interface should be logically separated from the hardwired safety circuit. The safety PLC — such as a Siemens S7-1500F or Rockwell GuardLogix — handles all SIL-rated interlock logic independently, while the TPC1062K provides operator visibility and non-safety command inputs. This architecture ensures that an HMI fault cannot compromise the integrity of the safety instrumented function (SIF). Alarm annunciator modules and hardwired pilot lights should be retained as independent indicators for critical process states.

Thermal management within the control cabinet is equally critical. The TPC1062K should be mounted away from heat-generating components such as variable frequency drives (VFDs), soft starters, and large contactors. Cabinet cooling — via filtered fan units, heat exchangers, or air conditioners rated for the ambient environment — should maintain internal cabinet temperature within the HMI’s specified operating range. A cabinet thermostat and thermal overload relay on the cooling system provide an additional layer of protection against thermal runaway.

Critical Industrial Safety Applications

The MCGS TPC1062K is deployed across a wide range of critical industrial safety applications where operator interface reliability directly impacts process safety and production continuity.

In petrochemical and refinery operations, the TPC1062K serves as the local operator panel for compressor control systems, pump station interlocks, and flare management panels. Its IP65 front panel and wide-temperature tolerance allow installation in Zone 2 classified areas (with appropriate enclosure) where flammable vapors may be present. Operators rely on the HMI’s clear display and responsive touch interface to monitor pressure, temperature, and flow variables and to acknowledge alarms without delay.

In power generation and substation control, the TPC1062K is used in transformer protection panels, generator synchronization stations, and UPS monitoring systems. Its EMI-resistant design is essential in high-voltage switchgear rooms where electromagnetic fields from bus bars and circuit breakers can disrupt lesser-protected equipment. The HMI’s Modbus TCP connectivity allows integration with energy management systems (EMS) and SCADA platforms for centralized grid monitoring.

In mining and mineral processing, the TPC1062K controls conveyor belt management systems, crusher interlock panels, and ventilation control stations in underground and surface operations. The ruggedized housing withstands vibration, dust, and humidity levels that would compromise standard commercial HMIs. Rapid spare availability from SMARTNEXMSK ensures that a failed HMI can be replaced within hours, minimizing costly production stoppages.

In water and wastewater treatment, the TPC1062K manages pump station controls, chemical dosing systems, and filtration process panels. Its wide DC input range accommodates the power quality variations common in remote pump stations supplied by long distribution lines or solar/battery hybrid systems. The HMI’s communication flexibility supports integration with both legacy Modbus RTU field devices and modern Ethernet-based SCADA systems.

In metallurgical and steel production, the TPC1062K is deployed in rolling mill control cabinets, furnace temperature management panels, and ladle crane interlock stations. The extreme electromagnetic interference generated by large electric arc furnaces and induction heating systems demands the EMI shielding and robust grounding design that the TPC1062K’s industrial-grade construction provides.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the MCGS TPC1062K?
The 12-month warranty covers all manufacturing defects, component failures, and functional anomalies that arise under normal operating conditions within the specified environmental and electrical parameters. It includes display panel defects, touch screen calibration failures, communication port malfunctions, and power supply input circuit failures. Physical damage caused by incorrect installation, overvoltage beyond the specified input range, or unauthorized modification is excluded. SMARTNEXMSK provides direct warranty support with replacement unit dispatch upon fault confirmation.

Q2: What pre-shipment testing is performed on each TPC1062K unit?
Every MCGS TPC1062K unit dispatched by SMARTNEXMSK undergoes a pre-shipment functional test covering: display uniformity and backlight brightness verification, resistive touch screen calibration and multi-point response test, RS-232, RS-485, and Ethernet port communication integrity check, 24VDC power input range test at nominal, low, and high voltage limits, and visual inspection for housing integrity and connector condition. A test record is maintained for each unit and is available upon request.

Q3: Is the MCGS TPC1062K compatible with third-party PLCs and SCADA systems?
Yes. The TPC1062K supports Modbus RTU (RS-485), Modbus TCP (Ethernet), and a wide range of proprietary PLC communication protocols through MCGS MCGSPRO driver libraries. It is compatible with Siemens S7-200/300/400/1200/1500, Mitsubishi FX/Q/iQ-R series, Omron CP/CJ/NX/NJ series, Delta DVP/AS series, and many other major PLC platforms. For SCADA integration, the HMI can act as a Modbus TCP server, exposing process data to supervisory systems including Wonderware, Ignition, and WinCC.

Q4: Can SMARTNEXMSK guarantee long-term supply and replacement support for the TPC1062K?
SMARTNEXMSK maintains verified stock of the MCGS TPC1062K and key Kunlun TPC Series variants to support long-term spare parts programs for industrial facilities. For customers with critical uptime requirements, we recommend establishing a consignment stock agreement or pre-ordering a designated quantity of spare units to ensure immediate availability in the event of HMI failure. Our team can advise on compatible replacement models within the MCGS Kunlun TPC Series should the TPC1062K reach end-of-life status during your facility’s operational lifecycle.
