MCGS TPC7062TX Retrofit-Ready HMI for TPC Series

MCGS TPC7062TX Retrofit-Ready HMI for TPC Series Control Systems

The MCGS TPC7062TX is a 7-inch industrial Human-Machine Interface (HMI) touch panel engineered for seamless retrofit integration into existing TPC Series control systems. Built on an ARM Cortex-A8 processor running Embedded Linux, it delivers an 800×480 resolution capacitive touchscreen with robust multi-protocol communication support — making it the preferred drop-in replacement for discontinued or end-of-life MCGS TPC Series panels across manufacturing, process control, and building automation environments.

Whether you are modernizing a legacy production line, recovering from a failed panel, or executing a planned control cabinet upgrade, the TPC7062TX is designed to minimize engineering rework. Its physical mounting footprint, terminal wiring layout, and communication port configuration are compatible with the majority of existing TPC Series enclosure cutouts, reducing mechanical modification time on-site. Engineers replacing older units such as the MCGS TPC7062K or TPC7062KX will find that the TPC7062TX retains backward-compatible serial port pinouts and supports the same MCGS MCGSPRO configuration software environment, allowing existing HMI project files to be migrated with minimal screen layout adjustment.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful TPC7062TX retrofit begins well before the panel arrives on-site. The first step is auditing the existing control cabinet to confirm the 24VDC power supply rail has sufficient capacity — the TPC7062TX draws up to 8W, and if the cabinet power supply is already loaded with a MCGS TPC1062K or a secondary Siemens SITOP PSU100S power module, a load calculation must be performed to avoid nuisance tripping during HMI boot-up.

Terminal wiring is the next critical checkpoint. The RS-485 communication cable connecting the HMI to the downstream PLC — often a Siemens S7-200 SMART, Mitsubishi FX3U, or Delta DVP series controller — must be verified for correct A/B polarity and termination resistance. If the legacy panel used a DB9 RS-232 connection to a Mitsubishi FX3G or an Omron CP1H, the TPC7062TX supports the same physical interface, but the driver selection in MCGSPRO must be updated to match the exact PLC model and firmware version.

Backplane and rack considerations apply when the TPC7062TX is installed alongside modular I/O systems. In cabinets where the HMI communicates over Ethernet to a Siemens S7-1200 or S7-1500 via PROFINET or Modbus TCP, the network switch port assignment and IP address scheme must be documented before the old panel is removed. The TPC7062TX supports static IP configuration, and the IP address of the legacy panel should be reassigned to the new unit to avoid PLC communication timeout alarms during the switchover window.

For systems using a MCGS TPC USB programming cable or a standard USB-A to USB-B cable for project download, the TPC7062TX is fully compatible. Engineers should pre-load the updated MCGSPRO project file onto a USB flash drive as a backup download method in case the Ethernet download path is unavailable during commissioning. If the original project was developed in an older MCGSPRO version targeting WinCE-based panels, a compatibility check and minor screen object re-mapping may be required before the project compiles cleanly for the Linux-based TPC7062TX runtime environment.

I/O expansion modules connected via RS-485 Modbus RTU — such as remote MCGS DAM series data acquisition modules or third-party Advantech ADAM-4000 series I/O modules — will continue to operate without modification, provided the Modbus station addresses and polling intervals are preserved in the migrated project file. Document all register mappings before decommissioning the old panel.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any live production environment undergoing an HMI panel replacement. The recommended approach is a parallel preparation strategy: configure and fully test the TPC7062TX project file on a bench setup — using the same PLC model or a simulator — before scheduling the physical swap. This allows the engineering team to validate all communication links, alarm displays, recipe screens, and trend data pages without touching the running production system.

On the day of the physical swap, the sequence should follow a strict protocol: power down the control cabinet in a controlled manner after confirming the process is in a safe hold state, photograph all existing terminal wiring before disconnection, remove the legacy panel, install the TPC7062TX using the existing mounting hardware, reconnect all terminals in sequence, and power up. The TPC7062TX boots in under 30 seconds from power-on to the MCGSPRO runtime environment, significantly faster than older WinCE-based panels, which reduces the window during which the operator station is unavailable.

If the original PLC program contains HMI-triggered outputs or interlock logic that depends on the HMI being online, the PLC program should be reviewed to ensure that a brief HMI communication loss during the swap does not trigger an unintended machine state. Most Siemens S7 and Mitsubishi FX programs handle this gracefully with communication timeout flags, but this should be verified in the program logic before the swap begins. After power-up, perform a full functional test of all HMI pages, confirm all PLC data points are reading correctly, and verify that any historian or SCADA data logging connections — if the TPC7062TX is feeding data upstream to a WinCC or InTouch SCADA system — are re-established before releasing the line back to production.

Retrofit Support FAQ

Q1: Is the MCGS TPC7062TX a direct replacement for the TPC7062K and TPC7062KX?
Yes. The TPC7062TX shares the same 7-inch panel cutout dimensions and DC 24V power input as the TPC7062K and TPC7062KX. The primary differences are the upgraded ARM Cortex-A8 processor, the Linux-based runtime replacing WinCE, and the expanded communication driver library. Existing MCGSPRO project files can be migrated; a recompile targeting the TPC7062TX hardware platform is required, and any WinCE-specific ActiveX controls must be replaced with native MCGSPRO components.

Q2: What communication protocols does the TPC7062TX support for PLC connectivity?

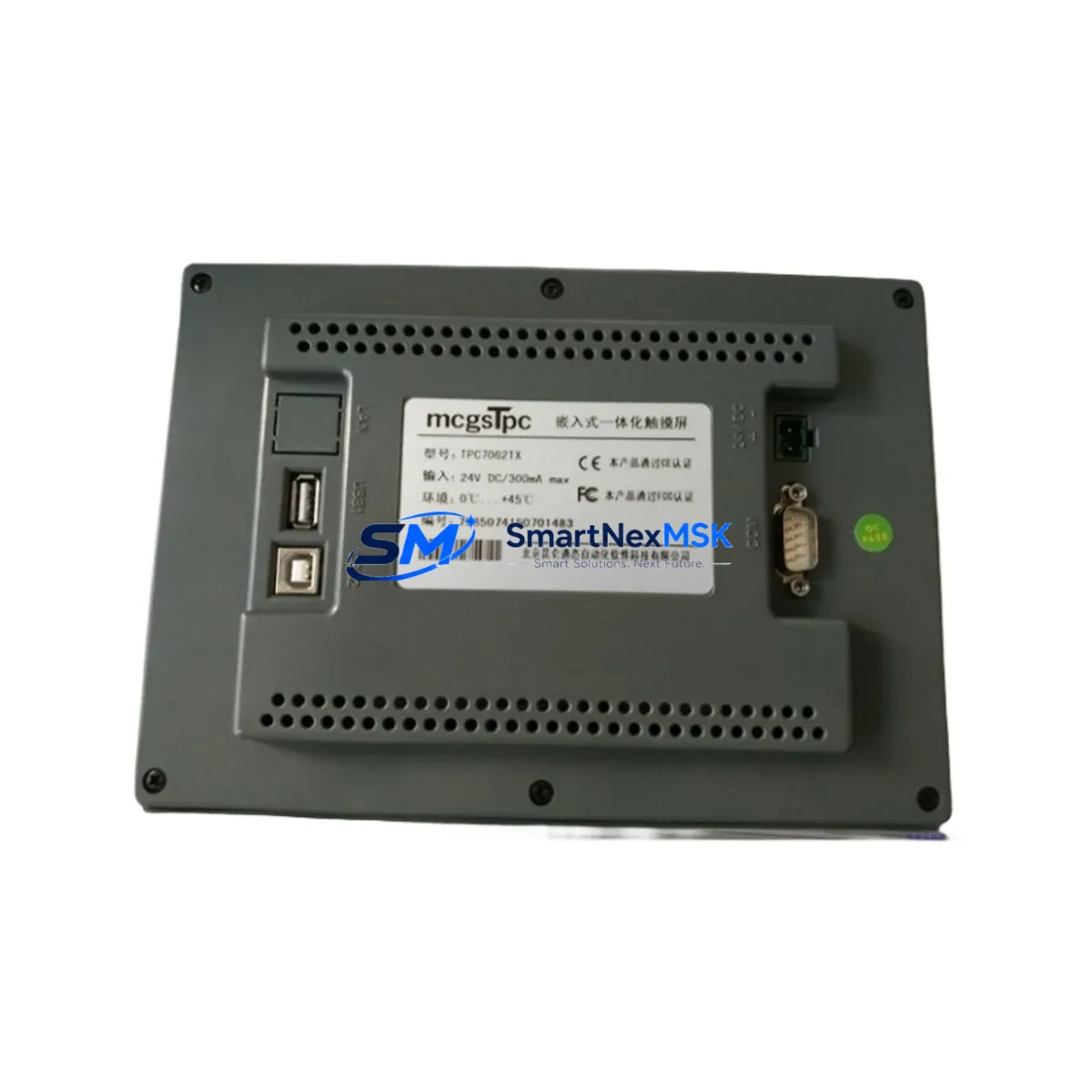

The TPC7062TX supports over 300 PLC communication drivers natively within MCGSPRO, including Modbus RTU and TCP, Siemens S7-200/300/400/1200/1500 (via MPI adapter or Ethernet), Mitsubishi FX and Q series, Omron Host Link and FINS, Delta DVP, and many others. Both RS-232 and RS-485 serial interfaces are available on the rear terminal block, and the RJ45 Ethernet port supports TCP/IP-based protocols simultaneously.

Q3: How is the TPC7062TX shipped and tested before delivery?
Each unit supplied by SMARTNEXMSK undergoes a pre-shipment functional test covering display uniformity, touchscreen calibration, communication port continuity, and power-on self-test. Units are shipped in anti-static packaging with protective corner guards. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and component failures under normal operating conditions. Expedited shipping options are available for urgent line-down situations.

Q4: Can the TPC7062TX be used in a system where the original HMI was from a different brand?
Yes. Because the TPC7062TX communicates with PLCs via standard industrial protocols (Modbus, Ethernet/IP, Siemens S7, etc.), it can replace HMI panels from other manufacturers — including Weintek, Weinview, Kinco, and Hitech — provided the PLC communication driver is available in MCGSPRO. The physical installation requires verifying the panel cutout dimensions and power supply voltage. Contact SMARTNEXMSK technical support for a compatibility assessment before ordering if the original panel brand is not listed above.
