Mitsubishi BN624E952G52 Spare for BN624 Series Automation

Mitsubishi BN624E952G52 Spare for BN624 Series Automation: Spare Replacement & Industrial Downtime Risk Control

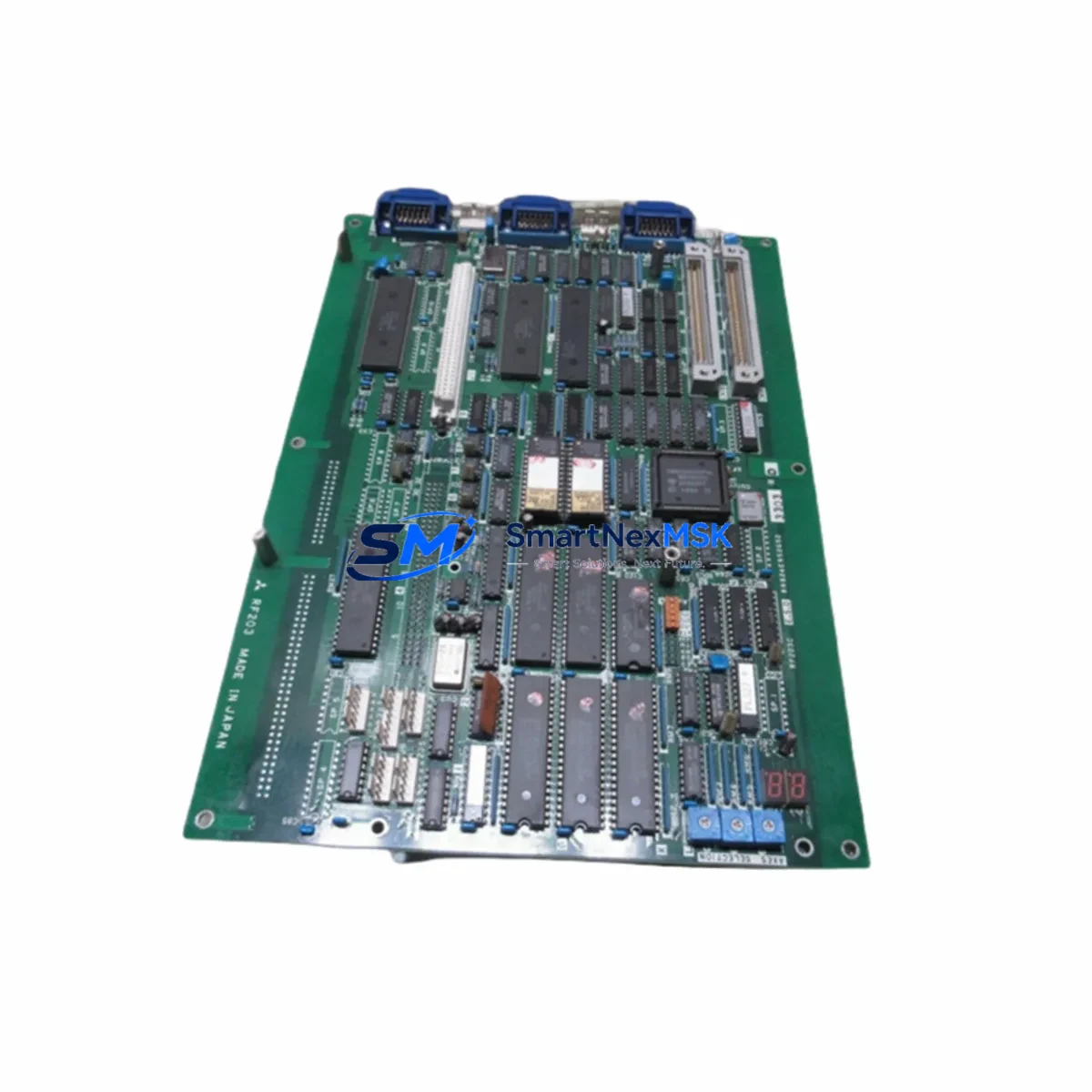

The Mitsubishi BN624E952G52 is an original servo drive board designed for use within the BN624 series servo amplifier platform — a widely deployed motion control solution found in CNC machining centers, automated assembly lines, injection molding equipment, and precision manufacturing systems. When this board fails, the entire servo axis goes offline, halting production and triggering unplanned downtime. Maintaining a verified spare of the BN624E952G52 in your parts inventory is one of the most cost-effective strategies for protecting continuous operation in Mitsubishi servo-driven systems.

This unit is sourced as an original Mitsubishi component, fully tested prior to shipment, and backed by a 12-month warranty. Each board undergoes functional verification to confirm signal integrity, power rail stability, and drive output performance before dispatch. Fast worldwide shipping ensures that maintenance teams can restore servo axis operation with minimal delay — whether responding to an emergency breakdown or executing a planned overhaul.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a BN624E952G52 servo drive board is flagged during fault diagnosis or scheduled inspection, experienced maintenance engineers know that the board itself is rarely the only component requiring attention. A thorough site assessment should accompany any servo board replacement to prevent repeat failures and ensure the restored axis performs reliably.

Begin by inspecting the servo amplifier power supply module feeding the BN624 unit — degraded DC bus voltage or ripple on the power rail is a common root cause of drive board stress and premature failure. Check the regenerative resistor or braking unit for signs of thermal damage, as overloaded braking circuits frequently damage the drive board downstream. Verify the encoder feedback cable and its connector integrity; a damaged or intermittently shielded encoder cable can cause position loop instability that stresses the drive board’s signal processing circuits.

Inspect the I/O interface terminal block connected to the servo amplifier for loose wiring, oxidized contacts, or incorrect signal levels — particularly on the servo-on, alarm reset, and forward/reverse inhibit inputs. If the system uses a Mitsubishi MELSERVO communication module or SSCNET fiber optic link, verify the optical connectors and cable routing, as communication faults can trigger cascading drive board errors. For systems integrated with a Mitsubishi MELSEC PLC (Q-series, iQ-R, or L-series), confirm that the motion controller’s axis parameters and servo gain settings are correctly restored after board replacement to avoid oscillation or following-error alarms.

During cabinet inspection, also check the 24VDC control power supply for voltage stability, the noise filter on the AC input line for continuity, and any surge protection devices on the servo amplifier input. Thermal management components — including cooling fans within the servo cabinet and heat sink condition on the amplifier — should be assessed, as elevated operating temperatures accelerate drive board aging. If the system includes a Mitsubishi GOT HMI panel, verify that alarm history logs are cleared and that the axis status display returns to normal after the replacement board is commissioned.

For facilities managing aging Mitsubishi servo systems, maintaining a small buffer stock of BN624E952G52 boards alongside compatible servo amplifier fuses, control power fuses, and terminal block spare sets significantly reduces mean time to repair (MTTR) and supports long-term system life extension beyond OEM support windows.

Site Replacement Workflow

Step 1 — Fault Confirmation: Use the servo amplifier’s front-panel alarm display or the connected MELSEC PLC diagnostic screen to confirm the fault code points to a drive board fault (typically AL.37, AL.45, or similar board-level alarms in Mitsubishi MR-series documentation). Cross-reference with the servo amplifier service manual to isolate the BN624E952G52 as the failed component before proceeding.

Step 2 — Safe Isolation: De-energize the servo amplifier following lockout/tagout (LOTO) procedures. Discharge the DC bus capacitors fully — allow a minimum of 10 minutes after power-off before opening the amplifier enclosure. Confirm bus voltage is below 30VDC with a calibrated meter before touching internal components.

Step 3 — Board Removal and Documentation: Photograph the existing board’s connector positions, cable routing, and any jumper or DIP switch settings before removal. Label all connectors. Remove the BN624E952G52 carefully, avoiding flex stress on the PCB.

Step 4 — Replacement Installation: Install the new BN624E952G52 in the correct slot, ensuring all connectors are fully seated. Replicate any jumper or switch settings from the removed board. Reconnect all cables in the documented order.

Step 5 — Commissioning and Verification: Re-energize the amplifier and monitor for alarm codes. Perform a low-speed jog test on the servo axis before returning to full production speed. Confirm encoder feedback, torque response, and position accuracy meet system specifications. Log the replacement in the site maintenance record.

This structured workflow minimizes re-work risk, ensures system compatibility is maintained, and supports a controlled return to production — typically achievable within 1–2 hours for a prepared maintenance team holding a verified spare.

Spare Parts Support FAQ

Q1: Is the BN624E952G52 a direct drop-in replacement for the original board in my servo amplifier?
Yes — the BN624E952G52 is an original Mitsubishi component and is a direct board-level replacement for the same part number. No firmware flashing or parameter reconfiguration of the board itself is required. However, after installation, servo gain parameters stored in the amplifier’s non-volatile memory should be verified against your system’s commissioning records to ensure correct axis behavior.

Q2: How is the board tested before shipment?
Each BN624E952G52 unit undergoes functional pre-shipment testing covering power rail integrity, signal I/O verification, and drive output confirmation. Units that do not pass all test criteria are not dispatched. The board is shipped in ESD-safe anti-static packaging to prevent electrostatic damage during transit.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or operation outside the component’s rated environmental parameters. Warranty claims are supported with return merchandise authorization (RMA) and technical review.

Q4: Can you support long-term or repeat supply of BN624E952G52 for our maintenance program?
Yes. We support planned maintenance programs and can accommodate repeat orders, blanket purchase agreements, and advance reservation of stock for facilities managing multiple Mitsubishi servo systems. Contact our sales team to discuss inventory reservation, lead times, and volume pricing for your spare parts program.
