Mitsubishi MR-J3-70B Spare for MELSERVO-J3 Automation: Spare Parts Replacement & Industrial Downtime Risk Control

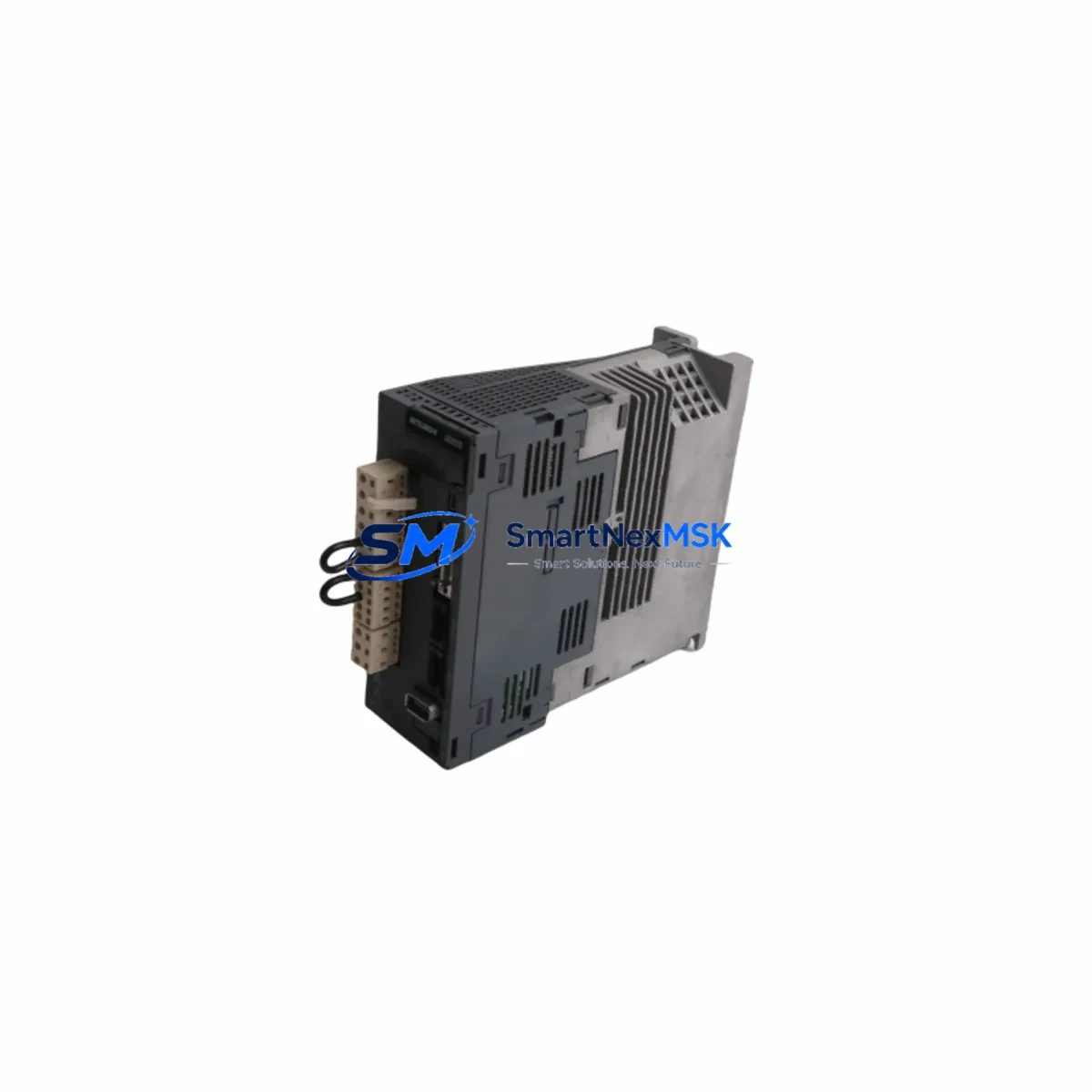

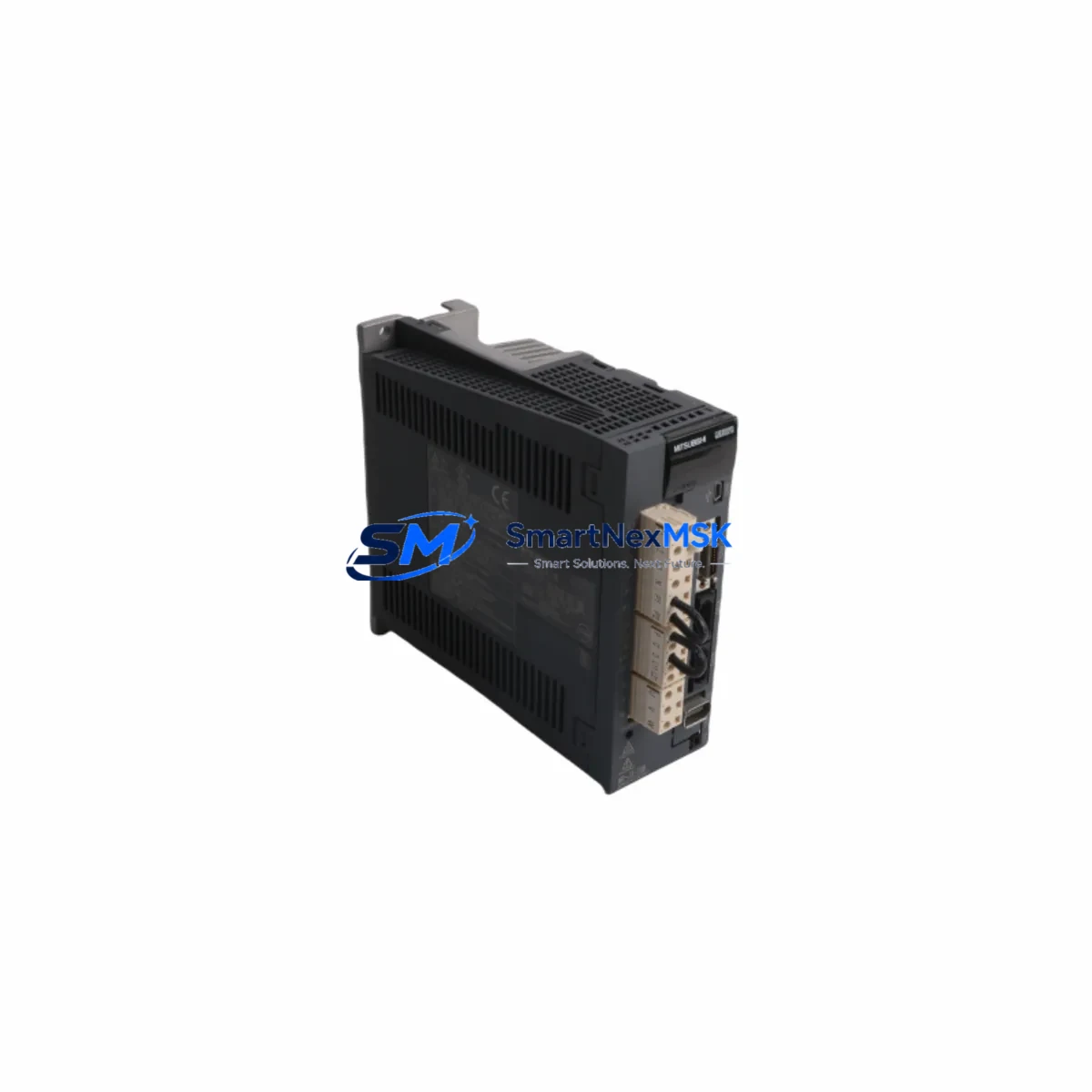

The Mitsubishi MR-J3-70B is a 700W AC servo amplifier from the MELSERVO-J3 series, engineered for high-precision motion control in demanding industrial automation environments. As a maintenance-ready spare, the MR-J3-70B is a critical component for facilities operating CNC machining centers, robotic assembly lines, packaging equipment, and multi-axis servo systems. When a servo amplifier fails unexpectedly, every minute of unplanned downtime translates directly into production loss. Stocking a verified original MR-J3-70B spare is the most effective strategy for rapid fault recovery and sustained operational continuity.
For maintenance engineers and procurement teams managing aging MELSERVO-J3 installations, sourcing a genuine replacement amplifier with confirmed compatibility is non-negotiable. This unit ships fully tested, with parameter settings verified against factory specifications, and is backed by a 12-month warranty covering both component integrity and functional performance. Whether you are executing a planned overhaul, responding to an emergency fault, or building out your critical spare parts inventory, the MR-J3-70B is available for immediate dispatch.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Model / SKU | MR-J3-70B |
| Brand | Mitsubishi Electric |
| Series | MELSERVO-J3 |
| Rated Output Power | 700W |
| Control Interface | SSCNET III (High-speed serial bus) |
| Input Voltage | 3-phase / Single-phase 200–230V AC, 50/60Hz |
| Encoder Compatibility | 17-bit absolute / incremental encoder |
| Compatible Servo Motors | HF-KP, HF-MP, HF-SP series (700W class) |
| Communication | SSCNET III fiber optic bus |
| Installation | DIN rail or panel mount, vertical orientation |
| Ambient Temperature | 0–55°C (operating), -20–65°C (storage) |
| Protection Rating | IP20 |
| Origin | Japan |
| Condition | Original, factory-tested |
| Warranty | 12 Months |
| Shipping | Tested before dispatch, worldwide delivery |
| Maintenance Recommendation | Inspect cooling fan, capacitor aging, and encoder cable every 12–18 months |
Maintenance Planning for Continuous Operation
When replacing the MR-J3-70B in a live production environment, a disciplined maintenance inspection of the surrounding electrical system is essential to prevent repeat failures and ensure a clean restart. Maintenance engineers should treat the servo amplifier replacement as an opportunity to audit the entire servo drive circuit.
Begin with the power supply module: verify that the 24VDC control power supply and the main AC input voltage are within specification before energizing the new amplifier. Voltage fluctuations or transient spikes are a leading cause of premature servo amplifier failure. If the installation uses a Mitsubishi MR-J3-D01 option unit or an MR-J3-T04 I/O expansion module, inspect connector seating and signal integrity before reconnection.
Next, inspect the SSCNET III fiber optic cables connecting the MR-J3-70B to the motion controller (typically a Mitsubishi Q-series or L-series PLC with an QD75MH or LD75MH positioning module). Fiber connectors are sensitive to contamination and bending radius violations — clean and re-seat all connectors during the replacement procedure. Check the MR-J3W-0222B or MR-J3W-044B multi-axis amplifier units in the same cabinet for similar aging symptoms if the system uses a shared bus topology.
Inspect all terminal blocks and I/O wiring at the CN1 and CN3 connectors. Loose or corroded terminals on the analog command input, digital I/O, or brake output lines can cause erratic servo behavior that is often misdiagnosed as amplifier failure. Replace any suspect Phoenix Contact or Weidmüller terminal blocks and verify torque on all screw terminals.
For systems with regenerative braking, confirm that the regenerative resistor (internal or external MR-RB series) is within resistance tolerance and shows no signs of thermal damage. An overloaded regenerative circuit will damage a replacement amplifier within hours of commissioning. Similarly, check the electromagnetic contactor and circuit breaker on the main power input for contact wear and proper trip ratings.
If the servo system interfaces with a Mitsubishi GOT2000 series HMI (such as the GT2710-VTBA or GT2107-WTSD), verify that the HMI communication parameters and servo parameter backup files are current before performing the replacement. Restoring servo parameters from a MR Configurator2 backup file is strongly recommended to eliminate manual parameter entry errors. Finally, inspect any signal isolators or surge suppressors on the encoder feedback lines, as these components are frequently overlooked during fault diagnosis.
Site Replacement Workflow
The MR-J3-70B is a direct drop-in replacement for any existing MELSERVO-J3 700W amplifier installation. The replacement workflow is designed to minimize downtime and maintain full system compatibility:
Step 1 — Isolation & Lockout: De-energize the control cabinet following LOTO procedures. Discharge the DC bus capacitors (minimum 15 minutes after power-off) before handling the amplifier.
Step 2 — Parameter Backup: If the existing amplifier is still partially functional, use MR Configurator2 to export all servo parameters to a PC or USB drive before removal.
Step 3 — Physical Replacement: Disconnect CN1, CN2 (encoder), CN3, and the SSCNET III fiber connectors. Remove the amplifier from the DIN rail or panel mount. Install the new MR-J3-70B and reconnect all cables in reverse order, verifying correct fiber optic orientation (TX→RX).
Step 4 — Parameter Restore: Power up the control system and restore servo parameters from backup using MR Configurator2. Verify axis address settings match the original configuration.
Step 5 — Test Run: Execute a low-speed jog test before returning the axis to automatic operation. Monitor current, speed feedback, and alarm codes during the initial run cycle.
This workflow is applicable to both emergency fault recovery and scheduled preventive maintenance replacements, and is compatible with all Mitsubishi MELSERVO-J3 system configurations using SSCNET III bus architecture.
Spare Parts Support FAQ
Q1: Is this MR-J3-70B an original Mitsubishi Electric unit?
Yes. All units supplied are original Mitsubishi Electric production parts, not aftermarket or remanufactured. Each unit undergoes functional testing prior to shipment, including power-on verification and encoder interface checks. A 12-month warranty is provided from the date of delivery.
Q2: How do I confirm compatibility with my existing MELSERVO-J3 system?
The MR-J3-70B is compatible with all MELSERVO-J3 series installations using SSCNET III communication and 700W-class HF-series servo motors. Confirm your existing amplifier model number from the nameplate. If your system uses an older MR-J2S-70B, a parameter migration procedure is required — contact our technical team for guidance before ordering.
Q3: What is your recommended spare parts stocking strategy for MELSERVO-J3 systems?
For production-critical systems, we recommend maintaining at least one MR-J3-70B spare per three installed axes. For facilities with extended lead times or remote locations, a minimum of two units per servo cabinet is advisable. Pairing the amplifier spare with a backup encoder cable set and a regenerative resistor unit significantly reduces mean time to repair (MTTR) in emergency scenarios.
Q4: What pre-shipment testing is performed on each unit?
Each MR-J3-70B is tested for power-on functionality, DC bus voltage regulation, encoder feedback signal integrity, and alarm-free operation under no-load conditions. Units that fail any test parameter are quarantined and not shipped. Test records are available upon request for quality-critical procurement processes.
