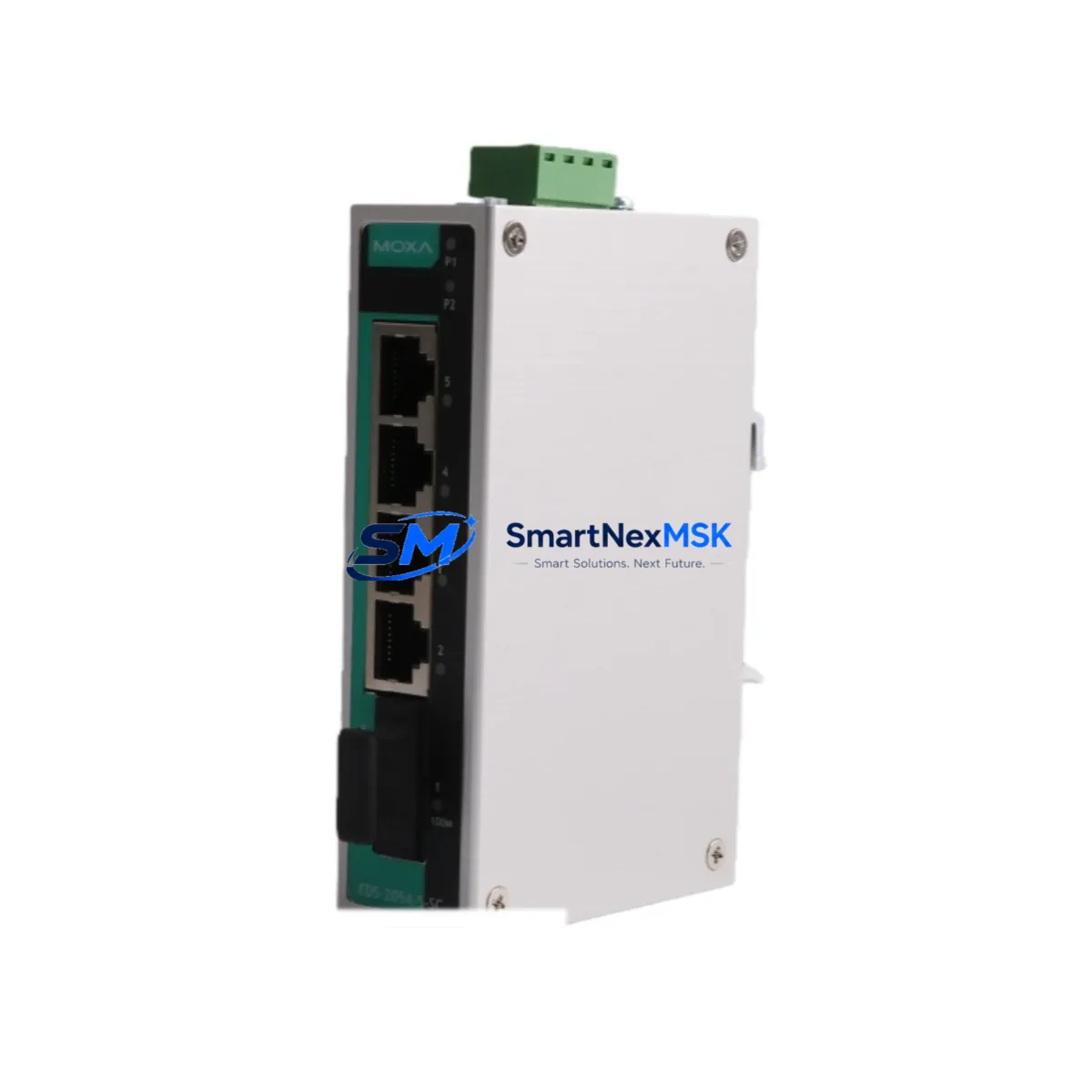

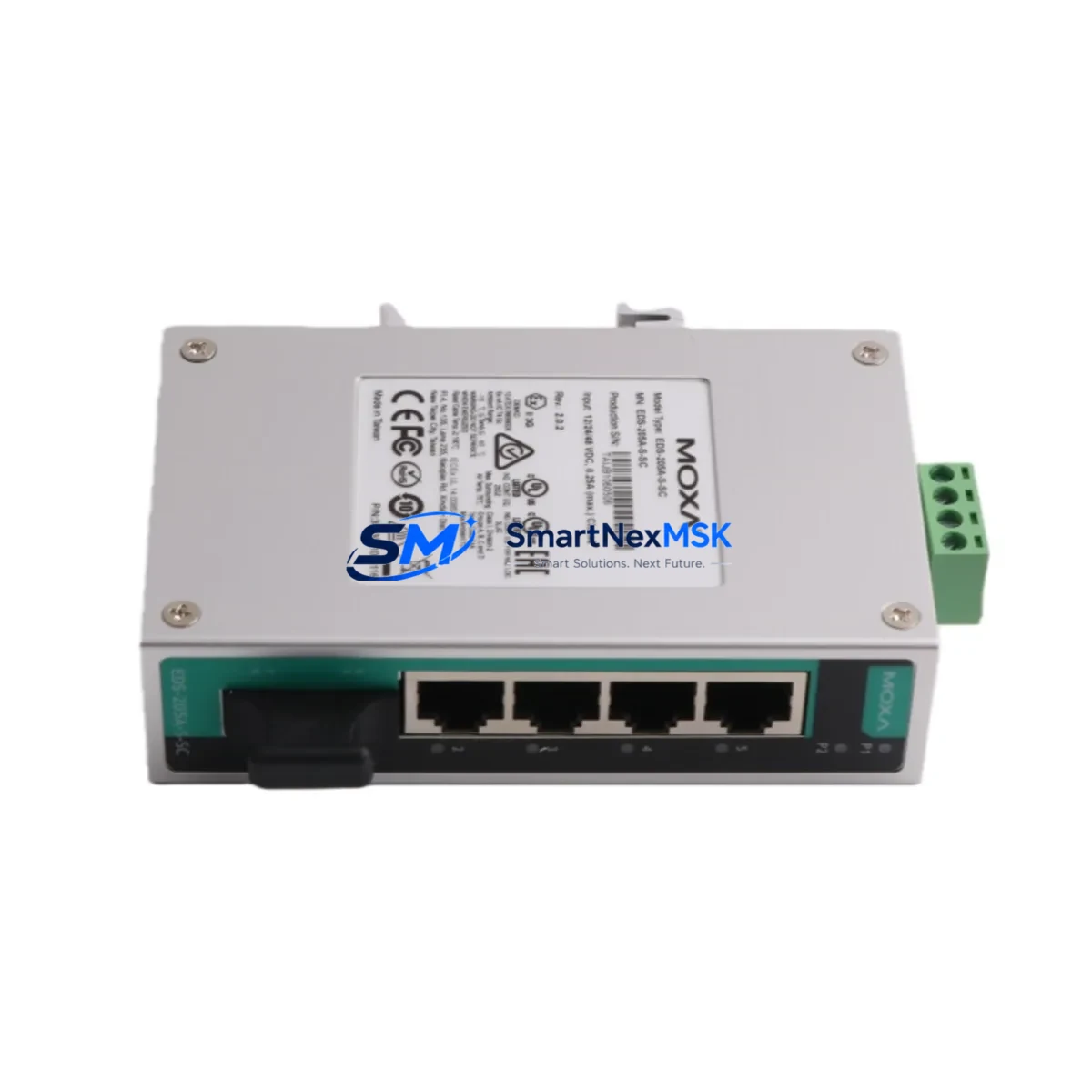

Moxa EDS-205A Retrofit-Ready Unmanaged Switch for EDS Series Control Systems
The Moxa EDS-205A is a 5-port unmanaged industrial Ethernet switch engineered for seamless integration into legacy automation environments. Designed as a direct retrofit replacement for discontinued and aging EDS Series switches, the EDS-205A delivers reliable Layer 2 connectivity in demanding industrial settings — including PLC control cabinets, DCS field panels, and distributed I/O networks — without requiring changes to existing wiring layouts or control logic.
For system integrators and maintenance engineers managing aging production lines, the EDS-205A addresses one of the most common retrofit challenges: replacing a failed or end-of-life network switch without triggering a full system redesign. Its compact DIN-rail form factor, wide operating temperature range (−10 to 60°C), and 10/100 Mbps auto-negotiation ports make it a practical drop-in solution for environments originally built around earlier Moxa EDS-205 or EDS-208 platforms. The switch supports both 12–48 VDC and 24 VAC power inputs, which is critical when retrofitting into existing control cabinets where power supply modules such as the Moxa DR-4524 or similar DIN-rail PSUs are already installed and cannot be easily replaced.
When planning a retrofit around the EDS-205A, engineers should verify the following before installation: available power capacity on the existing 24 VDC bus, terminal block wiring compatibility (the EDS-205A uses removable screw-type connectors), available DIN-rail space within the control enclosure, and whether the upstream PLC or controller — such as a Mitsubishi MELSEC Q-series CPU or Siemens S7-300 — requires a dedicated Ethernet port assignment for the switch segment. In multi-drop topologies where the EDS-205A replaces a failed node, the IP addressing scheme and subnet mask must be confirmed against the existing SCADA or HMI configuration to avoid communication conflicts.
Upgrade Compatibility Table
| Parameter | EDS-205A (This Unit) | Typical Legacy Replacement Target |
|---|---|---|
| Port Count | 5 × 10/100 Mbps RJ45 | EDS-205 / EDS-208 (5–8 ports) |
| Mounting | DIN-rail (35 mm) | DIN-rail (35 mm) — direct fit |
| Power Input | 12–48 VDC / 24 VAC | 24 VDC (verify existing PSU output) |
| Terminal Wiring | Removable screw-type connector | Compatible — no rewiring required in most cases |
| Communication Protocol | IEEE 802.3 / 802.3u Ethernet | Standard 10/100 Ethernet — fully compatible |
| Management | Unmanaged (plug-and-play) | Unmanaged — no configuration required |
| Operating Temperature | −10 to 60°C | Confirm against site ambient conditions |
| Retrofit Recommendation | Direct replacement for EDS-205 / EDS-208; verify port count if replacing EDS-208 | |
| Commissioning Focus | Power-up sequence, link-light verification per port, HMI communication re-check | |
| Warranty | 12-Month Warranty — covered from date of shipment | |
Retrofit Planning for Existing Automation Systems
Successful integration of the EDS-205A into an existing control system requires a structured pre-installation review. In typical retrofit scenarios — particularly those involving Mitsubishi MELSEC iQ-R or Q-series PLCs, Siemens S7-400 distributed I/O racks, or Rockwell Automation ControlLogix platforms — the Ethernet switch sits at the heart of the communication backbone connecting the CPU module, remote I/O adapters, HMI panels, and engineering workstations.
Before removing the legacy switch, document all connected devices and their port assignments. In systems using Moxa NPort 5150 serial-to-Ethernet device servers to bridge legacy RS-232 or RS-485 instruments onto the Ethernet segment, confirm that the NPort’s IP address and virtual COM port mapping remain intact after the switch replacement. Similarly, if the network segment carries PROFINET or EtherNet/IP traffic between a Siemens ET 200SP distributed I/O station and the main CPU, verify that the EDS-205A’s unmanaged architecture does not introduce latency that exceeds the configured watchdog timeout on the I/O controller.
For control cabinets housing Moxa ioLogik E1214 remote I/O modules or similar Ethernet-based I/O expanders, the EDS-205A provides the necessary switching capacity without adding management overhead. When the retrofit also involves upgrading communication from a legacy Modbus RTU network to Modbus TCP/IP, the EDS-205A serves as the Ethernet backbone for the new TCP/IP segment, while a Moxa MGate MB3180 protocol gateway handles the RTU-to-TCP conversion. This approach preserves existing field wiring and instrument configurations while modernizing the upper-layer communication architecture.
Power supply integrity is a critical checkpoint. If the existing cabinet uses a Phoenix Contact QUINT or TRIO series 24 VDC PSU, confirm that the additional load from the EDS-205A (typically under 2.5 W) falls within the PSU’s available headroom. In tight power budgets, a supplementary Moxa DR-4524 DIN-rail power supply may be required. Backplane and rack considerations are less relevant for the EDS-205A given its standalone DIN-rail form factor, but engineers should confirm that the switch’s physical footprint does not obstruct adjacent terminal blocks, circuit breakers, or relay modules within the enclosure.
Downtime Control During System Migration
Minimizing unplanned downtime is the primary concern in any live-system switch replacement. The EDS-205A’s unmanaged, plug-and-play design is a significant advantage here: there is no firmware to configure, no VLAN setup to replicate, and no management IP to reassign. The replacement procedure can typically be completed within a planned maintenance window of 15–30 minutes, depending on cabinet accessibility and cable management complexity.
The recommended sequence is: (1) power down the control segment or isolate it from the live network using an upstream managed switch port disable if available; (2) label and photograph all cable connections on the legacy switch before disconnection; (3) remove the legacy unit from the DIN rail and install the EDS-205A in the same position; (4) reconnect all Ethernet cables in the same port sequence; (5) restore power and verify link-light status on each port before releasing the segment back to the control system.
For systems where a cold shutdown is not feasible — such as continuous-process lines controlled by a Yokogawa CENTUM VP DCS or a Honeywell Experion PKS — a hot-swap approach using a temporary network bridge can maintain communication continuity during the physical switch replacement. In these scenarios, a laptop running Wireshark or a portable network tap can be used to monitor traffic continuity throughout the swap. After restoration, re-verify HMI screen data refresh rates, alarm communication paths, and historian data logging to confirm that no communication gaps were introduced. The EDS-205A’s 12-month warranty covers any hardware defects identified during or after commissioning, providing additional assurance for post-retrofit sign-off.
Retrofit Support FAQ
Q1: Is the EDS-205A a direct drop-in replacement for the Moxa EDS-205?
Yes. The EDS-205A shares the same DIN-rail mounting footprint, 5-port RJ45 layout, and power terminal wiring as the EDS-205. In most installations, the replacement requires only physical swap and cable reconnection — no reconfiguration of connected PLCs, HMIs, or I/O modules is needed.
Q2: Can the EDS-205A replace an EDS-208 in an 8-port application?
Not directly if all 8 ports are in use. The EDS-205A provides 5 ports. If the EDS-208 installation uses 5 or fewer active ports, the EDS-205A is a viable replacement. For 6–8 active port requirements, consider the Moxa EDS-208A as the appropriate retrofit target.
Q3: What commissioning checks are required after installation?
After physical installation and power-up, verify: (a) link-light status on all connected ports; (b) ping reachability from the engineering workstation to all connected devices (PLCs, HMIs, I/O modules, NPort servers); (c) HMI screen data refresh and alarm communication; (d) historian or SCADA data logging continuity. No switch-side configuration is required for unmanaged operation.
Q4: What does the 12-month warranty cover, and what is the shipping lead time?
The 12-month warranty covers manufacturing defects and hardware failures under normal operating conditions from the date of shipment. Units are pre-tested before dispatch. Stock availability is maintained for prompt shipment; lead time for in-stock units is typically 1–3 business days. For warranty claims or technical support, contact sales@smartnexmsk.com or call +86 18259474341.
