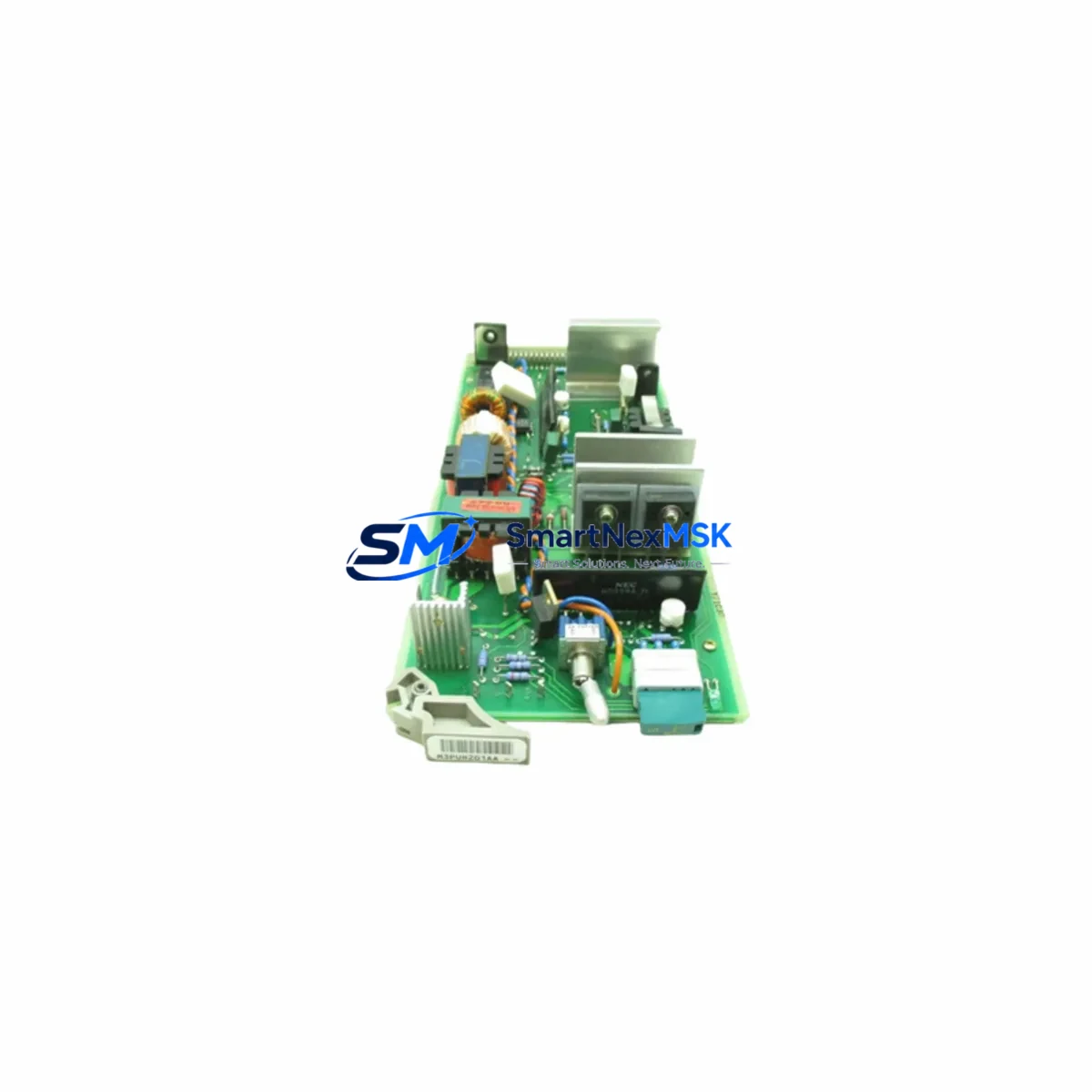

NEC X0420 B 105A 87-3 NDR096RTP865 Retrofit-Ready PCB for NDR096 Control Systems
The NEC X0420 B 105A 87-3 NDR096RTP865 is a retrofit-ready printed circuit board engineered for seamless integration into NEC NDR096 Series control systems. As legacy NEC NDR096 platforms approach end-of-life and original spare parts become increasingly scarce, this board provides a verified drop-in replacement path that preserves existing wiring configurations, backplane interfaces, and PLC program logic — minimizing engineering rework and unplanned downtime during system migration.
Designed for industrial environments where control continuity is non-negotiable, the X0420 B 105A 87-3 NDR096RTP865 supports the full NDR096 rack architecture, maintaining compatibility with the original I/O addressing scheme and communication bus. Engineers retrofitting aging control cabinets will find that this board eliminates the need to redesign terminal wiring or reconfigure HMI screen mappings, provided the replacement procedure follows the standard NEC NDR096 module swap protocol.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| Compatible Series | NEC NDR096 Series Control Systems |
| Replaces OEM Part | NEC X0420 B 105A 87-3 NDR096RTP865 (original or equivalent) |
| Backplane Interface | NDR096 standard backplane connector — direct fit, no adapter required |
| Communication Compatibility | Compatible with NDR096 Series communication bus; supports legacy serial and parallel I/O protocols used in NDR096 platform |
| Installation Requirement | Power-off installation; ESD precautions required; torque spec per NEC NDR096 service manual |
| I/O Address Mapping | Retains original module slot addressing — no PLC program re-addressing required |
| HMI Screen Compatibility | Compatible with existing HMI tag mappings when slot address is preserved |
| Commissioning Requirement | Cold-start verification recommended; I/O force test and communication link check required post-installation |
| Replacement Recommendation | Direct drop-in for failed or degraded NDR096RTP865 boards; inspect backplane pins before installation |
| Warranty | 12-Month Warranty — covers manufacturing defects and functional failure under normal operating conditions |
Retrofit Planning for Existing Automation Systems
When planning a retrofit of an NEC NDR096-based control system, the X0420 B 105A 87-3 NDR096RTP865 board is typically one component within a broader upgrade scope. A complete retrofit assessment should account for the condition of the NDR096 rack and backplane, the status of the NDR096 Series power supply module, and the integrity of the I/O terminal blocks connected to the control cabinet.
In many NDR096 installations, the PCB board failure is accompanied by degraded performance in adjacent modules. Engineers should inspect the NDR096 digital input module and NDR096 digital output module for signs of wear or communication faults before completing the board swap. If the system uses an NDR096 analog I/O module for process variable feedback, its calibration should be verified post-replacement to ensure signal accuracy is maintained.
For systems that include an NEC NDR096 communication module handling serial or fieldbus links to upstream SCADA or DCS platforms, the communication link must be re-established and tested after the PCB replacement. If the control cabinet also houses an NEC NDR096 Series HMI panel, operators should verify that all screen tags and alarm setpoints remain correctly mapped following the board swap.
Where the retrofit scope extends to the controller itself, some facilities choose to simultaneously replace the NEC NDR096 CPU module to eliminate the risk of a secondary failure shortly after the PCB repair. In such cases, the NDR096 programming cable and compatible programming software are required to upload the backed-up PLC program to the new CPU. It is strongly recommended to perform a full program backup from the existing CPU before any hardware is removed from the rack.
Power capacity verification is a critical pre-installation step. The NDR096 Series power supply module must be confirmed capable of supporting the full I/O load after the new board is installed, particularly in expanded configurations where additional NDR096 expansion rack modules have been added over the system’s operational life. Insufficient power headroom is a common cause of intermittent faults following PCB replacements in legacy NEC systems.
All replacement boards are pre-tested prior to shipment. Each unit undergoes functional verification against NDR096 Series electrical specifications, including backplane signal integrity, power rail tolerance, and I/O channel response. Units are shipped with anti-static packaging and include a test report confirming pre-shipment inspection results.
Downtime Control During System Migration
Minimizing production downtime during an NDR096 PCB replacement requires a structured pre-outage preparation process. Before the maintenance window begins, the engineering team should complete a full backup of the PLC program from the existing NEC NDR096 CPU module, document all I/O terminal wiring assignments, photograph the existing backplane and module layout, and confirm that the replacement X0420 B 105A 87-3 NDR096RTP865 board has been received, inspected, and staged at the work site.
During the outage, the recommended sequence is: isolate the control cabinet from field power, remove the failed PCB board following ESD protocol, inspect the backplane connector for bent pins or contamination, seat the replacement board firmly, restore power, and perform a cold-start verification. The PLC program should be reloaded from backup if the CPU module was also replaced. Communication links to SCADA, DCS, or HMI systems should be re-established and confirmed before returning the system to automatic control mode.
For facilities that cannot tolerate extended outages, a pre-staged spare board strategy is recommended. Maintaining one X0420 B 105A 87-3 NDR096RTP865 board in on-site inventory eliminates procurement lead time from the critical path and allows the maintenance team to execute the swap within a single planned maintenance shift. Our 12-month warranty applies from the date of shipment, providing coverage throughout the initial post-installation period.
Retrofit Support FAQ
Q: Is the NEC X0420 B 105A 87-3 NDR096RTP865 a direct replacement for the original OEM board?
A: Yes. This board is designed as a direct functional replacement for the original NEC NDR096RTP865 PCB. It uses the same backplane connector pinout and I/O addressing scheme as the original, allowing installation without modifications to existing wiring or PLC program logic.
Q: What commissioning steps are required after installation?
A: After seating the board and restoring power, perform a cold-start verification, conduct an I/O force test on all connected channels, confirm communication link status with upstream SCADA or HMI systems, and verify that all process variables are reading correctly before returning the system to automatic mode.
Q: Does the replacement board require any wiring changes at the terminal block?
A: No wiring changes are required at the I/O terminal blocks, provided the replacement board is installed in the same rack slot as the original. Terminal assignments and I/O channel mapping are preserved by the NDR096 backplane architecture.
Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and functional failure under normal industrial operating conditions. Each board is pre-tested and ships with a functional test report. Warranty claims are supported by our technical team — contact sales@smartnexmsk.com for assistance.
