Eaton NZMN4-AE1000 Maintenance-Ready Spare NZM4 MCCB: Spare Replacement & Industrial Downtime Risk Control

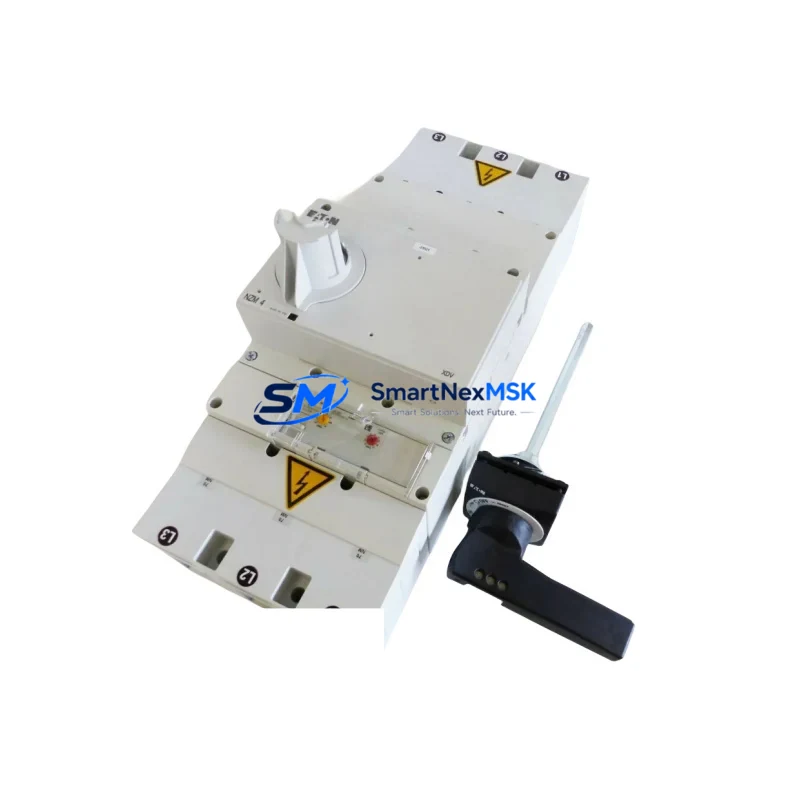

The Eaton NZMN4-AE1000 is a 4-pole, 1000 A molded case circuit breaker (MCCB) from Eaton’s NZM4 series — one of the most widely deployed overcurrent protection devices in heavy industrial power distribution panels, motor control centers (MCCs), and main distribution boards across manufacturing, energy, and process automation facilities. When this breaker reaches end-of-life, trips under fault conditions, or fails during a scheduled inspection, rapid replacement with a verified original spare is critical to restoring system availability and preventing cascading downtime.
At SMARTNEXMSK, we stock the NZMN4-AE1000 as a maintenance-ready spare, pre-tested before shipment and backed by a 12-month warranty. Our supply chain is structured for long-term availability, supporting both emergency replacement orders and planned spare parts inventory programs for maintenance engineers and procurement teams managing aging or active NZM4-equipped installations.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number / SKU | NZMN4-AE1000 |
| Brand | Eaton |
| Series | NZM4 |
| Product Type | Molded Case Circuit Breaker (MCCB) |
| Poles | 4-Pole |
| Rated Current (In) | 1000 A |
| Release Type | AE — Adjustable Electronic Release |
| Rated Voltage (Ue) | Up to 690 V AC |
| Breaking Capacity (Icu) | Up to 150 kA @ 415 V AC |
| Mounting | Fixed / Withdrawable (NZM4 frame compatible) |
| Installation Environment | Industrial switchgear, MCC, main distribution boards |
| Origin | Germany (DE) |
| Compatibility | NZM4 series accessories, NZM4 mounting frames, Eaton xEnergy / IZM withdrawable systems |
| Maintenance Recommendation | Inspect every 12–24 months; replace after fault trip or 10,000 mechanical operations |
| Pre-Shipment Testing | Yes — functional and insulation resistance tested |
| Warranty | 12 Months |
Maintenance Planning for Continuous Operation
When a maintenance or procurement engineer plans the replacement of an NZMN4-AE1000, the breaker itself is rarely the only component requiring attention. A thorough inspection of the surrounding electrical circuit and control cabinet is essential to prevent repeat failures and ensure system integrity after the spare is installed.
Begin with the upstream and downstream power path. Verify that the Eaton NZM4 busbar adapter and NZM4 terminal covers are undamaged and properly torqued — loose connections at 1000 A can cause thermal stress that accelerates breaker wear. Check the Eaton NZM4-XA auxiliary contact block and NZM4-XAL alarm contact for continuity; these signal the SCADA or PLC system of trip events and must be functional for remote monitoring.
Inspect the Eaton NZM4 motor operator (NZM4-XR) if the breaker is remotely operated — motor operators are subject to mechanical wear and should be tested for full open/close cycle reliability during any planned maintenance window. If the installation uses an Eaton NZM4 undervoltage release (NZM4-XU) or shunt trip coil (NZM4-XA shunt release), verify coil resistance and actuation voltage against nameplate specifications.
On the control side, review the 24 VDC or 230 VAC control power supply module feeding the release coils and auxiliary circuits. A degraded power supply can cause nuisance trips or failure-to-trip conditions that are often misdiagnosed as breaker faults. Similarly, inspect the DIN rail terminal blocks (such as Phoenix Contact or Weidmüller series) for oxidation, loose ferrules, or insulation breakdown — particularly in high-vibration or high-humidity environments.
If the NZMN4-AE1000 is part of a motor feeder circuit, also check the associated Eaton PKZ motor-protective circuit breaker or Eaton DIL series contactor downstream, as motor starting currents and fault currents can stress the entire feeder chain. For installations with harmonic-rich loads, confirm whether an upstream line reactor or harmonic filter is still within specification. Finally, verify that cable lugs, busbar connections, and cable cross-sections are rated for 1000 A continuous duty — undersized or aged cabling is a common root cause of thermal damage to replacement breakers within months of installation.
Site Replacement Workflow
Replacing an NZMN4-AE1000 on-site follows a structured sequence to minimize downtime and ensure compatibility with the existing NZM4 frame and accessories.
1. Isolation & Lockout/Tagout (LOTO): De-energize the upstream supply and apply LOTO procedures per site safety protocol. Verify absence of voltage on all 4 poles using a calibrated voltage tester.
2. Accessory Removal: Disconnect and label all auxiliary contact blocks, motor operators, undervoltage releases, and shunt trip coils. These accessories are typically reusable and transfer directly to the replacement NZMN4-AE1000 if they are in serviceable condition.
3. Cable Disconnection: Remove load and line cables. Inspect cable ends for thermal damage; re-terminate with new ferrules or lugs if required.
4. Frame Extraction: Remove the breaker from the mounting frame or withdrawable cradle. For fixed-mounted units, unbolt from the busbar adapter. For withdrawable systems, follow the Eaton IZM/xEnergy racking procedure.
5. Spare Installation: Install the NZMN4-AE1000 spare into the frame. Torque all busbar and cable connections to Eaton’s specified values per the installation manual. Reattach all accessories.
6. Pre-Energization Check: Verify insulation resistance between poles and to earth. Confirm auxiliary circuit wiring matches the original schematic. Check trip unit settings (Ir, Isd, Ii) match the original configuration.
7. Energization & Functional Test: Re-energize and confirm remote signaling (auxiliary contacts, alarm contacts) is operational. Log the replacement in the CMMS with date, serial number, and trip unit settings.
This workflow supports rapid restoration — typically achievable within 2–4 hours for a prepared maintenance team with the spare on-hand — versus days or weeks waiting for procurement if no spare is stocked.
Spare Parts Support FAQ
Q1: Is the NZMN4-AE1000 available as a new original spare, or only as a refurbished unit?
All NZMN4-AE1000 units we supply are original Eaton products sourced through verified industrial distribution channels. Units are new or factory-reconditioned to OEM specification — not field-refurbished. Each unit undergoes pre-shipment functional and insulation resistance testing before dispatch.
Q2: How do I verify compatibility with my existing NZM4 installation before ordering?
Compatibility is confirmed by matching the frame size (NZM4), pole count (4P), rated current (1000 A), and release type (AE = adjustable electronic). If your installation uses specific accessories such as motor operators, undervoltage releases, or auxiliary contacts, provide the existing accessory part numbers when ordering so we can confirm cross-compatibility. Our technical team can assist with compatibility verification prior to purchase.
Q3: What is your recommended spare parts stocking strategy for NZM4 breakers in critical applications?
For critical power distribution or motor control applications, we recommend maintaining at least one NZMN4-AE1000 spare on-site for every 3–5 installed units, particularly in facilities where the MTTR target is under 4 hours. For less critical applications, a regional warehouse spare with guaranteed next-day delivery is an acceptable alternative. We support both strategies with flexible order quantities and long-term supply agreements.
Q4: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by installation errors, overcurrent events beyond the breaker’s rated breaking capacity, or environmental conditions outside the specified operating range. To initiate a warranty claim, contact our sales team with the order number, unit serial number, and a description of the failure. We will arrange return logistics and provide a replacement or credit within the agreed service timeline.
