OMRON CP1W-8ER Safety-Enhanced Relay Output Module

OMRON CP1W-8ER Safety-Enhanced Relay Output Module for Harsh Industrial Sites

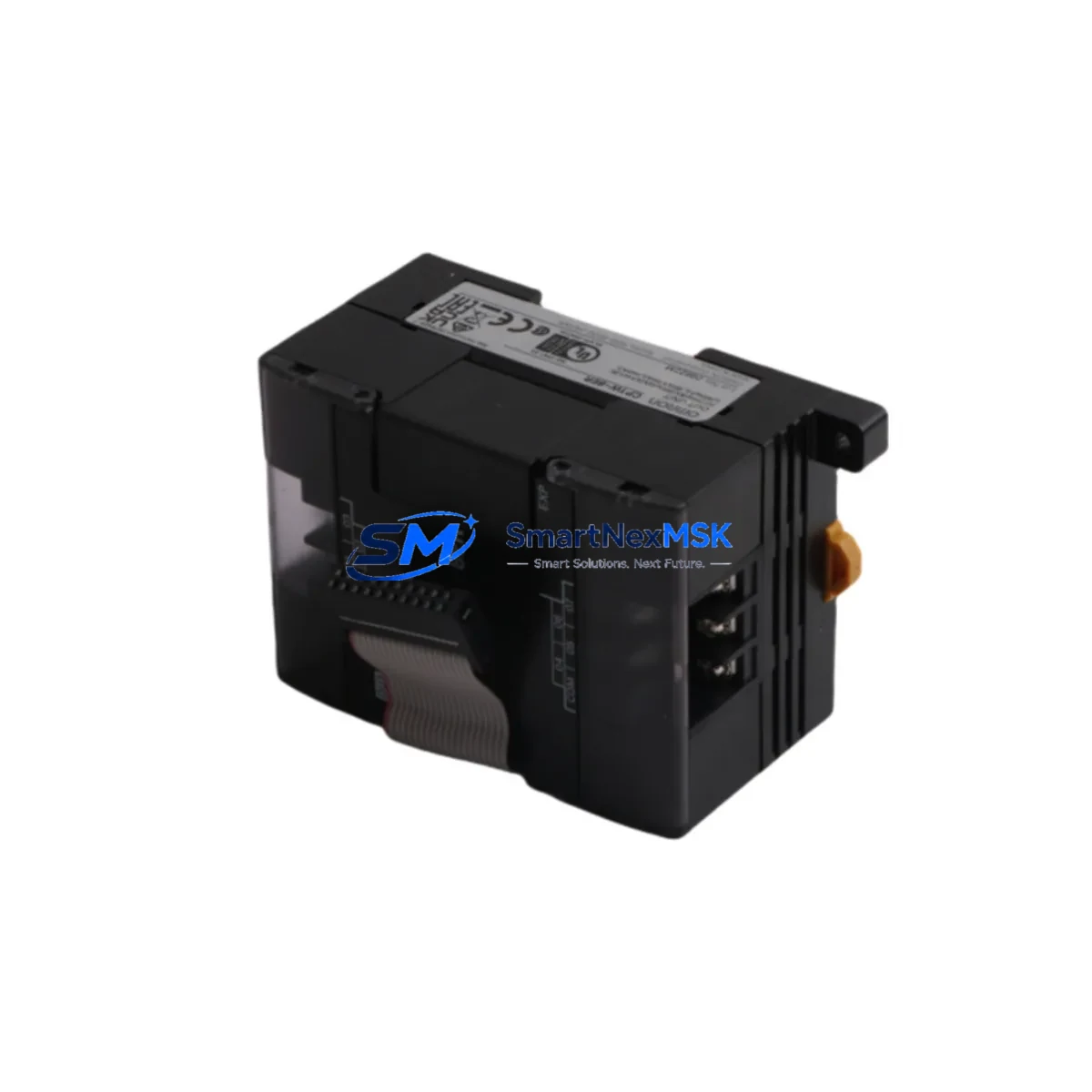

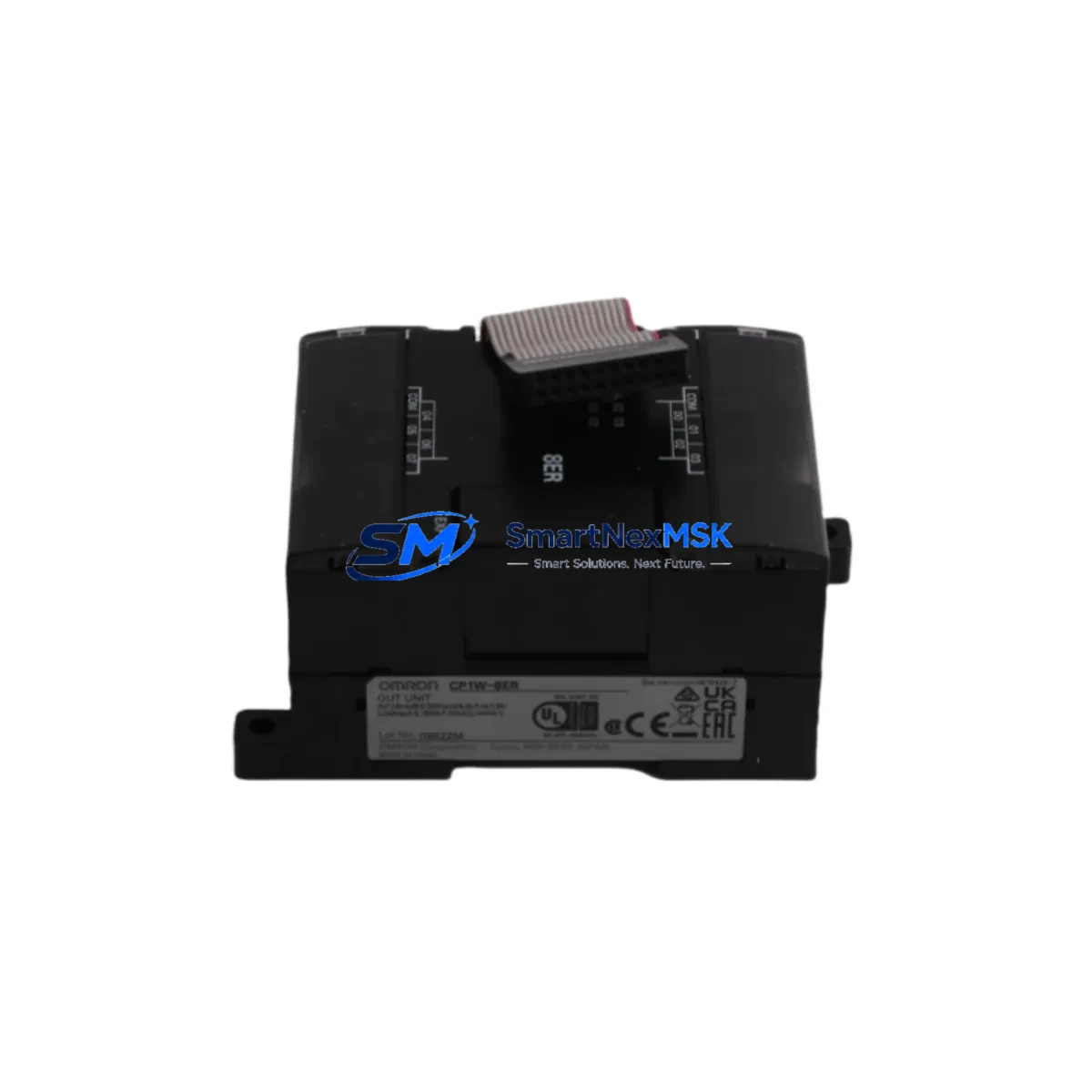

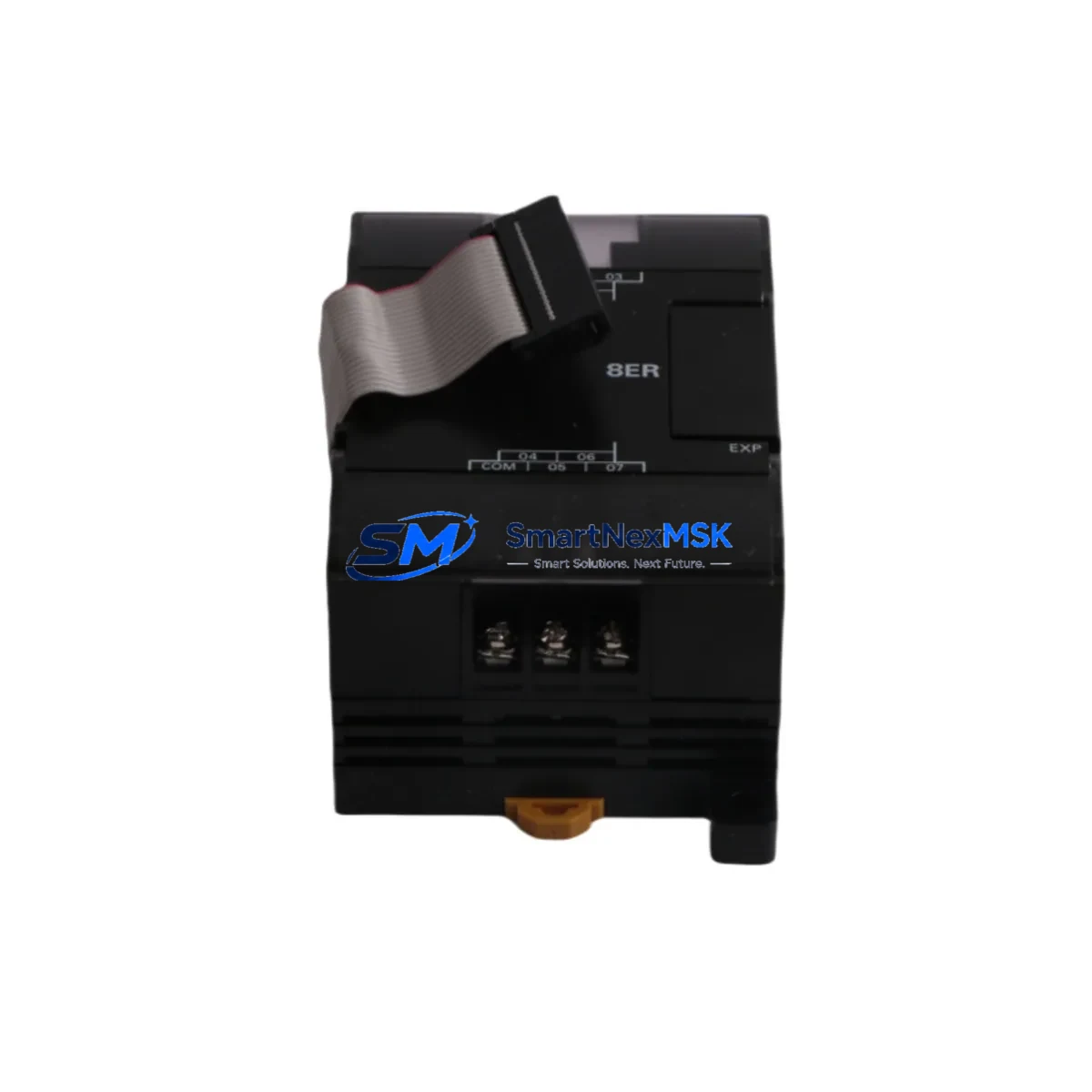

The OMRON CP1W-8ER is an 8-point relay output expansion module engineered for the CP1 Series PLC platform — including CP1H and CP1L host controllers — and purpose-built to deliver uninterrupted control performance in the most demanding industrial environments. Whether deployed in petrochemical processing lines, power distribution substations, mining extraction facilities, water treatment plants, metallurgical furnace control cabinets, or continuous-cycle manufacturing cells, the CP1W-8ER provides the output switching reliability that safety-critical and productivity-critical applications demand.

In high-load industrial control cabinets where relay chatter, contact wear, and coil voltage fluctuation are persistent threats, the CP1W-8ER’s relay output architecture is designed to sustain stable switching across its full rated load range. Its compact DIN-rail form factor integrates directly into the CP1 backplane without additional wiring adapters, reducing installation error risk and minimizing the number of inter-module connection points that could introduce signal integrity issues under vibration or thermal cycling.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust industrial control cabinet is only as reliable as its weakest switching element. The CP1W-8ER is designed to anchor the output layer of a CP1-based control system, working in concert with a carefully selected ecosystem of protective and communicative components to eliminate the most common causes of unplanned downtime.

On the power supply side, pairing the CP1W-8ER with an OMRON S8VS-series DIN-rail power supply ensures that the 24 VDC bus feeding the CP1H or CP1L host CPU remains within tight voltage tolerance even during mains fluctuation or load transients. Upstream of the power supply, a OMRON S82K surge-protected power filter or equivalent EMC filter module suppresses conducted interference from variable-frequency drives, motor starters, and welding equipment — interference that, if unchecked, can cause relay coil mis-energization or CPU watchdog faults.

For input-side signal integrity, the OMRON CP1W-8ED digital input expansion module and CP1W-4AD analog input module complement the CP1W-8ER in the same expansion bus, providing a complete I/O layer that handles both discrete field signals and process variable feedback without cross-talk. In applications where analog process values — temperature, pressure, flow — must be monitored alongside discrete relay outputs, the CP1W-4AD’s 12-bit resolution and input filtering prevent signal drift from corrupting the control logic that drives the CP1W-8ER’s relay contacts.

Communication reliability is equally critical. The OMRON CP1W-CIF11 RS-422A/485 serial communication module enables the CP1 system to maintain deterministic Modbus RTU or CompoWay/F communication with field instruments, SCADA systems, and HMI panels — even in electrically noisy environments where RS-232 would be susceptible to common-mode interference. For Ethernet-based architectures, the OMRON CP1W-EIP61 EtherNet/IP adapter extends the CP1 platform into plant-wide SCADA and DCS integration without sacrificing the local relay output performance of the CP1W-8ER.

In safety interlock circuits, the CP1W-8ER relay outputs are frequently used to drive OMRON G7SA or G7Z safety relays, which provide the force-guided contact monitoring required by IEC 62061 and ISO 13849 safety integrity assessments. This architecture ensures that a welded or failed relay contact in the output circuit is detected before the next machine cycle, preventing hazardous motion or process continuation under a fault condition. Surge suppression diodes or OMRON G3VM solid-state relay snubber modules across inductive loads — solenoid valves, motor contactors, and electromagnetic brakes — protect the CP1W-8ER’s relay contacts from back-EMF spikes that accelerate contact erosion and reduce switching lifespan.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous process environments where a control interruption can trigger emergency shutdown sequences or product quality deviations, the CP1W-8ER provides the relay switching backbone for pump start/stop interlocks, valve position confirmation, and alarm annunciator outputs. Its high dielectric strength and EMI immunity make it suitable for installation in control rooms adjacent to high-voltage motor control centers.

Electric Power Generation & Substation Control: Substation automation panels demand output modules that can withstand the electromagnetic environment generated by high-current bus bars, transformer switching, and capacitor bank operations. The CP1W-8ER’s 2,000 VAC dielectric isolation between output contacts and the PLC bus prevents ground loop currents from corrupting the CP1 CPU’s program execution, maintaining protection relay logic integrity during fault clearing events.

Mining & Mineral Processing: Underground and surface mining operations expose control equipment to coal dust, silica particulate, mechanical vibration from crushers and conveyors, and wide ambient temperature swings. The CP1W-8ER’s rated vibration and shock resistance, combined with its sealed relay construction, supports reliable operation in these conditions — controlling conveyor belt starters, ventilation fan interlocks, and emergency stop relay chains.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities require 24/7 uninterrupted operation of pump stations, dosing systems, and UV disinfection units. The CP1W-8ER’s long mechanical lifespan (20 million operations) and stable contact resistance over time reduce the frequency of planned maintenance interventions, supporting the continuous duty cycles typical of water infrastructure control systems.

Metallurgy & Steel Production: Rolling mill and furnace control applications subject output modules to radiated heat, heavy vibration, and high-frequency electrical noise from thyristor drives and induction heating equipment. The CP1W-8ER’s noise immunity and robust relay construction maintain output switching accuracy in these thermally and electrically challenging environments, supporting precise control of cooling water valves, furnace atmosphere dampers, and material handling interlocks.

Port & Logistics Automation: Container crane and automated guided vehicle (AGV) control systems require output modules that can handle frequent start/stop switching of high-inertia loads. The CP1W-8ER’s rated switching capacity and electrical lifespan support the high-cycle-rate demands of port automation, while its compact form factor allows integration into space-constrained crane control panels.

Safety and Quality FAQ

Q1: What warranty coverage does the CP1W-8ER carry?
Every CP1W-8ER unit supplied by SMARTNEXMSK is covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Replacement or repair is arranged promptly to minimize your site downtime.

Q2: What pre-shipment testing is performed on each unit?
All CP1W-8ER modules undergo outgoing quality inspection prior to dispatch, including functional relay switching verification, insulation resistance measurement, and visual inspection for contact and connector integrity. Units that do not meet OMRON’s published specifications are quarantined and not shipped.

Q3: Is the CP1W-8ER compatible with both CP1H and CP1L host PLCs?
Yes. The CP1W-8ER is fully compatible with the OMRON CP1H and CP1L series host CPUs. It connects directly to the CP1 expansion bus without additional interface modules, and is recognized automatically by the host CPU during power-up configuration. It is not compatible with CJ-series or CS-series expansion buses.

Q4: Can long-term supply and spare parts availability be guaranteed?
SMARTNEXMSK maintains stock of the CP1W-8ER and key CP1-series expansion modules to support both new project builds and ongoing spare parts programs. For critical infrastructure sites requiring guaranteed spare parts availability over a multi-year horizon, please contact our sales team to discuss dedicated stock reservation arrangements.
