Panasonic MSDA083A1A Retrofit-Ready AC Servo Driver: Compatible Upgrade for MINAS-A Control Systems

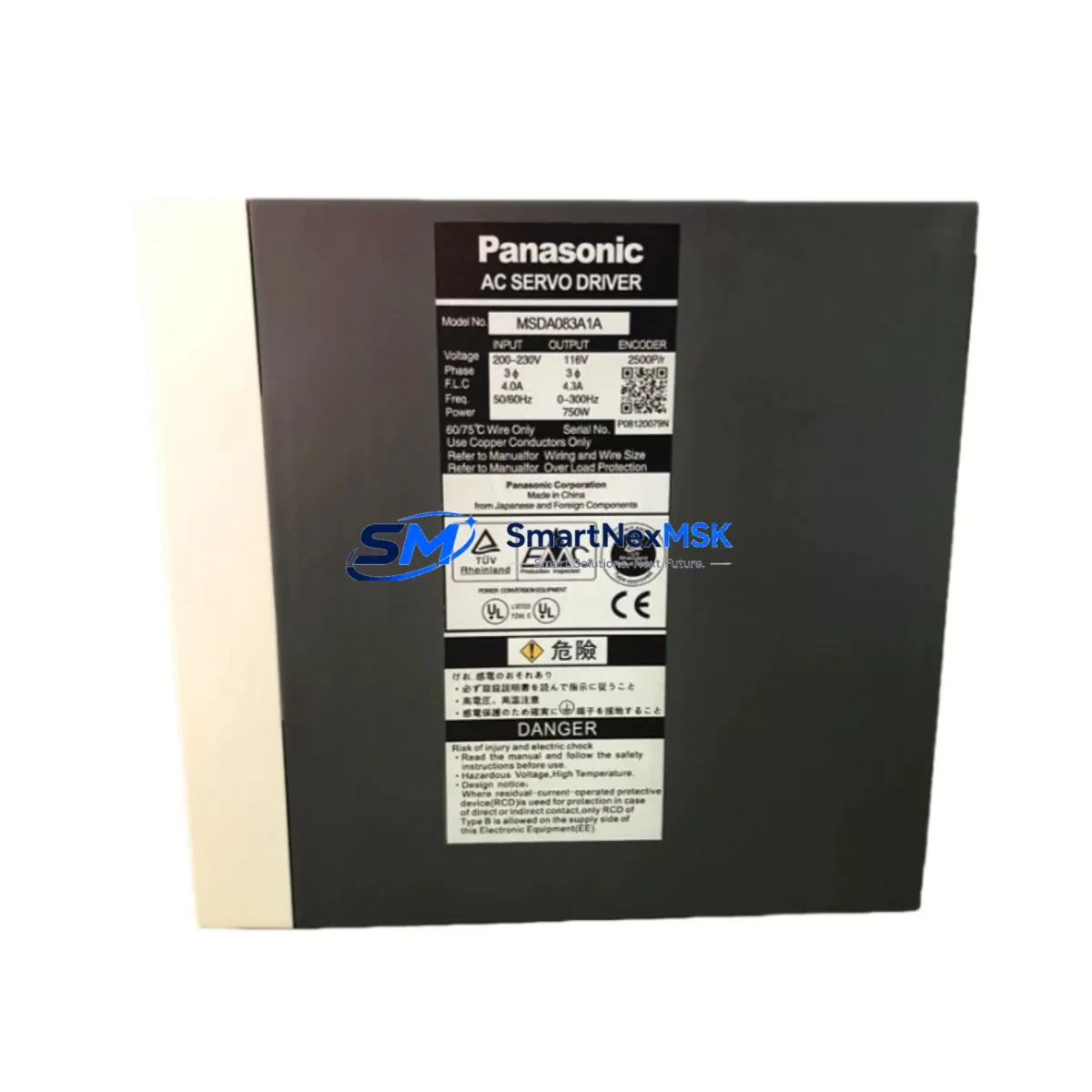

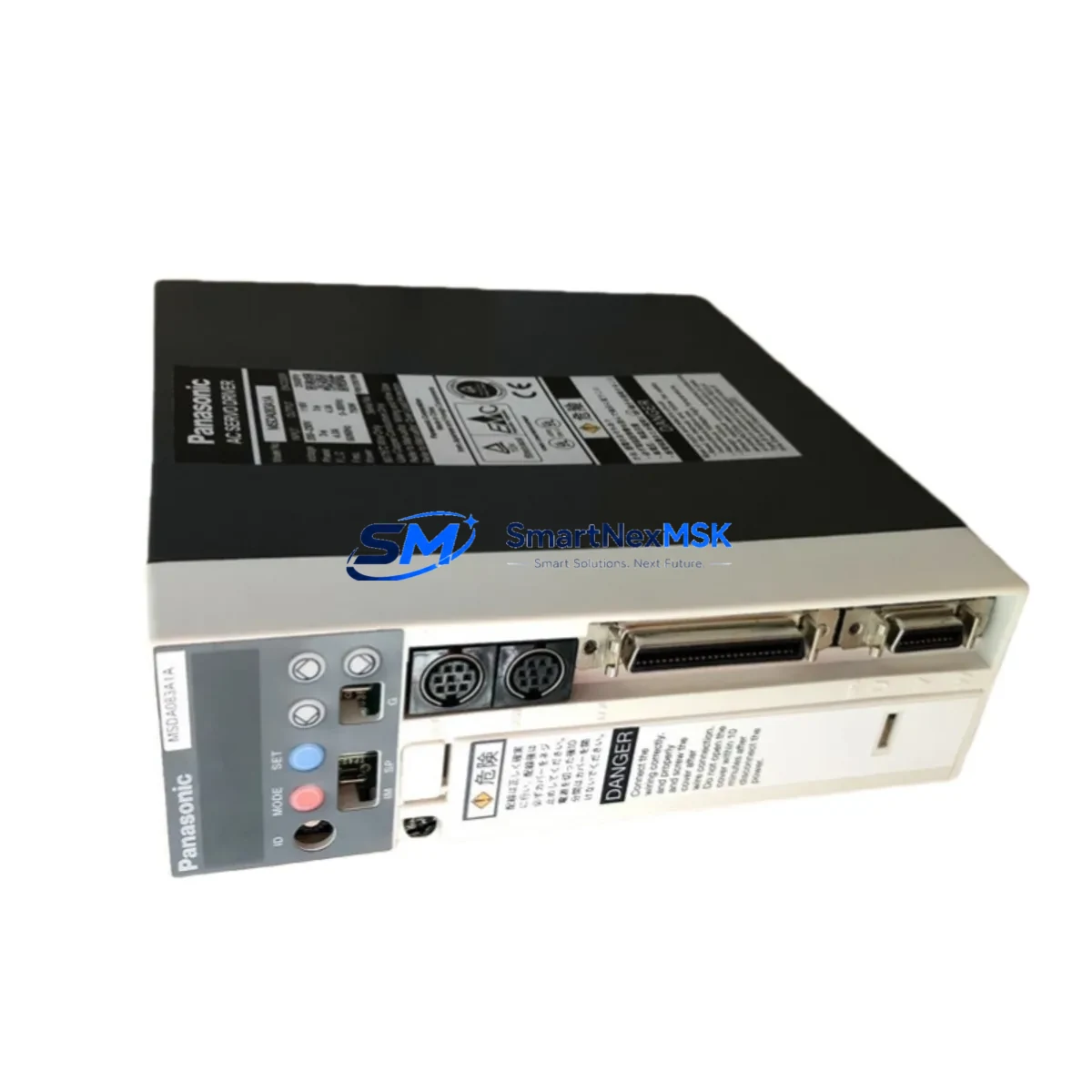

The Panasonic MSDA083A1A is a 750W AC servo driver from the MINAS-A series, widely deployed across precision motion control applications in manufacturing, packaging, semiconductor handling, and industrial automation. As legacy MINAS-A installations age and original spare parts become increasingly difficult to source, the MSDA083A1A has become a critical retrofit component for engineers tasked with maintaining production continuity without full system overhauls.
This unit is a direct form-fit-function replacement for discontinued MINAS-A servo drivers operating in the same power class. It accepts the standard MSDA-series connector pinout, supports the RS-232C and RS-485 communication interfaces common to legacy Panasonic servo networks, and is compatible with the MINAS-A series programming environment via PANATERM software. Engineers migrating from older MSDA-series variants such as the MSDA023A1A or MSDA043A1A will find the MSDA083A1A a reliable upgrade path within the same control architecture.
Upgrade Compatibility Table
| Parameter | MSDA083A1A (This Unit) | Notes / Retrofit Guidance |
|---|---|---|
| Rated Output Power | 750W | Verify motor nameplate matches 750W class |
| Input Voltage | Single-phase 200–230V AC | Confirm panel supply voltage before installation |
| Communication Interface | RS-232C / RS-485 | Compatible with existing MINAS-A network topology |
| Encoder Feedback | Incremental encoder (2500 P/R) | Confirm encoder cable pinout matches MSMA series motor |
| Control Mode | Position / Velocity / Torque | Parameter re-entry required after driver swap |
| Mounting / Form Factor | Panel-mount, standard MINAS-A footprint | Direct drop-in for same-class MSDA variants |
| Programming Tool | PANATERM (PC software) | Use existing PANATERM version; backup parameters first |
| Warranty | 12 Months | Covers manufacturing defects; includes pre-shipment test |
Retrofit Planning for Existing Automation Systems
Successful integration of the MSDA083A1A into an existing control cabinet requires systematic pre-installation verification. Begin by auditing the control panel layout: confirm that the existing DIN rail or panel mounting position accommodates the MINAS-A form factor, and that the 24V DC control power supply — typically a Panasonic or Omron DIN-rail PSU — can sustain the driver’s logic power draw alongside other panel loads.
Terminal wiring is a critical checkpoint. The CN X1 main power connector, CN X2 motor output connector, and CN X3 encoder feedback connector must be re-terminated according to the MSDA083A1A wiring diagram. If the existing installation used a MSDA043A1A or similar lower-power variant, verify that the wire gauge on the motor output terminals is rated for the 750W current class. In many retrofit scenarios, the CN X4 I/O connector — which carries servo-on, alarm-clear, and positioning-complete signals — can be reused directly from the original harness without modification.
For systems where the MSDA083A1A interfaces with a Panasonic FP-series PLC or an FP7 controller via pulse train output, confirm that the command pulse frequency and direction logic settings in the driver parameters (Pr0.01, Pr0.02) match the PLC’s output configuration. In installations using a Mitsubishi MELSEC Q-series or iQ-R controller as the motion master, the pulse output module — such as a QD75MH or RD77MS — must be reconfigured to match the MSDA083A1A’s input pulse specifications.
Where the legacy system included a Panasonic GT-series HMI or a Pro-face GP4000 operator panel with servo status screens, verify that the HMI tag addresses referencing servo alarm codes and current position registers remain valid after the driver swap. In most MINAS-A retrofit cases, the register map is preserved, but alarm code definitions may differ between firmware revisions — update the HMI alarm message table accordingly.
If the system includes a MINAS-A series regenerative resistor unit or an external braking resistor connected to the B1/B2 terminals, inspect the resistor rating against the MSDA083A1A’s regenerative capacity specification. For high-inertia loads or frequent deceleration cycles, an upgraded braking resistor may be required. Similarly, if the installation uses a noise filter on the AC input side, confirm its current rating is appropriate for the 750W driver class.
Downtime Control During System Migration
Minimizing production downtime during a servo driver replacement requires a structured swap procedure. Before powering down the control cabinet, use PANATERM to export the full parameter file from the existing driver. This backup preserves all tuning values — gain settings, electronic gear ratio, in-position window, and alarm history — and serves as the baseline for the replacement unit.
Once the MSDA083A1A is physically installed and wired, restore the parameter file via PANATERM before enabling the servo. Perform a static check with the servo-on signal inhibited: verify that the driver powers up without alarms, that the encoder feedback is recognized (check the position display in PANATERM), and that the I/O signals — particularly the servo-ready and alarm outputs — are correctly received by the upstream PLC or motion controller.
For systems where the PLC program references specific servo axis parameters or uses absolute position data, confirm that the home position reference is re-established after the driver swap. In incremental encoder systems, a homing cycle must be executed before resuming automatic operation. Coordinate with the machine operator to schedule this homing sequence during the commissioning window to avoid unplanned production interruptions.
Each MSDA083A1A unit supplied by SMARTNEXMSK undergoes pre-shipment functional testing, including power-on verification, encoder signal check, and I/O continuity test, reducing the risk of DOA failures and supporting faster on-site commissioning. All units are covered by a 12-month warranty against manufacturing defects.
Retrofit Support FAQ
Q1: Is the MSDA083A1A a direct drop-in replacement for other MSDA-series drivers?
The MSDA083A1A is a direct mechanical and electrical replacement for other 750W-class MSDA-series drivers sharing the same connector layout. Replacing a different power class (e.g., MSDA043A1A at 400W) requires verifying motor compatibility and re-evaluating wiring gauge and braking resistor ratings. Parameter re-entry via PANATERM is always required after any driver swap.
Q2: What commissioning steps are required after installation?
After physical installation and wiring, restore the backed-up parameter file via PANATERM, perform a static power-on check with servo-on inhibited, verify encoder feedback recognition, confirm I/O signal integrity with the upstream controller, and execute a homing cycle if the system uses incremental encoders. A trial run at reduced speed is recommended before resuming full production speed.
Q3: Does the MSDA083A1A support the same communication protocol as the original MINAS-A driver?
Yes. The MSDA083A1A supports RS-232C and RS-485 serial communication, consistent with the MINAS-A series standard. For systems using pulse train command input from a PLC or motion controller, the pulse input specifications (differential line driver or open collector) must be confirmed and matched to the upstream output module configuration.
Q4: What does the 12-month warranty cover, and what pre-shipment testing is performed?
The 12-month warranty covers manufacturing defects identified under normal operating conditions. Prior to shipment, each unit undergoes power-on verification, encoder interface check, and I/O continuity testing. Units that fail pre-shipment testing are not dispatched. Warranty claims are processed through SMARTNEXMSK’s technical support team at sales@smartnexmsk.com.
