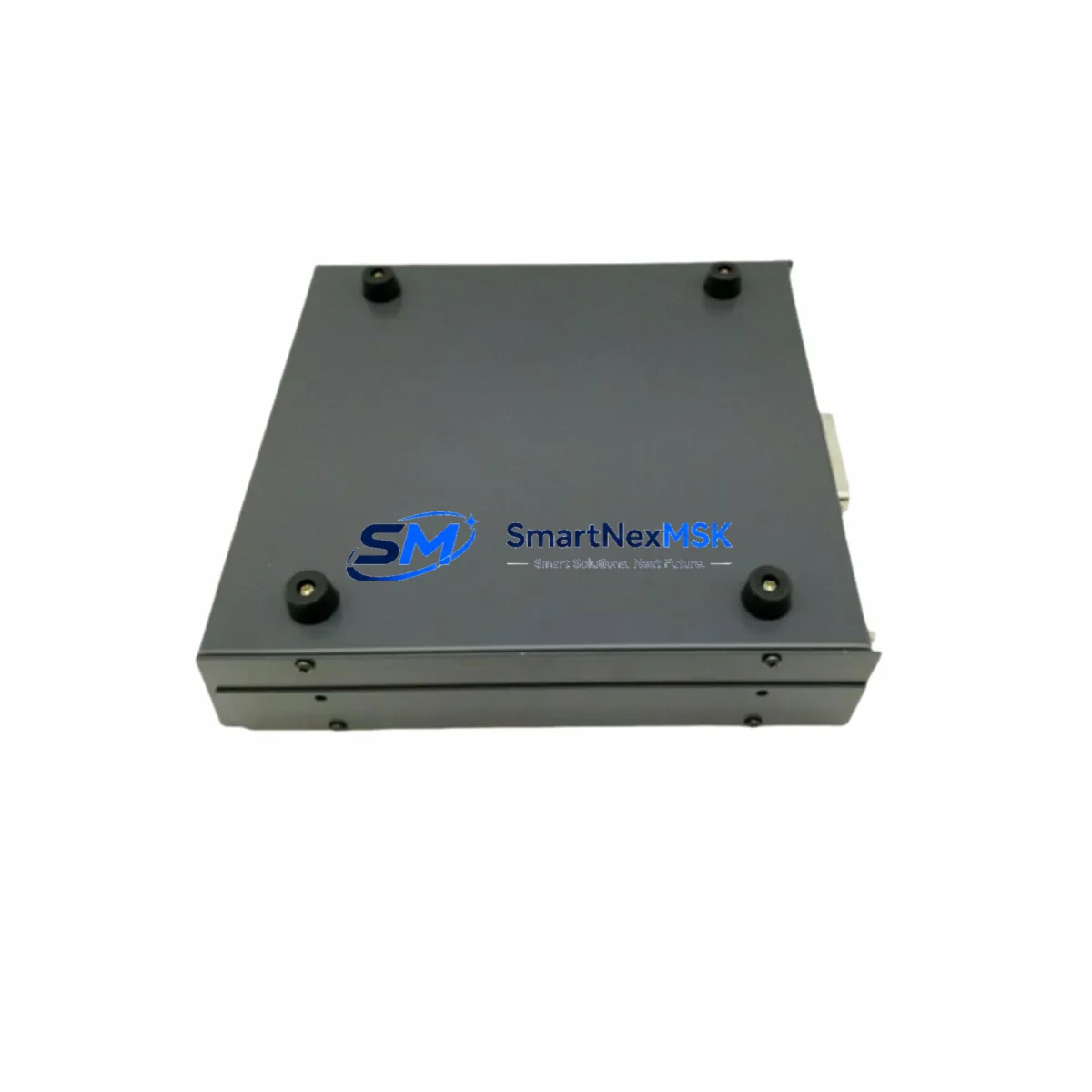

PEACOCK COM5V2 Spare for COM5 Series Automation: Precision Gauging Continuity & Downtime Control
The PEACOCK COM5V2 is an original digital comparator unit designed for the COM5 Series gauging and measurement automation platform. In industrial metrology environments — from precision machining lines to quality inspection stations — the COM5V2 serves as the core display and signal-processing unit that translates probe inputs into actionable dimensional data. When this unit fails or degrades, the entire gauging circuit goes offline, halting inspection workflows and creating production bottlenecks. Sourcing a verified original COM5V2 spare is the fastest path to restoring measurement continuity without recalibrating or redesigning the gauging system.
This listing provides a maintenance-ready, original PEACOCK COM5V2 unit — tested before shipment, backed by a 12-month warranty, and available for long-term supply to support planned maintenance programs and emergency replacement scenarios alike.
Spare Maintenance Table
| Parameter | Specification / Detail |
|---|---|
| Model / SKU | COM5V2 |
| Brand | PEACOCK (Ozaki Mfg. Co., Ltd.) |
| Series | COM5 Series Digital Comparator |
| Product Type | Digital Comparator / Gauging Display Unit |
| Origin | Japan |
| Application | Precision dimensional gauging, in-process inspection, quality control stations |
| Compatibility | COM5 Series probes, COM5-compatible transducers and gauging heads |
| Display Type | Digital readout with comparator output (inferred from COM5 Series architecture) |
| Signal Interface | Analog/digital probe input; comparator relay output (HI/OK/LO) |
| Power Supply | AC 100–240V (standard COM5 Series supply range) |
| Weight | 1,340 g |
| Condition | Original, new or refurbished-to-spec; tested before shipment |
| Warranty | 12 Months from shipment date |
| Maintenance Recommendation | Inspect probe connections and zero-calibration every 6 months; replace unit if display drift or relay chatter is observed |
| Long-Term Supply | Available for blanket orders and scheduled maintenance programs |
Maintenance Planning for Continuous Operation
When a COM5V2 unit is flagged for replacement during a scheduled inspection or after an unplanned fault, maintenance engineers should treat the event as an opportunity to audit the entire gauging circuit and surrounding control infrastructure. The COM5V2 does not operate in isolation — its measurement accuracy and relay output reliability depend on the condition of every upstream and downstream component in the gauging loop.
Begin with the probe and transducer assembly: PEACOCK COM5-series gauging heads and contact probes are wear items that should be inspected for tip wear, spring fatigue, and cable insulation damage whenever the comparator unit is serviced. A degraded probe will produce erratic readings even with a new COM5V2 installed. Next, check the signal cable and connector block between the probe and the comparator input — shielding integrity is critical in environments with variable-frequency drives or servo amplifiers nearby.
On the power side, verify the DIN-rail power supply module feeding the COM5V2 is within voltage tolerance. Fluctuating supply voltage is a common root cause of comparator display instability and premature unit failure. If the gauging station shares a panel with PLC I/O modules or relay output cards, inspect the terminal block wiring and surge protection devices on the same rail — loose terminals and degraded MOV suppressors are frequent culprits in intermittent comparator faults.
The comparator’s HI/OK/LO relay outputs typically feed into a PLC digital input module or a signal conditioning relay board. Confirm that the relay contacts in the COM5V2 are switching cleanly and that the receiving PLC input card registers correct logic levels. If the PLC input module shows erratic state changes, the fault may lie in the relay output of the comparator rather than the PLC itself — or vice versa. In older systems, an intermediate signal isolator or optocoupler module between the COM5V2 output and the PLC input can prevent ground-loop interference and extend the service life of both units.
For gauging stations integrated into SPC (Statistical Process Control) data collection systems, also inspect the RS-232 or BCD output interface of the COM5V2 and the corresponding serial communication module on the data acquisition side. Communication faults at this interface are often misdiagnosed as comparator failures. Finally, review the fuse holder and circuit breaker protecting the gauging panel — a marginally rated fuse that has experienced repeated thermal cycling may be near end of life and should be replaced as a precaution during any comparator swap.
Site Replacement Workflow
Step 1 — Isolation: Power down the gauging station at the panel breaker. Do not rely solely on the COM5V2 front-panel power switch. Lock out the supply and verify zero voltage at the unit terminals before disconnecting.
Step 2 — Documentation: Photograph or record all probe cable connections, relay output wiring, and any parameter settings visible on the existing COM5V2 display before removal. COM5 Series units store tolerance limits (upper/lower setpoints) internally — these must be re-entered on the replacement unit.
Step 3 — Removal & Inspection: Remove the faulty COM5V2 and inspect the mounting panel, connector pins, and cable terminations for corrosion, heat discoloration, or mechanical damage. Address any panel-side issues before installing the replacement.
Step 4 — Installation: Mount the replacement COM5V2, reconnect all probe and relay cables per the documented configuration, and restore power. The unit is designed as a direct drop-in replacement for existing COM5 Series installations — no wiring modifications are required when replacing like-for-like.
Step 5 — Calibration & Verification: Re-enter tolerance setpoints, perform a zero-calibration using the reference gauge master, and run a sample of known-dimension parts through the gauging cycle to verify HI/OK/LO relay outputs are switching at the correct thresholds. Log the calibration results per your site’s quality records.
Step 6 — Return to Service: Update the equipment maintenance log with the replacement date, new unit serial number, and calibration data. Schedule the next planned inspection interval accordingly.
Spare Parts Support FAQ
Q1: Is the COM5V2 a direct replacement for older COM5 Series comparator units?
Yes. The COM5V2 is designed as a compatible successor within the PEACOCK COM5 Series platform. It accepts the same probe inputs and relay output wiring as earlier COM5 variants. Tolerance setpoints must be re-programmed after installation, but no hardware modifications to the gauging fixture or panel wiring are required.
Q2: How is the COM5V2 tested before shipment?
Each unit undergoes functional verification covering display operation, probe input response, and relay output switching prior to dispatch. Units are shipped with protective packaging to prevent transit damage. A test report or inspection certificate can be provided upon request for quality-critical applications.
Q3: Can you support blanket orders or scheduled spare parts programs for the COM5V2?
Yes. We support long-term supply agreements for maintenance teams that require guaranteed stock availability. Blanket orders can be structured around your planned maintenance intervals — quarterly, semi-annual, or annual — with agreed lead times and pricing. Contact our sales team to discuss program terms.
Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. In the event of a warranty claim, we will arrange replacement or repair with priority handling to minimize your downtime.
