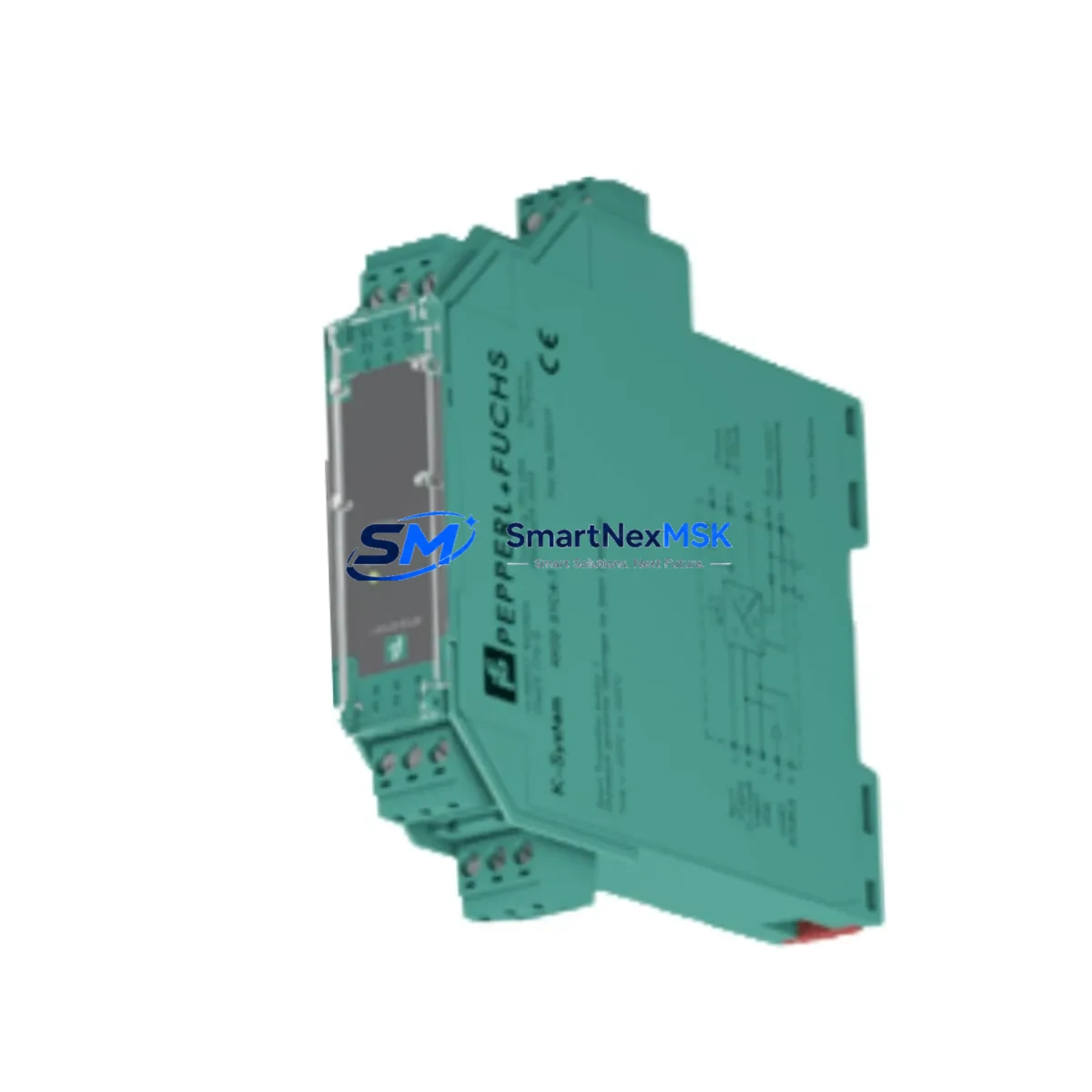

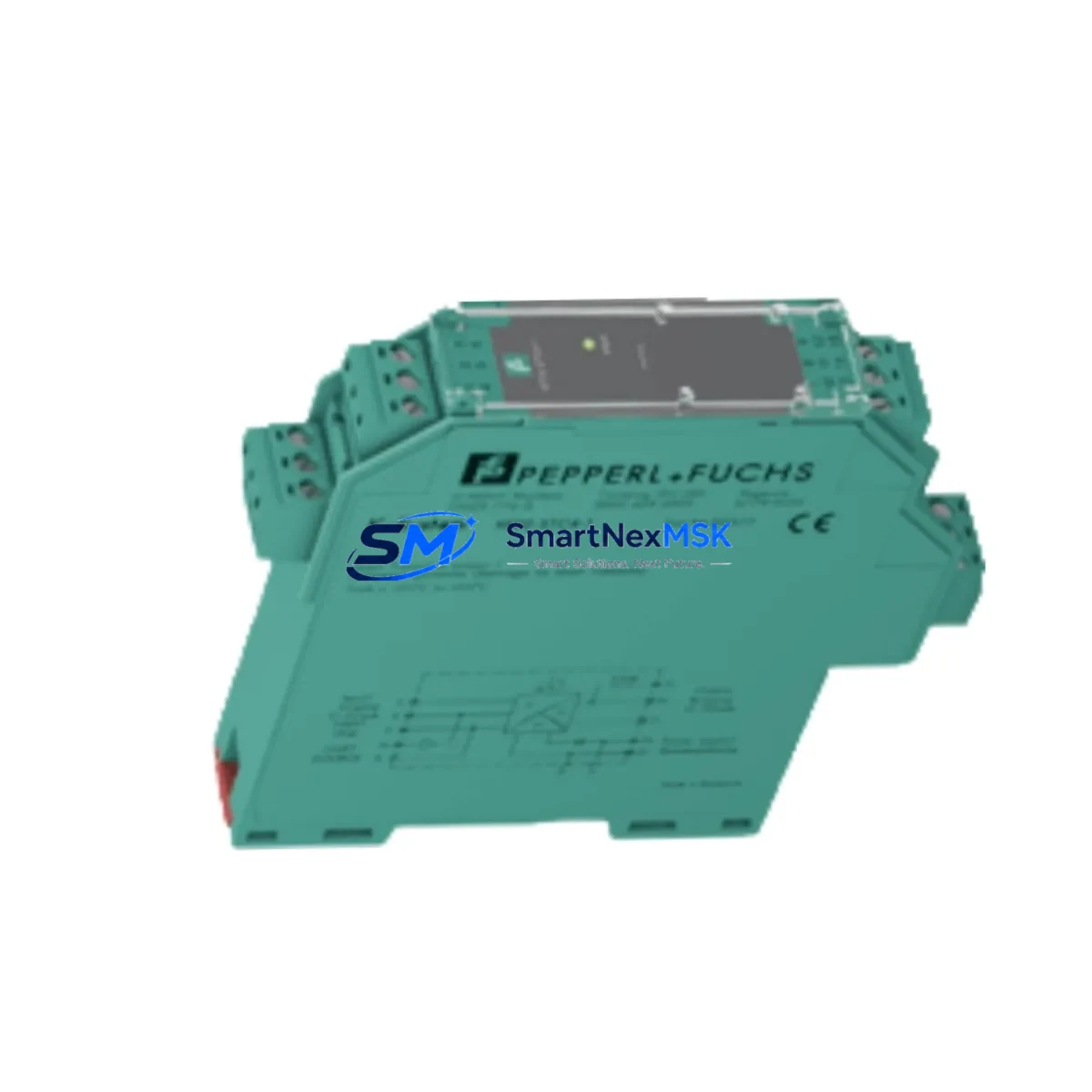

Pepperl+Fuchs KFD2-STC5-1 Retrofit-Ready HART Isolator for KFD2 Control Systems
The Pepperl+Fuchs KFD2-STC5-1 is a SMART HART signal isolator engineered for seamless integration into existing KFD2-series control architectures. As industrial facilities face increasing pressure to modernize aging DCS and PLC platforms without full system overhauls, the KFD2-STC5-1 delivers a proven, drop-in compatible solution for legacy field instrument loops, enabling smooth migration from discontinued isolator models while preserving existing wiring infrastructure and control logic.
Designed for installation in K-System DIN-rail mounting racks, the KFD2-STC5-1 accepts standard 24 VDC power from the KFD2 power bus — typically supplied by a KFD2-EB2 power bus or a dedicated KSD2-GW-1 gateway module. Its galvanic isolation barrier separates the field side from the control side, protecting sensitive DCS input cards and HART-capable controllers from ground loops, transient surges, and noise interference common in retrofit environments.
Upgrade Compatibility Table
| Parameter | KFD2-STC5-1 (This Unit) | Retrofit Notes |
|---|---|---|
| Mounting | K-System DIN Rail (35 mm) | Compatible with existing KFD2 rack; no new rail required |
| Supply Voltage | 20–35 VDC (via KFD2 power bus) | Verify KFD2-EB2 bus capacity before adding modules |
| HART Protocol | HART 5, 6, 7 (transparent pass-through) | Compatible with existing HART masters and handheld configurators |
| Signal Range | 4–20 mA (active/passive) | Confirm field transmitter loop type before wiring |
| Isolation | Galvanic, 3-way | Replaces KFD2-STC4-1 and similar discontinued isolators |
| Terminal Compatibility | Screw terminals, 0.14–2.5 mm² | Existing field wiring can be reused in most cases |
| Communication Interface | HART pass-through (no gateway required) | Works with KSD2-GW-1 or direct DCS HART I/O cards |
| Replacement Models | KFD2-STC4-1, KFD2-STC5-Ex1, legacy STC variants | Verify Ex rating requirements for hazardous area installations |
| Commissioning | No software configuration required | Plug-and-play; verify loop current with HART communicator |
| Warranty | 12 Months | Covered from date of shipment; includes functional testing certificate |
Retrofit Planning for Existing Automation Systems
When planning a retrofit involving the KFD2-STC5-1, engineers must account for the full signal chain from field transmitter to DCS or PLC input. In a typical KFD2-series installation, the isolator sits between a 4–20 mA HART field device — such as a pressure transmitter or flow meter — and the analog input card of a Siemens S7-300, Honeywell C300, or Yokogawa CENTUM VP controller. The KFD2-STC5-1 preserves the HART communication channel transparently, meaning existing asset management configurations in tools such as Emerson AMS or Yokogawa PRM do not require reconfiguration after module swap.
Before removing the legacy isolator, technicians should document the terminal wiring layout using the existing loop drawing. The KFD2-STC5-1 uses the same terminal numbering convention as other KFD2-series modules, so field cables connected to terminals 1, 2, 3 (field side) and 6, 7, 8 (control side) can typically be re-landed without modification. However, if the existing installation uses a KFD2-EB2 power bus, the total current draw of all connected modules must be recalculated to confirm the bus supply — often a KFD2-GUT or KFD2-EB2.R2 — has sufficient headroom.
For installations where the legacy isolator was mounted alongside a KFD2-SR2-Ex1.W relay module or a KFD2-UT2-Ex2 universal transmitter, the physical slot position in the K-System rack must be verified. The KFD2-STC5-1 occupies a single slot width, consistent with standard KFD2 modules. If the rack also houses a KFD2-CD-Ex1.32 segment coupler or a KFD2-HMM-16 HART multiplexer, the HART address assignments for field devices on the loop should be confirmed before powering up the new module to avoid address conflicts.
In control cabinets where space is constrained, the compact form factor of the KFD2-STC5-1 allows it to be installed alongside existing KFD2-SL2-Ex1.LK solenoid drivers or KFD2-DWB-1.D2 discrete input modules without requiring cabinet expansion. All units ship with a functional test report and are verified against Pepperl+Fuchs factory specifications prior to dispatch, supporting a 12-month warranty from the date of shipment.
Downtime Control During System Migration
Minimizing production downtime during a KFD2-STC5-1 swap requires a structured hot-swap procedure. Because the KFD2 K-System architecture supports module replacement without powering down the entire rack in many configurations, technicians can isolate the affected loop at the field junction box, remove the legacy isolator, and install the KFD2-STC5-1 within a single maintenance window — typically under 30 minutes per loop.
Prior to the swap, the DCS operator should place the affected control loop in manual mode to prevent process upsets. The existing 4–20 mA signal value should be noted and, if the DCS supports it, a forced output value applied to maintain actuator position during the transition. Once the KFD2-STC5-1 is seated and terminals re-landed, the loop current can be verified using a HART Field Communicator (such as the Emerson 475 or Beamex MC6-T) before returning the loop to automatic control.
For multi-loop migrations involving an entire K-System rack, a phased approach is recommended: replace modules in groups of four to six, verify each group before proceeding, and maintain a rollback plan using the original modules held in temporary storage. This approach protects the original program logic in the DCS or PLC, preserves HMI faceplate configurations, and ensures communication links to the HART multiplexer or asset management system remain intact throughout the migration.
Retrofit Support FAQ
Q: Is the KFD2-STC5-1 a direct replacement for the KFD2-STC4-1?
A: In most applications, yes. Both modules share the same K-System mounting footprint, terminal layout, and 4–20 mA HART pass-through function. The KFD2-STC5-1 adds enhanced HART 7 support and improved diagnostic transparency. Verify the field device loop type (active vs. passive) and confirm the supply voltage range before substitution.
Q: Can I reuse existing field wiring when installing the KFD2-STC5-1?
A: In the majority of retrofit cases, yes. The terminal numbering and wire gauge compatibility (0.14–2.5 mm²) are consistent with standard KFD2-series modules. Re-land existing cables to the corresponding terminals and verify loop continuity with a multimeter before powering up.
Q: What commissioning steps are required after installation?
A: No software configuration is required for the KFD2-STC5-1. After installation, verify the 4–20 mA loop current at both the field and control side terminals using a calibrated loop calibrator or HART communicator. Confirm HART communication by polling the field device from the DCS or a handheld HART master. Return the control loop to automatic mode and monitor for one full process cycle before signing off.
Q: What does the 12-month warranty cover?
A: Each KFD2-STC5-1 unit is functionally tested prior to shipment and covered by a 12-month warranty from the date of dispatch. The warranty covers manufacturing defects and functional failures under normal operating conditions. A test certificate is included with each shipment. For warranty claims or technical support, contact our team directly.
