Pfeiffer TC100 PM C01 692A Safety-Enhanced AF Drive Controller

Pfeiffer TC100 PM C01 692A Safety-Enhanced AF Drive Controller: Reliable Vacuum Control for Harsh Industrial Sites

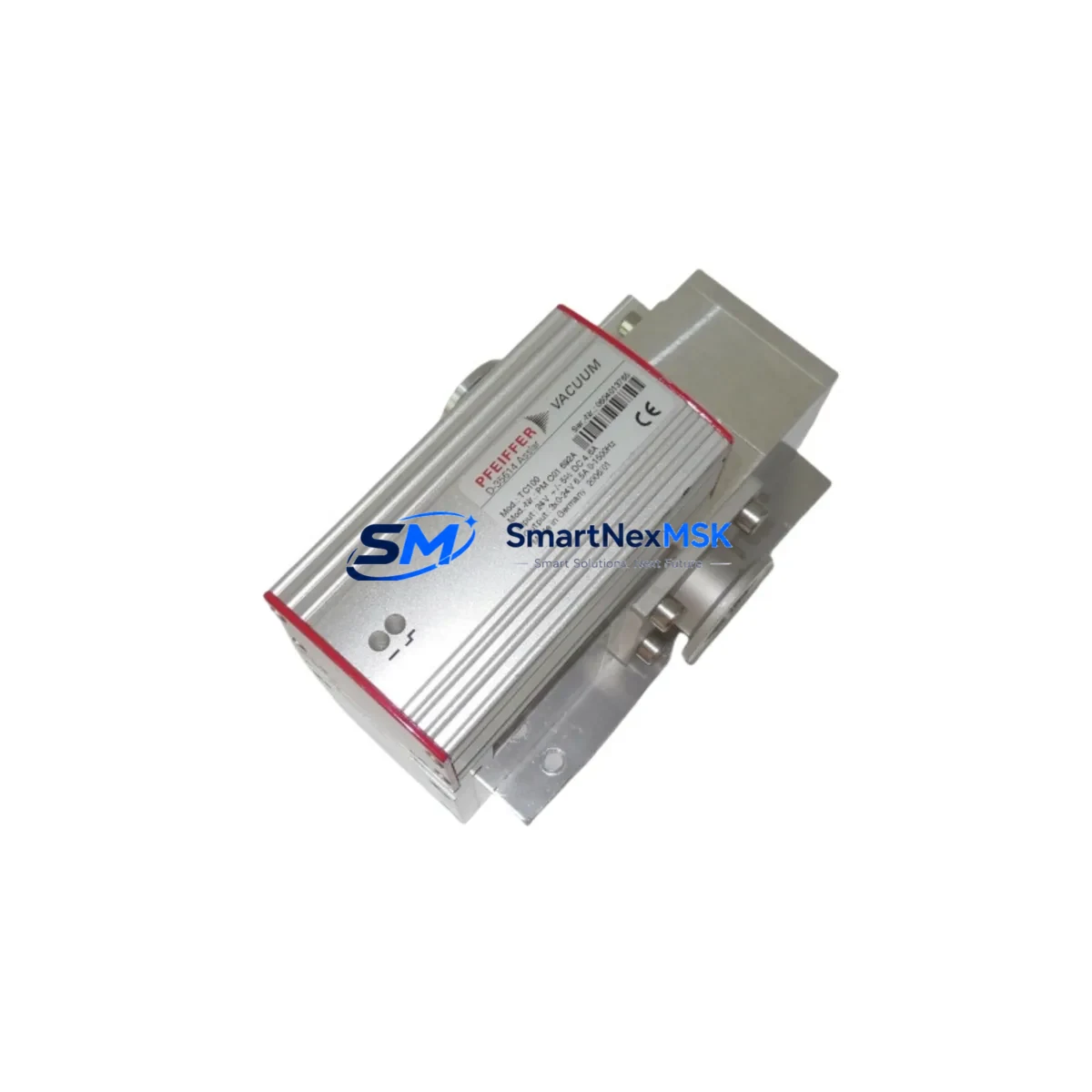

The Pfeiffer Vacuum TC100 PM C01 692A AF Drive Controller (SKU: D-35614 PM C01 692A TC100 PMH 13/3000 3152290-000 AF-CONTROLLER 741040) is an advanced turbomolecular pump drive module engineered for continuous, safety-critical vacuum control in demanding industrial environments. Designed and manufactured in Germany to Pfeiffer Vacuum’s exacting standards, this controller delivers stable, interference-resistant pump management across petrochemical processing, semiconductor fabrication, power generation, metallurgical furnaces, and high-vacuum research installations where unplanned downtime carries severe operational and safety consequences.

In high-load vacuum systems, the integrity of the pump drive controller is the first line of defense against catastrophic process failure. The TC100 PM C01 692A employs adaptive frequency (AF) drive technology to maintain precise rotational speed regulation of the turbomolecular pump rotor, suppressing speed drift caused by load fluctuations, supply voltage transients, and electromagnetic interference from adjacent high-power equipment. This directly reduces the risk of rotor deceleration events, bearing overload, and uncontrolled venting — failure modes that can compromise both process safety and personnel protection in hazardous-area installations.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the TC100 PM C01 692A within a vacuum system control cabinet requires a coordinated protection architecture to ensure continuous safe operation. The controller’s 24 VDC power rail should be supplied through a Pfeiffer Vacuum DCU 002 power supply unit or equivalent regulated DC source with built-in overvoltage and short-circuit protection, preventing supply transients from propagating into the drive electronics. Upstream of the power supply, a PHOENIX CONTACT QUINT-PS series DIN-rail power supply with SFB (Selective Fuse Breaking) technology provides an additional layer of current-limiting protection during cabinet-level fault events.

The RS-485 communication bus connecting the TC100 to the host PLC or SCADA system — typically a Siemens S7-1200 or S7-300 series PLC with a CM 1241 RS-485 communication module — must be protected against common-mode surges using a DEHN DEHNguard RS-485 surge arrester installed at both ends of the bus cable. This prevents communication anomalies and controller lockups caused by ground potential differences in large industrial facilities.

The hardware interlock input of the TC100 PM C01 692A should be wired into the facility’s safety relay circuit — for example, a Pilz PNOZ X3 safety relay or Schmersal SRB series safety module — so that an E-stop event or interlocked guard opening immediately commands a controlled pump deceleration and vent valve closure, rather than an abrupt power cut that could damage the rotor bearing assembly. The vent valve itself, typically a Pfeiffer Vacuum EVR series electromagnetic vent valve, should be wired in series with the interlock output to guarantee coordinated venting on shutdown.

For installations in environments with significant conducted EMI — such as adjacent variable-frequency drives (VFDs), welding equipment, or large motor starters — a SCHAFFNER FN 2070 series DIN-rail EMC filter on the 24 VDC input line suppresses high-frequency noise that could cause erratic speed control or false fault trips. Cable routing discipline, with separate conduits for power and signal cables and the use of Belden 3105A shielded twisted-pair cable for RS-485 runs, further reduces susceptibility to radiated interference in the control cabinet.

Critical Industrial Safety Applications

Petrochemical and Refinery Vacuum Systems: In crude distillation and vacuum distillation column overhead systems, the TC100 PM C01 692A maintains stable turbomolecular pump operation under fluctuating process loads and ambient temperatures. Its interlock interface integrates directly with the facility’s Safety Instrumented System (SIS), ensuring that pump shutdown is executed in a controlled, sequenced manner consistent with IEC 61511 functional safety requirements. Uncontrolled pump trips in these environments risk hydrocarbon backstreaming into the vacuum chamber, creating both process contamination and fire hazard.

Power Generation and Turbine Maintenance: Steam turbine and gas turbine maintenance facilities use high-vacuum systems for oil degassing, insulation drying, and SF₆ gas recovery. The TC100 controller’s adaptive frequency drive compensates for load variations during gas recovery cycles, preventing rotor overspeed and bearing fatigue. Its robust German engineering ensures reliable operation in the high-vibration, high-temperature environments typical of turbine maintenance bays.

Metallurgical Vacuum Furnaces: Vacuum induction melting (VIM) and vacuum arc remelting (VAR) furnaces in specialty steel and superalloy production require sustained high-vacuum levels throughout multi-hour melt cycles. The TC100 PM C01 692A provides the continuous, uninterrupted drive control necessary to maintain process vacuum, with its surge protection and EMI immunity ensuring stable operation despite the intense electromagnetic fields generated by induction heating coils.

Semiconductor and Flat Panel Display Manufacturing: PVD, CVD, and ion implantation processes demand ultra-high vacuum stability. The TC100’s precise speed regulation minimizes pressure fluctuations that could cause film deposition non-uniformity or implant dose errors, directly impacting yield and product safety in critical semiconductor fabrication lines.

Water Treatment and Municipal Infrastructure: Advanced water treatment plants employing vacuum degassing and membrane filtration systems rely on turbomolecular pump controllers for continuous 24/7 operation. The TC100’s 12-month warranty and pre-shipment functional testing provide the reliability assurance required for critical public infrastructure where spare parts availability and rapid replacement are essential to maintaining service continuity.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the unit fails within the warranty period, contact sales@smartnexmsk.com with the order reference and a description of the fault. We will arrange return shipping, perform diagnostic testing, and provide a replacement or repaired unit at no charge. Warranty does not cover damage caused by incorrect installation, overvoltage beyond specified limits, or physical impact.

Q2: What pre-shipment testing is performed on the TC100 PM C01 692A before dispatch?
Every unit undergoes a full functional test prior to shipment, including power-on verification, communication interface check, interlock input response test, and parameter readback confirmation. Units that do not pass all test criteria are quarantined and not dispatched. A test record is retained for traceability. This process ensures that the controller arrives at your facility in verified working condition, minimizing installation risk and commissioning delays.

Q3: Is the TC100 PM C01 692A compatible with all Pfeiffer turbomolecular pumps, and can it replace an existing controller on-site?
The TC100 PM C01 692A is specifically designed for Pfeiffer Vacuum turbomolecular pumps in the PMH 13/3000 performance class, including compatible HiPace and TMH series models. It is a direct replacement for the original Pfeiffer controller of the same part number (3152290-000 / 741040). Before installation, verify the pump’s rated frequency and power requirements against the TC100 datasheet. For cross-compatibility questions or assistance identifying the correct replacement, contact our technical team at sales@smartnexmsk.com.

Q4: Can long-term supply and spare parts availability be guaranteed for critical production lines?
We maintain stock of the TC100 PM C01 692A and related Pfeiffer Vacuum components to support customers with ongoing spare parts programs. For critical production lines requiring guaranteed availability, we recommend discussing a reserved stock arrangement with our sales team. We support customers in petrochemical, power, semiconductor, and heavy industry sectors with planned maintenance schedules, providing advance procurement and inventory holding services to eliminate unplanned downtime risk.
