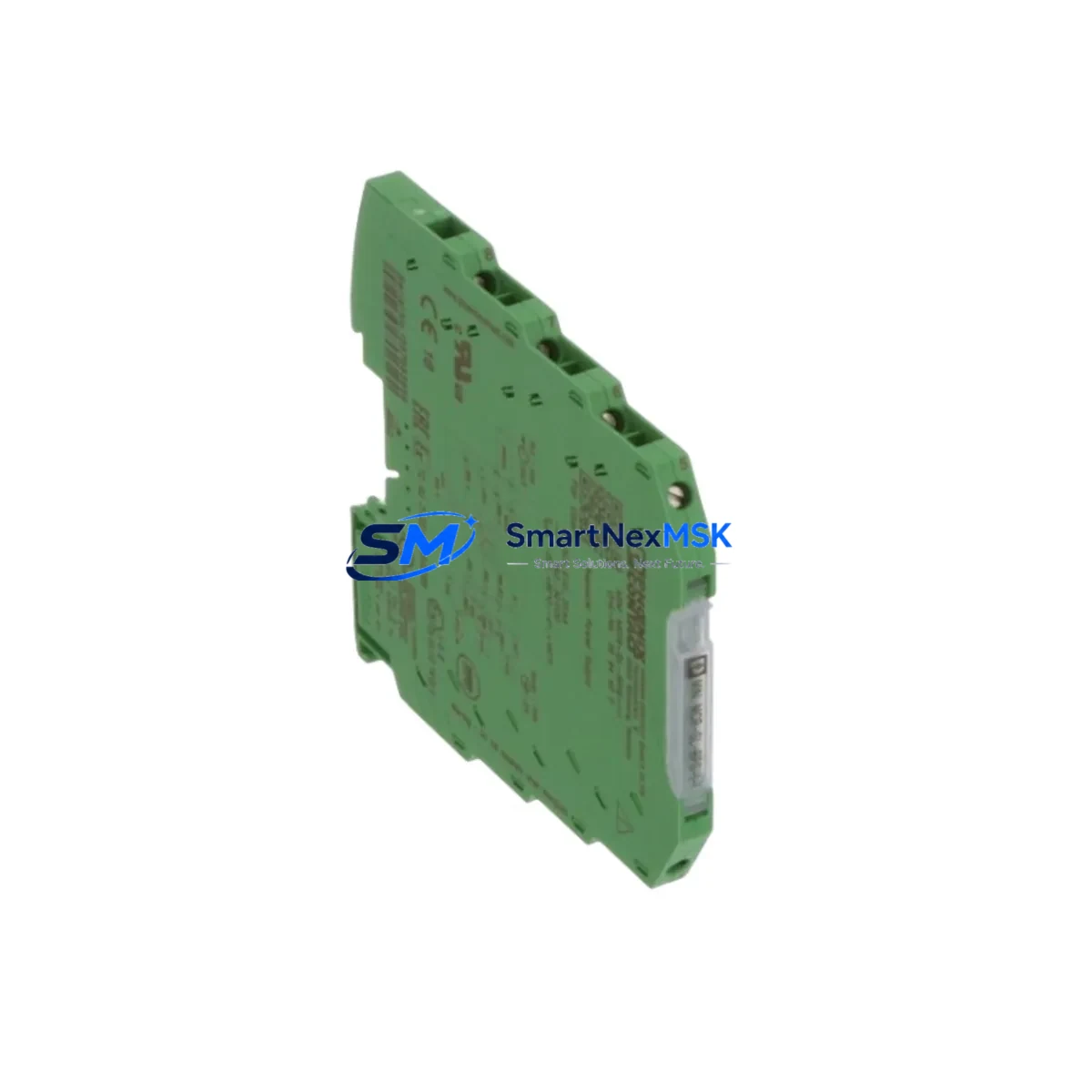

The Phoenix Contact MINI MCR-SL-RPS-I-I (Order No. 2864422) is a passive current signal isolator engineered for galvanic separation of 0–20 mA and 4–20 mA analog loops in industrial control cabinets. As legacy MINI MCR-SL signal conditioning assemblies reach end-of-service milestones, this module provides a direct, retrofit-ready replacement path that preserves existing wiring layouts, DIN-rail footprints, and loop-powered circuit architectures — eliminating the need for costly panel redesigns or PLC I/O reconfiguration.

Maintenance and procurement engineers working on aging process control systems frequently encounter the challenge of sourcing discontinued or hard-to-find signal conditioning components. The MINI MCR-SL-RPS-I-I addresses this directly: it is a pin-compatible, functionally equivalent replacement for earlier MINI MCR-SL passive repeater variants, allowing field teams to swap modules during planned shutdowns or emergency interventions without rewriting PLC programs or recalibrating transmitter loops.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the MINI MCR-SL-RPS-I-I begins well before the module arrives on site. Maintenance engineers should audit the full signal conditioning rail in the control cabinet, identifying adjacent components that may also be approaching end-of-life. In a typical MINI MCR-SL installation, the passive isolator works alongside MINI MCR-SL-UI-UI voltage/current converters, MINI MCR-SL-PT-UI temperature transducer interfaces, and MINI MCR-SL-2I-2I dual-channel isolators — all sharing the same DIN-rail segment and terminal block wiring conventions.

Before pulling the old module, verify the 24 V DC auxiliary power rail feeding active modules in the same cabinet. The MINI MCR-SL-PS-100-240AC/24DC power supply unit, or equivalent QUINT POWER or TRIO POWER supply, should be load-checked to confirm it can sustain the full rail current after any additional active modules are introduced during the upgrade. Fuse holders and circuit breakers protecting the 24 V segment — such as the MINI MCR-SL series inline fuse terminals — should be inspected and replaced if showing signs of thermal stress.

On the field side, confirm that the 4–20 mA transmitter loop resistance budget is within specification after inserting the isolator. Two-wire transmitters connected through the MINI MCR-SL-RPS-I-I must see a total loop burden within the transmitter’s compliance voltage range. If the existing loop includes a HART communicator tap or a HART multiplexer, the passive isolator’s HART transparency ensures no signal degradation — a critical advantage when the upstream PLC analog input card (such as a Siemens SM 331 or Rockwell 1756-IF16) relies on HART pass-through for device diagnostics.

Terminal block compatibility is another key retrofit checkpoint. The MINI MCR-SL-RPS-I-I uses Phoenix Contact’s standard COMBICON plug-in screw terminal system. If the existing installation uses CLIPLINE or UK series terminal blocks on the same rail, verify that the wiring cross-sections (typically 0.2–2.5 mm²) match the new module’s terminal ratings. Label all conductors before disconnection to prevent loop identification errors during recommissioning.

For systems where the MINI MCR-SL-RPS-I-I feeds a remote I/O station — such as a Pepperl+Fuchs KFD or R-series barrier in a Zone 1 hazardous area — confirm that the galvanic isolation barrier’s input impedance remains within the isolator’s specified load range. In modernization projects where the legacy DCS front-end is being migrated to a new ABB AC500 or Siemens S7-1500 platform, the MINI MCR-SL-RPS-I-I can serve as a signal conditioning bridge, preserving existing field wiring while the new controller’s analog input modules are commissioned in parallel.

Downtime Control During System Migration

Minimizing unplanned downtime during a signal isolator replacement requires a structured hot-swap or cold-swap protocol. For non-critical loops, a cold-swap during a scheduled maintenance window is preferred: isolate the loop at the field transmitter, remove the old module from the DIN rail, insert the MINI MCR-SL-RPS-I-I, reconnect the plug-in terminals, and restore the loop. Total elapsed time per channel is typically under five minutes for an experienced technician.

For critical process loops — flow, pressure, or temperature signals feeding safety-instrumented functions — coordinate the swap with the control room to place the affected PLC input in manual override or force the signal value before disconnection. This prevents spurious alarms or interlock trips during the brief signal interruption. After reconnection, verify the live 4–20 mA reading at the PLC HMI screen (such as a Siemens TP1200 Comfort or Weintek cMT panel) before releasing the override.

Where multiple isolators on the same rail are being replaced in a single outage, work from one end of the DIN-rail segment to the other to avoid disturbing adjacent wiring. Use a portable loop calibrator to inject a known 4 mA and 20 mA signal through each replaced module and confirm the output at the PLC analog input card before proceeding to the next channel. This channel-by-channel verification approach catches wiring errors immediately and prevents cascading faults during system restart.

All units supplied by SMARTNEXMSK are pre-tested prior to shipment and backed by a 12-month warranty, giving maintenance teams confidence that the replacement module will perform to specification from the moment it is installed.

Retrofit Support FAQ

Q1: Is the MINI MCR-SL-RPS-I-I 2864422 a direct drop-in replacement for older MINI MCR-SL passive repeater models?
A: Yes. The MINI MCR-SL-RPS-I-I is dimensionally and functionally compatible with earlier MINI MCR-SL passive current repeater variants. The 6.2 mm housing width, DIN-rail mounting, and plug-in COMBICON terminal system are consistent across the MINI MCR-SL product family, allowing direct substitution without panel modifications.

Q2: Does the module require any configuration or address setting after installation?
A: No. The MINI MCR-SL-RPS-I-I is a passive, loop-powered device with no DIP switches, potentiometers, or firmware. It requires no configuration — simply wire the input and output terminals according to the connection diagram and the module is operational.

Q3: How is the unit tested before shipment, and what does the 12-month warranty cover?
A: Each unit undergoes functional loop testing at 4 mA and 20 mA prior to dispatch. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units showing damage from overvoltage, incorrect wiring, or environmental exposure beyond rated limits are assessed case by case.

Q4: Can you supply multiple units for a full cabinet retrofit or long-term spare stock?
A: Yes. SMARTNEXMSK maintains inventory of the MINI MCR-SL-RPS-I-I 2864422 and can fulfill both single-unit urgent orders and bulk procurement for planned retrofit projects or strategic spare parts programs. Contact our team for volume pricing and lead time confirmation.
