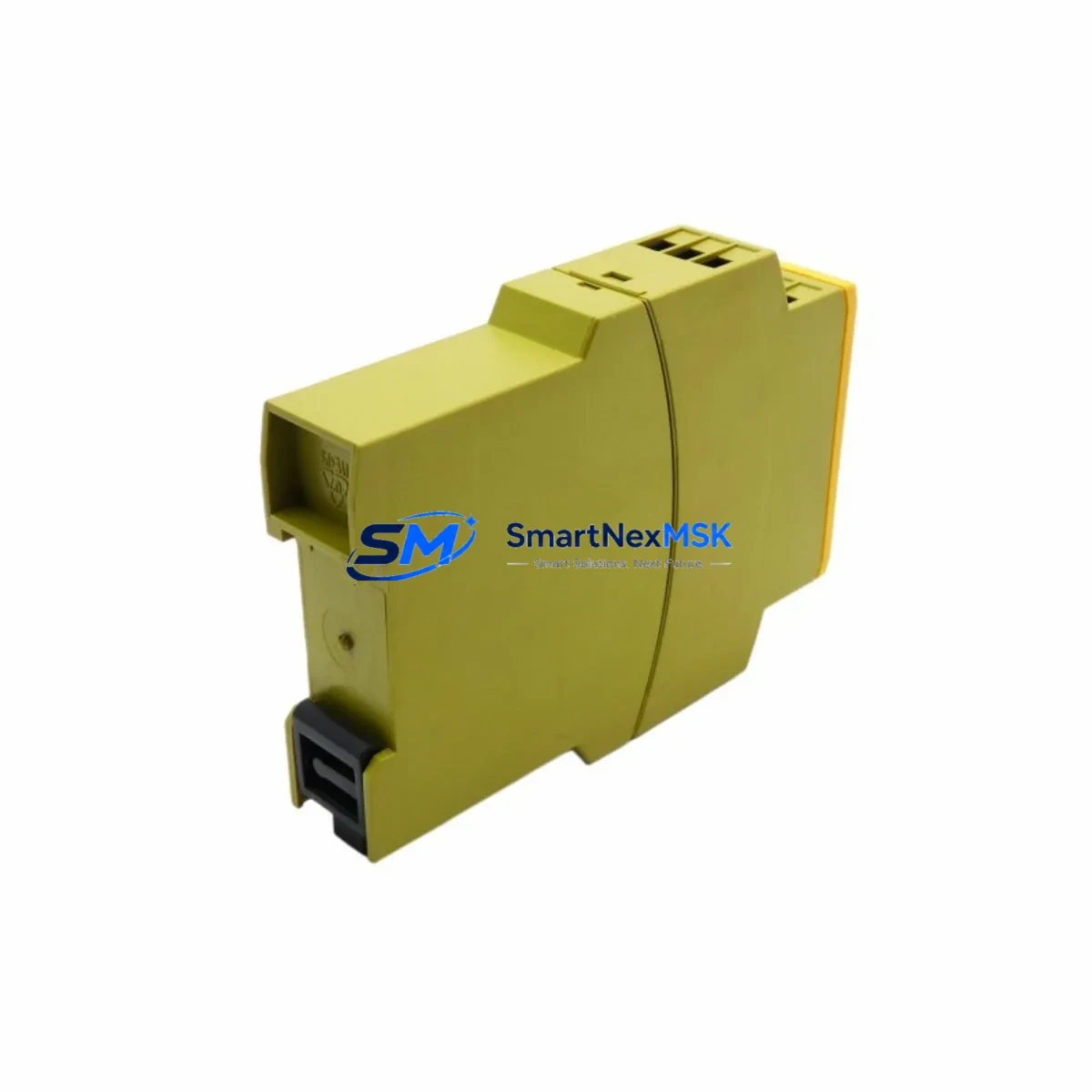

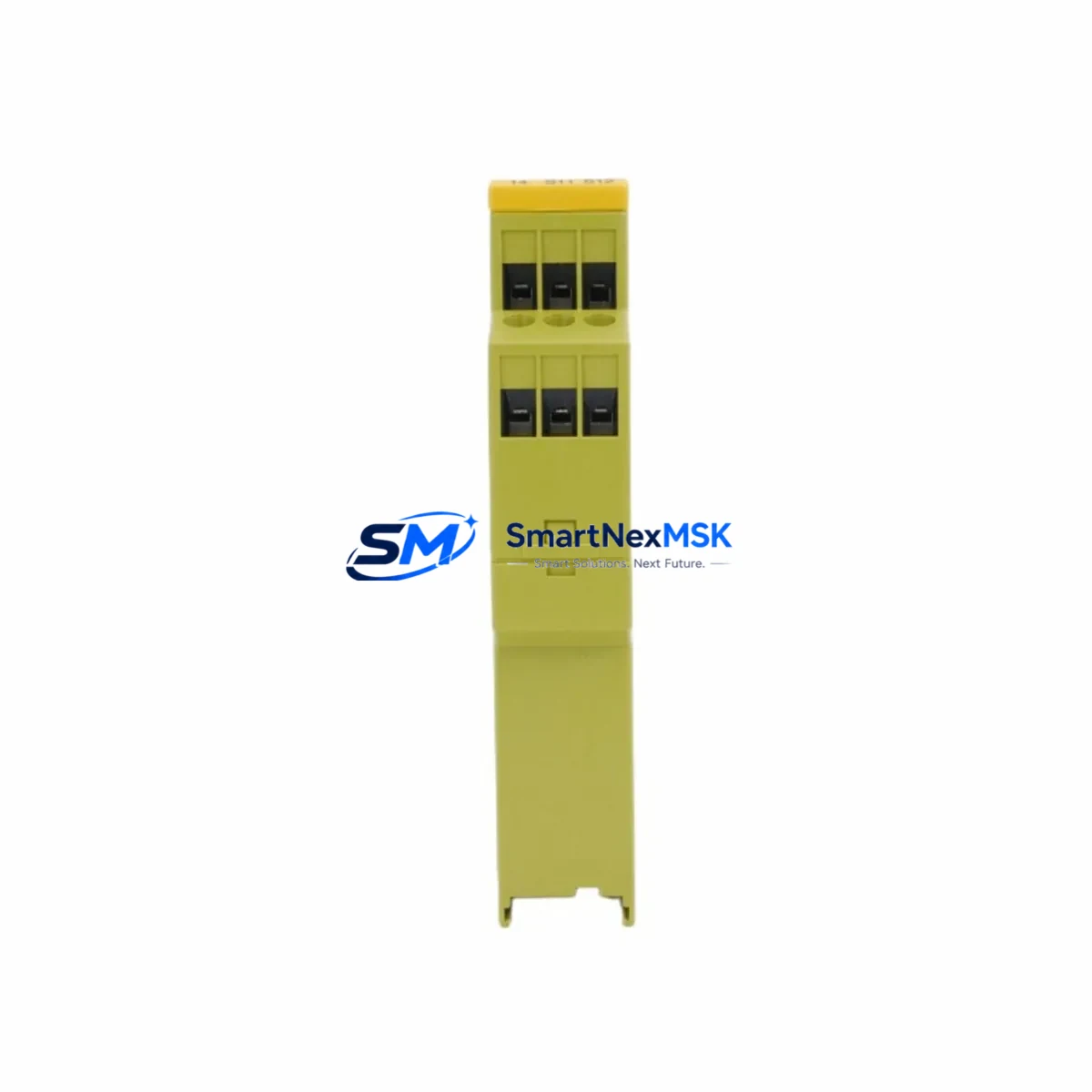

PILZ PNOZ-X2-774303 Safety-Enhanced Dual-Channel Relay for Harsh Sites

PILZ PNOZ-X2-774303 Safety-Enhanced Dual-Channel Relay for Harsh Industrial Sites

The PILZ PNOZ-X2-774303 is a dual-channel safety relay module engineered for mission-critical emergency stop (E-stop) and safety gate monitoring circuits in demanding industrial environments. As a core component of the globally trusted PNOZ X Series, this module delivers deterministic, fail-safe switching performance across petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical lines, port logistics systems, and continuous process manufacturing sites.

In high-load control cabinets where signal integrity is non-negotiable, the PNOZ-X2-774303 provides robust dual-channel input monitoring with cross-circuit fault detection, ensuring that a single wiring fault or contact failure cannot bypass the safety function. Its force-guided relay contacts comply with IEC 60947-5-1 Annex L, providing positive-opening operation that guarantees contact separation even under welded-contact conditions — a critical requirement in safety-rated interlock loops and Category 4 / PLe architectures.

Designed to operate reliably in environments subject to electrical noise, vibration, power fluctuations, and thermal stress, the PNOZ-X2-774303 maintains stable switching behavior where standard relays fail. Its wide supply voltage tolerance absorbs transient surges and brownout conditions common in heavy industrial power systems, reducing the risk of nuisance trips or undetected failures in safety circuits.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered safety control cabinet, the PNOZ-X2-774303 operates as the central safety switching element within a layered protection architecture. It is typically wired downstream of dual-channel E-stop pushbuttons or safety door switches, and upstream of safety-rated contactors or motor starters that control hazardous energy sources.

For complete cabinet-level protection, the PNOZ-X2-774303 is commonly deployed alongside the PILZ PNOZ X3 774310 for three-phase motor safety monitoring, and the PILZ PNOZ X5 774320 for two-hand control and light curtain interface applications. In systems requiring muting or bypass logic, the PILZ PNOZ m B0 773500 configurable safety controller provides programmable safety logic that can supervise multiple PNOZ X relay outputs within a single safety architecture.

Power supply stability is critical to safety relay performance. A PILZ PSSu P 24V DC power supply module or equivalent 24 VDC regulated DIN rail PSU with surge protection ensures the PNOZ-X2-774303 receives clean, stable power free from voltage spikes that could cause relay chatter or reset failures. Upstream, a Phoenix Contact QUINT-PS surge protection device or Weidmüller surge arrester on the 24 VDC bus further shields the safety circuit from transient overvoltages induced by nearby variable frequency drives (VFDs) or large motor switching events.

In safety bus architectures, the PNOZ-X2-774303 integrates with PILZ PNOZmulti 2 safety controllers via hardwired feedback loops, enabling centralized diagnostics and safety state monitoring across multiple machine zones. For communication-intensive installations, PILZ PSSuniversal PLC safety modules provide the bridge between hardwired safety relays and PROFINET or EtherNet/IP safety networks, ensuring that safety status data is available to the plant DCS or SCADA system without compromising the integrity of the hardwired safety loop.

Terminal block quality matters in high-vibration environments. Phoenix Contact PTFIX distribution blocks and Wago 221 Series lever-nut connectors are recommended for field wiring terminations on PNOZ X relay inputs and outputs, providing vibration-resistant, tool-free connections that maintain contact integrity over years of continuous operation in harsh sites.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In hazardous area control rooms and junction boxes, the PNOZ-X2-774303 monitors emergency shutdown (ESD) pushbuttons and pressure relief valve position switches. Its dual-channel architecture ensures that a single point of failure in the field wiring cannot prevent the safety function from activating, meeting the stringent requirements of IEC 61511 functional safety standards for process industries.

Power Generation & Utilities: Turbine control panels and generator protection systems rely on safety relays to monitor overspeed trips, vibration switches, and bearing temperature interlock circuits. The PNOZ-X2-774303’s fast response time (≤ 20 ms) and force-guided contacts make it suitable for high-speed protective relay applications where delayed response could result in equipment damage or personnel injury.

Mining & Mineral Processing: Conveyor belt emergency stop systems in underground and surface mining operations demand safety relays that withstand coal dust, moisture ingress, and mechanical vibration. The PNOZ-X2-774303’s robust construction and wide operating temperature range ensure reliable E-stop function even in the most challenging mining environments.

Water & Wastewater Treatment: Pump station control panels and chemical dosing systems use safety relays to monitor access doors, guard interlocks, and manual isolation switches. The PNOZ-X2-774303 provides the required Category 3 or Category 4 safety function for personnel protection around rotating equipment and chemical handling areas.

Metallurgy & Steel Production: Rolling mill and furnace control systems operate in extreme thermal and electromagnetic environments. The PNOZ-X2-774303’s immunity to electrical noise and its stable switching behavior under high ambient temperatures make it the preferred safety relay for interlock circuits in steel plant control cabinets.

Port & Logistics Automation: Crane and hoist control systems require safety relays that can handle frequent E-stop activations without contact degradation. The PNOZ-X2-774303’s high mechanical and electrical endurance ratings ensure long service life in high-cycle port automation applications.

Safety and Quality FAQ

Q1: What warranty does the PILZ PNOZ-X2-774303 carry?
All PNOZ-X2-774303 units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed promptly with replacement or repair support.

Q2: How is each unit tested before shipment?
Every PNOZ-X2-774303 module undergoes pre-shipment functional testing including input channel verification, output contact continuity check, cross-circuit fault detection test, and reset function validation. Test records are available upon request for quality-critical procurement.

Q3: Is the PNOZ-X2-774303 compatible with existing PNOZ X Series installations?
Yes. The PNOZ-X2-774303 is a direct form-fit-function replacement for existing PNOZ X2 installations. It uses the same DIN rail footprint, terminal layout, and wiring configuration, enabling drop-in replacement without panel rewiring or software changes.

Q4: Can long-term supply and spare parts availability be guaranteed?
SMARTNEXMSK maintains dedicated stock of PNOZ X Series safety relays to support ongoing maintenance, planned shutdowns, and emergency replacement requirements. We provide stable, long-term supply commitments for industrial customers with critical spare parts programs, including the PNOZ-X2-774303 and related PNOZ X family modules.
