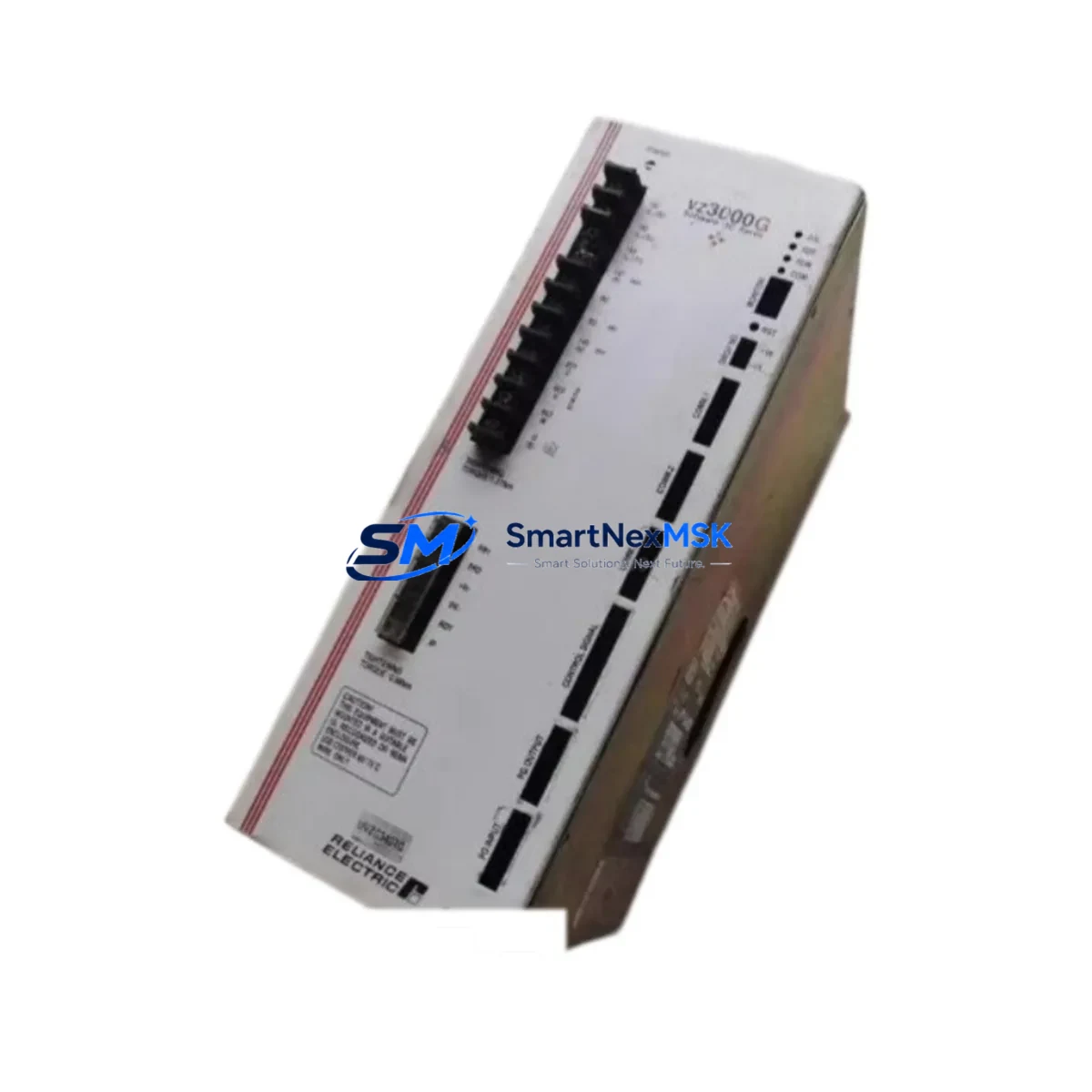

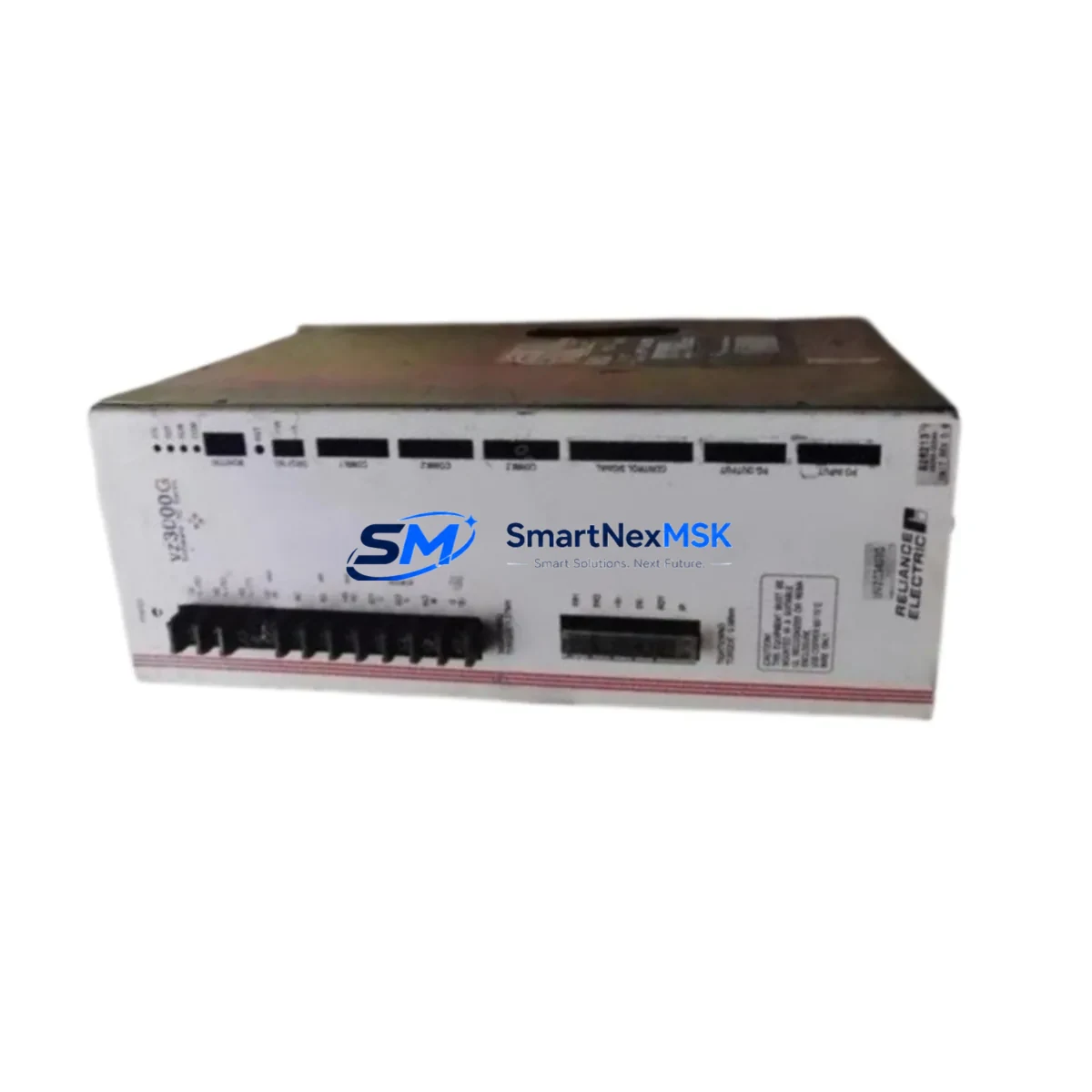

The Reliance Electric UVZC3407G is an original chassis-level spare component for the FlexPak 3000 series AC variable frequency drive — one of the most widely deployed VFD platforms in heavy industrial environments including steel mills, paper lines, material handling conveyors, and process automation systems. As FlexPak 3000 drives age beyond their original production lifecycle, sourcing verified original spare parts becomes the single most critical factor in minimizing unplanned downtime and extending system service life.

This UVZC3407G unit is supplied as a tested, original spare with full electrical verification prior to shipment. It is intended for maintenance engineers managing aging FlexPak 3000 installations who require a direct, drop-in replacement without the need for drive reconfiguration, parameter re-entry, or mechanical modification. Each unit ships with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions.

For procurement engineers managing MRO spare parts budgets, stocking the UVZC3407G as a critical spare eliminates the risk of extended lead times during emergency breakdowns. Given the discontinuation of many FlexPak 3000 components from OEM channels, maintaining at least one verified spare in your control room inventory is a recognized best practice in industrial reliability programs.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the UVZC3407G in a FlexPak 3000 drive cabinet, a disciplined maintenance engineer will treat the replacement as an opportunity to inspect the entire drive system rather than simply swapping the failed component. The FlexPak 3000 platform integrates multiple interdependent subsystems, and a failure in one area often indicates stress or degradation in adjacent components.

Begin with the DC bus capacitor bank — capacitor aging is the leading cause of drive failure in systems over 10 years old, and a capacitor reformation procedure should be performed if the drive has been in storage. Inspect the gate driver board and IGBT power module for signs of thermal stress, carbon tracking, or failed solder joints. The FlexPak 3000 regulator board (such as the 0-57175-1 or equivalent) should be checked for firmware version compatibility with the replacement chassis.

On the input side, verify the condition of the input line reactor and MOV surge suppressor — these protect the drive from line transients and are frequently overlooked during emergency replacements. Check the 24VDC control power supply output voltage under load; a degraded control supply can cause intermittent faults that are misdiagnosed as drive failures.

For I/O integrity, inspect all terminal block connections on the speed reference, enable, and fault relay circuits. Loose or corroded terminals on the analog speed reference input (typically 0–10V or 4–20mA) are a common source of erratic drive behavior after a replacement. If the system uses a DeviceNet or Profibus communication adapter mounted to the FlexPak 3000, verify the adapter’s node address and baud rate settings are preserved during the swap.

Where the drive interfaces with a PLC — such as an Allen-Bradley SLC 500, ControlLogix, or legacy Reliance AutoMax controller — confirm that the drive’s fault output relay wiring to the PLC input card is intact and that the PLC program’s drive fault logic is functioning correctly after restart. A signal isolator on the analog reference circuit is recommended if electrical noise is present in the cable run.

Finally, inspect the cooling fan assembly and heatsink for dust accumulation. Thermal management is critical in FlexPak 3000 enclosures, and a blocked heatsink will cause the replacement unit to fail prematurely under the same conditions that damaged the original.

Site Replacement Workflow

Step 1 — Isolation and Lockout/Tagout: De-energize the drive, apply LOTO, and verify zero voltage on the DC bus using a calibrated meter before opening the enclosure. Allow minimum 5 minutes for bus capacitor discharge.

Step 2 — Documentation: Photograph all wiring connections, record parameter settings from the operator keypad or drive configuration software, and note the firmware version displayed on startup.

Step 3 — Component Removal: Disconnect power wiring (L1/L2/L3 input, U/V/W motor output), control wiring, and communication cables in sequence. Label each connector. Remove the chassis mounting hardware per the FlexPak 3000 service manual.

Step 4 — UVZC3407G Installation: Mount the replacement unit, reconnect all wiring in reverse order, and torque all power terminals to specification. Verify no wiring is pinched or in contact with heatsink surfaces.

Step 5 — Parameter Restore and Commissioning: Restore all drive parameters from your documented backup. Perform a no-load test run at low speed before connecting the motor load. Verify speed reference tracking, fault relay operation, and communication link status.

Step 6 — Return to Service: Confirm motor rotation direction, ramp times, and current limit settings match the original configuration. Log the replacement in your maintenance management system with the new unit’s serial number and installation date.

This structured workflow reduces re-commissioning time and eliminates the most common causes of repeat failures following an emergency drive replacement.

Spare Parts Support FAQ

Q: Is the UVZC3407G a direct replacement for all FlexPak 3000 frame sizes?
A: The UVZC3407G is specific to a defined frame size and voltage/current rating within the FlexPak 3000 series. Always cross-reference your existing drive’s nameplate data — including input voltage, output current rating, and enclosure type — against the UVZC3407G specification sheet before ordering. Contact our technical team with your nameplate data for confirmation.

Q: What pre-shipment testing is performed on each unit?
A: Every UVZC3407G unit undergoes full electrical function verification prior to shipment, including power-on testing, output voltage balance check, and control circuit continuity. Units that do not pass testing are not shipped. A test report is available upon request for critical applications.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or operation outside the unit’s rated parameters. Warranty claims are processed with return authorization; replacement or repair is provided at our discretion.

Q: Can you support long-term or blanket purchase orders for FlexPak 3000 spares?
A: Yes. For facilities managing multiple FlexPak 3000 drives, we support long-term supply agreements, reserved stock arrangements, and scheduled delivery programs. Procurement engineers are encouraged to contact us to discuss annual spare parts planning, including complementary components such as regulator boards, gate driver assemblies, and control power supplies for the FlexPak 3000 platform.
