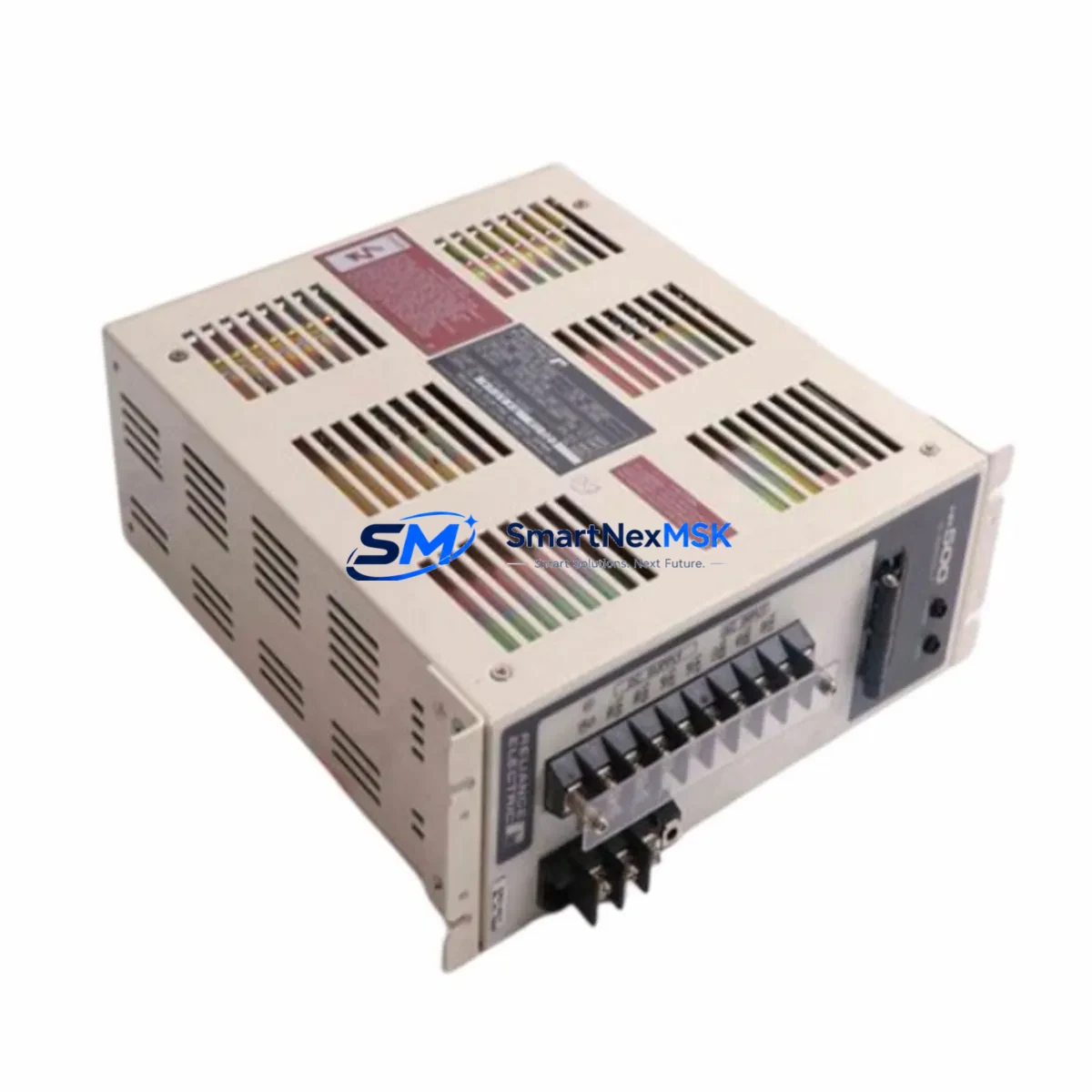

Reliance Electric WR-D4001 Retrofit-Ready DC Power Supply for Drive Series Control Systems
The Reliance Electric WR-D4001 is a retrofit-ready DC Power Supply Module engineered for seamless integration into legacy Drive Series automation platforms. As original WR-D4001 units approach end-of-life and OEM support is discontinued, industrial facilities operating aging control cabinets face increasing pressure to source verified replacement modules that maintain electrical compatibility, rack geometry, and communication integrity without triggering a full system overhaul. This unit addresses that challenge directly — providing a drop-in upgrade path that preserves existing wiring topology, backplane addressing, and program logic while delivering the reliability demanded by continuous-process environments.
Whether you are managing a planned retrofit during a scheduled maintenance window or responding to an unplanned failure on a production line, the WR-D4001 is stocked and ready for immediate dispatch. Each unit undergoes pre-shipment functional testing to verify output voltage regulation, current capacity, and terminal integrity before leaving our facility. A 12-month warranty is included as standard, covering manufacturing defects and functional failures under normal operating conditions.
Upgrade Compatibility Table
| Parameter | Detail |
|---|---|
| Compatible Platform | Reliance Electric Drive Series Control Systems |
| Module Type | DC Power Supply Module |
| Replaces / Supersedes | WR-D4001 (OEM discontinued) |
| Rack / Backplane Interface | Compatible with Drive Series standard backplane connectors |
| Terminal Wiring | Retains original terminal block layout; no rewiring required |
| Communication Compatibility | Transparent to upstream PLC and HMI communication links |
| Installation Requirement | DIN rail or panel-mount per original Drive Series cabinet spec |
| Commissioning Note | Verify DC bus voltage and current draw against load profile before energizing |
| Replacement Recommendation | Direct drop-in; confirm module address jumper settings match original |
| Warranty | 12 Months — covers manufacturing defects and functional failures |
Retrofit Planning for Existing Automation Systems
Successful integration of the WR-D4001 into an existing Drive Series control cabinet begins with a structured pre-retrofit audit. Before removing the failed or aging power supply, engineers should document the current DC bus voltage setpoints, load current measurements at each downstream module, and the physical slot position within the rack. Drive Series installations commonly pair the power supply module with a range of I/O and communication components — including digital input modules, analog output modules, and remote I/O adapters — all of which depend on stable DC rail voltage for correct operation. Any deviation in supply voltage during the changeover can cause unexpected faults in connected modules and may corrupt active program states held in battery-backed memory.
In multi-rack configurations, the WR-D4001 typically feeds a shared DC bus distributed across the main rack and one or more expansion racks connected via rack interconnect cables. Before proceeding, verify that the replacement module’s current rating is sufficient to support the combined load of all installed cards — including communication interface modules, specialty function modules, and any third-party I/O blocks integrated into the rack. If the original system used a Reliance Electric AutoMax or FlexPak controller as the host CPU, confirm that the power budget calculations account for the CPU module’s own supply draw in addition to the I/O load.
Terminal block wiring on the WR-D4001 follows the original Drive Series cabinet wiring standard. In most retrofit scenarios, the existing field wiring can remain undisturbed — only the module itself is swapped. However, it is good practice to inspect terminal screw torque, check for insulation degradation on aging wire runs, and verify that any ferrite cores or EMI suppression components on the DC output lines are correctly positioned. If the cabinet also contains a Reliance Electric GV3000 or GP2000 drive controller, confirm that the shared DC bus architecture does not introduce ground loop issues after the module replacement.
For facilities migrating from older Reliance Electric hardware to a more current control platform — such as Rockwell Automation Allen-Bradley ControlLogix or CompactLogix — the WR-D4001 can serve as a bridging power supply during a phased migration, maintaining power to legacy I/O racks while new controller hardware is commissioned in parallel. In this scenario, the programming cable used to back up the original ladder logic from the legacy CPU should be connected and a full program archive completed before any hardware is disturbed. HMI screens linked to the legacy system via DH+ or Modbus RTU should also be documented and, where possible, kept live on the original communication link until the new controller is fully validated.
Downtime Control During System Migration
Minimizing unplanned downtime during a power supply replacement or broader control system migration requires a disciplined sequence of actions. The recommended approach is to perform the WR-D4001 swap during a planned maintenance window with the process safely isolated and all energy sources locked out per LOTO procedures. Before de-energizing the cabinet, use a portable data logger or the existing HMI to capture a snapshot of all active setpoints, PID tuning parameters, and alarm thresholds. This ensures that if any volatile memory is lost during the power interruption, the values can be restored quickly without relying on outdated paper records.
Once the replacement WR-D4001 is installed and the cabinet is re-energized, bring the system up in a controlled sequence: power supply first, then the CPU or controller module, then I/O racks, and finally field devices. Monitor the DC bus voltage at each stage using a calibrated multimeter before allowing the controller to enter RUN mode. If the system uses a Reliance Electric AutoMax network for distributed I/O, verify that all remote nodes re-establish communication before releasing the process to automatic control. For systems with a Modbus TCP or EtherNet/IP gateway connecting the Drive Series hardware to a supervisory SCADA system, confirm that the gateway re-registers on the network and that the SCADA historian resumes data collection without gaps.
In cases where a full module swap is not possible within the available maintenance window, a temporary bypass using a bench power supply of equivalent voltage and current rating can maintain DC power to critical I/O racks while the permanent replacement is prepared. This approach preserves program execution continuity and prevents the loss of accumulated process data, but should only be used as a short-term measure by qualified personnel familiar with the Drive Series cabinet architecture.
Retrofit Support FAQ
Q1: Is the WR-D4001 a direct replacement for the original Reliance Electric unit, or are modifications required?
The WR-D4001 is designed as a direct drop-in replacement for the original Drive Series power supply module. In the majority of installations, no wiring modifications or mechanical adaptations are required. The module retains the same terminal block layout, backplane connector geometry, and mounting footprint as the original. The only field verification required is to confirm that any module address jumpers or DIP switch settings on the replacement unit match the configuration of the unit being replaced.
Q2: What pre-shipment testing is performed, and what does the 12-month warranty cover?
Each WR-D4001 unit is functionally tested prior to shipment. Testing includes output voltage regulation under load, terminal continuity verification, and visual inspection for physical damage. The 12-month warranty covers manufacturing defects and functional failures arising under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling after delivery.
Q3: How do I verify wiring and terminal compatibility before installation?
Refer to the original Reliance Electric Drive Series wiring diagram for your cabinet. The WR-D4001 terminal assignments follow the standard Drive Series power supply pinout. Before installation, compare the terminal labels on the replacement module against the existing field wiring labels. If the original wiring documentation is unavailable, our technical support team can assist with terminal identification based on the cabinet model and installation date.
Q4: Can the WR-D4001 be used in a phased migration alongside newer control hardware?
Yes. The WR-D4001 is well-suited for use as a bridging power supply during phased migrations where legacy Drive Series I/O racks are maintained in service while a new controller platform is commissioned. In this configuration, the module continues to supply DC power to the existing rack and I/O modules while the new controller — whether an Allen-Bradley ControlLogix chassis or another modern platform — is integrated and validated in parallel. This approach significantly reduces migration risk and allows the original control logic to remain active until the new system is fully proven.
