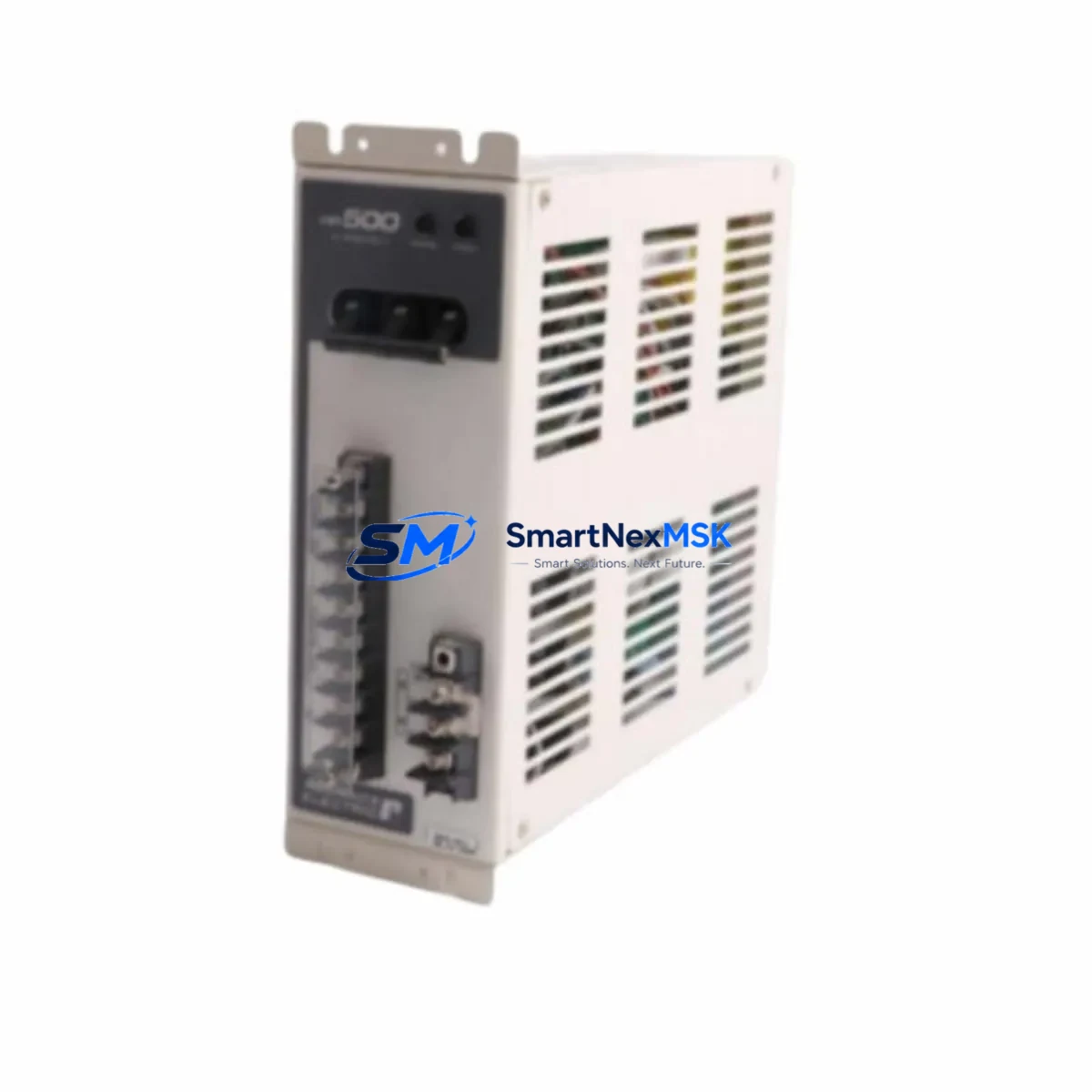

Reliance HR500 BLJC-08R 5RD1601 Retrofit Servo Drive: Compatible Modernization & Smooth Legacy System Upgrade
The Reliance Electric HR500 BLJC-08R 5RD1601 is a brushless servo drive module engineered for the HR500 series motion control platform — one of Reliance Electric’s most widely deployed regenerative servo systems in North American industrial automation. As original HR500 hardware reaches end-of-life and OEM support is discontinued, plant engineers and maintenance teams face increasing pressure to source verified replacement units that maintain full compatibility with existing control architectures, wiring harnesses, and motion programs.
SMARTNEXMSK maintains verified stock of the HR500 BLJC-08R 5RD1601 servo drive, fully tested prior to shipment and backed by a 12-month warranty. Each unit undergoes functional verification covering power stage integrity, feedback interface continuity, and drive enable logic — ensuring it arrives ready for direct installation into your existing HR500 rack without requiring firmware re-flashing or parameter re-mapping in most standard retrofit scenarios.
Upgrade Compatibility Table
| Parameter | HR500 BLJC-08R 5RD1601 | Retrofit Notes |
|---|---|---|
| Drive Type | Brushless Regenerative Servo Amplifier | Direct replacement for BLJC-08R variants within HR500 platform |
| Series Compatibility | Reliance Electric HR500 | Verify rack slot assignment and axis address before installation |
| Backplane Interface | HR500 proprietary backplane bus | Confirm backplane connector condition; inspect for corrosion or pin damage |
| Feedback Interface | Resolver / encoder (application-dependent) | Match feedback cable pinout to motor nameplate; verify resolver excitation voltage |
| Power Supply Requirement | HR500 DC bus from HR500 power supply module | Confirm bus voltage and current capacity before energizing replacement drive |
| Communication Protocol | HR500 internal motion bus | No protocol migration required for same-series replacement |
| Module Address | Set via DIP switch or rack position | Record original address before removal; replicate on replacement unit |
| Program Compatibility | Compatible with existing HR500 motion programs | Backup PLC program and axis parameters before swap; verify tuning after installation |
| HMI Screen Impact | No HMI screen changes required for same-model swap | Confirm axis tag mapping if HMI uses drive-specific status bits |
| Warranty | 12-Month Warranty — covers manufacturing defects and functional failure under normal operating conditions | |
Retrofit Planning for Existing Automation Systems
Replacing the HR500 BLJC-08R 5RD1601 in an active production environment requires a structured approach that accounts for the full scope of the HR500 motion control system. The HR500 platform typically operates within a control cabinet that houses multiple interdependent components: the HR500 power supply module provides the regulated DC bus voltage that feeds each servo amplifier slot; the HR500 rack or chassis provides the backplane through which the controller communicates with each drive axis; and the HR500 motion controller card — often interfaced with a host PLC such as a Reliance AutoMax PLC or a third-party controller via a dedicated motion coprocessor — coordinates all axis commands and feedback loops.
Before removing the failed BLJC-08R unit, technicians should document the following: the axis number assigned to the slot, the resolver or encoder cable routing and connector labeling, the DC bus fuse condition, and the current state of any axis-specific parameters stored in the controller. In many HR500 installations, axis parameters including velocity limits, torque limits, position loop gains, and fault response configurations are stored in the motion controller rather than in the drive itself — meaning a replacement BLJC-08R will inherit these settings automatically once the controller re-initializes the axis.
For plants running mixed-generation control architectures, the HR500 retrofit may also involve reviewing the HR500 termination board or I/O expansion module wiring to ensure that digital enable signals, fault relay outputs, and analog reference inputs are correctly routed to the replacement drive. If the original installation used a Reliance HR2000 or HR4000 series drive in an adjacent axis slot, verify that the shared DC bus configuration and regenerative braking resistor sizing remain within specification after the swap.
In facilities where the HR500 system interfaces with a GE Fanuc Series 90 PLC, an Allen-Bradley SLC 500, or a Siemens S5 controller via a serial or parallel I/O link, the retrofit plan should include a communication link verification step — confirming that the drive enable handshake, ready signal, and fault acknowledgment sequences function correctly with the replacement unit before returning the axis to automatic mode.
For applications where the HR500 servo system drives a precision axis — such as a CNC spindle, a web tension control roll, or a robotic joint — post-installation servo tuning is strongly recommended. Use the original axis parameter backup as a baseline, then perform a velocity loop bandwidth check and a position loop step response test to confirm that the replacement BLJC-08R performs within the original system’s dynamic specifications.
Downtime Control During System Migration
Minimizing unplanned downtime during an HR500 servo drive replacement begins with pre-staging the replacement unit before the maintenance window opens. SMARTNEXMSK ships the HR500 BLJC-08R 5RD1601 with standard lead times designed to support planned maintenance schedules, and expedited shipping is available for emergency breakdown situations.
The recommended swap procedure follows a controlled sequence: first, place the affected axis in a safe, de-energized state using the HR500 system’s axis inhibit or drive disable function — do not rely solely on an E-stop to isolate the drive from the DC bus. Next, discharge the DC bus capacitors fully before opening the cabinet and handling the drive module. Record all visible DIP switch settings and connector labels on the failed unit before extraction.
Once the replacement BLJC-08R is seated in the rack and all connectors are secured, perform a controlled power-up sequence: energize the HR500 power supply first, confirm bus voltage is within specification, then enable the controller and allow it to initialize the axis. Monitor the drive’s status indicators during the first enable cycle — a healthy BLJC-08R will transition from fault-clear to ready state within the controller’s configured initialization timeout.
To protect the original program logic, ensure that the host PLC or motion controller program is in a known-good backup state before the swap. If the HR500 system uses a Reliance AutoMax programming terminal or a PC-based programming tool connected via an AutoMax programming cable, verify that the axis configuration file matches the replacement drive’s hardware revision. In most cases, the 5RD1601 hardware revision is backward-compatible within the BLJC-08R family, but confirming this against the system’s original commissioning documentation eliminates risk before the axis is returned to production.
Field experience shows that a well-prepared HR500 BLJC-08R swap — with pre-staged hardware, documented parameters, and a tested backup program — can be completed within a single shift, keeping production interruption to a minimum and restoring full axis control without requiring a full system re-commissioning.
Retrofit Support FAQ
Q1: Is the HR500 BLJC-08R 5RD1601 a direct drop-in replacement for my existing BLJC-08R unit?
In the vast majority of HR500 installations, yes. The 5RD1601 designation refers to a hardware sub-assembly or revision code within the BLJC-08R family. Provided your rack, backplane, and power supply are in serviceable condition, the replacement unit will seat and initialize using the same axis parameters stored in your motion controller. We recommend verifying the hardware revision against your original commissioning documentation if your system was installed before 1998, as early HR500 racks may have backplane connector variants that require an adapter.
Q2: What wiring checks should I perform before installing the replacement drive?
Prior to installation, inspect the resolver or encoder feedback cable for continuity and insulation integrity — feedback cable faults are a common secondary cause of servo drive failures and can damage a replacement unit if not addressed. Verify that the DC bus fuse in the HR500 power supply module is intact and rated correctly for the BLJC-08R’s current draw. Check the drive enable and fault relay wiring at the termination board for loose connections or corrosion, particularly in high-humidity or high-vibration environments.
Q3: Will I need to re-tune the servo axis after installing the replacement BLJC-08R?
For a same-model replacement where the motor, load, and mechanical coupling are unchanged, the original axis tuning parameters stored in the HR500 motion controller should provide acceptable performance without re-tuning. However, if the original drive had been operating in a degraded state for an extended period — masking a gradual mechanical issue — the replacement drive may expose underlying problems such as increased friction, backlash, or resonance. A brief velocity loop and position loop verification test after the first production cycle is always recommended.
Q4: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact SMARTNEXMSK at [email protected] with your order number, a description of the fault symptom, and any available fault codes from the HR500 controller. Our technical team will assess the claim and arrange for a replacement or repair within the warranty period.
