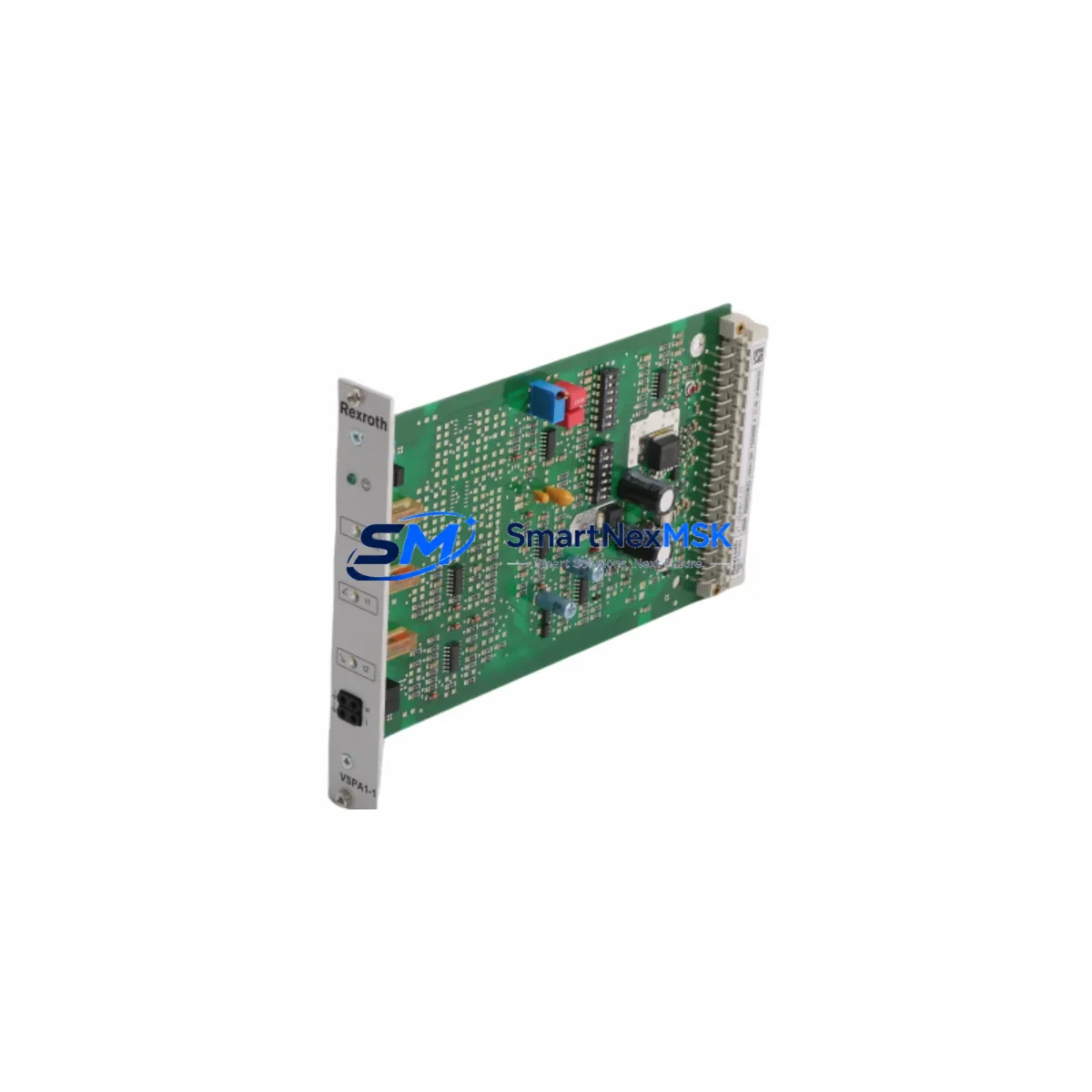

REXROTH VT-VSPA1-1-11 Retrofit-Ready Proportional Valve Amp

REXROTH VT-VSPA1-1-11 Retrofit-Ready Proportional Valve Amplifier for VT-VSPA1 Control Systems

The REXROTH VT-VSPA1-1-11 is a high-performance proportional valve amplifier card engineered for seamless integration into existing Bosch Rexroth hydraulic control architectures. As legacy VT-VSPA1 series amplifier cards approach end-of-life or become increasingly difficult to source, the VT-VSPA1-1-11 serves as the definitive retrofit-ready replacement — preserving original control logic, terminal wiring layouts, and communication interfaces while delivering improved signal stability and extended service life. Whether you are upgrading a discontinued proportional control loop, restoring a failed amplifier in a critical press or injection molding line, or modernizing a multi-axis hydraulic system, the VT-VSPA1-1-11 is engineered to minimize engineering rework and reduce commissioning time on the shop floor.

This module is fully compatible with Rexroth VT-VSPA1 series control cabinets and is designed to mount directly onto standard Rexroth sub-racks and DIN-rail carrier systems used across the VT-VSPA1 platform. The card interfaces with proportional directional control valves and pressure/flow control valves in the 4WRE, 4WRKE, and DBET series, making it a versatile solution for multi-valve hydraulic circuits. Engineers replacing a failed VT-VSPA1-1-10 or VT-VSPA1-1-12 will find the VT-VSPA1-1-11 a functionally equivalent substitute with minimal parameter re-entry required in the associated HMI screens.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the VT-VSPA1-1-11 into a legacy hydraulic control system begins with a thorough pre-replacement audit. Before removing the failed or obsolete amplifier card, engineers should document the existing parameter set — including ramp-up time, ramp-down time, dither frequency, dither amplitude, and gain settings — typically accessible via the front-panel potentiometers or, in newer installations, through the Rexroth IndraWorks commissioning software connected via the VT-COM communication interface.

The VT-VSPA1-1-11 is designed to slot into the same sub-rack position as its predecessors. However, before insertion, verify that the existing VT-VSPA1 power supply module — often a VT-SWKA1-1 or equivalent Rexroth power supply card — can sustain the additional current draw if multiple amplifier cards are being replaced simultaneously. Overloading the shared 24 VDC bus is a common cause of post-retrofit instability in multi-axis hydraulic presses.

Terminal wiring from the proportional valve solenoids (typically REXROTH 4WRE 6 or 4WRKE 10 series directional valves) should be verified against the VT-VSPA1-1-11 output connector pinout. In most VT-VSPA1 installations, solenoid A and solenoid B outputs are wired to fixed terminal positions on the sub-rack backplane, but field modifications over the years may have introduced non-standard wiring. Always perform a continuity check before energizing the replacement card.

For systems using a Rexroth RC or RCM series controller — or where the proportional valve loop is supervised by a Siemens S7-300 or S7-400 PLC via analog output modules — confirm that the setpoint signal scaling (typically 0–10 V or ±10 V) matches the VT-VSPA1-1-11 input range. If the upstream PLC analog output module has been reconfigured or replaced with a newer S7-1500 analog output card, re-verify the output voltage range and update the HMI scaling blocks accordingly to prevent valve overshoot on first energization.

In control cabinets where the VT-VSPA1-1-11 operates alongside Rexroth VT-HACD or VT-HNC100 axis controllers, ensure that the enable chain — typically a hardware enable relay and a software enable bit from the PLC — is correctly sequenced before the amplifier card is allowed to output current to the valve solenoid. Incorrect enable sequencing is a frequent source of uncontrolled actuator movement during commissioning.

Where the original system used a Rexroth VT-VSPA1 series programming cable or front-panel adjustment tool for parameter setting, the same tooling is compatible with the VT-VSPA1-1-11. No additional programming hardware is required for standard parameter entry.

Downtime Control During System Migration

Minimizing production downtime during a proportional valve amplifier replacement requires a structured swap-out procedure. Begin by capturing a full parameter backup of the existing VT-VSPA1-1-11 installation — photograph or record all potentiometer positions and any documented parameter sheets from the original commissioning report. If the machine uses a Rexroth HMI panel (such as an IndraControl VPP or VEP series) with stored valve calibration data, export the relevant recipe or parameter file before powering down the control cabinet.

Power down the hydraulic power unit and confirm zero pressure in the system before removing the amplifier card. In multi-axis systems, isolate only the affected axis rather than shutting down the entire hydraulic circuit — this preserves production continuity on unaffected axes and reduces total downtime. After inserting the VT-VSPA1-1-11, restore power and perform a no-load valve stroke test before reconnecting the mechanical load. Verify that the valve spool moves smoothly across the full command range without oscillation or deadband anomalies.

Re-enter all ramp, dither, and gain parameters from the pre-replacement record. If the original parameters are unavailable, start with conservative factory-default values and tune incrementally under controlled load conditions. Confirm HMI setpoint display accuracy and verify that all interlocks, limit switches, and safety relay circuits respond correctly before returning the machine to automatic cycle. A structured pre-return checklist — covering power supply voltage, solenoid current draw, valve response time, and PLC I/O status — ensures that the replacement is validated before full production resumes.

All VT-VSPA1-1-11 units supplied by SMARTNEXMSK are pre-tested prior to shipment and covered by a 12-month warranty, reducing the risk of repeat downtime from component failure.

Retrofit Support FAQ

Q1: Is the VT-VSPA1-1-11 a direct drop-in replacement for the VT-VSPA1-1-10?
In most cases, yes. The VT-VSPA1-1-11 shares the same sub-rack form factor, backplane connector, and terminal wiring layout as the VT-VSPA1-1-10. However, always verify the revision suffix and confirm that the solenoid output current range matches your valve specification before installation. Minor parameter re-entry (ramp times, dither settings) is typically required.

Q2: What commissioning steps are required after installing the VT-VSPA1-1-11?
After physical installation, restore all documented parameters — ramp-up/down times, dither frequency and amplitude, and gain settings. Perform a no-load valve stroke test, verify HMI setpoint scaling, and confirm enable logic sequencing with the upstream PLC. Check solenoid current draw against the valve datasheet and verify that all safety interlocks are active before returning to automatic cycle.

Q3: Can the VT-VSPA1-1-11 be used with non-Rexroth proportional valves?
The VT-VSPA1-1-11 is optimized for Rexroth proportional directional and pressure/flow control valves. Use with third-party valves is possible if the solenoid coil resistance and current requirements fall within the amplifier’s output specification, but compatibility must be verified on a case-by-case basis. Contact our technical team for application-specific guidance.

Q4: What does the 12-month warranty cover?
All VT-VSPA1-1-11 units supplied by SMARTNEXMSK are covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions. Each unit undergoes pre-shipment functional testing. Warranty claims are supported by our technical team — contact sales@smartnexmsk.com for RMA procedures and replacement coordination.
