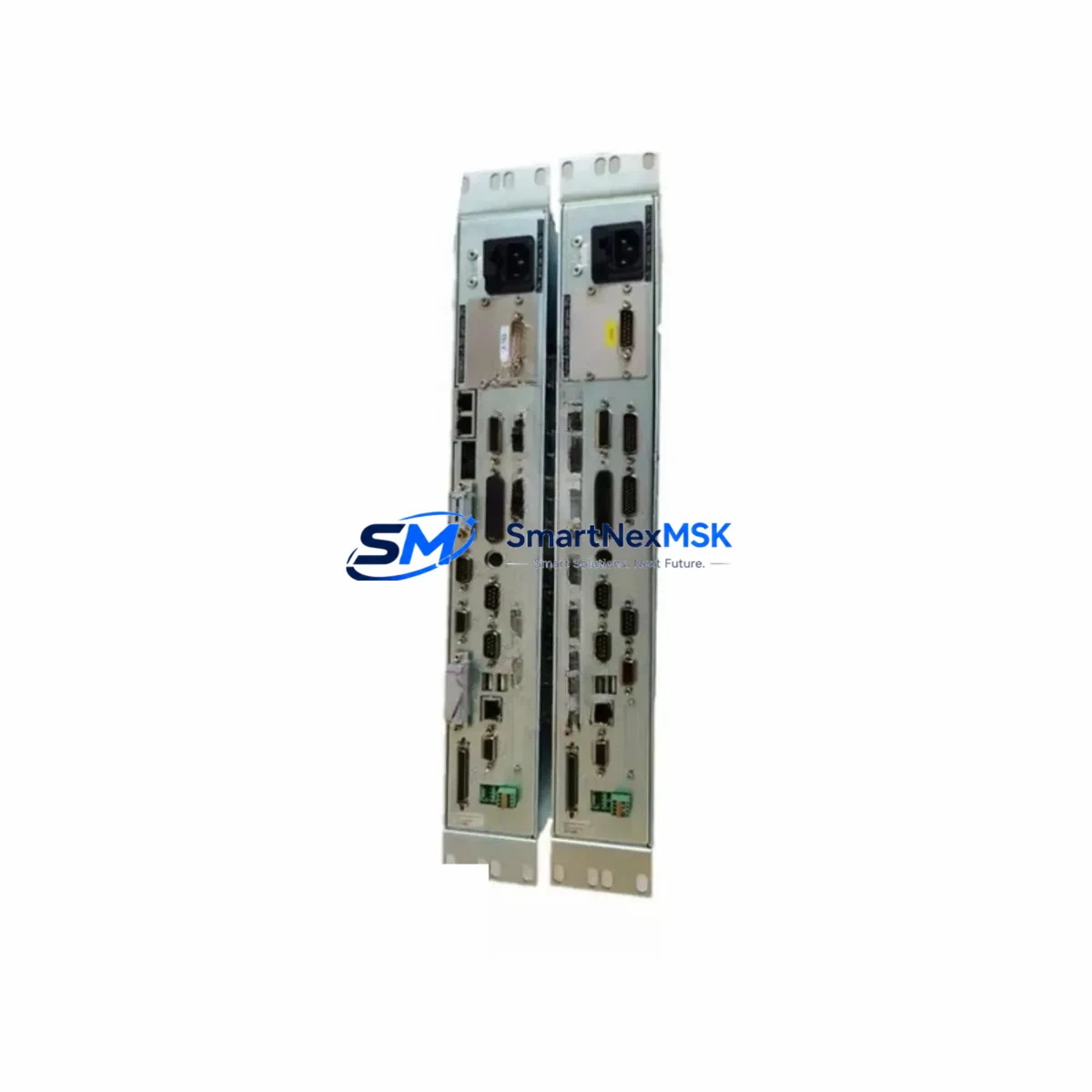

Rofin 101114102 Safety-Enhanced CO₂ Laser Controller

Rofin 101114102 Safety-Enhanced CO₂ Laser Controller for Harsh Industrial Sites

The Rofin 101114102 is a DC Series CO₂ Laser Controller engineered for continuous, high-reliability operation in demanding industrial environments. Designed and manufactured in Germany by Rofin — a globally recognized leader in industrial laser technology — this controller delivers precise, stable laser power regulation across a wide range of critical applications including metal cutting, welding, marking, and surface treatment. Its ruggedized architecture makes it the preferred choice for facilities where control interruption, signal drift, or power fluctuation cannot be tolerated.

Safety Reliability Table

Control Cabinet Protection Strategy

In high-power laser processing lines, the Rofin 101114102 controller sits at the heart of the laser control cabinet, managing the DC excitation signal that drives the CO₂ resonator. Its stable output is critical to preventing uncontrolled laser emission — a primary safety concern in any Class 4 laser installation. To build a fully protected control architecture around this unit, integrators typically pair it with a Rofin DC Series power supply module (such as the DC 010 or DC 020 series) that provides clean, regulated high-voltage DC to the laser tube, ensuring the controller always operates within its designed input envelope.

On the signal side, the 101114102 interfaces with the Rofin CNC or motion controller via the system bus, where a dedicated Rofin I/O expansion board handles analog command signals and digital interlocks. To protect against voltage transients from adjacent high-current switching equipment — such as servo drives, spindle inverters, or resistance welding controllers — engineers often install DIN-rail mounted surge protection devices (SPDs) and EMC line filters upstream of the laser controller’s power input. These components prevent the kind of microsecond voltage spikes that can corrupt the controller’s internal logic or damage its regulation circuitry.

For facilities running 24/7 continuous production, a Rofin chiller unit (e.g., the RC series) is integrated into the same safety interlock loop as the 101114102. If coolant flow drops below threshold, the chiller’s dry-contact output signals the controller to inhibit laser emission before thermal damage occurs. Similarly, a beam delivery safety shutter — controlled by the same interlock chain — ensures that any controller fault condition results in immediate beam blocking at the output aperture, not just a software-level inhibit. This layered approach to safety is standard practice in automotive body shops, aerospace component marking lines, and electronics PCB processing facilities.

Communication reliability is maintained through shielded twisted-pair cabling between the 101114102 and the host CNC, with cable shields grounded at a single point to prevent ground loop interference. In larger installations, a Rofin remote diagnostics interface or compatible industrial Ethernet gateway allows real-time monitoring of controller status, laser power feedback, and fault codes — enabling predictive maintenance before a control anomaly escalates into an unplanned shutdown.

Critical Industrial Safety Applications

The Rofin 101114102 CO₂ Laser Controller is deployed across a broad spectrum of safety-critical industrial sectors:

Automotive Manufacturing: In body-in-white laser welding lines, the 101114102 maintains precise power control during high-speed seam welding of structural panels. Any deviation in laser output power directly affects weld penetration depth and joint integrity — making controller stability a structural safety requirement, not merely a quality metric.

Aerospace & Defense Component Marking: Traceability marking of turbine blades, fasteners, and pressure vessel components demands repeatable, low-heat-input laser pulses. The controller’s stable DC regulation ensures mark depth consistency across thousands of parts per shift without thermal drift that could compromise part surface integrity.

Electronics & PCB Processing: In depaneling and via drilling applications, the 101114102 controls laser power with the precision needed to cut through laminate layers without damaging copper traces or adjacent components. EMI immunity is especially critical here, as the production environment includes high-frequency switching power supplies and servo amplifiers operating in close proximity.

Metal Cutting & Sheet Processing: Heavy-gauge steel and stainless cutting lines rely on consistent laser power delivery to maintain cut quality and prevent dross formation. The controller’s surge-tolerant design ensures it remains operational even when large plasma cutting machines or resistance welders cycle on the same facility power bus.

Pharmaceutical & Medical Device Packaging: Laser coding and sealing lines in regulated manufacturing environments require validated, repeatable laser output. The 101114102’s stable control architecture supports process validation requirements and reduces the risk of out-of-specification coding events that could trigger product recalls.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the Rofin 101114102?
The 12-month warranty covers all functional failures arising from manufacturing defects or component failure under normal operating conditions. If the unit fails to perform its specified laser power control function within the warranty period, SMARTNEXMSK will provide repair, replacement, or full refund — whichever is most appropriate. The warranty period begins from the date of confirmed delivery.

Q2: How is the Rofin 101114102 tested before shipment?
Every unit undergoes a comprehensive pre-shipment functional test protocol that includes power-on verification, output regulation accuracy check, interlock circuit continuity test, and communication interface validation. Units that do not pass all test criteria are quarantined and not dispatched. A test record is available upon request for customers with traceability requirements.

Q3: Is the 101114102 compatible with all Rofin DC Series laser systems?
The 101114102 is designed for use within the Rofin DC Series CO₂ laser platform. Compatibility with specific laser models depends on the system configuration, firmware version, and power supply pairing. SMARTNEXMSK’s technical team can verify compatibility against your existing system serial number and configuration before order confirmation — contact us with your laser model details.

Q4: Can long-term supply and spare parts support be guaranteed?
SMARTNEXMSK maintains dedicated inventory of Rofin DC Series components, including the 101114102, to support customers with ongoing production requirements and planned maintenance schedules. We offer priority stock reservation for customers with high-volume or time-critical replacement needs. Our sourcing network ensures continuity of supply even for legacy Rofin platforms that are no longer in active production by the OEM.
