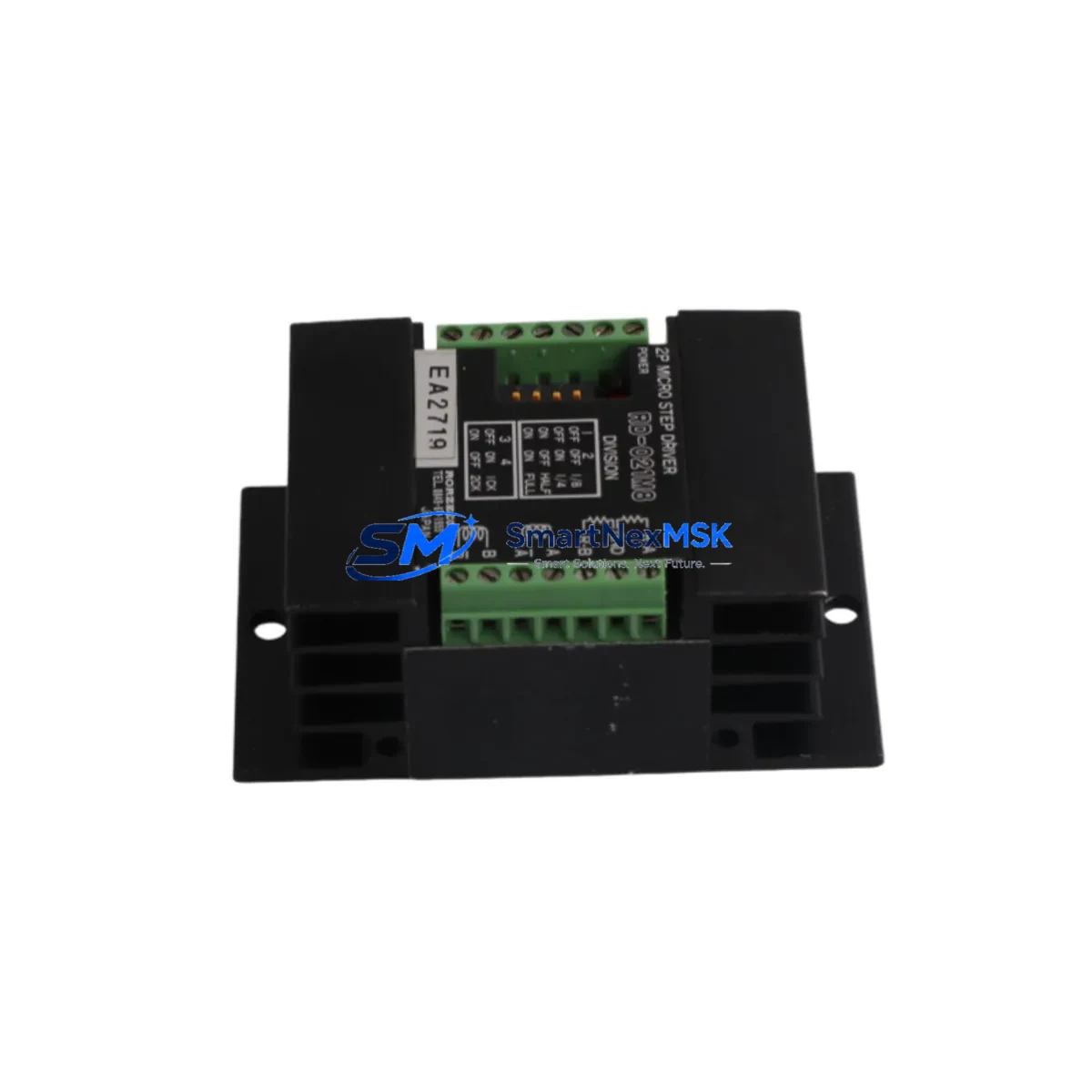

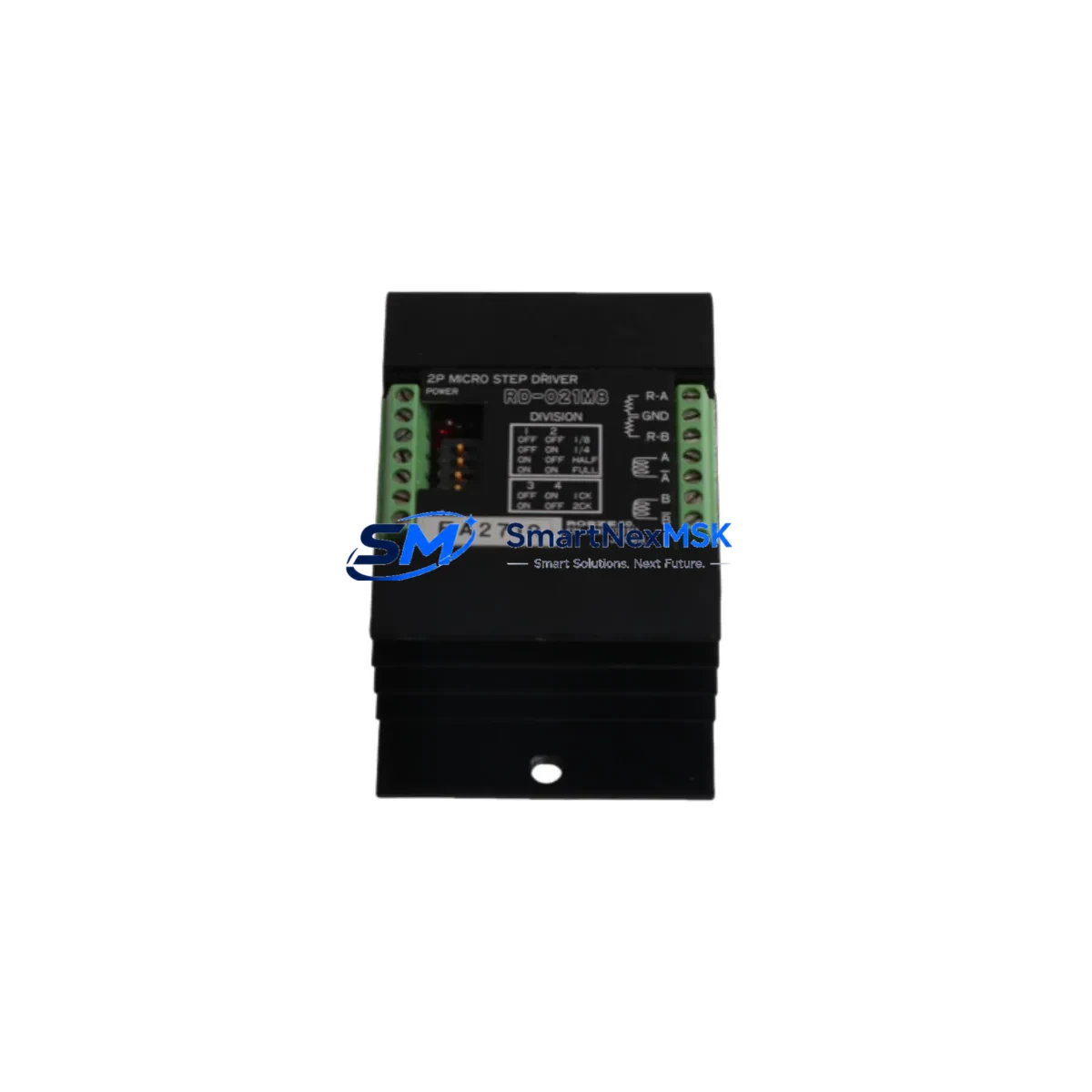

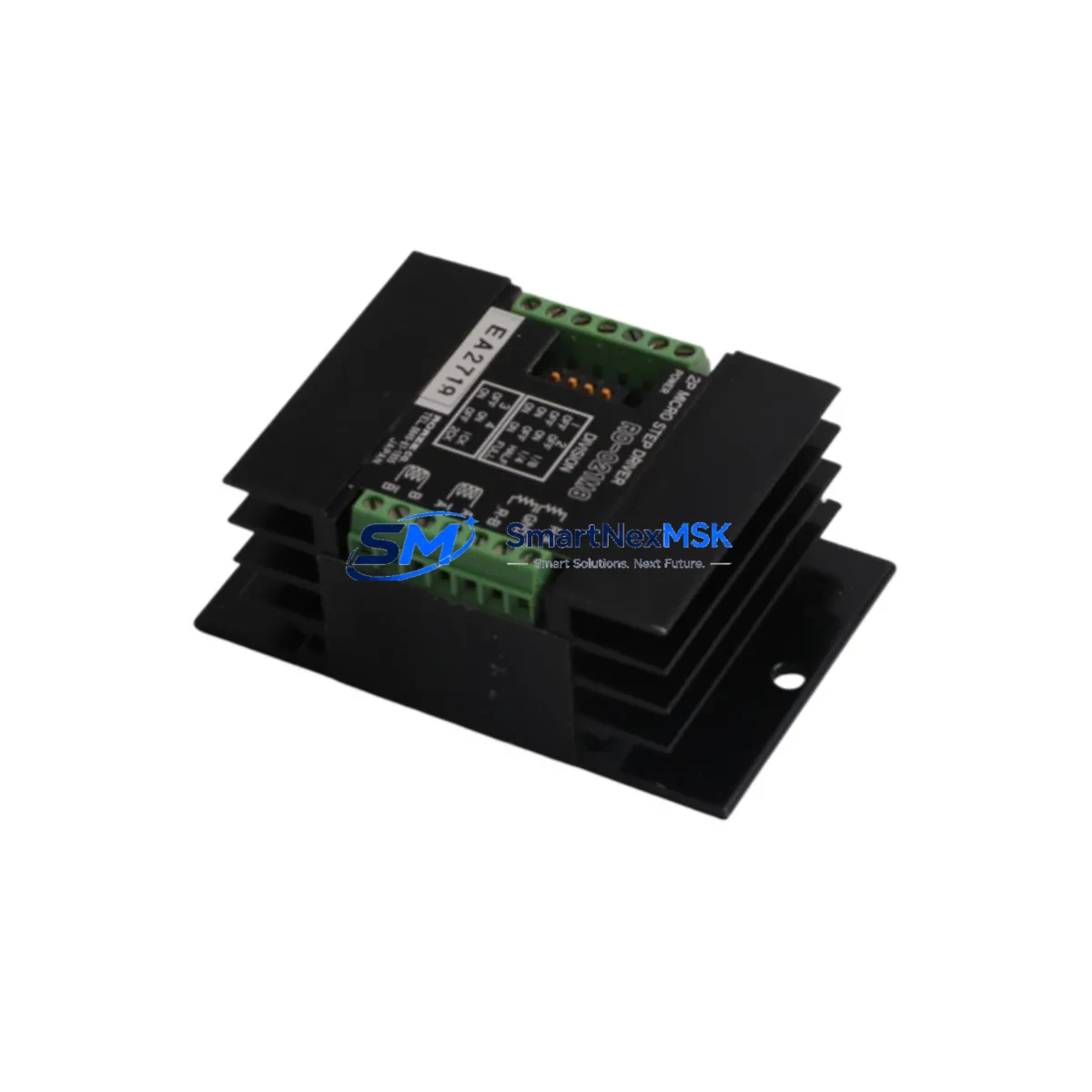

RORZE RD-021M8 Safety-Enhanced Stepper Driver for Harsh Industrial Sites
The RORZE RD-021M8 is a 2-phase microstepping stepper motor driver engineered for continuous, uninterrupted operation in the most demanding industrial environments. Designed to integrate seamlessly into high-load control cabinets, critical interlock circuits, and safety-rated motion control architectures, the RD-021M8 delivers the signal fidelity, electrical resilience, and thermal stability that modern industrial automation demands. Whether deployed in petrochemical processing lines, power generation facilities, mining conveyors, water treatment plants, or continuous metallurgical production, this driver is built to keep motion control running when failure is not an option.
In harsh industrial sites, stepper motor drivers are frequently exposed to power line fluctuations, high-frequency electromagnetic interference, ground loop noise, and transient surge events that can cause signal drift, module mis-triggering, or complete control interruption. The RD-021M8 addresses each of these failure vectors through robust internal filtering, isolated signal input stages, and a thermally optimized power stage that maintains rated output even under sustained high-duty-cycle loads. Its compact DIN-rail-compatible form factor allows direct integration alongside RORZE RC-series motion controllers, RORZE RD-series multi-axis driver racks, and third-party PLC platforms including Mitsubishi MELSEC Q-series and Siemens S7-300/400 motion modules, without requiring additional signal conditioning hardware.
Control cabinet protection begins at the power entry point. When the RD-021M8 is installed in a cabinet that also houses RORZE power supply units, surge protective devices (SPDs), and EMI line filters, the combined system achieves a layered defense against the most common causes of unplanned downtime: voltage spikes from motor switching transients, radiated EMI from variable frequency drives (VFDs) operating in the same enclosure, and conducted interference propagating through shared DC bus rails. The driver’s differential pulse/direction input interface rejects common-mode noise that would otherwise cause position errors or nuisance faults in single-ended input designs, making it particularly well-suited for long cable runs in large industrial facilities where signal integrity is difficult to maintain.
Safety Reliability Table
| Parameter | Specification / Rating |
|---|---|
| Model | RORZE RD-021M8 |
| Driver Type | 2-Phase Microstepping Stepper Motor Driver |
| Input Voltage | DC 24V (typical industrial control voltage) |
| Output Current | Up to 2.1 A/phase (adjustable) |
| Microstep Resolution | Up to 1/8 step (configurable) |
| Control Interface | Pulse / Direction (differential or single-ended) |
| EMI / Noise Immunity | Differential input stage; internal filtering for high-EMI environments |
| Surge Protection | Internal transient suppression; compatible with external SPD coordination |
| Operating Temperature | 0°C to +50°C (ambient); thermally optimized power stage |
| Mounting | DIN rail / panel mount; compact form factor for dense cabinet layouts |
| Compatibility | RORZE RC-series controllers; Mitsubishi MELSEC; Siemens S7 motion modules |
| Protection Features | Overcurrent protection, overheat protection, motor open-phase detection |
| Origin | Japan |
| Warranty | 12 Months — covers manufacturing defects and functional failure under normal use |
| Stock Status | In Stock — ready for immediate dispatch |
| Pre-shipment Testing | Full functional test performed on every unit before dispatch |
Control Cabinet Protection Strategy
A reliable motion control cabinet is only as strong as its weakest component. The RORZE RD-021M8 is designed to anchor the stepper drive layer of a multi-axis control architecture while working in concert with the broader protection ecosystem of the enclosure. In a typical high-availability cabinet serving a continuous production line, the RD-021M8 operates alongside RORZE RC-series multi-axis motion controllers that coordinate position commands across multiple drive axes, ensuring that a fault on one axis does not cascade into a system-wide stop. The driver’s enable input can be wired directly into the cabinet’s safety relay circuit — for example, a Pilz PNOZ or Omron G9SA safety relay module — so that an E-stop or light curtain trip immediately de-energizes the drive output without relying on software intervention.
On the power supply side, the RD-021M8 is typically fed from a dedicated 24 VDC rail supplied by an industrial DIN-rail power supply such as a MEAN WELL SDR-series or RORZE-compatible regulated PSU, isolated from the main AC distribution by a noise-filtering isolation transformer. This arrangement prevents motor switching transients from back-propagating into the PLC’s I/O power rail, which could otherwise cause spurious input reads or watchdog resets on the CPU module. Where multiple VFDs share the same cabinet, installing a common-mode choke on the DC feed to the RD-021M8 further attenuates high-frequency conducted emissions that are characteristic of IGBT-switched drive outputs.
For communication integrity, the RD-021M8’s pulse/direction command signals are best routed using shielded twisted-pair cable, with the shield grounded at a single point at the controller end to prevent ground loop currents. In installations where the motion controller is a Mitsubishi MR-J4 or Yaskawa Sigma-7 series servo amplifier sharing the same cabinet, the RD-021M8 can be positioned on a separate DIN rail section with a grounded metal partition to minimize cross-coupling. Fiber-optic signal isolators or digital optocoupler boards can be inserted between the PLC output module and the RD-021M8 input in extremely high-interference environments such as electric arc furnace control rooms or high-voltage switchgear buildings, providing galvanic isolation that eliminates ground-referenced noise entirely.
Surge coordination is completed by installing Type 2 or Type 3 SPDs at the cabinet’s AC input and DC distribution points, coordinated with the RD-021M8’s internal transient suppression to provide a two-stage clamping response to lightning-induced surges or switching transients from large inductive loads on the same power bus. This layered approach — external SPD clamping followed by internal suppression — is consistent with IEC 61643 surge protection coordination principles and is recommended for installations in outdoor substations, port crane control rooms, and open-pit mining facilities where direct or indirect lightning exposure is a credible risk.
Critical Industrial Safety Applications
The RORZE RD-021M8 has established a strong track record in safety-critical and continuous-process industrial applications where motion control reliability directly affects plant safety and production continuity.
In petrochemical and refinery facilities, the RD-021M8 drives precision positioning actuators in valve control and chemical dosing systems where incorrect positioning can result in process upsets or hazardous material release. Its overcurrent and open-phase detection features provide an additional layer of protection against motor wiring faults that could otherwise go undetected until a catastrophic failure occurs.
In power generation and electrical utility environments, the driver is used in turbine governor auxiliary positioning systems and transformer tap-changer control mechanisms, where the combination of high EMI from high-voltage switching equipment and the criticality of precise positioning makes the RD-021M8’s noise immunity and stable microstepping performance essential.
In underground and open-pit mining operations, the RD-021M8 controls conveyor belt tensioning actuators and ore sampling positioning systems in environments characterized by heavy vibration, coal dust, and wide ambient temperature swings. Its robust construction and thermal management design allow it to operate continuously in these conditions without requiring active cooling beyond standard cabinet ventilation.
In water and wastewater treatment plants, the driver operates chemical metering pump drives and filter backwash valve actuators in high-humidity, chemically aggressive atmospheres. The driver’s sealed signal input stage and conformal-coating-compatible design make it suitable for installation in IP54 or higher-rated enclosures used in outdoor pump station control panels.
In metallurgical and steel production facilities, the RD-021M8 is deployed in continuous casting machine positioning systems and rolling mill gap control actuators, where the combination of high ambient temperatures, intense electromagnetic fields from induction heating equipment, and the requirement for zero unplanned stops makes its thermal resilience and EMI immunity critical operational requirements.
In port and container terminal automation, the driver controls spreader positioning and twist-lock actuator systems on automated stacking cranes, where reliable operation in salt-air coastal environments and resistance to the surge events generated by large crane motor starting are essential for maintaining throughput and preventing container handling incidents.
Safety and Quality FAQ
Q1: What does the 12-month warranty cover for the RORZE RD-021M8?
The 12-month warranty covers all manufacturing defects and functional failures occurring under normal operating conditions within the rated specifications of the driver. This includes failures of the power stage, control logic, and signal input circuitry. Warranty service includes unit replacement or repair at no additional cost. The warranty period begins from the date of shipment and is supported by SMARTNEXMSK’s dedicated after-sales team.
Q2: What pre-shipment testing is performed on each RD-021M8 unit?
Every RORZE RD-021M8 unit undergoes a full functional test prior to dispatch. This includes verification of output current at rated load, step pulse response across all configured microstep resolutions, enable/disable input response, and protection circuit activation testing for overcurrent and overheat conditions. Units that do not pass all test criteria are quarantined and not shipped. A test record is maintained for each dispatched unit.
Q3: Is the RD-021M8 compatible with my existing PLC and motion controller?
The RD-021M8 accepts standard pulse/direction command signals compatible with the output modules of all major PLC platforms including Mitsubishi MELSEC Q/L/iQ-R series, Siemens S7-300/400/1500, Omron NJ/NX series, and Rockwell Automation ControlLogix. Both differential (RS-422 level) and single-ended (5V/24V) input modes are supported. For integration with RORZE RC-series multi-axis controllers, the RD-021M8 is a native-compatible drive requiring no additional configuration adapters.
Q4: Can SMARTNEXMSK guarantee long-term supply and replacement support for the RD-021M8?
Yes. SMARTNEXMSK maintains dedicated stock of the RORZE RD-021M8 and key RORZE motion control components to support both new project deployments and ongoing spare parts programs for existing installations. For customers operating continuous production facilities where unplanned downtime carries significant financial or safety consequences, we recommend establishing a consignment stock arrangement or blanket purchase order to ensure immediate availability of replacement units. Contact our sales team to discuss long-term supply agreements tailored to your maintenance strategy.
