Rosemount 2051CD2A02A1AS3I1M5 Spare for 2051CD Automation

Rosemount 2051CD2A02A1AS3I1M5 Maintenance-Ready Spare for 2051CD Automation

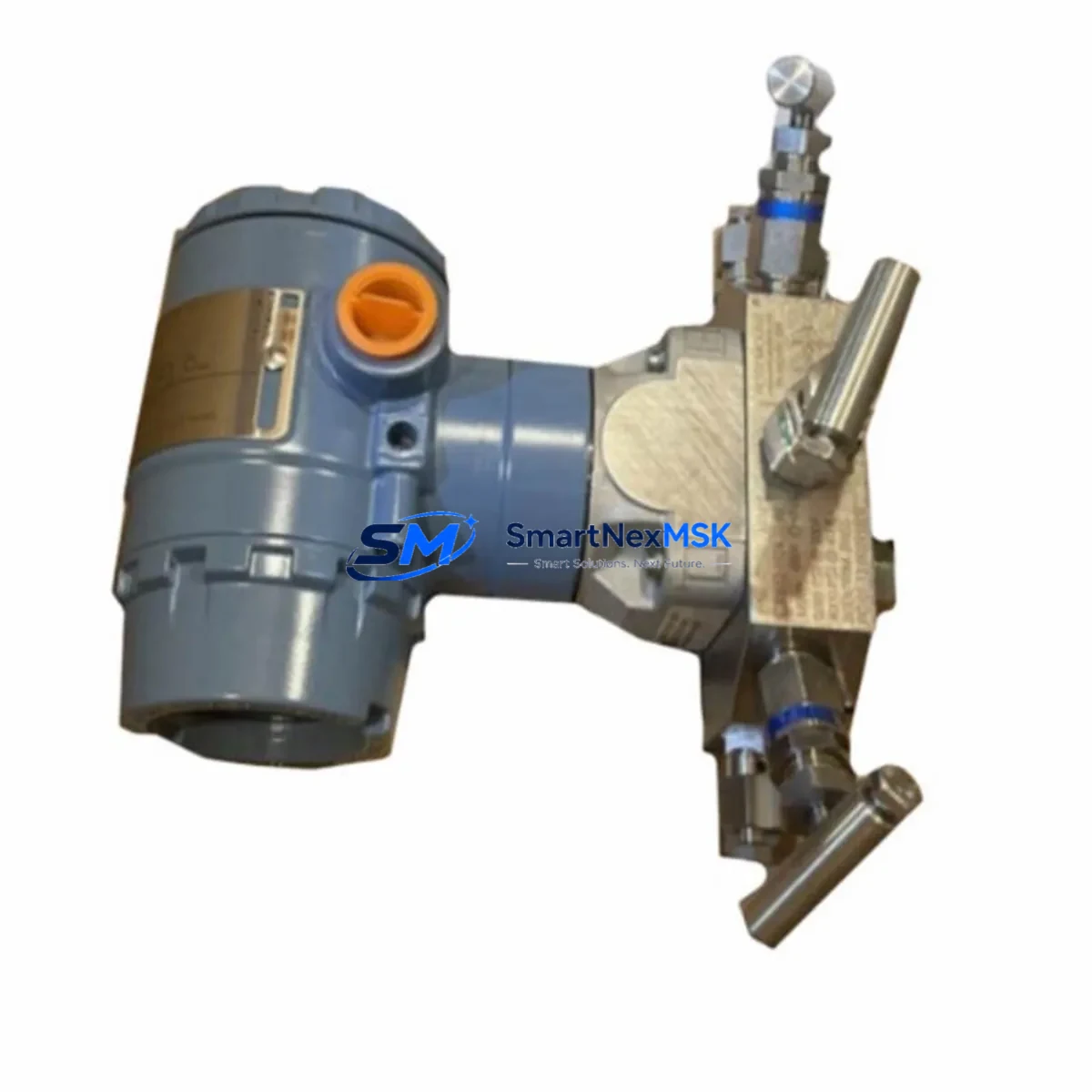

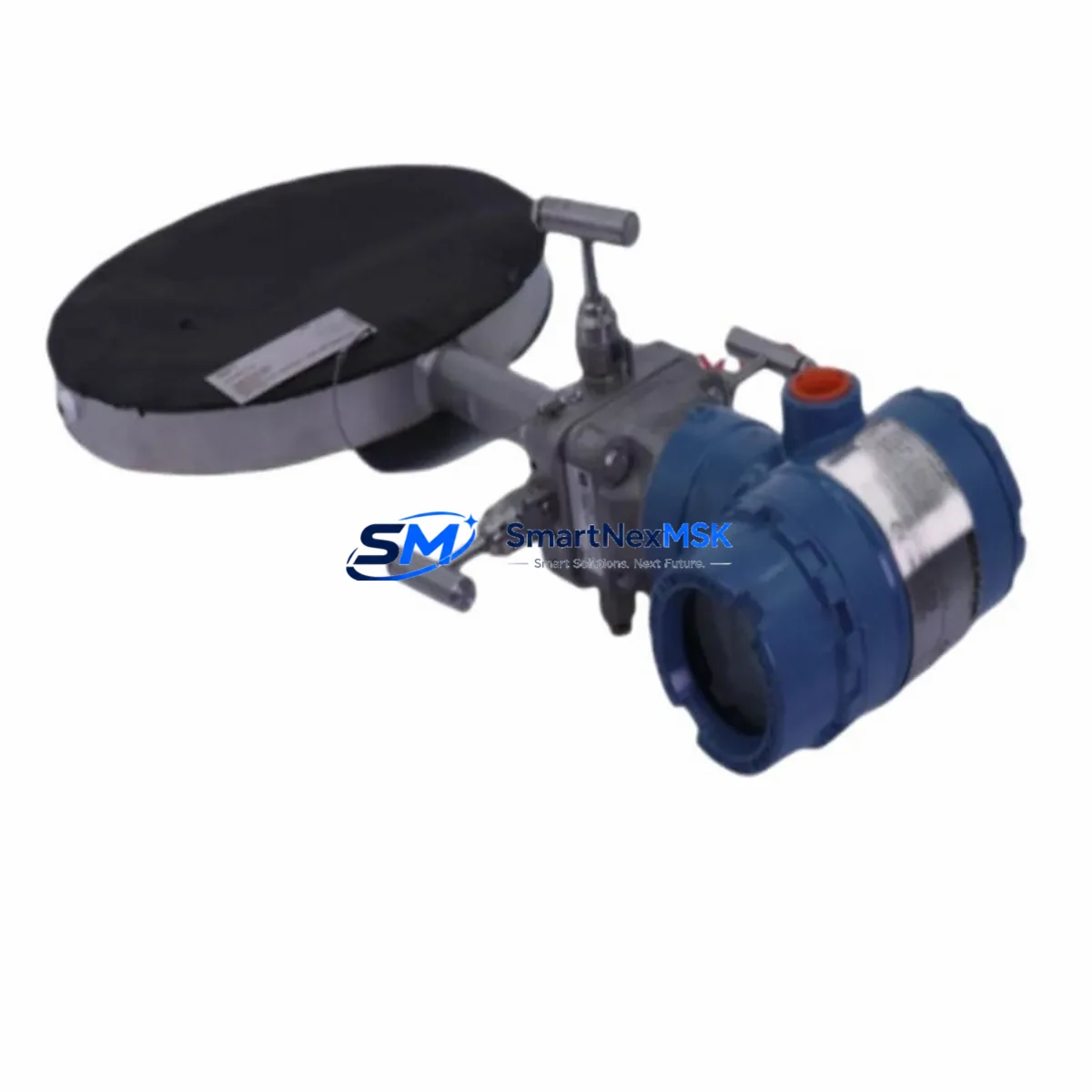

The Rosemount 2051CD2A02A1AS3I1M5 is a differential pressure transmitter engineered for continuous operation in demanding industrial process environments. As a direct original spare for the Rosemount 2051CD series, this unit is a critical component in flow measurement, level monitoring, and pressure sensing applications across oil and gas, chemical processing, power generation, and water treatment facilities. Maintenance engineers and procurement teams managing aging DCS or PLC-based control systems rely on this transmitter to sustain process continuity, minimize unplanned downtime, and avoid costly production interruptions.

The full model code — 2051CD2A02A1AS3I1M5 — encodes key configuration details: coplanar flange mounting, 4–20 mA HART output, stainless steel wetted parts, and a calibrated differential pressure range suited for standard process piping. This configuration is widely deployed in Emerson DeltaV and Ovation DCS environments, as well as in Rockwell Automation and Siemens PLC-based control cabinets where field instrument compatibility is non-negotiable. Stocking this spare ensures your maintenance team can execute a rapid swap without waiting on lead times that can stretch weeks for configured transmitters.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective spare parts management for the Rosemount 2051CD2A02A1AS3I1M5 extends well beyond the transmitter itself. When a maintenance engineer schedules a planned replacement or responds to a field fault, a thorough inspection of the surrounding electrical and signal infrastructure is essential to prevent repeat failures and ensure a clean commissioning cycle.

Begin with the instrument power supply loop. The 2051CD is a loop-powered device drawing 4–20 mA, so the 24 V DC field power supply feeding the loop must be verified for stable output voltage and adequate current capacity. A degraded or undersized power supply — such as a Phoenix Contact TRIO-PS or Siemens SITOP PSU — can cause erratic transmitter behavior that mimics sensor failure. Check the loop barrier or Zener barrier if the installation is in a hazardous area; a worn MTL or P+F safety barrier can introduce signal distortion that corrupts the 4–20 mA reading at the DCS input card.

Inspect the field junction box and terminal blocks. Corroded or loose terminals on DIN rail-mounted terminal strips — such as Phoenix Contact UK or Weidmüller WDU series — are a common source of intermittent signal loss. Verify that cable shielding is properly grounded at one end only to prevent ground loops. The signal cable running from the transmitter to the marshalling cabinet should be checked for insulation integrity, especially in high-vibration or high-temperature zones.

At the control system end, confirm that the DCS analog input card — for example, an Emerson DeltaV MD Plus controller’s AI card or a Yokogawa CENTUM VP field control station input module — is reading the correct engineering unit range and that the 4–20 mA input channel is not drifting. If the site uses a HART multiplexer such as the Emerson 375 Field Communicator or a Pepperl+Fuchs HART modem, verify that the HART communication path is intact before and after the transmitter swap.

For sites using a Rosemount 305 integral manifold or a 304 coplanar manifold, inspect the manifold valves for seat wear and verify that the equalizing valve closes fully before removing the transmitter. A leaking equalizing valve will introduce a zero-shift error in the replacement unit. Similarly, check the impulse lines for blockage, condensate accumulation, or freeze risk — conditions that will cause the new transmitter to read incorrectly regardless of its calibration state.

Finally, review the AMS Device Manager or HART Device Descriptor (DD) file version to confirm compatibility with the replacement unit’s firmware revision. An outdated DD file can prevent full device configuration access and delay commissioning. All units shipped from SMARTNEXMSK are pre-tested against factory specifications and include a 12-month warranty, with documentation available upon request.

Site Replacement Workflow

A structured on-site replacement workflow for the Rosemount 2051CD2A02A1AS3I1M5 minimizes exposure time and protects process continuity. Follow these steps to execute a safe and efficient swap:

1. Pre-Replacement Verification: Confirm the replacement unit’s model code matches the installed transmitter — particularly the DP range (Range Code), flange material, and output type. Cross-reference the instrument tag in the P&ID and the DCS I/O list. Note the current zero and span calibration values from the HART communicator or AMS so they can be re-applied after installation.

2. Process Isolation: Close the high-pressure and low-pressure isolation valves on the Rosemount 305 or 304 manifold. Open the equalizing valve to equalize pressure across the transmitter. Vent residual process fluid safely before breaking the process connection. For hazardous fluids, follow site-specific LOTO (Lockout/Tagout) procedures.

3. Electrical Isolation: De-energize the instrument loop at the field junction box or marshalling cabinet. Tag the loop out of service in the DCS. If the transmitter is connected to a safety instrumented system (SIS), coordinate with the safety engineer before proceeding — bypassing a SIS loop requires a formal bypass authorization.

4. Physical Swap: Disconnect the conduit or cable gland, remove the terminal cover, and note the wiring polarity before disconnecting. Install the replacement 2051CD2A02A1AS3I1M5 on the existing coplanar flange, torquing the flange bolts to the specified value. Reconnect wiring, ensuring correct polarity and shield grounding.

5. Recommissioning: Re-energize the loop and connect the HART communicator. Re-enter the zero and span values, verify the output at 4 mA (0%) and 20 mA (100%), and perform a loop test to confirm the DCS is receiving the correct signal. Update the AMS Device Manager record and close the maintenance work order. The replacement unit carries a 12-month warranty from the date of shipment.

Spare Parts Support FAQ

Q1: Is the 2051CD2A02A1AS3I1M5 a direct drop-in replacement for other 2051CD configurations?
The 2051CD series uses a modular model code structure, so compatibility depends on matching the DP range code, flange rating, wetted material, and output type. The 2051CD2A02A1AS3I1M5 is a direct replacement for units with the same model string. For adjacent configurations — such as a 2051CD1A or 2051CD3A — the flange and electronics are physically interchangeable, but the calibrated range will differ and must be re-ranged on site using a HART communicator.

Q2: What pre-shipment testing is performed on this spare?
Every unit undergoes functional verification including loop output check at 4 mA and 20 mA, HART communication confirmation, and visual inspection for physical integrity. Units are shipped with protective caps on process connections and a test certificate is available upon request. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions.

Q3: How quickly can this spare be shipped, and what documentation is included?
In-stock units are typically dispatched within 1–3 business days from Xiamen. Shipment documentation includes a commercial invoice, packing list, and certificate of conformance. For projects requiring material traceability, a factory calibration certificate or third-party inspection report can be arranged. Contact sales@smartnexmsk.com for lead time confirmation on your specific quantity.

Q4: Can this transmitter be used in a SIL-rated safety loop?
The Rosemount 2051CD series is SIL 2 capable when used in a single-use configuration and SIL 3 capable in redundant configurations, per IEC 61508 assessment. However, SIL suitability for a specific loop depends on the full safety function design, including the logic solver and final element. Consult your functional safety engineer and the Rosemount 2051 SIL Safety Manual before deploying this spare in a safety instrumented function.
