Rosemount 248HANAN0 Retrofit-Ready Transmitter for 248 Series

Rosemount 248HANAN0 Retrofit-Ready Transmitter for 248 Series Control Systems

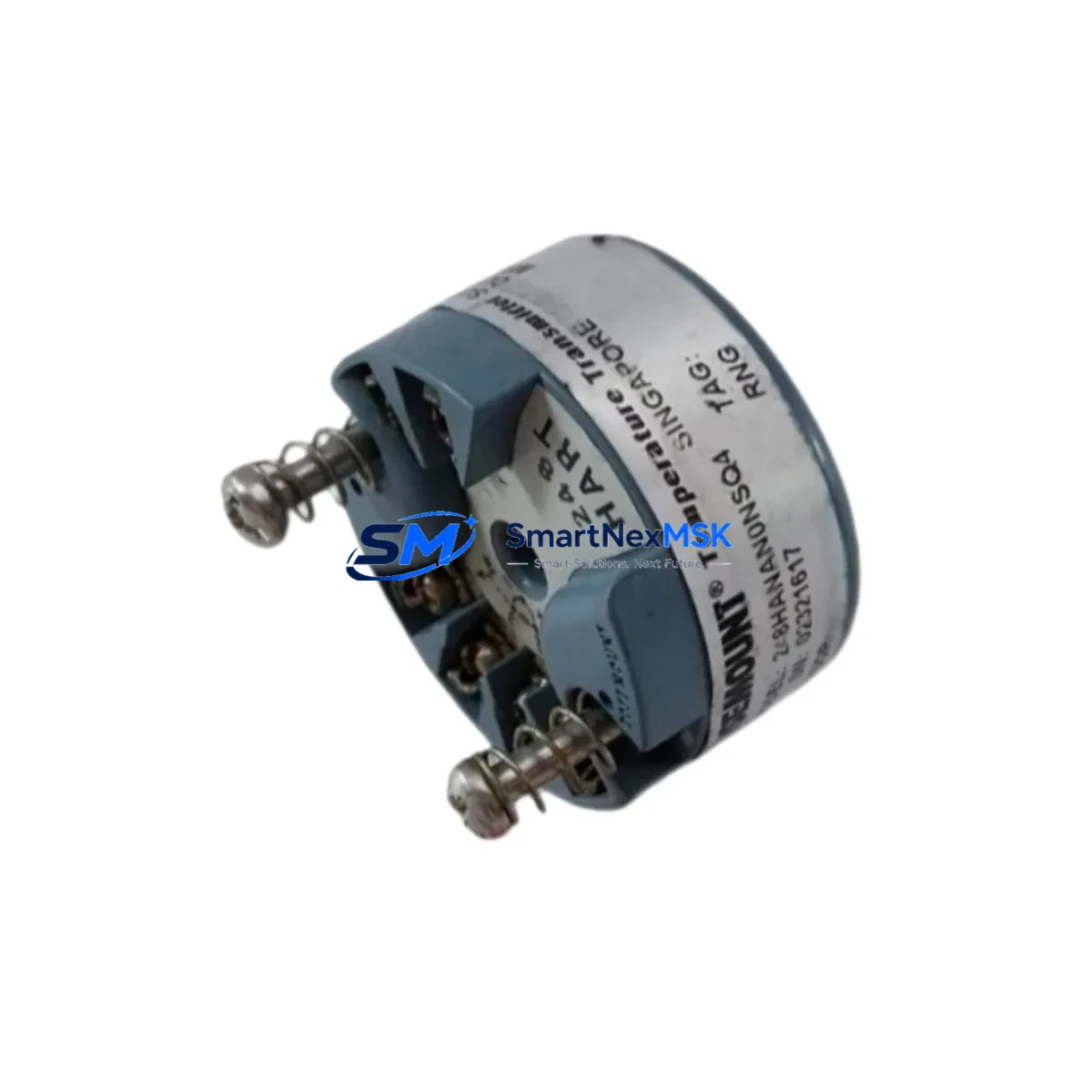

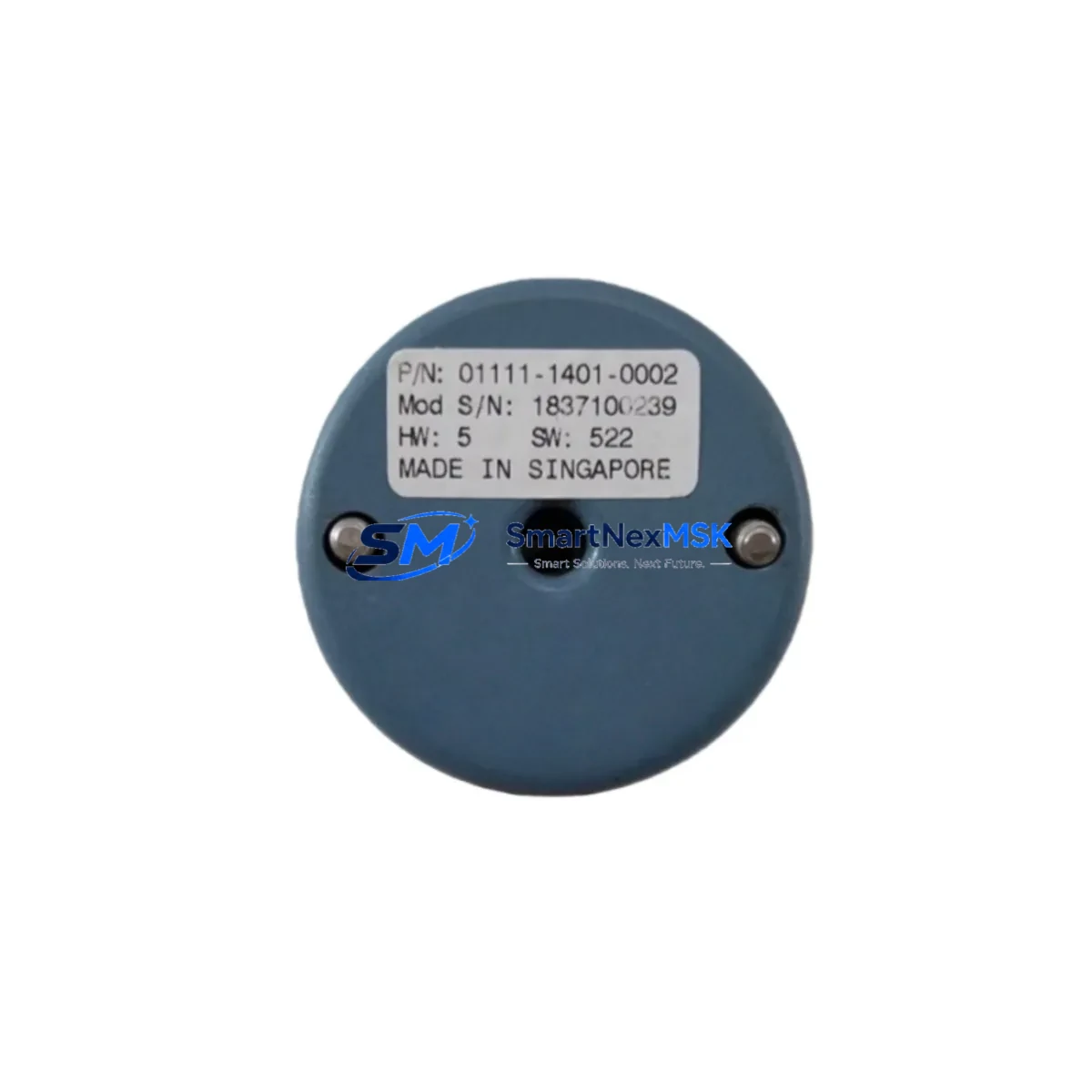

The Rosemount 248HANAN0 is a head-mount temperature transmitter engineered for seamless integration into existing 248 Series process control architectures. Designed with retrofit compatibility as a core specification, this unit addresses the growing demand for reliable, drop-in replacements in aging DCS and PLC-based temperature measurement loops. Whether your facility is upgrading a legacy Emerson DeltaV system, migrating from an older HART-based field network, or restoring a discontinued spare in a critical production line, the 248HANAN0 delivers the electrical and mechanical compatibility required to minimize engineering rework and reduce total downtime.

The 248HANAN0 accepts universal sensor inputs including RTD (Pt100, Pt500, Pt1000) and thermocouple types B, E, J, K, N, R, S, and T, making it a versatile replacement across diverse process environments — from chemical reactors and heat exchangers to boiler control panels and HVAC automation cabinets. Its 4–20 mA analog output with superimposed HART protocol ensures backward compatibility with existing control room infrastructure, including legacy Rosemount 3051 pressure transmitters, Rosemount 644 remote-mount transmitters, and AMS Device Manager configurations already deployed in the field.

For plants running Emerson DeltaV M-Series or S-Series I/O cards, the 248HANAN0 integrates directly without requiring firmware updates or I/O card reconfiguration. Engineers replacing failed 248 Series units in Yokogawa CENTUM VP or Honeywell Experion PKS environments will find the HART DD (Device Description) file compatible with standard HART communicators including the Emerson 475 Field Communicator and the Beamex MC6 calibrator, enabling rapid loop verification and commissioning without specialized tooling.

Terminal wiring follows the standard 2-wire loop-powered configuration. The transmitter draws loop power from the existing 24 VDC supply rail, eliminating the need for auxiliary power wiring modifications. Installers should verify that the existing sensor head housing — typically a DIN B or DIN A form factor — accommodates the 248HANAN0 PCB dimensions before installation. The unit is compatible with standard M20 or ½-inch NPT conduit entries and mounts directly onto Pt100 sensor assemblies already installed in thermowell assemblies across the process line.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the 248HANAN0 into an operating plant requires a structured pre-installation review. Begin by auditing the existing sensor head assembly: confirm the housing type (DIN A or DIN B), verify the thermowell connection thread (typically ½-inch NPT or G½), and document the existing Pt100 or thermocouple element wiring color code. In many legacy installations, the sensor element connects to the transmitter via a 3-wire or 4-wire RTD configuration — the 248HANAN0 supports all standard wiring schemes, but the terminal assignment must be verified against the existing loop drawing before disconnecting any field wiring.

For control cabinets housing Rosemount 333 HART Tri-Loop signal converters or Pepperl+Fuchs KFD2-STC4-Ex1 isolating barriers, confirm that the 4–20 mA loop impedance budget accommodates the 248HANAN0’s minimum operating voltage. The transmitter requires a minimum of 12 VDC at its terminals under full loop load — calculate the voltage drop across the barrier, cable resistance, and any series resistors in the HART segment before finalizing the installation design.

Plants migrating from older Rosemount 3244MV multi-input transmitters to individual 248HANAN0 units per measurement point should plan for I/O card address reassignment in the DCS. In Emerson DeltaV environments, this involves updating the HART I/O channel tag in the DeltaV Explorer and re-downloading the module to the M-Series HART I/O card. For Siemens S7-300 or S7-400 PLC-based systems using CP 341 or CP 343 communication processors, the HART master configuration in STEP 7 or TIA Portal must be updated to reflect the new device tag and polling address.

When upgrading multiple temperature loops simultaneously — for example, replacing all transmitters in a heat exchanger train — consider staging the replacement loop by loop to maintain process visibility. Use a Fluke 789 ProcessMeter or equivalent loop calibrator to simulate the 4–20 mA signal from the new transmitter before connecting to the live DCS input, confirming that the engineering unit scaling in the controller matches the 248HANAN0’s configured range. Rosemount 248 Series transmitters in legacy installations are often configured with non-standard temperature spans; use the Emerson 475 Field Communicator or AMS Device Manager to read back the existing configuration from the old unit before decommissioning it, then replicate the same span and damping settings on the 248HANAN0.

Additional components commonly required during a 248 Series retrofit include: Rosemount 0065 sensor assemblies for thermowell insertion, Pepperl+Fuchs Z787 Zener barriers for IS loop protection, Phoenix Contact MACX MCR-SL-RPSSI-I signal conditioners for non-HART legacy DCS inputs, Weidmüller WDU 2.5 terminal blocks for junction box rewiring, and Belden 3084A shielded instrumentation cable for new loop runs. For HMI updates, confirm that the Wonderware InTouch or Ignition SCADA tag database reflects the new transmitter’s engineering unit range to prevent alarm threshold mismatches after cutover.

Downtime Control During System Migration

Minimizing process downtime during a 248HANAN0 installation requires pre-staging all replacement components, tools, and documentation before the maintenance window opens. Print the existing loop drawing and P&ID for the affected measurement point, and prepare a pre-tested 248HANAN0 unit with the correct temperature range, damping, and HART tag pre-configured using a bench HART communicator. This eliminates field configuration time and reduces the risk of entry errors under time pressure.

Where process conditions permit, use the DCS soft-sensor or manual override function to hold the last good process value while the transmitter is disconnected. In Emerson DeltaV, this is achieved by placing the AI function block in Manual mode and entering a held value before breaking the loop. For Honeywell Experion PKS, use the MANUAL output mode on the associated PV input block. This approach preserves control loop continuity and prevents spurious alarms or automatic shutdowns triggered by a lost 4–20 mA signal during the swap.

After installing the 248HANAN0 and reconnecting the loop wiring, perform a live loop check using a HART communicator to confirm the PV reading matches the process temperature indicated by an independent reference — a calibrated thermocouple or RTD reference probe inserted into the same thermowell or adjacent measurement point. Verify the 4–20 mA output at the DCS input card using the AI channel diagnostic in DeltaV or the field device status in AMS. Once the reading is confirmed stable and within the expected process range, return the DCS block to Automatic mode and document the cutover in the plant maintenance management system.

For multi-loop migrations, maintain a cutover log tracking each loop’s pre-swap reading, post-swap reading, and sign-off technician. This record supports both quality assurance requirements and the 12-month warranty claim process in the event of a field failure within the warranty period.

Retrofit Support FAQ

Q1: Is the 248HANAN0 a direct replacement for all 248 Series variants?
The 248HANAN0 is compatible with the standard 248 Series head-mount form factor and supports the same 4–20 mA HART output. However, variant-specific options such as intrinsic safety (IS) approvals or special housing materials should be verified against the original model code before ordering. Contact our technical team with your existing model number for a confirmed replacement recommendation.

Q2: Can I reuse the existing sensor wiring and terminal block?
In most cases, yes. The 248HANAN0 uses a standard 2-wire loop connection and accepts the same RTD or thermocouple input wiring as the original 248 Series unit. Verify the terminal numbering against the 248HANAN0 installation drawing before reconnecting, as terminal assignments may differ from older revisions.

Q3: What commissioning tools are required for field configuration?
The 248HANAN0 supports HART 5 and HART 7 communication. Any standard HART communicator — including the Emerson 475 Field Communicator, Fluke 754, or a PC running AMS Device Manager with a HART modem — can be used to configure the transmitter range, damping, and tag. No proprietary software is required.

Q4: What does the 12-month warranty cover?
All 248HANAN0 units supplied by SMARTNEXMSK carry a 12-month warranty against manufacturing defects from the date of shipment. Each unit undergoes pre-shipment functional testing including loop output verification and HART communication check. Warranty claims are supported by our technical team — contact sales@smartnexmsk.com with your order reference and a description of the fault.
