Schneider 140CPU53414A Spare for Quantum Automation: Spare Replacement & Industrial Downtime Risk Control

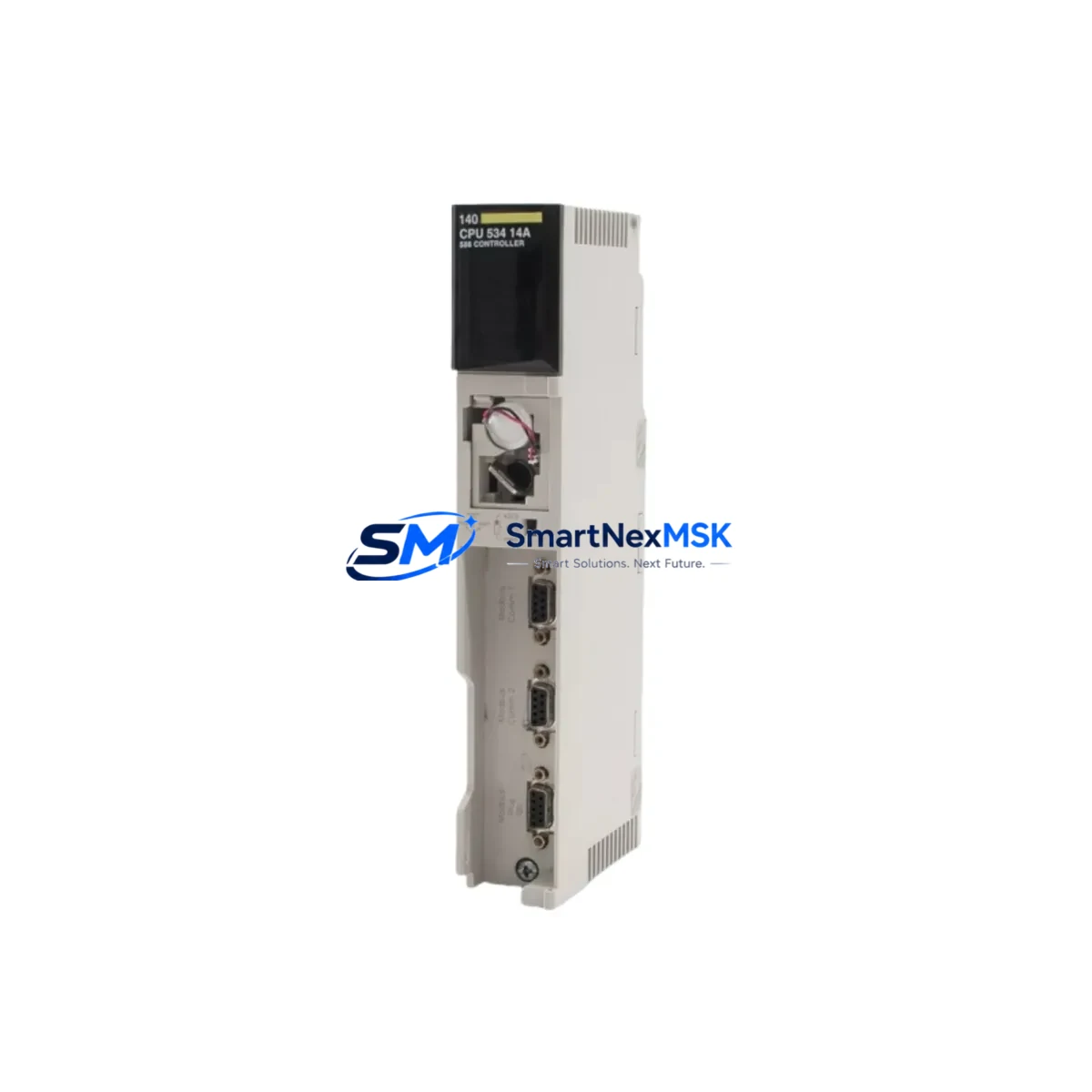

The Schneider Electric 140CPU53414A is a high-performance CPU module designed for the Modicon Quantum programmable automation controller platform — one of the most widely deployed DCS/PLC architectures in process industries, utilities, oil & gas, and heavy manufacturing. When this CPU module fails or reaches end-of-life, the consequences extend far beyond a single rack: the entire control loop, SCADA interface, and field I/O network may be rendered inoperative. Maintaining a verified, tested spare of the 140CPU53414A in your critical spare parts inventory is not optional — it is a fundamental element of any serious maintenance strategy.

At SMARTNEXMSK, every 140CPU53414A unit is sourced from authorized supply chains, inspected against original Schneider Electric specifications, and tested prior to shipment. We support maintenance engineers and procurement teams across global industrial sites with fast dispatch, reliable documentation, and a 12-month warranty on all spare parts.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing a 140CPU53414A in a live Modicon Quantum system is rarely an isolated task. Experienced maintenance engineers know that a CPU fault often signals stress across adjacent components in the same control cabinet. Before declaring the replacement complete, a thorough site inspection should cover the following areas:

Power Supply Integrity: The 140CPS11400 and 140CPS21400 power supply modules are the first components to inspect. An aging or under-spec power supply can cause intermittent CPU resets, corrupted memory, or communication dropouts that mimic CPU failure. Verify output voltage stability under load before installing the replacement 140CPU53414A.

Backplane and Rack Health: The 140XBP01600 (16-slot) and 140XBP01000 (10-slot) backplanes should be visually inspected for corrosion, bent connector pins, or heat damage. A faulty backplane can cause the new CPU to fail immediately after installation — a costly and avoidable outcome.

Remote I/O and Communication Modules: The 140NOE77101 Ethernet communication module and 140NOM21100 Modbus Plus network option module are frequently co-located with the CPU in the main rack. If the CPU experienced a surge or thermal event, these modules may have sustained damage. Inspect and test them in parallel with the CPU replacement.

Discrete and Analog I/O Modules: High-density I/O modules such as the 140DAI54000 (discrete input) and 140DAO84000 (discrete output) should be checked for blown fuses, failed output drivers, or wiring faults. A shorted field device can cause repeated CPU faults if not isolated before the new module is commissioned.

Signal Isolation and Protection: In environments with high electrical noise — common in motor control centers, variable frequency drive (VFD) panels, and high-current switching applications — signal isolators and surge protection devices on analog input channels should be inspected. Degraded isolation can introduce ground loops that corrupt CPU data integrity over time.

Hot Standby Pair Verification: If the system is configured for Hot Standby redundancy using a paired 140CPU53414A, both units must be verified after any maintenance event. Confirm that the standby CPU is synchronized, that the 140CHS11000 Hot Standby cable is intact, and that the switchover logic has been tested before returning the system to production.

Terminal Blocks and Field Wiring: Loose or corroded terminal connections on 140XTS00200 or equivalent terminal blocks are a common root cause of intermittent faults. Torque-check all field wiring terminations as part of the replacement workflow.

Maintaining a structured spare parts kit that includes the 140CPU53414A alongside its associated power supply, communication modules, and I/O cards significantly reduces mean time to repair (MTTR) and protects production continuity.

Site Replacement Workflow

The 140CPU53414A is a direct replacement for earlier Modicon Quantum CPU variants including the 140CPU43412A and 140CPU53412A, subject to firmware compatibility verification. The replacement procedure follows these key steps:

1. Pre-Replacement Preparation: Back up the application program from the existing CPU using Unity Pro or EcoStruxure Control Expert. Confirm the firmware version of the replacement unit matches or is compatible with the existing application. Document all I/O mapping, network addresses, and Hot Standby configuration parameters.

2. Safe Isolation: Follow site-specific lockout/tagout (LOTO) procedures. De-energize the rack power supply and verify zero-energy state before removing the CPU module. The 140CPU53414A is a hot-swap-capable module in Hot Standby configurations, but standard safety protocols must still be observed.

3. Module Swap and Commissioning: Install the replacement 140CPU53414A into the same slot position. Restore the application program via the programming port or Ethernet connection. Verify all I/O modules are recognized, communication links are re-established, and the Hot Standby pair (if applicable) achieves synchronized status.

4. Functional Verification: Run a full I/O scan, verify analog signal scaling, confirm Modbus TCP and Modbus Plus network connectivity, and validate SCADA tag mapping before releasing the system to operations. Document the replacement in the site maintenance log.

This structured approach minimizes downtime, reduces the risk of commissioning errors, and ensures the replacement 140CPU53414A performs to original Schneider Electric specifications from the first power-on.

Spare Parts Support FAQ

Q1: Is the 140CPU53414A still available as a new original spare, or only as refurbished?
Both new original and professionally refurbished-to-OEM-specification units are available. All units — regardless of condition classification — undergo functional testing prior to shipment and are covered by a 12-month warranty. Condition and certification documentation is provided upon request.

Q2: How do I verify compatibility between the 140CPU53414A and my existing Quantum rack and application?
Compatibility depends on the firmware version of the replacement CPU and the Unity Pro / EcoStruxure Control Expert version used to develop the application. SMARTNEXMSK provides firmware version disclosure for all units. We recommend confirming the firmware level against Schneider Electric’s compatibility matrix before installation. Our technical team can assist with compatibility verification prior to purchase.

Q3: What is your lead time and shipping process for the 140CPU53414A?
In-stock units are dispatched within 24–48 hours of order confirmation. Each unit is packaged in anti-static ESD-safe materials with a pre-shipment test report. Express international shipping is available to minimize downtime for emergency replacement scenarios. Tracking information is provided at the time of dispatch.

Q4: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects, functional failures under normal operating conditions, and any deviation from the published Schneider Electric specifications for the 140CPU53414A. In the event of a warranty claim, SMARTNEXMSK will arrange for return shipment, inspection, and replacement or repair at no additional cost. Warranty claims are processed within 5 business days of unit receipt.
