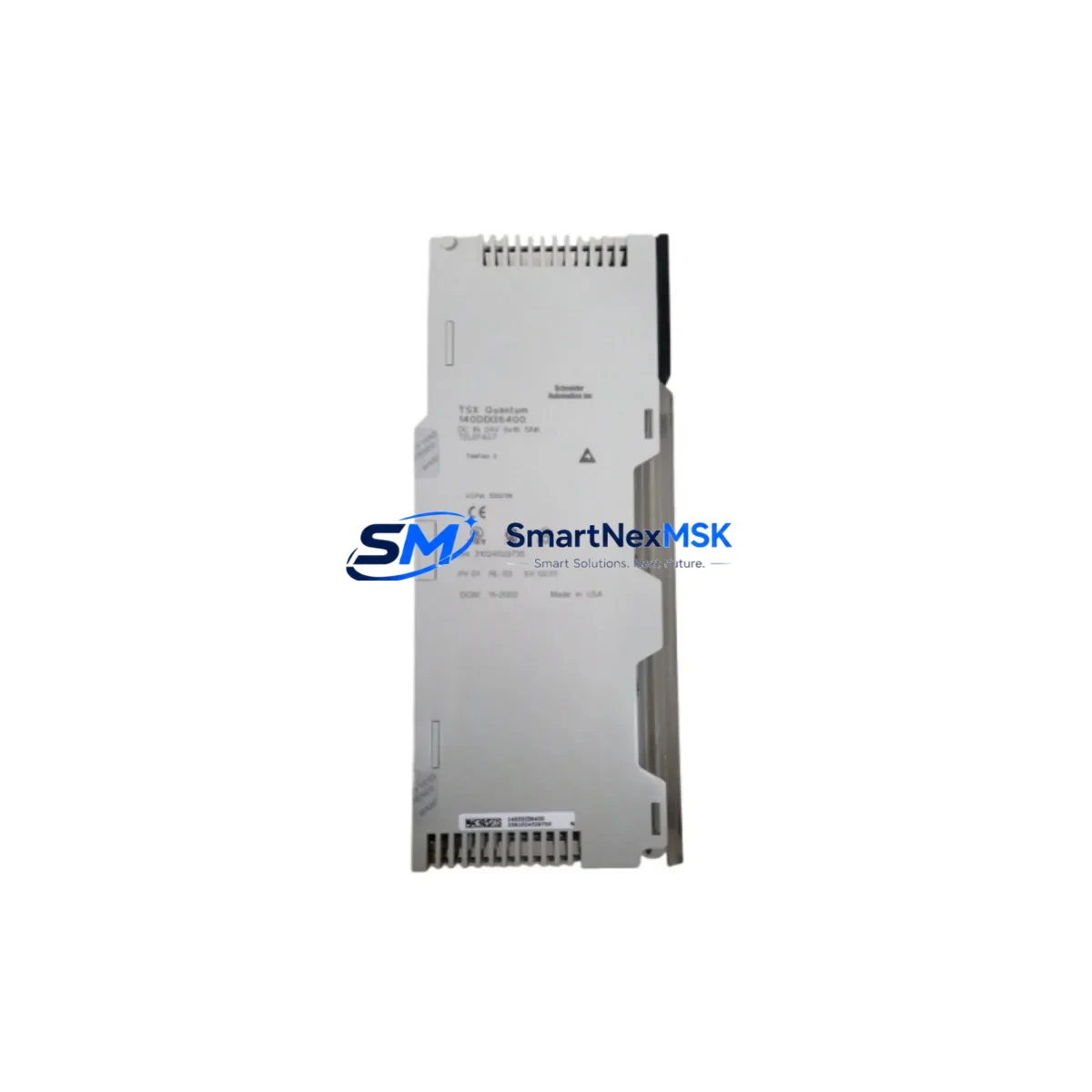

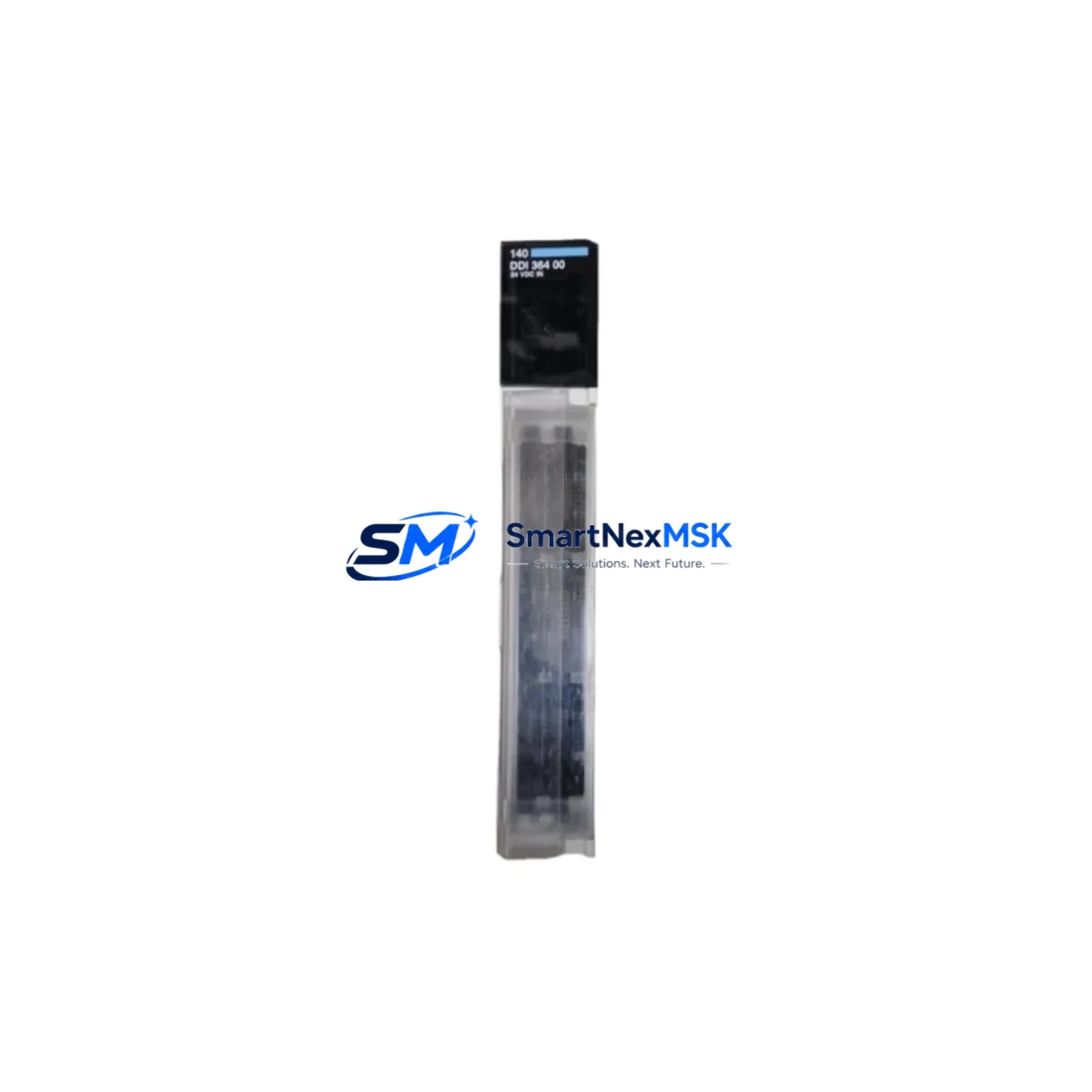

Schneider 140DDI36400 Maintenance-Ready Spare Quantum Automation
The Schneider Electric 140DDI36400 is a 32-channel, 24 VDC digital input module designed for the Modicon Quantum PLC platform — one of the most widely deployed process automation architectures in heavy industry, utilities, and critical infrastructure. For maintenance engineers managing aging Quantum racks, sourcing a verified original 140DDI36400 spare is a direct line of defense against unplanned downtime. This module handles discrete field signal acquisition from sensors, limit switches, pushbuttons, and proximity detectors, feeding real-time status data to the Quantum CPU for logic execution and process control.
Whether you are executing a planned shutdown inspection, responding to a field fault, or building a strategic spare parts buffer for a multi-year maintenance contract, the 140DDI36400 is a high-priority line item. Its role in the I/O subsystem means that a failed or degraded module can silently corrupt process data, trigger nuisance trips, or cause complete loss of field visibility — all of which translate directly into production loss and safety risk.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number / SKU | 140DDI36400 |
| Brand | Schneider Electric (Modicon) |
| Series | Modicon Quantum |
| Module Type | 32-Channel Digital Input |
| Input Voltage | 24 VDC |
| Channel Count | 32 channels (2 × 16-channel groups) |
| Input Current per Channel | Approx. 7 mA at 24 VDC |
| Isolation | Optical isolation, channel-to-backplane |
| Backplane Compatibility | Modicon Quantum 140 series racks (6, 10, 16 slot) |
| Connector Type | 40-pin front connector (field wiring) |
| Operating Temperature | 0°C to 60°C |
| Relative Humidity | 5% to 95% non-condensing |
| Certifications | CE, UL, cUL (verify current listing) |
| Country of Origin | France |
| Warranty | 12 Months from date of shipment |
| Condition | Original, tested before dispatch |
Maintenance Planning for Continuous Operation
When a 140DDI36400 is flagged for replacement during a scheduled outage or emergency callout, experienced maintenance engineers know that the module itself is rarely the only component requiring attention. A thorough inspection of the surrounding electrical environment is essential to prevent repeat failures and ensure a clean return to service.
Begin with the 140XBP series Quantum backplane — inspect the module slot connector for bent pins, oxidation, or heat discoloration that could cause intermittent contact faults. The 140CPS series power supply modules (such as the 140CPS11420 or 140CPS21400) should be load-tested; a sagging 24 VDC rail is a common root cause of false input readings and module resets. Check the 140CPU series processor module firmware version to confirm compatibility with the replacement I/O module and verify that the I/O map has not drifted.
On the field wiring side, inspect the 140XTS series terminal strip or third-party marshalling terminal blocks for loose terminations, corroded contacts, and insulation breakdown — particularly in high-vibration or high-humidity environments. If the system uses 140ACI series analog input modules in adjacent slots, verify that signal ground references are consistent to avoid common-mode interference affecting digital thresholds.
For systems with 140NOE series Ethernet communication modules or 140NOM series Modbus Plus network modules, confirm that the network topology is intact and that the replacement module is correctly addressed in the I/O configuration. In safety-critical loops, check any associated signal isolators or signal conditioners (such as Phoenix Contact or Weidmüller DIN-rail isolators) that sit between field devices and the Quantum input channels.
Finally, review the 140DDO series digital output modules in the same rack — output modules driving solenoids, contactors, or motor starters can generate inductive kickback that stresses input module power rails if suppression components have degraded. A proactive inspection of the full rack during a 140DDI36400 replacement is the most cost-effective way to extend system life and reduce the frequency of emergency callouts.
Site Replacement Workflow
Replacing the 140DDI36400 on a live Quantum system requires a structured approach to minimize downtime and avoid configuration errors. Before removing the module, export the current Unity Pro or Concept project file and document the I/O map for the affected slot. Power down the rack segment if hot-swap is not confirmed for your specific rack revision — not all Quantum backplane generations support live module insertion without a rack reset.
Remove the field wiring connector from the front of the module before extracting the module from the backplane. This prevents accidental short circuits during removal. Insert the replacement 140DDI36400, reconnect the field wiring connector, and restore power. In Unity Pro, perform an online comparison to verify that the I/O configuration matches the replacement module’s channel count and addressing. Force-test a representative sample of input channels using a 24 VDC test source to confirm signal integrity before releasing the system to production.
For sites migrating from older Quantum hardware or transitioning from discontinued Modicon 984 series equipment, the 140DDI36400 provides a direct upgrade path with improved diagnostic LED visibility and tighter input filtering specifications. Maintaining one or two 140DDI36400 units in your on-site spare parts cabinet — alongside compatible power supply and CPU spares — is the most reliable strategy for meeting sub-4-hour recovery targets in critical process environments.
Spare Parts Support FAQ
Q1: Is the 140DDI36400 compatible with all Modicon Quantum rack sizes?
A: Yes. The 140DDI36400 is compatible with all standard Modicon Quantum 140 series backplanes, including 6-slot (140XBP00600), 10-slot (140XBP01000), and 16-slot (140XBP01600) configurations. Always verify the slot assignment in your Unity Pro or Concept I/O configuration after installation.
Q2: How do you verify the module is genuine before shipment?
A: Each unit undergoes visual inspection, label verification, and functional power-on testing prior to dispatch. Modules are shipped with original or equivalent protective packaging. A test report is available on request for critical infrastructure applications.
Q3: What is the warranty coverage and what does it include?
A: All 140DDI36400 units carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling on site.
Q4: Can this module replace an older or discontinued Quantum digital input variant?
A: The 140DDI36400 is the current standard 32-channel 24 VDC digital input module for the Quantum platform and is the recommended replacement for earlier variants with the same channel count and voltage rating. Confirm the I/O addressing and wiring connector pinout against your existing documentation before installation to ensure a drop-in fit.
