Schneider 140XBP01000 Safety-Enhanced Rack Backplane for Harsh Sites

Schneider 140XBP01000 Safety-Enhanced Rack Backplane for Harsh Industrial Sites

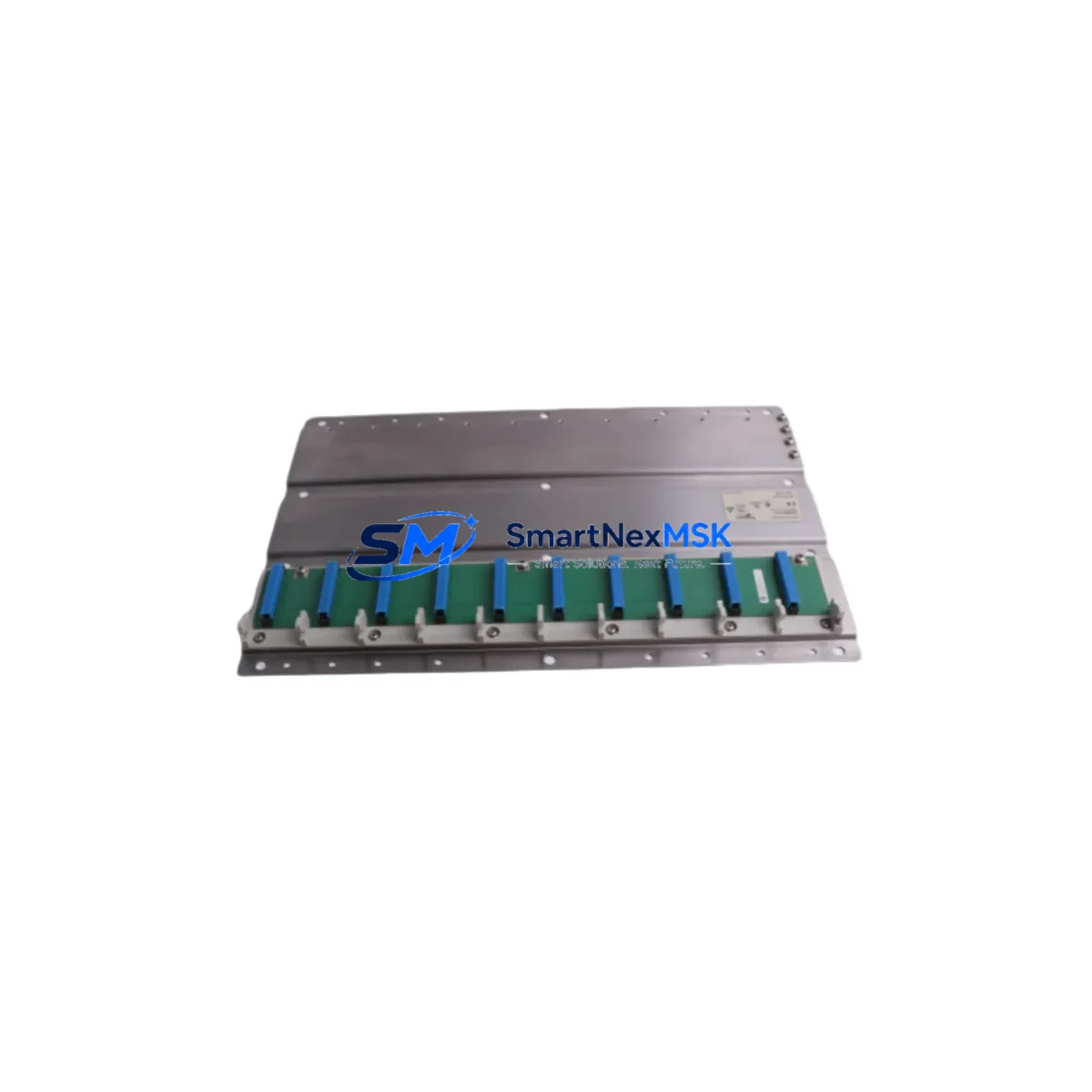

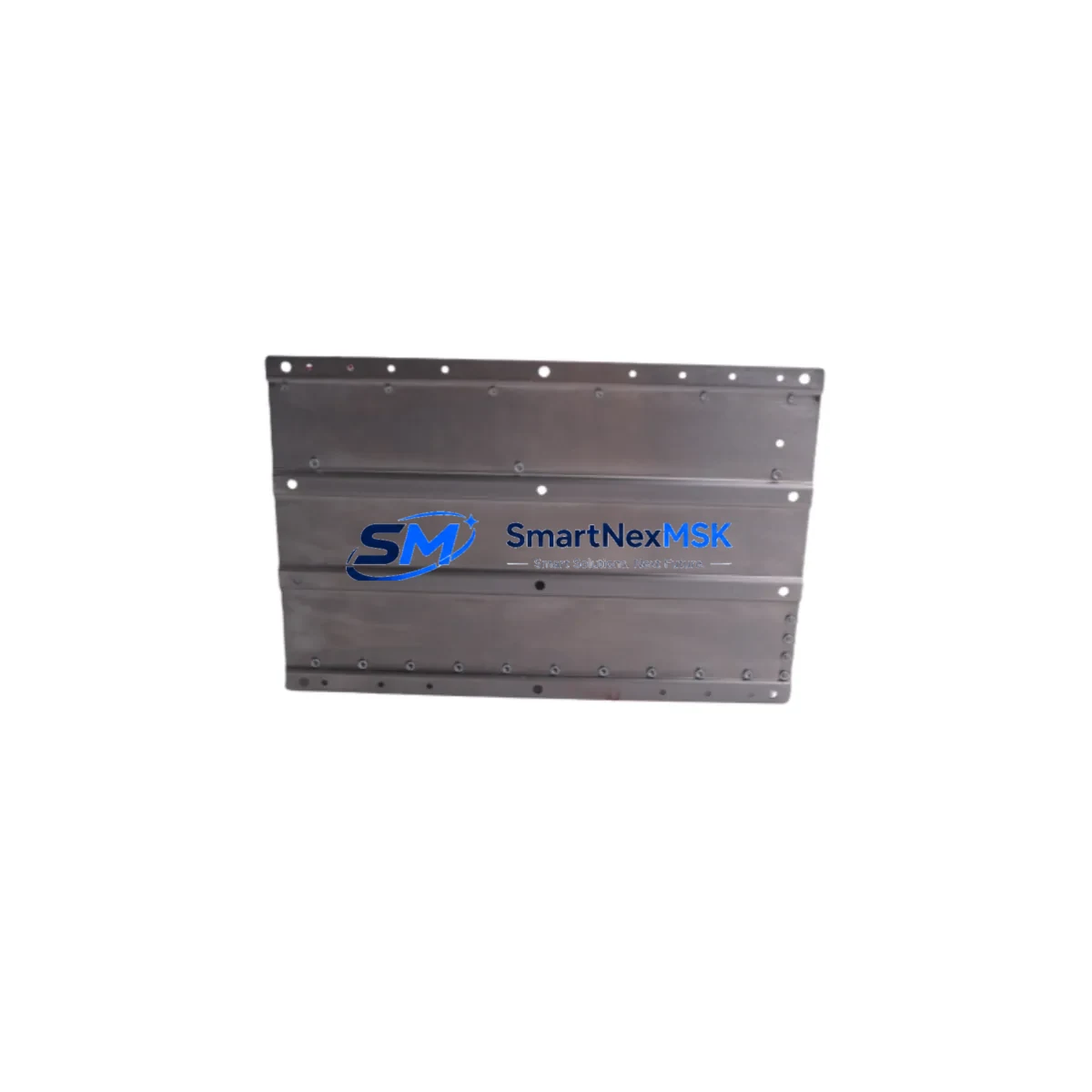

The Schneider Electric 140XBP01000 is a 10-slot rack backplane module engineered for the Modicon Quantum PLC platform — one of the most widely deployed distributed control architectures in heavy industry. Designed to operate reliably in high-load, high-interference, and continuous-production environments, the 140XBP01000 serves as the structural and electrical backbone of the control cabinet, interconnecting CPU modules, I/O modules, communication processors, and power supply units within a single ruggedized chassis.

In critical industrial control systems — including petrochemical process lines, power generation switchgear rooms, mining hoist control panels, and water treatment SCADA cabinets — the integrity of the rack backplane directly determines the stability of the entire control loop. A compromised backplane can cause cascading module faults, signal dropout across multiple I/O channels, communication timeouts on Modbus Plus or Ethernet networks, and unplanned process shutdowns. The 140XBP01000 is built to eliminate these failure modes through robust bus architecture, shielded slot connectors, and a thermally stable housing rated for extended industrial duty cycles.

Safety Reliability Table

Control Cabinet Protection Strategy

In a properly engineered Modicon Quantum control cabinet, the 140XBP01000 backplane anchors a layered protection strategy that spans power conditioning, signal integrity, and communication redundancy. The backplane slots are typically populated with a 140CPU65160 or 140CPU67160 processor module as the control core, supported by a 140CPS11100 AC power supply unit that delivers regulated 5 VDC and 24 VDC rails to all installed modules. In high-availability installations, a secondary 140CPS21100 redundant power supply is mounted in parallel to eliminate single-point power failure risk.

Discrete I/O is handled by modules such as the 140DDI35300 32-channel DC input module and the 140DDO35300 32-channel DC output module, both of which rely on the backplane’s bus integrity for deterministic scan-cycle performance. Analog process signals — pressure, temperature, flow — are routed through 140ACI04000 analog input modules, where even minor bus noise on the backplane can introduce signal drift that triggers false alarms or incorrect PID corrections in process control loops.

Communication resilience is maintained through 140NOE77101 Ethernet TCP/IP network option modules and 140CRP93200 RIO head-end modules, which depend on stable backplane power and bus arbitration to sustain uninterrupted SCADA polling and remote I/O scanning. In safety interlock circuits — such as emergency shutdown (ESD) systems or fire and gas detection panels — the 140XBP01000 provides the physical infrastructure that ensures the 140EHC10500 high-speed counter module and associated safety relay outputs respond within the required reaction time window. Surge transients from inductive loads or nearby lightning strikes are absorbed at the cabinet level by coordinated use of surge protection devices (SPDs) installed upstream of the power supply, protecting the backplane bus from voltage spikes that could corrupt module firmware or damage connector pins.

Critical Industrial Safety Applications

Petrochemical & Refinery Process Control: In continuous hydrocarbon processing plants, the 140XBP01000 supports Modicon Quantum PLCs managing reactor temperature control, pressure relief interlock logic, and emergency depressurization sequences. The backplane’s robust bus design ensures that safety-critical output commands — such as closing a high-pressure isolation valve — are executed without communication latency even under high electromagnetic interference from variable frequency drives and large motor starters operating in the same switchgear room.

Power Generation & Substation Automation: In thermal and hydroelectric power plants, Quantum-based control systems using the 140XBP01000 manage turbine governor control, generator protection relay coordination, and load dispatch automation. The backplane’s shielded architecture prevents bus corruption from the intense magnetic fields generated by high-voltage switchgear and transformer banks operating in adjacent bays.

Mining Hoist & Conveyor Control: Underground and open-pit mining operations subject control hardware to extreme vibration, dust ingress, and wide temperature swings. The 140XBP01000’s IEC 60068-compliant mechanical ratings make it suitable for hoist drive control panels, conveyor sequencing systems, and ventilation fan automation where continuous uptime is a safety requirement under mining regulations.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on Modicon Quantum systems for pump station automation, chemical dosing control, and effluent monitoring. The 140XBP01000 provides the stable backplane infrastructure needed for 24/7 unattended operation, where a control system failure can result in regulatory non-compliance or public health risk.

Metallurgy & Steel Production: Rolling mill and electric arc furnace control systems demand PLCs that can withstand high-frequency electrical noise, thermal cycling, and mechanical shock. The 140XBP01000’s industrial-grade construction supports these demanding environments, maintaining signal integrity across all installed I/O and communication modules throughout extended production campaigns.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 140XBP01000?
Every 140XBP01000 unit supplied by SMARTNEXMSK carries a 12-month warranty from the date of shipment. This covers manufacturing defects, bus connector failures, and any functional fault that prevents the module from operating within its published specifications. Warranty claims are processed with priority turnaround to minimize control system downtime.

Q2: How is each unit tested before shipment?
All 140XBP01000 backplane modules undergo a full pre-shipment inspection that includes visual examination of all slot connectors and bus traces, continuity testing across all backplane bus lines, and functional verification in a live Modicon Quantum rack assembly. Units that do not pass all test criteria are quarantined and not shipped. A test record is available upon request.

Q3: Is the 140XBP01000 compatible with all Modicon Quantum 140-series modules?
Yes. The 140XBP01000 is fully compatible with the complete range of Modicon Quantum 140-series modules, including CPU processors, discrete and analog I/O modules, communication option modules (NOE, CRP, NOM), and power supply units. It is the standard 10-slot backplane for Quantum rack assemblies and supports both single and redundant power supply configurations.

Q4: Can SMARTNEXMSK support long-term and repeat supply of the 140XBP01000?
Yes. SMARTNEXMSK maintains dedicated inventory of the 140XBP01000 and key Modicon Quantum spare parts to support ongoing maintenance, planned shutdowns, and emergency replacement requirements. We provide stable, long-term supply commitments for industrial customers who require assured availability of critical spare parts beyond the original manufacturer’s active production lifecycle.
