Schneider 140XCA71706 Safety-Enhanced Backplane Expander Cable

Schneider 140XCA71706 Safety-Enhanced Backplane Expander Cable: Reliable Control in Harsh Industrial Sites

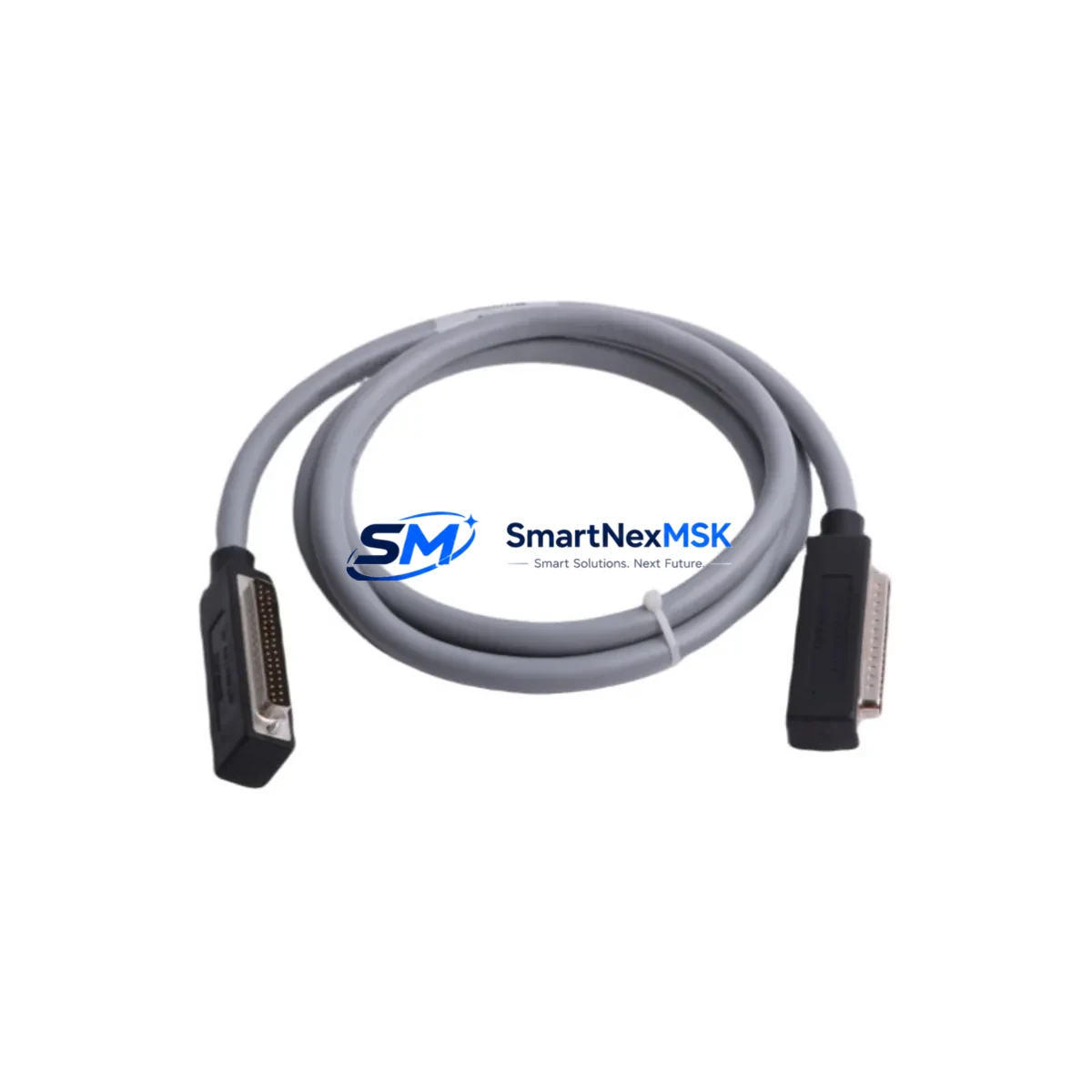

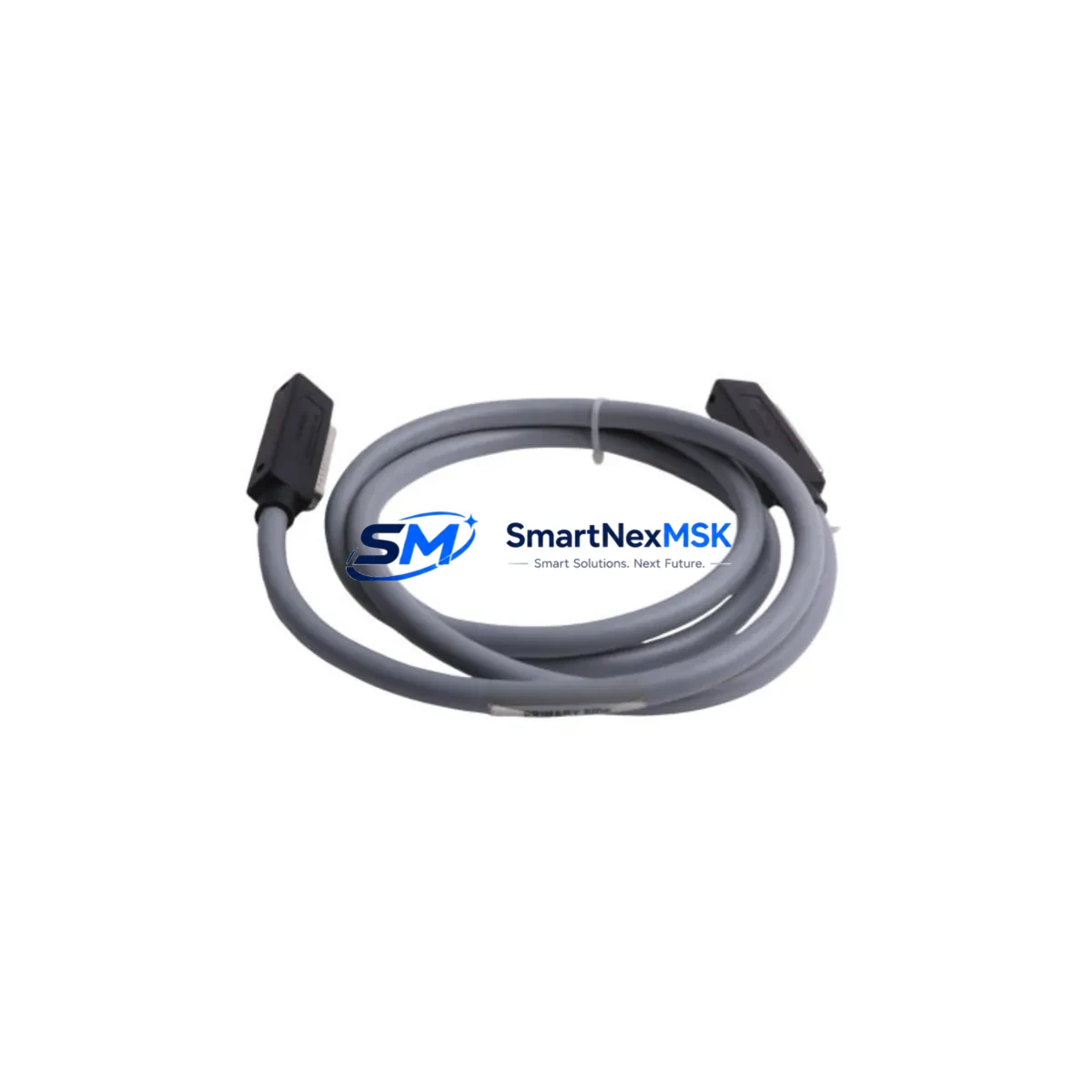

The Schneider Electric 140XCA71706 is a ruggedized backplane expander cable engineered for the Modicon Quantum PLC platform — one of the most widely deployed distributed control architectures in heavy industry. Designed to maintain uninterrupted rack-to-rack communication under conditions of high electrical noise, mechanical vibration, thermal cycling, and continuous 24/7 production loads, the 140XCA71706 is a critical passive component that directly supports the integrity of your control loop infrastructure.

In industrial environments where control cabinet uptime is non-negotiable — petrochemical processing units, power generation switchgear rooms, mining hoist control panels, water treatment SCADA enclosures, and metallurgical furnace automation systems — a degraded or failed backplane cable can cascade into full rack communication loss, triggering unplanned shutdowns, safety interlock failures, or process excursions. The 140XCA71706 eliminates this risk through its shielded, impedance-matched construction, which preserves signal integrity across the Quantum backplane bus even in the presence of high-frequency EMI generated by variable frequency drives, motor starters, and high-current switching equipment installed in the same cabinet.

Safety Reliability Table

Control Cabinet Protection Strategy

The 140XCA71706 does not operate in isolation — it is one node in a layered cabinet protection architecture. In a properly engineered Modicon Quantum control cabinet, the backplane cable works in concert with the 140CPU67160 or 140CPU65160 processor module, which manages the backplane bus arbitration and watchdog supervision. Power to the rack is supplied by redundant 140CPS11420 or 140CPS21400 power supply modules, whose clean, regulated DC output is essential to preventing voltage transients from propagating into the backplane bus and causing the kind of signal corruption that a degraded cable connection can amplify.

On the I/O side, modules such as the 140DAI74000 discrete input module and 140DAO84000 discrete output module rely on stable backplane communication to execute safety-critical commands without latency or dropout. In applications where the Quantum rack is networked via Modbus Plus or Ethernet, the 140NOE77101 Ethernet communication module depends on the backplane cable maintaining consistent bus timing — any intermittent connection introduced by a worn or counterfeit cable can manifest as sporadic communication timeouts that are notoriously difficult to diagnose under load.

For installations in hazardous or high-vibration environments such as offshore platforms or mining headframes, the backplane cable should be inspected alongside the 140XBP01600 or 140XBP00600 expansion rack chassis and the 140XTS00200 terminal strip assemblies. Surge protection devices installed at the cabinet entry point — such as DIN-rail mounted SPDs rated for the local fault current level — further reduce the risk of transient energy reaching the backplane bus through coupled I/O wiring. Together, these components form a coherent protection strategy that keeps the 140XCA71706 operating within its design envelope throughout the full service life of the control system.

Critical Industrial Safety Applications

Petrochemical & Refinery Process Control: In continuous distillation, reactor temperature control, and emergency shutdown (ESD) systems, the Modicon Quantum platform is frequently deployed in SIL-rated safety instrumented systems. The 140XCA71706 supports multi-rack I/O expansion in these architectures, ensuring that field signals from pressure transmitters, flame detectors, and valve positioners reach the safety logic solver without interruption. A failed backplane cable in this context can disable an entire I/O rack, potentially masking a dangerous process condition.

Power Generation & Substation Automation: Generator excitation control, turbine governor systems, and HV switchgear interlocking panels operate in environments with intense electromagnetic fields from bus bars, current transformers, and arc flash events. The shielded construction of the 140XCA71706 provides the EMI immunity necessary to maintain reliable rack communication in these high-energy electrical environments.

Mining Hoist & Conveyor Control: Underground and surface mining operations subject control cabinets to continuous vibration, dust ingress, and wide temperature swings. The 140XCA71706’s robust connector locking mechanism and flexible yet durable cable construction resist the mechanical fatigue that causes intermittent faults in lesser cables, supporting safe hoist speed regulation and conveyor interlock functions.

Water & Wastewater Treatment SCADA: Municipal water treatment facilities running 24/7 pump station automation and chemical dosing control depend on uninterrupted PLC rack communication. The 140XCA71706 enables reliable I/O expansion in these continuously operating systems, supporting alarm management and regulatory compliance reporting without communication gaps.

Metallurgical & Steel Plant Automation: Electric arc furnace control, rolling mill drive coordination, and ladle crane automation generate extreme electrical noise and thermal stress. Backplane cables in these environments must maintain signal integrity under conditions that would degrade standard cabling, making the 140XCA71706’s shielded, industrial-grade construction a prerequisite for safe and productive operation.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 140XCA71706?
The 12-month warranty covers all manufacturing defects, including connector integrity failure, shield continuity loss, and insulation breakdown under normal operating conditions. If the cable fails within the warranty period due to a manufacturing defect, we will replace it at no charge, including return shipping coordination. Warranty claims are processed within 5 business days of receiving the returned item.

Q2: What pre-shipment testing is performed on each unit?
Every 140XCA71706 unit undergoes a three-point inspection before dispatch: (1) full conductor continuity verification across all backplane bus lines, (2) insulation resistance test to confirm no cross-talk or leakage between signal conductors, and (3) shield integrity check to verify 360° termination and drain wire continuity. A test record is retained for each shipped unit and can be provided upon request.

Q3: Is this cable compatible with all Modicon Quantum rack configurations?
The 140XCA71706 is designed for use with the Modicon Quantum 140 series rack family, including standard and extended I/O expansion racks. It is compatible with all Quantum processor modules and I/O modules that use the standard Quantum backplane bus interface. If you are integrating this cable into a specific rack configuration or replacing an existing cable in a running system, our technical team can confirm compatibility based on your rack model numbers before shipment.

Q4: Can you guarantee long-term supply and replacement support?
Yes. We maintain dedicated stock of the 140XCA71706 and key Modicon Quantum spare parts to support long-term maintenance programs for installed base systems. For customers managing aging Quantum installations where OEM supply has become unreliable, we offer scheduled procurement agreements to ensure critical spare cables are available when needed, minimizing the risk of extended downtime due to parts unavailability. Contact our team to discuss your site’s spare parts strategy.
