Schneider 170AAI14000 Safety-Enhanced Analog Input Module

Schneider 170AAI14000 Safety-Enhanced Analog Input Module for Harsh Industrial Sites

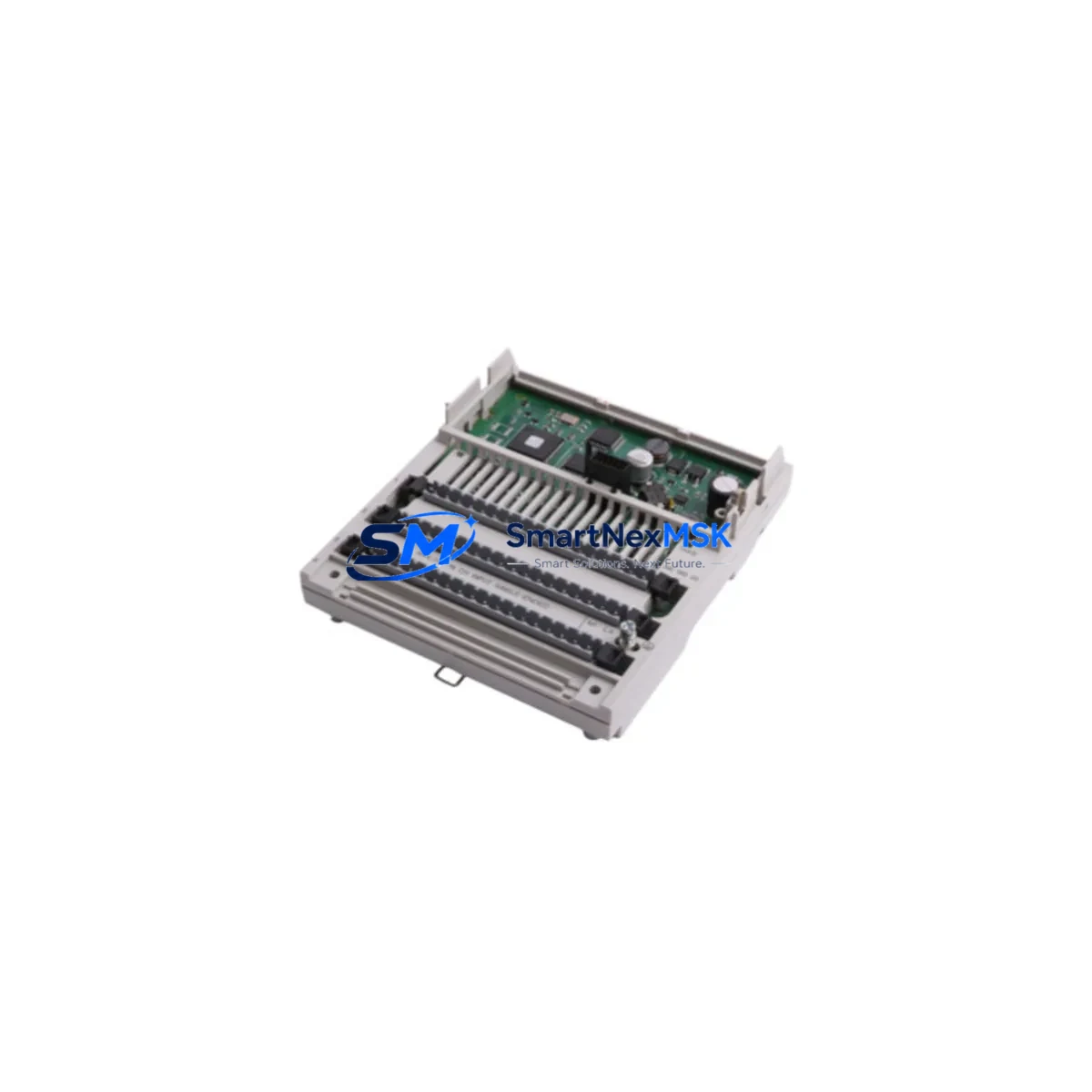

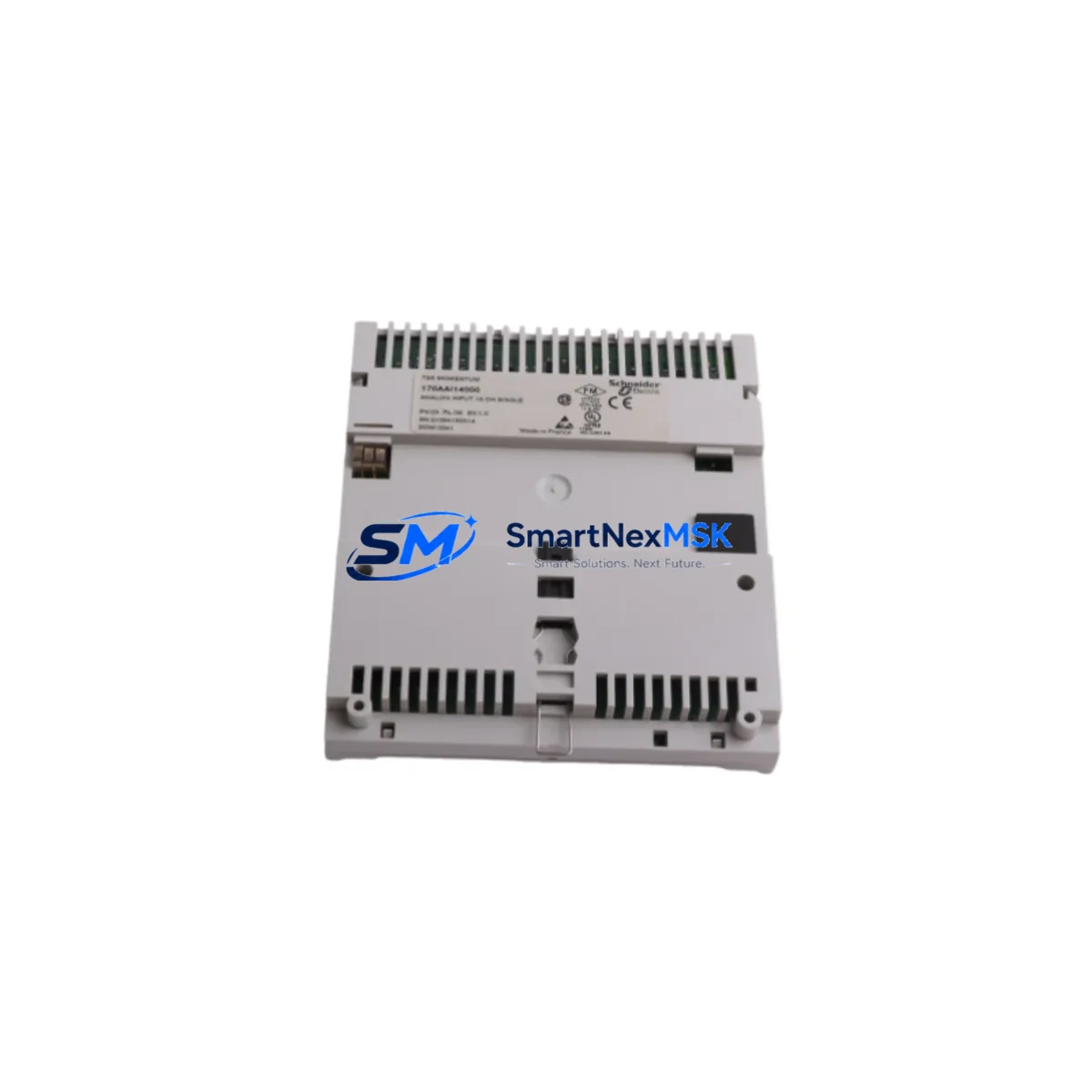

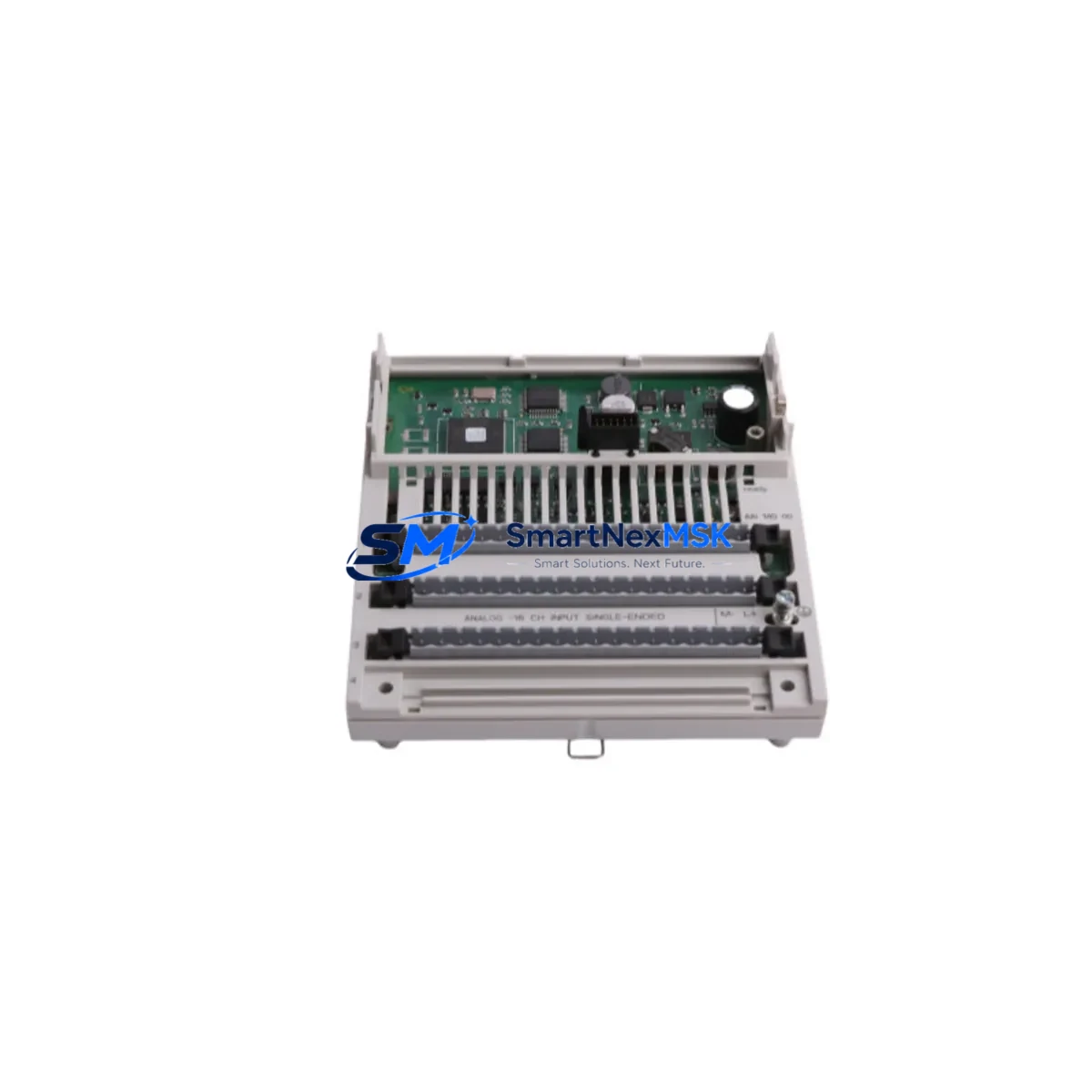

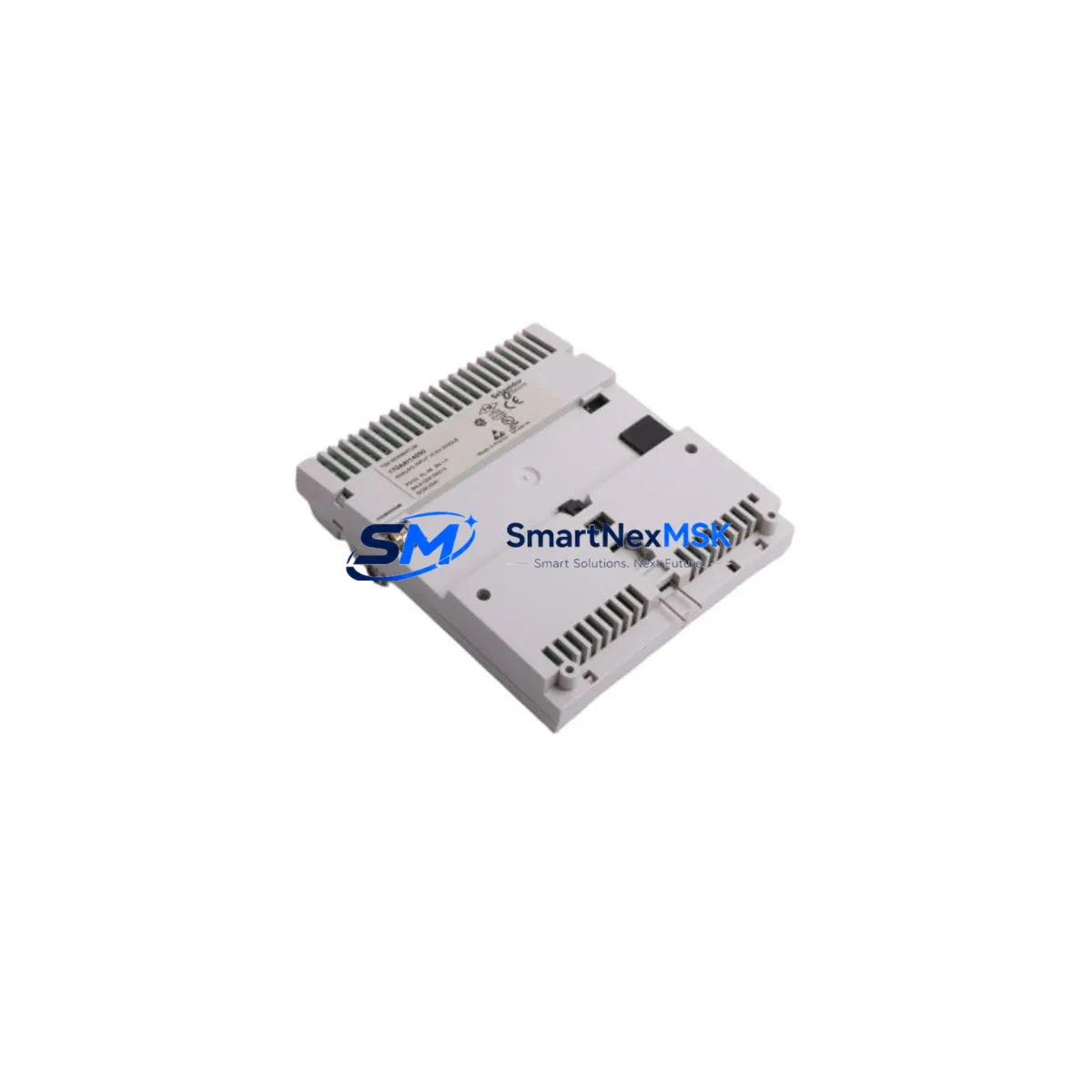

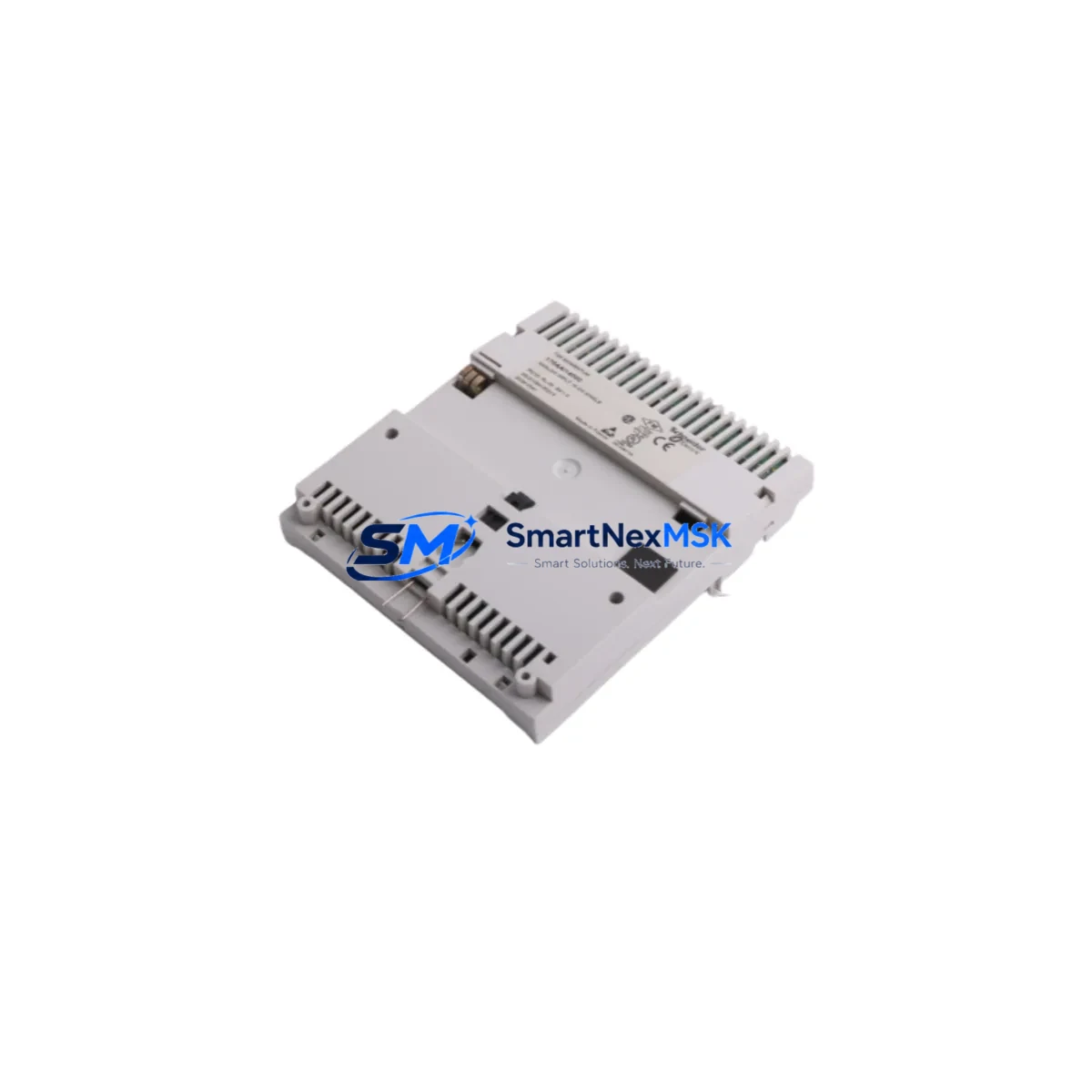

The Schneider Electric 170AAI14000 is a 16-channel analog input module engineered for the Modicon Quantum PLC platform, purpose-built to deliver uninterrupted signal acquisition in high-load, high-interference, and safety-critical industrial environments. Designed to operate continuously in demanding conditions — including petrochemical plants, power generation facilities, metallurgical smelters, mining operations, water treatment stations, and port logistics automation — this module forms a cornerstone of reliable control loop integrity where signal accuracy and system uptime are non-negotiable.

In continuous production environments, analog signal drift is one of the most insidious threats to process safety. The 170AAI14000 addresses this with high-resolution A/D conversion and robust input filtering that suppresses common-mode noise, electromagnetic interference (EMI), and ground loop disturbances — all of which are endemic to heavy industrial control cabinets housing variable frequency drives, contactors, and high-current bus bars. When deployed alongside the Modicon Quantum 140CPU65150 processor and 140CPS11420 power supply module, the 170AAI14000 maintains stable signal integrity even under severe electrical transients and supply voltage fluctuations.

Surge and transient protection is a critical consideration for field-connected analog inputs. The 170AAI14000 incorporates input protection circuitry that guards against voltage spikes originating from field instrumentation — including thermocouples, RTDs, pressure transmitters, and flow sensors — connected via long cable runs in outdoor or underground installations. This protection is especially valuable in mining and port environments where lightning-induced surges and ground potential differences are common failure vectors. Pairing this module with the 140XBP01600 backplane and 140CRA93100 remote I/O adapter further isolates the control rack from field-side disturbances.

For safety interlock and critical loop applications, the 170AAI14000 supports 4–20 mA current loop inputs with open-wire detection, enabling the control system to immediately identify sensor failures before they propagate into unsafe process states. In a properly configured Modicon Quantum safety architecture — which may also include the 140AVI03000 analog voltage input module and 140DAO84010 analog output module — the 170AAI14000 contributes to a layered defense strategy that minimizes the risk of undetected signal loss in critical interlock circuits.

Communication reliability is equally essential. The 170AAI14000 integrates seamlessly into Quantum racks communicating over Modbus Plus and Ethernet I/P backbones, ensuring that process data reaches the SCADA layer without latency or packet loss. In distributed control architectures where the 140NOE77101 Ethernet communication module or 140NOM21100 Modbus Plus network option module is deployed, the analog input data from the 170AAI14000 is transmitted with deterministic timing — a prerequisite for real-time safety monitoring in power plant DCS and refinery control systems.

Thermal management and environmental resilience are built into the module’s design. Operating across a wide temperature range and rated for high-humidity and vibration-prone installations, the 170AAI14000 is suitable for control cabinets located in outdoor substations, ship-to-shore crane control rooms, and underground mine automation panels. Its conformal-coated PCB resists condensation and corrosive atmospheres, reducing the risk of insulation breakdown and module malfunction during seasonal temperature swings or in coastal industrial facilities.

From a maintenance and spare parts perspective, the 170AAI14000 is a direct plug-in replacement for existing Modicon Quantum racks, requiring no rack modification or firmware reconfiguration. This hot-swap compatibility minimizes planned and unplanned downtime during module replacement cycles — a critical advantage in 24/7 continuous process industries where every minute of control system unavailability carries significant safety and financial consequences. Each unit shipped by SMARTNEXMSK undergoes pre-shipment functional testing, including channel-by-channel signal verification and power-on self-test validation, ensuring that the module is field-ready upon arrival.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust Modicon Quantum control cabinet deployment extends well beyond a single module. The 170AAI14000 analog input module operates most safely when integrated within a fully coordinated rack architecture. The 140CPS11420 power supply provides stable, regulated DC power to the backplane, protecting all installed modules — including the 170AAI14000 — from upstream AC supply fluctuations and voltage sags common in heavy industrial facilities. Redundant power configurations using dual 140CPS11420 units further eliminate single-point power failure risks in critical process control applications.

On the processor side, the 140CPU65150 executive processor manages scan cycle timing and I/O polling, ensuring that analog data from the 170AAI14000 is read and acted upon within deterministic scan intervals. For distributed I/O architectures, the 140CRA93100 remote I/O head adapter extends the Quantum rack’s reach to remote field panels, allowing the 170AAI14000 to be deployed closer to field instrumentation — reducing cable run lengths and associated signal degradation risks.

Analog output integrity is maintained by pairing the 170AAI14000 with the 140DAO84010 analog output module, which drives control valves, variable speed drives, and positioners based on the processed input signals. For voltage-type analog signals, the 140AVI03000 analog voltage input module complements the 170AAI14000 in mixed-signal control panels. Network communication modules such as the 140NOE77101 Ethernet module ensure that all analog process data is available to SCADA and DCS supervisory layers in real time, supporting alarm management and safety system integration across the plant network.

Critical Industrial Safety Applications

In petrochemical and refinery operations, the 170AAI14000 monitors pressure, temperature, and flow transmitter signals in distillation columns, reactor feed systems, and flare control loops. Its open-wire detection capability ensures that a failed field transmitter is immediately flagged, preventing the control system from acting on a stale or zero signal — a scenario that could lead to overpressure or runaway reaction conditions.

In power generation and substation automation, the module acquires analog signals from current transformers, voltage transducers, and generator excitation systems. Its EMI immunity is essential in high-voltage switchgear environments where electromagnetic fields from bus bars and transformers can induce noise on low-level analog signal cables. Reliable signal acquisition from the 170AAI14000 supports accurate load dispatch, frequency regulation, and protective relay coordination.

In mining and mineral processing, the 170AAI14000 is deployed in conveyor belt load monitoring, crusher motor current sensing, and flotation cell level control. Underground installations subject the module to vibration, humidity, and temperature extremes — conditions the 170AAI14000 is rated to withstand. Its conformal-coated PCB resists the sulfurous and dusty atmospheres common in underground mine control rooms.

In water and wastewater treatment, the module reads flow meters, pH sensors, dissolved oxygen probes, and turbidity analyzers across pump stations and treatment basins. Continuous, accurate analog acquisition is essential for dosing control and regulatory compliance monitoring. The 170AAI14000’s channel-level fault detection supports alarm-on-failure logic that alerts operators before a sensor fault compromises treatment quality.

In metallurgical and steel production facilities, the module monitors furnace temperature profiles, cooling water flow rates, and hydraulic pressure in rolling mill systems. The high thermal and electrical noise environment of a steel plant demands the EMI suppression and surge protection built into the 170AAI14000, ensuring that control loop data remains accurate during arc furnace switching events and large motor starts.

Safety and Quality FAQ

Q1: What warranty does the 170AAI14000 carry, and what does it cover?
Every 170AAI14000 shipped by SMARTNEXMSK is covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects, functional failures under normal operating conditions, and channel-level malfunctions identified during commissioning. Warranty claims are supported by our technical team with replacement dispatch or repair service as appropriate.

Q2: What pre-shipment testing is performed on each unit?
Each 170AAI14000 undergoes a structured pre-shipment inspection that includes power-on self-test, channel-by-channel analog signal verification across the full input range, open-wire detection function check, and visual inspection for physical damage. Test records are available upon request for quality-critical procurement processes.

Q3: Is the 170AAI14000 compatible with all Modicon Quantum rack configurations?
Yes. The 170AAI14000 is a standard Modicon Quantum I/O module compatible with all Quantum backplanes, including the 140XBP01600 (16-slot) and 140XBP01000 (10-slot) racks. It is recognized automatically by Quantum processors running Unity Pro or Concept programming software. No rack modification or special firmware is required for installation.

Q4: Can SMARTNEXMSK support long-term and repeat supply of the 170AAI14000?
Yes. SMARTNEXMSK maintains standing inventory of the 170AAI14000 and key Modicon Quantum companion modules to support both emergency replacement and planned maintenance procurement. We serve industrial clients with ongoing spare parts programs, offering consistent pricing, documented sourcing, and reliable lead times to support your plant’s maintenance scheduling and safety stock requirements.
