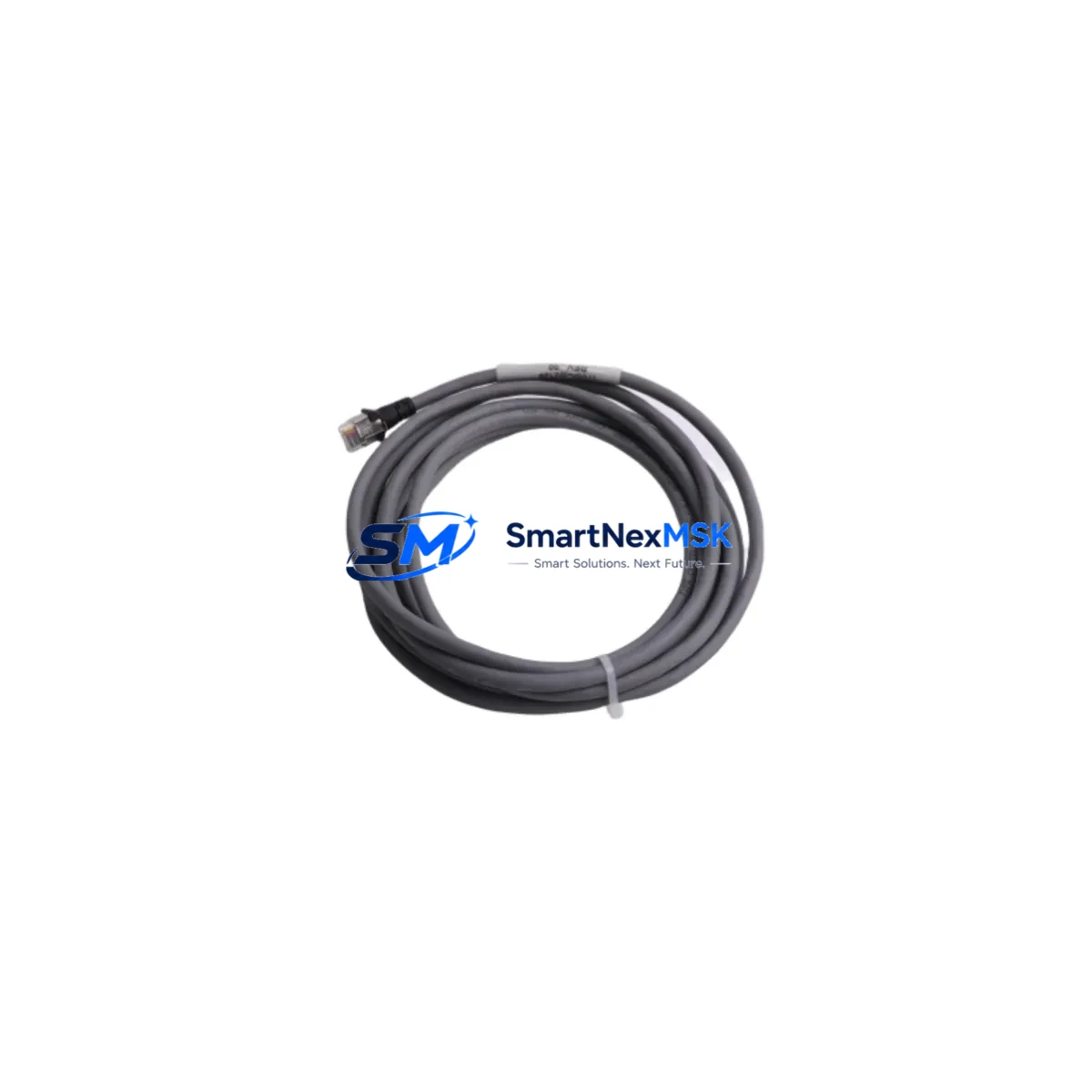

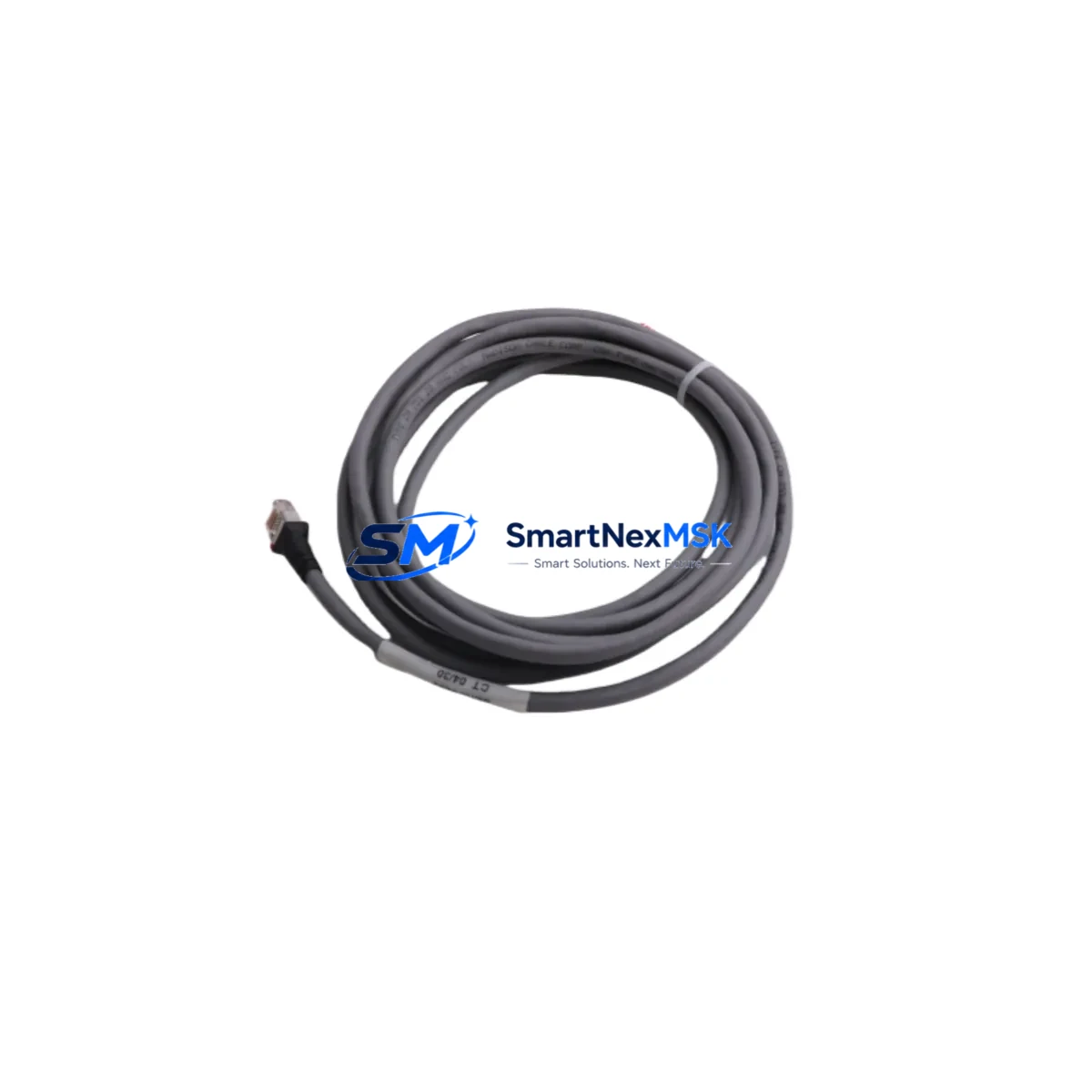

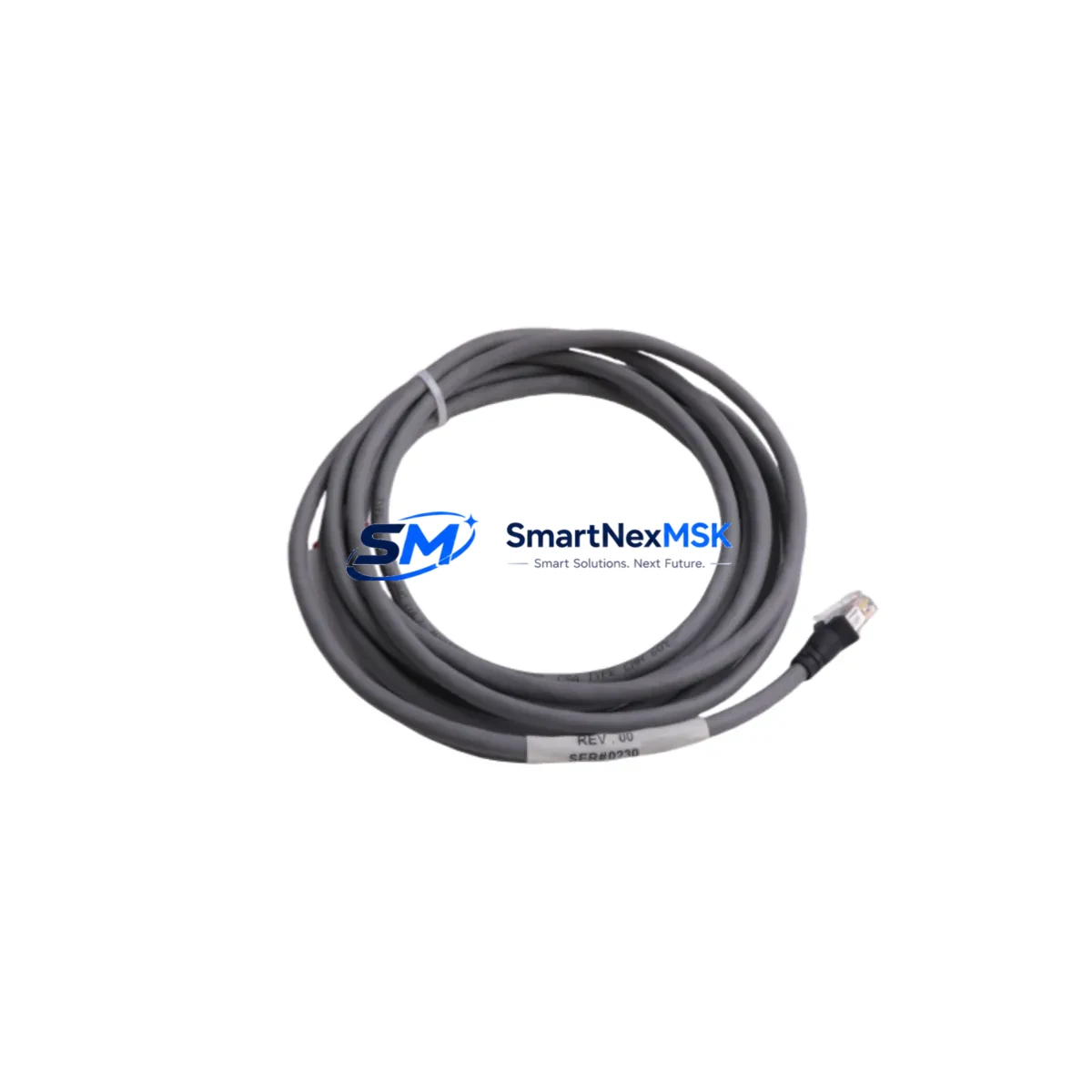

The Schneider Electric 170MCI02120 is an original Modbus Plus (MB+) communication cable engineered for the Momentum PLC series — one of the most widely deployed distributed control architectures in process manufacturing, water treatment, and discrete automation. When this cable fails or degrades, the entire Modbus Plus network segment loses communication integrity, triggering cascading faults across I/O adapters, CPU modules, and SCADA endpoints. Stocking a verified replacement is not optional — it is a core element of any credible maintenance strategy for Momentum-based control systems.

This listing supplies the 170MCI02120 as a genuine, tested spare with a 12-month warranty, pre-shipment continuity and signal verification, and same-day dispatch capability for urgent downtime recovery. Every unit is sourced from authorized distribution channels and inspected before packaging to ensure it meets Schneider Electric’s original electrical and mechanical specifications.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

For maintenance engineers managing a Momentum PLC network, the 170MCI02120 cable is rarely the only component requiring attention during a planned or emergency intervention. Modbus Plus communication faults are frequently caused by a combination of cable degradation, connector oxidation, and upstream or downstream module failures. A disciplined inspection should extend to the full communication chain.

Begin with the Momentum CPU module — typically a 170CPU67160 or 170CPU11303 — verifying that the MB+ port is active and that the node address is correctly set. A faulty CPU MB+ port can mimic a cable fault and lead to unnecessary cable replacement. Next, inspect the 170ADM35010 or 170ADM69010 I/O adapter modules seated on the Momentum backplane; loose seating or corroded bus connectors will interrupt communication even with a new cable installed.

Check the Modbus Plus network repeaters and terminators at both ends of the segment. Modbus Plus is a token-passing bus that requires 150-ohm termination resistors at each physical end; missing or failed terminators cause reflection errors that are often misdiagnosed as cable faults. If the control cabinet includes a 170ENT11001 Ethernet communication module or a 170FNT11001 FIPIO module, verify their status LEDs and confirm that the MB+ segment is not being loaded beyond its 32-node limit.

Power supply integrity is equally critical. The 170PNT11020 power supply module feeding the Momentum backplane should be load-tested; voltage sag under full I/O load can cause intermittent MB+ communication errors that appear as cable faults. Inspect the 24 VDC field power rail and confirm that all terminal blocks — particularly Weidmüller or Phoenix Contact screw-clamp types — are torqued to specification and free of corrosion.

For systems with HMI integration, confirm that the Magelis XBTGT or XBTGK panel connected via MB+ is running compatible firmware. HMI firmware mismatches can generate spurious communication timeouts that are logged as network errors. Finally, review the signal isolators on any 4–20 mA analog loops feeding the Momentum I/O; degraded isolation can introduce ground loops that corrupt digital communication on shared cable trays.

Procurement engineers should note that the 170MCI02120 is a long-lifecycle spare with consistent demand across Momentum installations commissioned between 1998 and 2018. Maintaining a minimum stock of two units per site — one installed, one on-shelf — is the recommended practice for facilities with zero-tolerance downtime requirements.

Site Replacement Workflow

Step 1 — Isolate the fault. Use the Modbus Plus network diagnostic tool (MBPSTAT or Unity Pro network browser) to identify the node that has dropped off the token ring. Confirm the fault is on the physical cable by swapping to a known-good loopback connector at the CPU MB+ port.

Step 2 — De-energize safely. Follow LOTO (Lockout/Tagout) procedures for the control cabinet. The 170MCI02120 is a low-voltage signal cable, but the cabinet may contain 24 VDC and 120/240 VAC circuits that require isolation before access.

Step 3 — Remove the failed cable. Disconnect the DB9 connectors at both ends, noting the cable routing and any cable management clips. Photograph the installation before removal to simplify reinstallation.

Step 4 — Install the replacement 170MCI02120. Route the new cable following the original path, maintaining separation from high-voltage conductors and VFD output cables to prevent EMI interference on the MB+ signal. Seat the DB9 connectors firmly and tighten the retention screws.

Step 5 — Restore power and verify. Re-energize the cabinet and observe the MB+ status LED on the CPU module. A solid green LED indicates successful token acquisition. Use the network diagnostic tool to confirm all nodes are back on the ring and that CRC error counters are not incrementing.

Step 6 — Document and update the maintenance log. Record the replacement date, the failed cable’s condition, and the new cable’s serial number. Update the spare parts inventory to trigger a reorder for the consumed unit.

This workflow applies equally to planned maintenance windows and emergency callouts, and typically achieves full network restoration within 30–60 minutes from fault isolation to verified operation — minimizing production downtime and avoiding the cascading costs of extended Momentum network outages.

Spare Parts Support FAQ

Q1: Is the 170MCI02120 still available as a new original spare, or only as a refurbished part?
A: We supply the 170MCI02120 as a new original spare sourced from authorized Schneider Electric distribution channels. Each unit is inspected and tested before shipment. Refurbished units are not offered under this listing.

Q2: What is the recommended inventory strategy for Momentum MB+ cable spares?
A: For sites with 1–3 Momentum PLC nodes, maintain a minimum of one spare 170MCI02120 on-shelf. For larger networks (4+ nodes or multi-segment MB+ rings), maintain two units per segment. Given the cable’s role as a single point of failure for the entire network segment, on-shelf availability is strongly preferred over just-in-time ordering.

Q3: How is compatibility with my specific Momentum CPU or I/O adapter confirmed before shipment?
A: The 170MCI02120 uses the standard Modbus Plus DB9 interface and is compatible with all Momentum series modules that feature an MB+ port, including the 170CPU67160, 170CPU11303, 170ADM35010, and 170ADM69010. If you have a non-standard configuration or a legacy Momentum variant, provide your CPU part number and we will confirm compatibility before dispatch.

Q4: What does the 12-month warranty cover, and what is the claims process?
A: The 12-month warranty covers manufacturing defects, connector failure, and signal integrity issues under normal industrial operating conditions. Physical damage caused by incorrect installation, over-voltage, or mechanical abuse is excluded. To initiate a warranty claim, contact us with the order number, a description of the fault, and photographic evidence. Replacement units are dispatched within 3 business days of claim approval.
