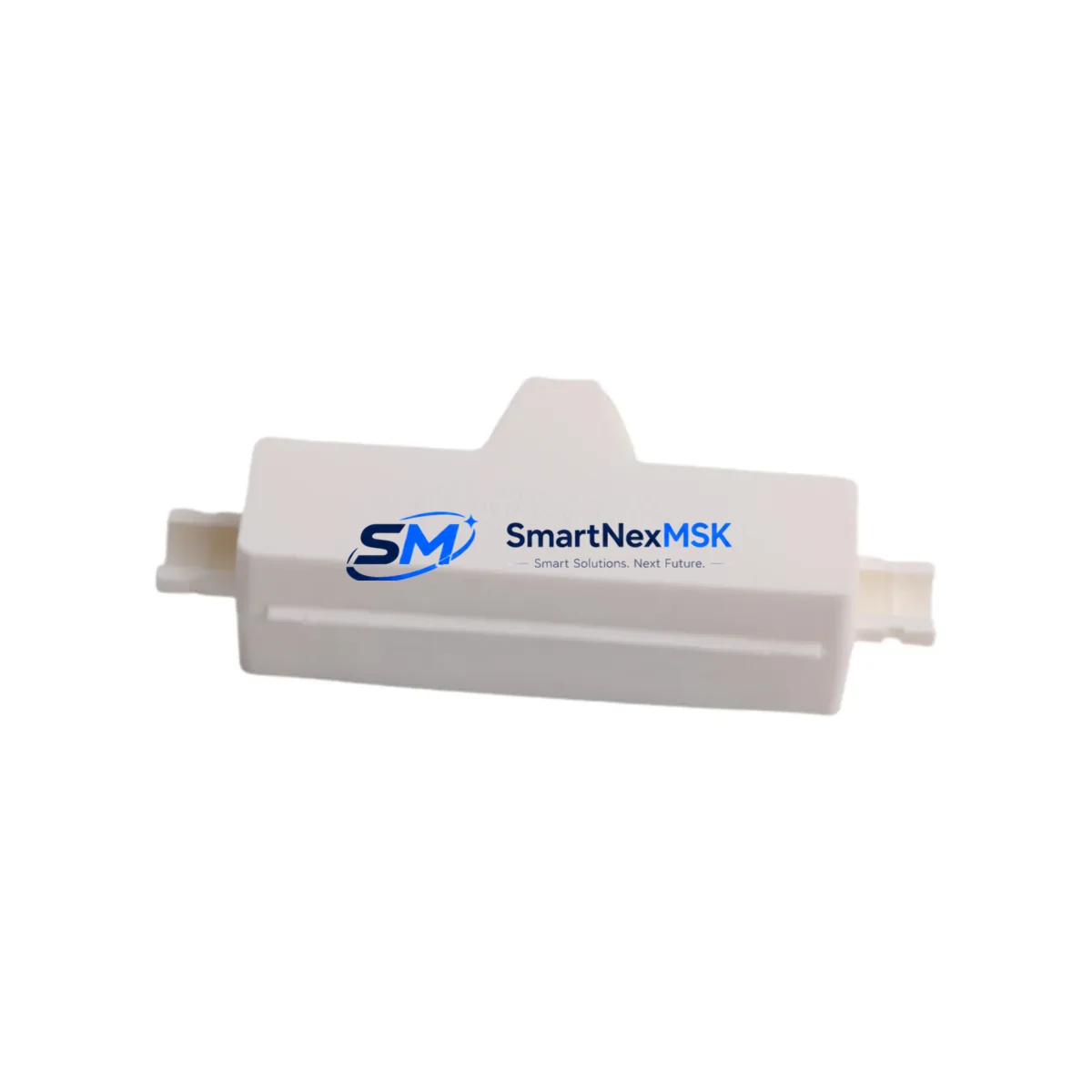

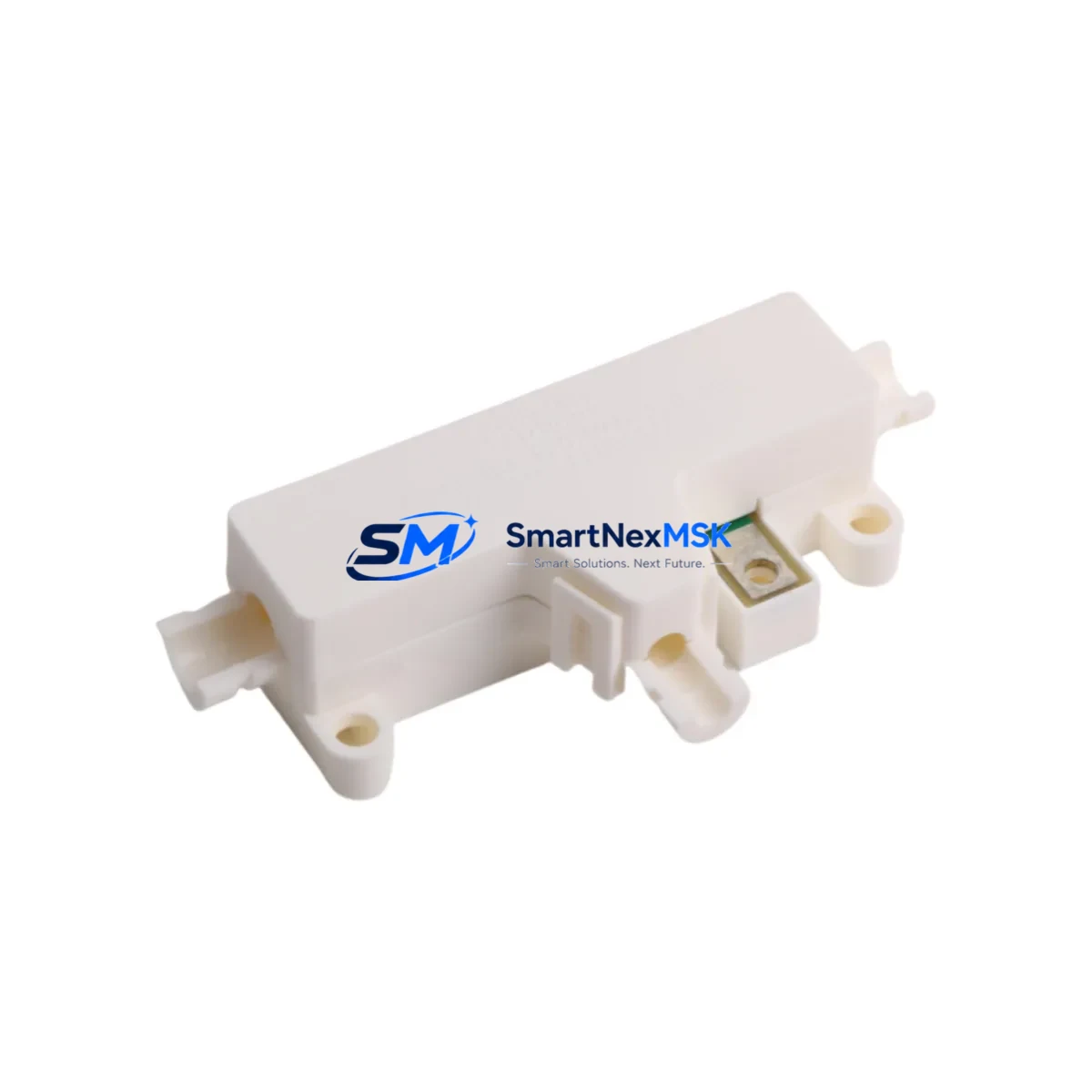

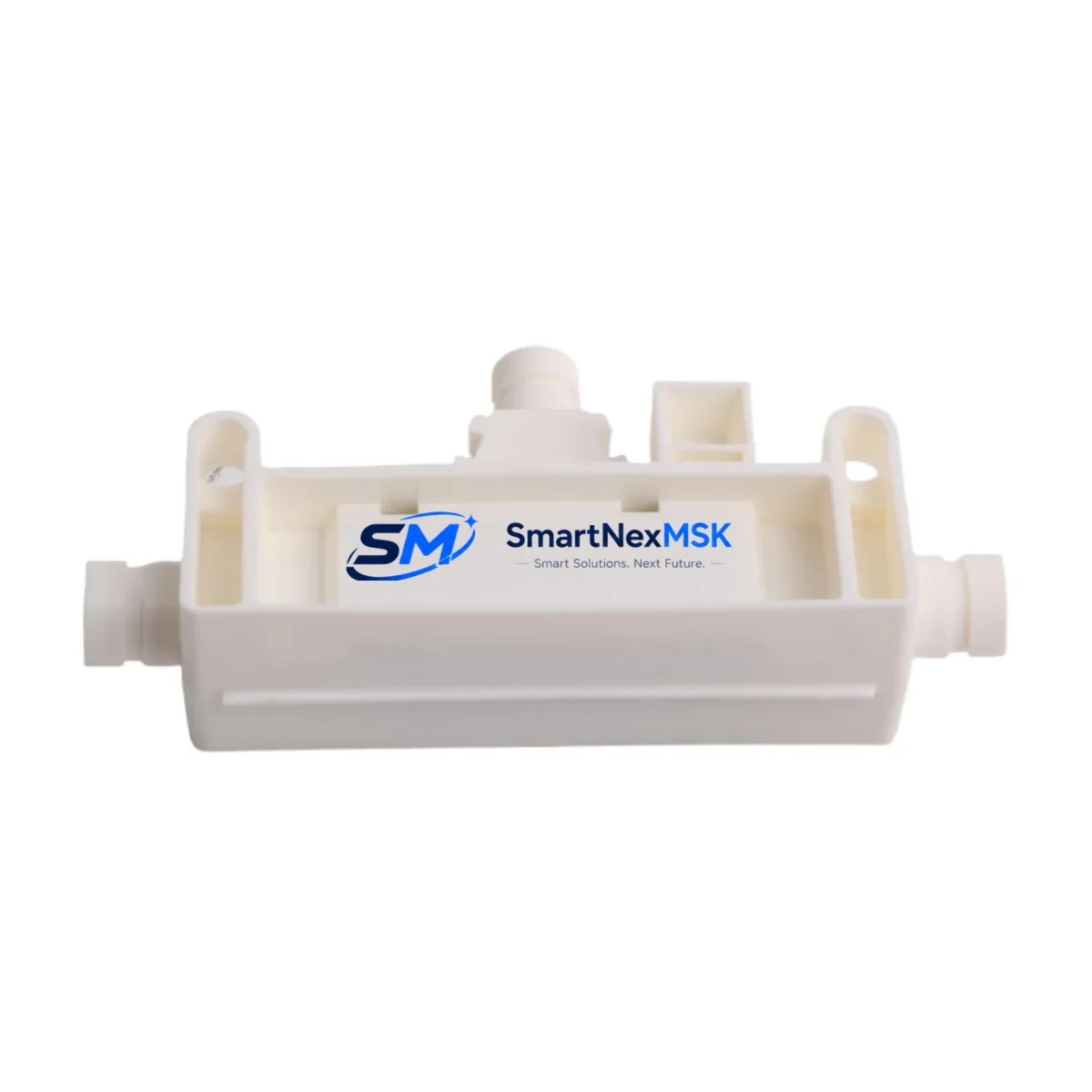

Schneider 990NAD23000 Safety-Enhanced Modbus Plus Junction Box

Schneider 990NAD23000 Safety-Enhanced Modbus Plus Junction Box: Reliable Control in Harsh Industrial Sites

The Schneider Electric 990NAD23000 is a ruggedized Modbus Plus Network Junction Box engineered for mission-critical industrial communication architectures where signal integrity, control continuity, and field safety are non-negotiable. Designed to operate reliably within demanding control cabinets, hazardous-area panels, and high-interference production environments, the 990NAD23000 serves as a hardened network node that protects the entire Modbus Plus communication loop from the cascading failures that cause unplanned downtime in continuous manufacturing, petrochemical processing, power generation, and heavy industrial operations.

In modern industrial control systems, the network junction box is far more than a passive connector — it is a critical safety boundary. When a single node fails in a Modbus Plus ring or trunk topology, the consequences can propagate across multiple PLCs, remote I/O racks, and operator workstations simultaneously. The 990NAD23000 addresses this risk by providing robust electrical isolation, low-impedance signal paths, and a mechanically sealed enclosure that resists vibration, moisture ingress, and electromagnetic interference from variable-frequency drives, high-current bus bars, and adjacent power switching equipment.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered industrial control cabinet, the 990NAD23000 Modbus Plus junction box anchors the communication backbone that ties together every intelligent device in the system. Consider a typical heavy-industry control enclosure: a Modicon Quantum 140CPU65150 processor module handles the primary control logic, while distributed I/O racks — populated with 140ACI04000 analog input modules and 140DDO35300 discrete output modules — relay field signals across the Modbus Plus network. The 990NAD23000 tap ensures that each drop connection to these remote racks is properly terminated and electrically isolated, preventing ground loops and reflective signal noise from corrupting the 1 Mbps data stream.

Power quality is equally critical to network stability. Surge events on the 24 VDC control bus — often caused by inductive load switching from motor starters or solenoid valves — can couple into the communication wiring and cause transient faults. Pairing the 990NAD23000 with a Schneider Electric TSXPSY2600M regulated power supply and dedicated TSXCAP002 capacitor modules provides the clean, stable supply voltage that Modbus Plus transceivers require for error-free operation. Additionally, installing 490NAD91105 Modbus Plus repeaters at segment boundaries extends the network reach while regenerating signal levels, further reducing the risk of communication timeouts that could trigger spurious safety shutdowns.

For cabinet-level surge protection, Schneider Electric PRD series surge protective devices on the incoming power feed, combined with shielded 490NTW00002 Modbus Plus trunk cable, create a layered defense against transient overvoltages. When the control system also incorporates a Modicon TSX Momentum 170ENT11001 Ethernet gateway for supervisory SCADA connectivity, the 990NAD23000 maintains the integrity of the lower-level Modbus Plus field bus independently of the higher-level network, ensuring that a SCADA communication fault never cascades into a field control interruption. This architecture is particularly important in safety interlock circuits where the PLC must continue executing its safety logic regardless of upstream network conditions.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous process environments such as crude distillation units and catalytic cracking plants, the Modbus Plus network carries real-time data from pressure transmitters, flow controllers, and emergency shutdown (ESD) valve actuators. A communication fault at the junction box level can delay ESD response times or cause false trips. The 990NAD23000’s robust signal isolation and shielded construction maintain network integrity even when installed adjacent to high-voltage motor control centers and variable-speed pump drives operating in classified hazardous areas.

Electric Power Generation and Substation Control: Power plant distributed control systems rely on Modbus Plus to coordinate turbine governor feedback, excitation control, and protection relay status. The 990NAD23000 provides the reliable tap connection that keeps these critical feedback loops intact during load transients, bus faults, and switching operations that generate intense electromagnetic disturbances throughout the substation control building.

Mining and Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, dust, and humidity. Conveyor drive systems, crusher controls, and ventilation fan PLCs connected via Modbus Plus depend on mechanically robust junction boxes like the 990NAD23000 to maintain communication continuity during the constant mechanical stress of heavy ore processing. A network dropout in a conveyor interlock system can halt an entire production line and create personnel safety hazards.

Water and Wastewater Treatment: Municipal water treatment facilities use Modbus Plus-networked Modicon PLCs to control chlorination dosing pumps, filtration backwash sequences, and lift station pump arrays. The 990NAD23000 ensures that SCADA polling of these distributed control nodes remains uninterrupted, supporting the continuous monitoring required by environmental compliance regulations and public health safety standards.

Metallurgy and Steel Production: Electric arc furnaces, rolling mills, and continuous casting lines operate in environments with extreme thermal cycling and high electromagnetic emissions from large thyristor drives. Modbus Plus junction boxes in these applications must withstand both the physical environment and the electrical noise environment simultaneously. The 990NAD23000’s metal housing and shielded signal paths make it a dependable choice for these demanding metallurgical control applications.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 990NAD23000?
The 12-month warranty covers all manufacturing defects, component failures, and functional non-conformance under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify signal continuity, connector integrity, and electrical isolation before dispatch. If a unit fails within the warranty period under normal use, we provide replacement or repair at no additional cost.

Q2: How is the 990NAD23000 tested before shipment?
Every 990NAD23000 unit is subject to outgoing quality inspection including visual inspection, connector pin verification, and communication path continuity testing. Units sourced from verified supply channels are cross-checked against Schneider Electric original part markings and date codes to ensure authenticity and traceability.

Q3: Is the 990NAD23000 compatible with all Modicon Modbus Plus systems?
Yes. The 990NAD23000 is designed for use across the full range of Schneider Electric Modicon Modbus Plus architectures, including the Modicon 984, Quantum, and Premium PLC families, as well as SA85 PC adapter cards and AT984 coprocessor modules. It is fully interchangeable with other 990NAD-series junction boxes in existing network installations.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
We maintain dedicated stock of the 990NAD23000 and related Modbus Plus network components to support long-term maintenance, spare parts programs, and emergency replacement requirements. For facilities with aging Modicon Modbus Plus infrastructure, we recommend establishing a consignment or blanket order arrangement to ensure critical spare availability without lead-time risk.
