Schneider A.F.038.5/01 Maintenance-Ready Spare Altivar Automation

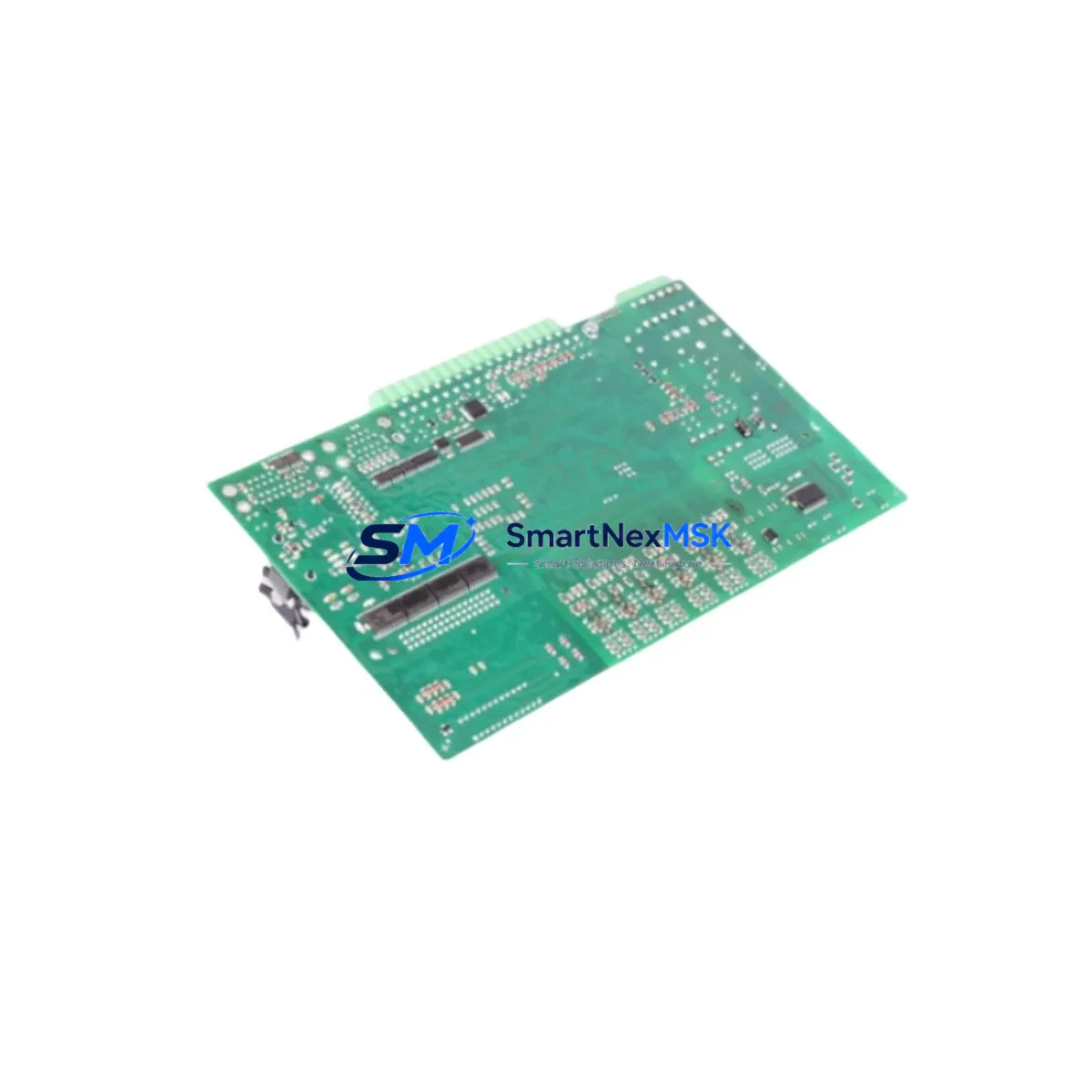

The Schneider Electric A.F.038.5/01 is an original OEM control circuit board engineered for Altivar series variable frequency drives (VFDs). In industrial automation environments where unplanned downtime translates directly into production loss, having a verified, tested spare of this control board on hand is a fundamental element of any proactive maintenance strategy. This component governs the core logic, gate drive signals, and feedback processing within the Altivar drive, making it a critical node in motor control circuits across manufacturing, water treatment, HVAC, and process automation applications.
Sourced directly from authorized supply channels and subjected to pre-shipment functional testing, each A.F.038.5/01 unit is verified for electrical integrity before dispatch. A 12-month warranty is included with every order, providing procurement engineers and maintenance teams with the confidence required for long-term spare parts planning.
Spare Maintenance Table
| Parameter | Specification / Detail |
|---|---|
| Part Number / SKU | A.F.038.5/01 |
| Manufacturer | Schneider Electric |
| Compatible Series | Altivar ATV Series (Variable Frequency Drives) |
| Component Type | Control Circuit Board (Drive Control Card) |
| Origin | France (OEM) |
| Board Function | Drive logic control, gate signal generation, feedback processing |
| Installation Type | Direct board replacement — plug-in / screw-mount per drive model |
| Application Environment | Industrial automation, motor control centers, process panels |
| Operating Temperature | 0°C to +50°C (standard industrial range) |
| Compatibility Verification | Match drive model and firmware revision before installation |
| Pre-Shipment Testing | Functional electrical test performed on every unit |
| Warranty | 12 Months from date of shipment |
| Condition | Original OEM — New or Refurbished-to-OEM-spec (confirmed at order) |
| Lead Time | In-stock units ship within 1–3 business days |
Maintenance Planning for Continuous Operation
When a maintenance or reliability engineer schedules replacement of the A.F.038.5/01 control board, the scope of inspection should extend beyond the board itself. The Altivar drive is a system, and a control board failure is frequently symptomatic of stress in adjacent components. A disciplined site inspection during the same maintenance window reduces the risk of repeat failures and maximizes the value of each planned outage.
Begin with the Altivar power supply module — an unstable DC bus voltage or ripple on the internal power rail is a leading cause of control board degradation. Verify the DC bus capacitor bank for capacitance drift and ESR values; aged capacitors are a common root cause of erratic drive behavior that is often misdiagnosed as a control board fault. Inspect the IGBT power module and gate driver interface for signs of thermal stress or insulation breakdown, as gate signal anomalies can damage the control board’s output stage.
Check all I/O terminal wiring on the drive’s control terminal strip — loose or corroded connections on analog input (AI), digital input (DI), and relay output (RO) terminals introduce noise that can corrupt control logic. If the drive communicates over Modbus RTU, CANopen, or Profibus, inspect the communication module and verify termination resistors and cable shielding integrity. A faulty communication card can cause the drive to receive erroneous commands, placing abnormal load on the control board.
During cabinet-level inspection, examine the 24 VDC control power supply feeding the drive’s logic circuits, and verify that surge protection devices (SPDs) on the incoming power line are functional. Review the contactor and motor protection relay in the motor feeder circuit — a welded contactor or a mis-set overload relay can cause the drive to operate outside its design envelope. If an HMI or operator panel is connected to the drive, confirm that the panel cable and communication port are undamaged, as a shorted panel connection can pull down the control board’s communication bus.
Finally, inspect signal isolators on any 4–20 mA speed reference or feedback signals entering the drive. Ground loops through unshielded signal cables are a frequently overlooked source of control board stress. Replacing the A.F.038.5/01 without addressing these upstream and downstream factors risks premature failure of the new board.
Site Replacement Workflow
Step 1 — Isolation & Lockout/Tagout: De-energize the Altivar drive at the main disconnect. Verify zero voltage on the DC bus using a calibrated meter — Altivar drives retain dangerous DC bus charge for several minutes after power removal. Apply LOTO per site procedure.
Step 2 — Documentation: Record all drive parameter settings using the Altivar keypad or SoMove configuration software before disassembly. Parameter backup prevents configuration loss during board swap and accelerates recommissioning.
Step 3 — Board Removal: Disconnect all control terminal wiring, labeling each wire. Remove the control board per the Altivar service manual — typically secured by retaining clips or screws. Handle the board by its edges to avoid ESD damage.
Step 4 — Compatibility Verification: Confirm the replacement A.F.038.5/01 matches the drive’s hardware revision. Check the board’s firmware version label against the drive’s documentation. Mismatched firmware revisions can cause initialization faults.
Step 5 — Installation & Reconnection: Seat the new board firmly, reconnect all control wiring per the original labeling, and restore the drive’s parameter set from backup.
Step 6 — Commissioning Test: Energize the drive in local control mode and perform a no-load motor run test. Verify all I/O signals, communication links, and fault history before returning the drive to automatic production control.
This workflow minimizes downtime, ensures system compatibility, and provides a documented audit trail for maintenance records — a requirement in ISO 9001 and IEC 62443 compliant facilities.
Spare Parts Support FAQ
Q1: What is the warranty coverage for the A.F.038.5/01?
Every unit ships with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported with replacement dispatch or full refund, subject to failure analysis confirmation.
Q2: How do I verify compatibility with my specific Altivar drive model?
Provide your Altivar drive’s full model reference and hardware revision (found on the drive nameplate) when placing your order. Our technical team will cross-reference the A.F.038.5/01 part number against the drive’s bill of materials to confirm fitment before shipment.
Q3: Is the A.F.038.5/01 tested before shipment?
Yes. Each board undergoes a pre-shipment functional electrical test. Units that do not pass testing are not dispatched. Test records are available upon request for quality-critical procurement processes.
Q4: Can you support long-term or blanket spare parts orders for this component?
Yes. We support scheduled spare parts programs, blanket purchase orders, and consignment stock arrangements for maintenance teams managing multiple Altivar drives. Contact our sales team to discuss volume pricing, lead time commitments, and long-term supply agreements.
