Schneider ATS480D62Y Spare for ATS480 Automation

Schneider ATS480D62Y Spare for ATS480 Automation: Spare Replacement & Industrial Downtime Risk Control

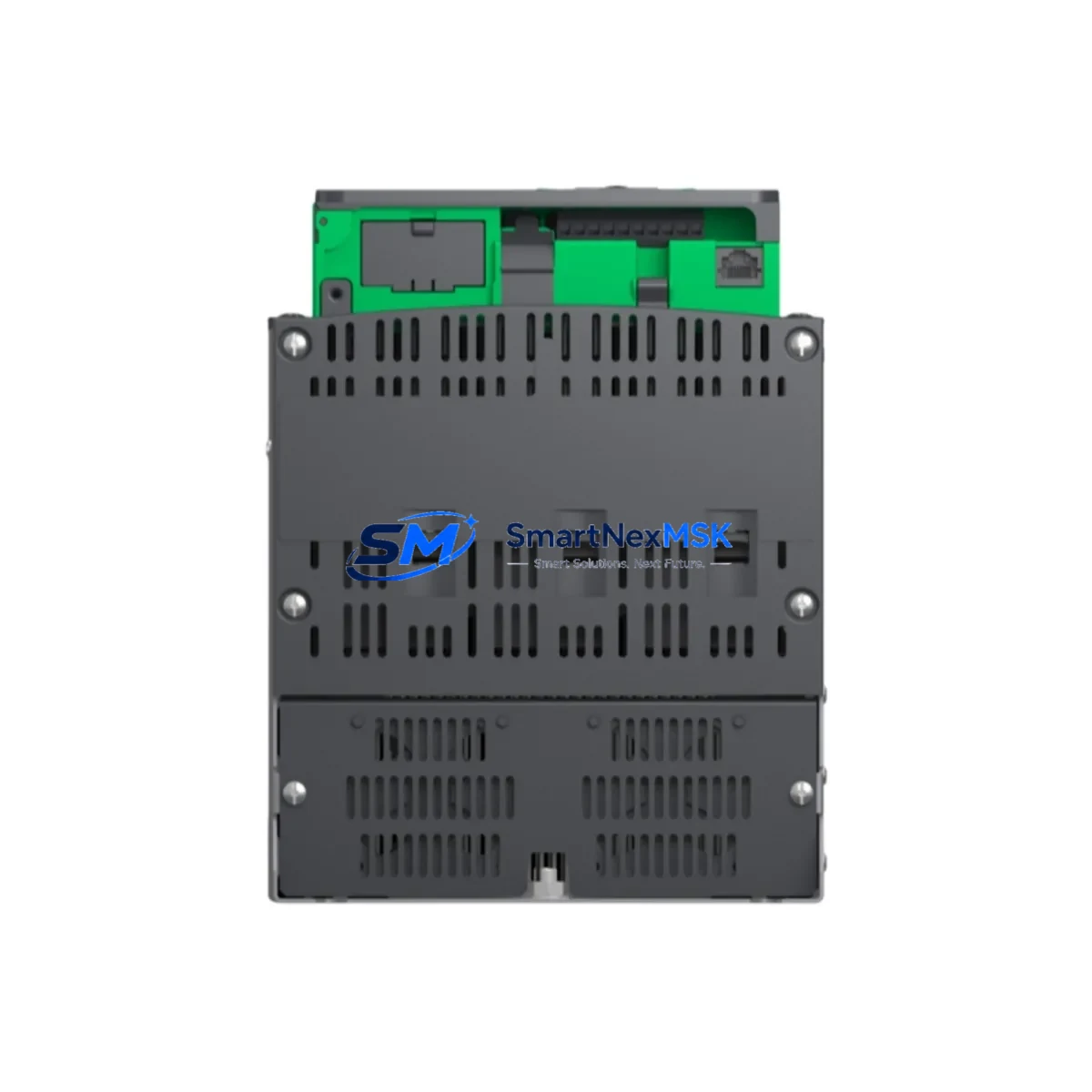

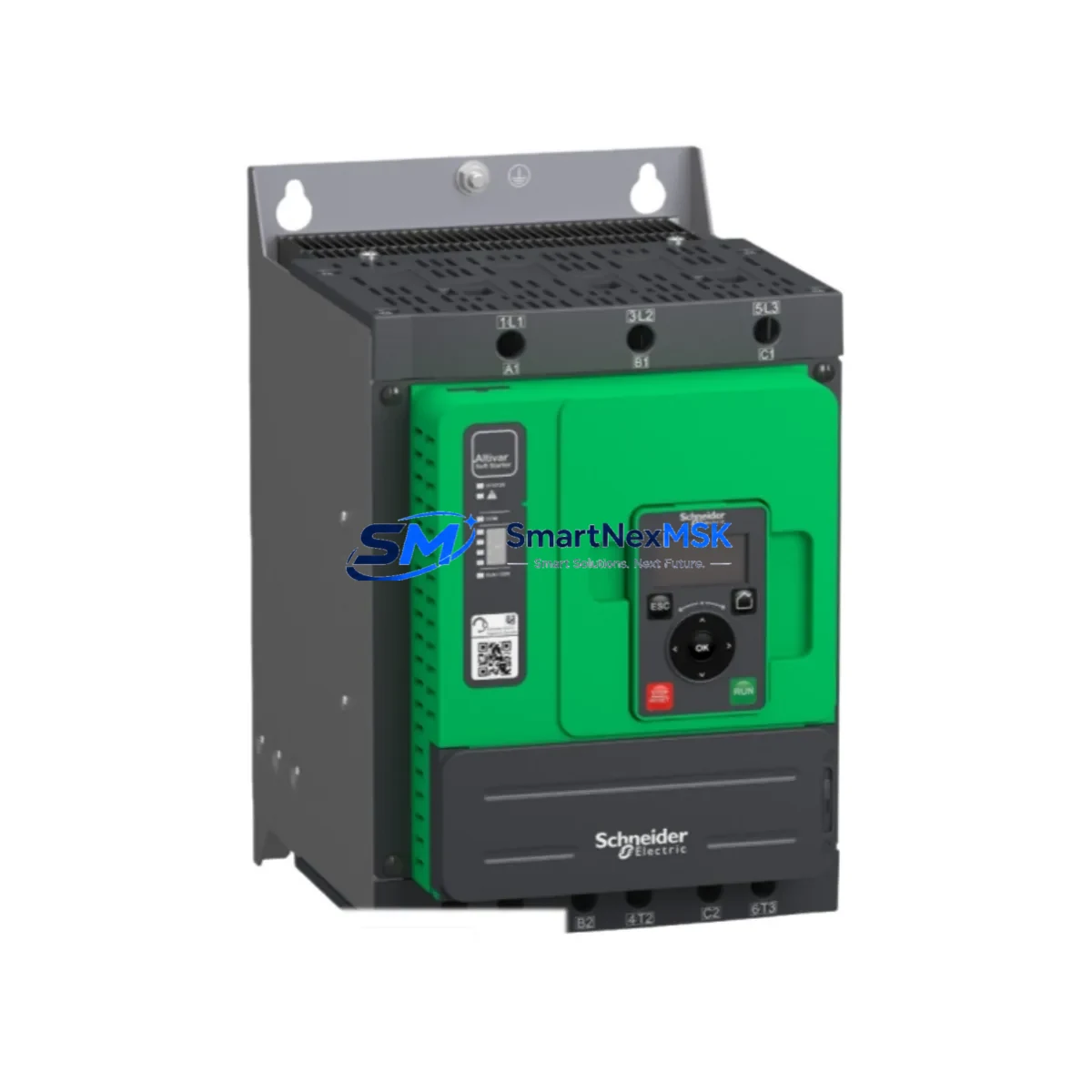

The Schneider Electric ATS480D62Y is an original Altivar ATS480 series soft starter rated at 30 kW / 62 A for 380–480 V three-phase motor applications. Designed for demanding industrial environments, this unit provides controlled motor acceleration and deceleration, protecting mechanical drive trains and reducing inrush current stress on upstream power infrastructure. For maintenance engineers managing aging motor control centers or planning scheduled overhauls, stocking the ATS480D62Y as a verified spare is a proven strategy to minimize unplanned downtime and accelerate fault recovery.

Whether you are responding to an emergency shutdown, executing a planned maintenance window, or building a critical-path spare parts inventory, the ATS480D62Y delivers the compatibility, reliability, and documentation traceability required for industrial-grade replacement. Each unit is sourced as an original Schneider Electric component, inspected, and tested prior to shipment, backed by a 12-month warranty covering manufacturing defects and functional performance.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the ATS480D62Y in a live motor control panel, a disciplined maintenance engineer will treat the soft starter swap as an opportunity to audit the entire motor starting circuit. Begin upstream: verify that the input circuit breaker or motor protection switch (such as a GV2 or GV3 series device) is within its rated interrupting capacity and shows no signs of contact erosion. Check the bypass contactor wired in parallel with the soft starter — a worn contactor that fails to close cleanly after the acceleration ramp will cause motor overheating and nuisance trips.

Inspect the 24 V DC control power supply feeding the ATS480 logic board; an unstable or undersized SMPS can cause intermittent fault codes that mimic soft starter failure. Review the input fuse block — semiconductor-rated fuses (aR type) are mandatory for ATS480 protection and must be replaced if they show any signs of thermal stress. On the output side, check motor cable insulation resistance with a megohmmeter before reconnecting; degraded insulation is a common root cause of repeated soft starter failures.

For systems using fieldbus integration, inspect the Modbus RTU wiring — shielding continuity, termination resistors, and address DIP switch settings must be verified after any control cabinet intervention. If the installation uses an EtherNet/IP or Profibus communication card mounted on the ATS480 expansion slot, confirm the card seating and firmware compatibility with the replacement unit. Where PTC thermistor inputs are wired for motor thermal protection, test the thermistor circuit continuity and threshold response before returning the drive to service.

Panel-level inspection should also cover terminal block torque values on the power and control wiring — loose terminals are a leading cause of intermittent faults in soft starter circuits. Check surge protection devices (SPDs) on the incoming supply; a failed SPD offers no protection and may introduce leakage current that triggers earth fault detection. Finally, review the HMI or operator panel connected to the ATS480 for any stored fault history that may indicate recurring issues beyond the soft starter itself.

Site Replacement Workflow

The ATS480D62Y is a direct form-fit-function replacement for any existing ATS480D62Y installation. No firmware reconfiguration is required if the replacement unit is loaded with the same parameter set — use the SoMove configuration software or the ATS480 keypad to upload a saved parameter file before commissioning. This eliminates the risk of incorrect ramp times, current limits, or protection thresholds being applied to the motor.

For sites migrating from an older Altistart ATS22 or ATS48 series soft starter, the ATS480D62Y offers improved thermal management, integrated bypass logic, and expanded communication options. Wiring adaptation is straightforward: the ATS480 uses a standard 3-wire control input compatible with most existing PLC digital output modules. Confirm the output relay wiring for run/fault signaling matches the new unit’s terminal assignment before energizing.

Recommended replacement sequence: isolate and lock out the motor circuit, discharge any capacitive loads, remove the failed unit, inspect the mounting rail and cable lugs, install the ATS480D62Y, restore parameter settings, perform a no-load test run, then return to full production. Total replacement time for a prepared maintenance team is typically under 45 minutes, significantly reducing mean time to repair (MTTR) compared to waiting for OEM field service.

Spare Parts Support FAQ

Q1: Is the ATS480D62Y compatible with my existing ATS480 control wiring and bypass contactor?
Yes. The ATS480D62Y is an original Schneider Electric component and is fully compatible with all standard ATS480 series control wiring, bypass contactors, and communication extension cards. No hardware modifications are required for a like-for-like replacement.

Q2: How do you verify the unit before shipment?
Every ATS480D62Y undergoes a functional power-on test and insulation resistance check before dispatch. Units are packaged in anti-static protective packaging with original labeling. A test report is available upon request for quality-controlled procurement processes.

Q3: What is covered under the 12-month warranty?
The 12-month warranty covers manufacturing defects and functional performance failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or operation outside the rated specifications. Warranty claims are processed with return authorization and fault documentation.

Q4: Can I stock this unit as a long-term spare for an aging ATS480 installation?
Absolutely. The ATS480D62Y is recommended for critical-path spare parts inventories in facilities running ATS480-controlled pump stations, compressor rooms, or conveyor systems. Units are stored in climate-controlled conditions and carry a full 12-month warranty from the date of shipment, making them suitable for both immediate deployment and strategic buffer stock.
