Schneider ATS48C11Q Maintenance-Ready Spare Altistart 48

Schneider ATS48C11Q Maintenance-Ready Spare Altistart 48: Spare Replacement & Industrial Downtime Risk Control

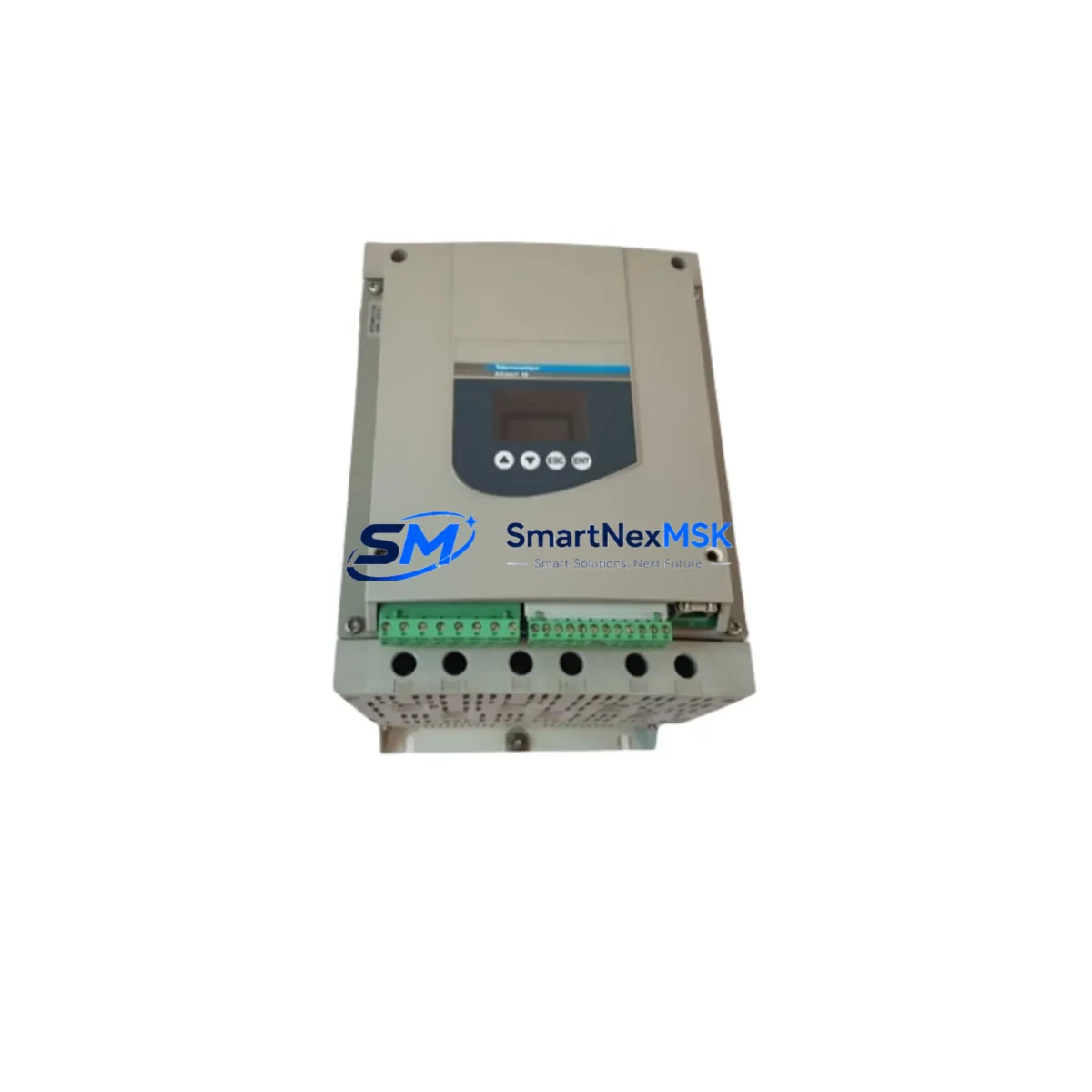

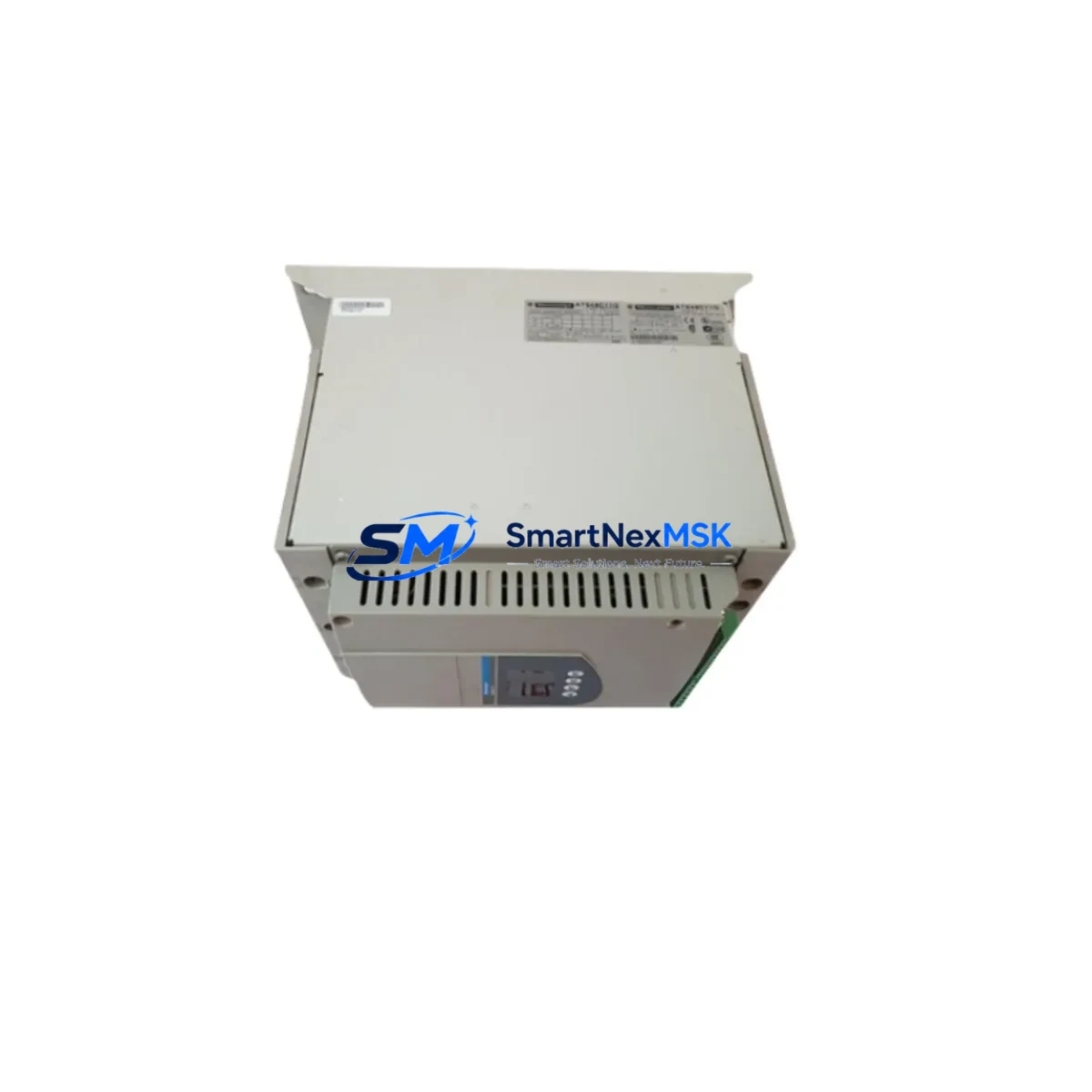

The Schneider Electric ATS48C11Q is a high-capacity soft starter from the Altistart 48 series, rated at 110 kW (415V) for three-phase AC motor control applications. Designed for heavy-duty industrial environments, this unit provides controlled motor acceleration and deceleration, protecting mechanical drive trains and reducing electrical stress on power distribution networks. As a maintenance-ready original spare, the ATS48C11Q is a critical component in any proactive spare parts strategy for facilities operating conveyors, compressors, pumps, fans, and large HVAC systems.

Unplanned downtime caused by soft starter failure can halt entire production lines. Holding a verified original ATS48C11Q in your spare parts inventory ensures rapid swap-out capability — minimizing mean time to repair (MTTR) and protecting operational continuity. Each unit supplied by SMARTNEXMSK is tested prior to dispatch and backed by a 12-month warranty.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling a planned replacement of the ATS48C11Q, maintenance engineers should treat the soft starter as part of a broader motor control circuit audit. A soft starter failure rarely occurs in isolation — thermal stress, voltage transients, and aging bypass contactors are common contributing factors that must be addressed simultaneously to prevent repeat failures.

Begin by inspecting the upstream power supply module and incoming fuse protection. The ATS48C11Q requires clean, stable three-phase input; any imbalance exceeding 3% between phases will accelerate thyristor degradation. Replace any blown or aged semiconductor fuses (gR/gS type) rated for the soft starter’s input current. Check the main circuit breaker or MCCB upstream for correct trip settings and contact condition.

On the control side, verify the integrity of the 24VDC control power supply feeding the ATS48 logic board. A failing SMPS or unstable control voltage is a frequent cause of nuisance trips and communication faults. If the installation uses a Modbus RTU network, inspect the RS-485 communication cable, termination resistors, and the network master (typically a Schneider Modicon M340 or M580 PLC) for correct baud rate and slave address configuration.

The bypass contactor — often a Schneider LC1D or TeSys D series contactor — should be inspected for contact wear and coil resistance. A worn bypass contactor that fails to close after the soft start sequence will force the ATS48C11Q to carry full load current continuously, causing overheating. Replace the contactor if contact resistance exceeds manufacturer limits.

Check all terminal blocks and power wiring for signs of thermal discoloration, loose connections, or insulation breakdown. Torque all power terminals to specification (refer to the ATS48 installation manual). Inspect the motor thermistor (PTC) input wiring — a broken thermistor circuit will trigger a motor thermal fault and prevent restart.

For installations with I/O expansion or fieldbus communication modules (such as the VW3A48101 Modbus module or VW3A48121 CANopen module), verify module seating and connector integrity. Communication module faults can mimic soft starter faults and should be ruled out before condemning the ATS48C11Q itself.

Finally, review the HMI or SCADA alarm history for patterns preceding the failure — repeated overcurrent trips, phase loss alarms, or communication timeouts often indicate systemic issues rather than isolated component failure. Updating the ATS48 parameter set after replacement (motor FLA, acceleration ramp time, current limit) is essential to restore optimized performance.

Site Replacement Workflow

Step 1 — Isolation & Lockout/Tagout: De-energize the motor control panel. Apply LOTO to the upstream MCCB and control circuit breaker. Verify absence of voltage on all three phases using a calibrated multimeter.

Step 2 — Documentation: Photograph existing wiring, terminal labels, and parameter display before removal. Record all ATS48 parameter values via the keypad or SoMove software if accessible.

Step 3 — Removal: Disconnect power cables (L1/L2/L3, T1/T2/T3), control wiring, and communication cables. Remove mounting hardware. Extract the faulty ATS48C11Q from the panel.

Step 4 — Installation: Mount the replacement ATS48C11Q. Reconnect all power and control wiring per the original documentation. Torque power terminals to specification. Reconnect communication cables and verify address settings.

Step 5 — Parameter Restore: Enter all recorded parameters via keypad or SoMove. Verify motor FLA, ramp times, and protection thresholds match the application requirements.

Step 6 — Commissioning Test: Energize the circuit. Perform a no-load test start, then a loaded test start. Monitor current ramp profile, bypass contactor engagement, and communication status on the HMI. Confirm no fault codes are active.

This workflow ensures a like-for-like replacement that maintains full system compatibility, minimizes downtime, and restores production without requiring engineering re-approval for parameter changes.

Spare Parts Support FAQ

Q1: Is the ATS48C11Q supplied by SMARTNEXMSK an original Schneider Electric unit?
Yes. All ATS48C11Q units are original Schneider Electric components sourced through verified industrial supply channels. Each unit undergoes pre-shipment functional testing and is supplied with a 12-month warranty covering manufacturing defects and operational failures under normal use conditions.

Q2: How do I verify compatibility before installation?
The ATS48C11Q is a direct replacement for any existing ATS48C11Q installation. Confirm your existing unit’s nameplate rating (110A / 110kW at 415V) and control voltage (110–230VAC). If your installation uses optional communication modules (Modbus, CANopen, Profibus), verify the module part number separately — the base soft starter is compatible with all standard ATS48 series accessories.

Q3: What is the recommended spare parts stocking strategy for Altistart 48 soft starters?
For critical motor control applications, we recommend holding at least one ATS48C11Q as a hot spare if the motor it controls is on a critical process line. For facilities with multiple Altistart 48 units of different ratings, a tiered strategy — stocking one unit per rating tier — balances inventory cost against downtime risk. SMARTNEXMSK supports long-term supply agreements for facilities requiring guaranteed stock availability.

Q4: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact SMARTNEXMSK with the order reference, unit serial number, and a description of the fault. Replacement units are dispatched after fault verification, with return shipping coordinated by our technical support team.
