Schneider ATV11HU09M2E Safety-Enhanced AC Drive for Harsh Sites

Schneider ATV11HU09M2E Safety-Enhanced AC Drive for Harsh Industrial Sites

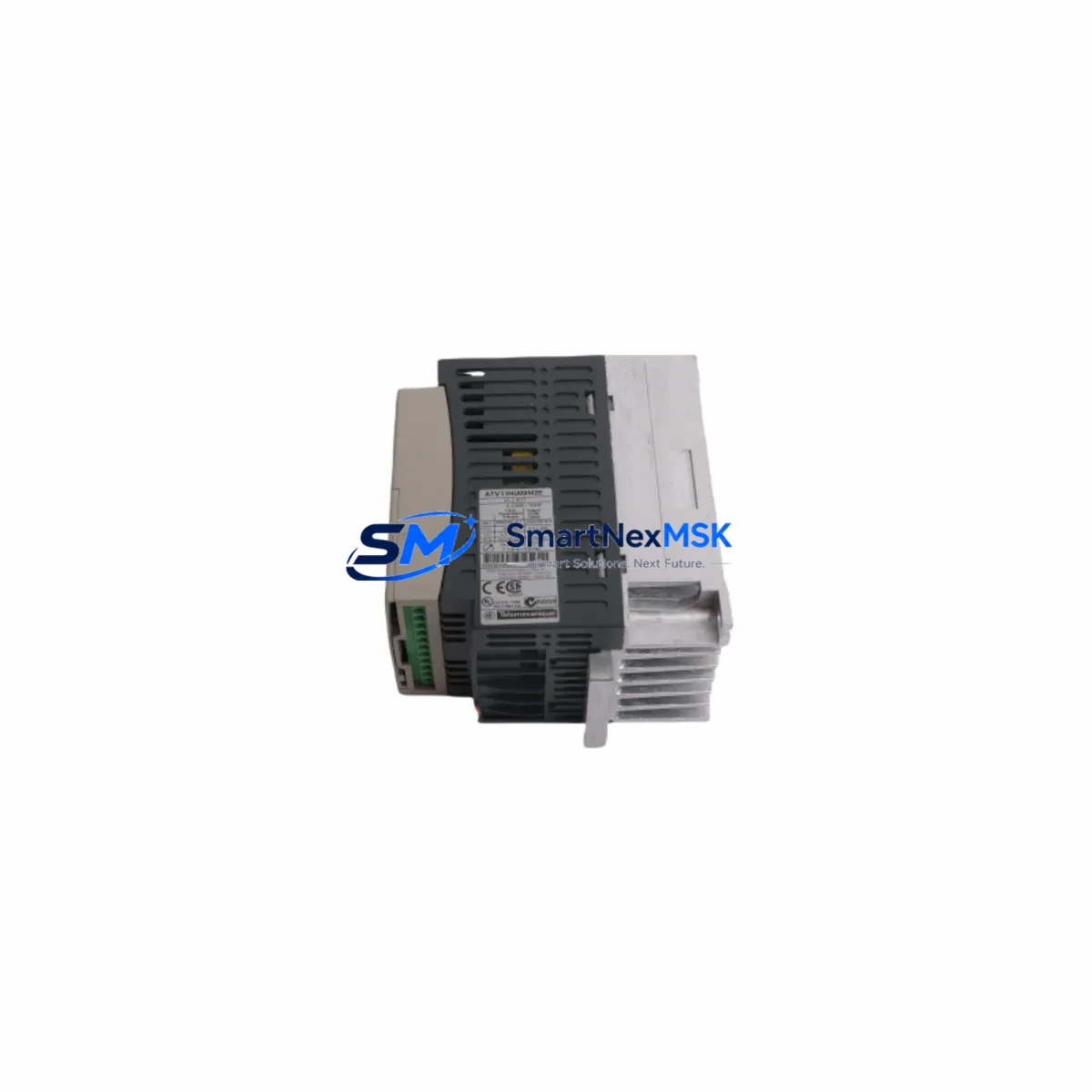

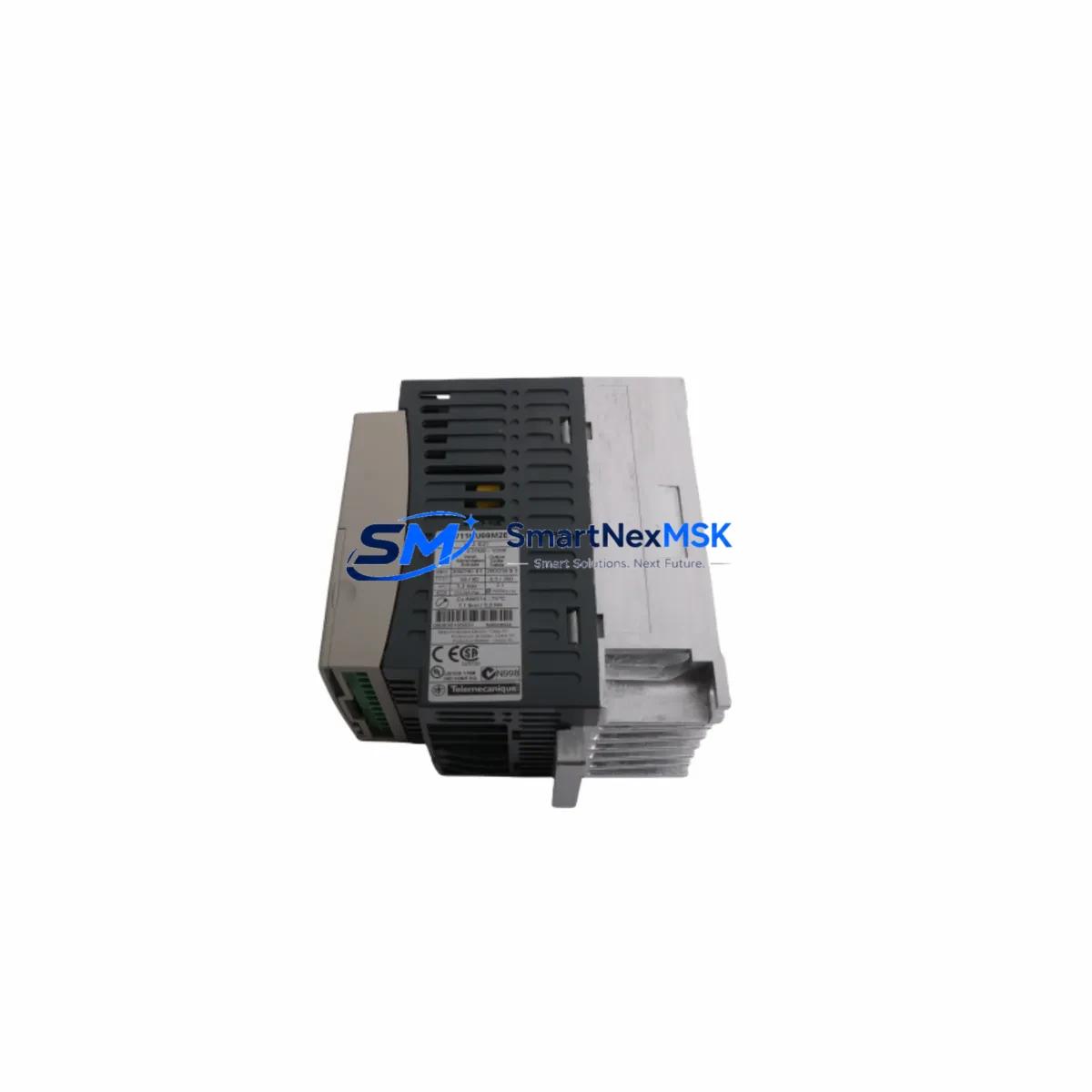

The Schneider Electric ATV11HU09M2E is a compact, safety-enhanced AC variable speed drive from the Altivar 11 series, engineered for reliable motor control in demanding industrial environments. Rated at 0.09 kW (1/8 HP) with a supply voltage of 200–240 V single-phase, this drive is purpose-built for continuous operation in high-interference, high-vibration, and thermally stressed control cabinets where control loop integrity and uptime are non-negotiable.

In petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical processing lines, and port logistics systems, even a momentary drive fault can cascade into a full production shutdown or a critical safety interlock failure. The ATV11HU09M2E addresses these risks through robust EMC filtering, integrated motor protection functions, and a compact DIN-rail-compatible form factor that simplifies installation within safety-rated control enclosures.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the ATV11HU09M2E within a well-engineered control cabinet requires a layered protection strategy to ensure the drive operates without nuisance trips, signal corruption, or power-related damage. In high-load motor circuits, it is standard practice to install a Schneider Electric GV2ME series manual motor starter upstream of the drive to provide short-circuit and overload protection at the feeder level, preventing fault propagation to adjacent control modules.

Power quality is a persistent challenge in heavy industrial sites. Voltage sags, harmonic distortion, and transient surges from large inductive loads — such as contactors, solenoid valves, and transformer switching — can destabilize the drive’s DC bus. Pairing the ATV11HU09M2E with a Schneider Electric Acti9 iC60N circuit breaker and a dedicated surge protection device (SPD) from the Acti9 iPRD series on the incoming supply line significantly reduces the risk of overvoltage damage to the drive’s rectifier and IGBT output stage.

For control signal integrity, the ATV11HU09M2E’s analog speed reference input (0–10 V or 4–20 mA) is susceptible to ground loop noise in large industrial panels. Using shielded twisted-pair wiring and grounding the cable shield at a single point — typically at the drive’s PE terminal — is essential. In multi-drive cabinets, the Schneider Electric XBTN400 operator terminal or a Magelis HMI panel can be used to centralize parameter monitoring and fault acknowledgment, reducing the need for field personnel to access live panels during troubleshooting.

Where the ATV11HU09M2E is integrated into a safety interlock circuit — for example, controlling a conveyor motor that must stop immediately upon activation of an emergency stop relay — the drive’s logic input (LI1–LI3) should be wired through a Schneider Electric Preventa XPSAC safety relay module to ensure the stop command is executed within the required response time and that the safety function is monitored for welded contacts or wiring faults. For applications requiring SIL 2 or PLd compliance, the safety relay output should be validated against the drive’s documented stop category (Category 0 or Category 1 per IEC 60204-1).

In cabinet environments with high ambient temperatures or poor ventilation, thermal management is critical. The ATV11HU09M2E dissipates heat through its heatsink, and adequate clearance (minimum 50 mm above and below) must be maintained. In densely packed panels, a Schneider Electric ClimaSys forced-air cooling unit or a ClimaSys thermostat-controlled fan can maintain cabinet internal temperature within the drive’s operating range, preventing thermal derating or premature IGBT failure. Additionally, a Schneider Electric Zelio Logic SR2B121BD smart relay can be used to implement cabinet door interlock logic, preventing the drive from being energized when the enclosure is open for maintenance.

For communication-intensive installations where the ATV11HU09M2E must report speed feedback, fault codes, or energy consumption data to a SCADA or PLC — such as a Schneider Electric Modicon M221 or M241 PLC — the optional VW3A8106 Modbus RTU communication card enables seamless integration into the plant’s control network. Proper RS-485 bus termination (120 Ω resistor at each end) and cable shielding are mandatory to prevent communication timeouts and register read errors in electrically noisy environments.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In hazardous area control rooms and utility motor control centers (MCCs), the ATV11HU09M2E is used to control small pump motors, agitator drives, and cooling fan motors in auxiliary systems. Its integrated motor protection functions — including phase loss detection and electronic thermal overload — reduce the risk of motor burnout in unattended pump stations where manual inspection is infrequent. The drive’s ability to perform a controlled deceleration ramp (adjustable from 0.1 to 99.9 seconds) prevents water hammer in pipeline systems and reduces mechanical stress on pump seals and couplings.

Power Generation and Substation Auxiliaries: In power plant auxiliary systems — cooling water pumps, lube oil pumps, and HVAC fan drives — the ATV11HU09M2E provides soft-start and soft-stop capability that extends motor and mechanical drive train life. Its undervoltage ride-through behavior and automatic restart function (configurable) ensure that auxiliary systems recover quickly after a grid disturbance without requiring manual operator intervention, which is critical for maintaining turbine cooling during grid fault recovery sequences.

Mining and Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, dust ingress, and wide temperature swings. The ATV11HU09M2E, when installed in a properly sealed IP54 or IP65 enclosure with filtered ventilation, provides reliable speed control for conveyor belt drives, sump pump motors, and ventilation fan systems. Its overcurrent protection and stall prevention logic protect motors from damage during material jams or blocked conveyor events, which are common causes of unplanned downtime in continuous mining operations.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities rely on precise flow control for dosing pumps, aeration blowers, and filter backwash pumps. The ATV11HU09M2E’s V/F control mode provides stable speed regulation across the full load range, ensuring accurate chemical dosing ratios and consistent aeration rates. Its low-speed torque boost function maintains adequate motor torque at startup, preventing stalled pump conditions that can trigger safety shutdowns in automated treatment sequences.

Metallurgy and Steel Processing: In rolling mills, furnace auxiliary drives, and cooling bed conveyors, the ATV11HU09M2E handles small auxiliary motor loads where precise speed control and fast fault response are required. Its configurable fault relay output can be wired to the plant’s DCS alarm system to provide immediate notification of drive faults, enabling rapid maintenance response and minimizing the duration of unplanned production interruptions.

Port and Logistics Automation: In port crane auxiliary systems, conveyor transfer stations, and automated warehouse drives, the ATV11HU09M2E controls small positioning motors and conveyor drives where smooth acceleration and deceleration are essential for load stability and equipment longevity. Its compact form factor and DIN-rail mounting simplify integration into space-constrained control panels on mobile equipment.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the ATV11HU09M2E?
The 12-month warranty covers all manufacturing defects, component failures, and functional faults that occur under normal operating conditions as specified in the product datasheet. It includes free replacement or repair of the drive unit. The warranty does not cover damage caused by incorrect installation, overvoltage events beyond the drive’s rated surge immunity, or operation outside the specified environmental limits. All warranty claims are processed with full pre-shipment inspection documentation provided upon request.

Q2: What pre-shipment testing is performed before dispatch?
Every ATV11HU09M2E unit undergoes a functional power-on test, insulation resistance check, and output voltage symmetry verification before dispatch. Units sourced from authorized distribution channels are accompanied by original manufacturer packaging and, where available, factory test records. This ensures that the drive arrives at site in full working condition and reduces the risk of infant mortality failures during commissioning.

Q3: Is the ATV11HU09M2E compatible with my existing Altivar 11 installation?
Yes. The ATV11HU09M2E is a direct form-fit-function replacement for any existing Altivar 11 series drive of the same power and voltage rating. It uses the same terminal layout, parameter structure, and optional communication accessories (including the VW3A8106 Modbus card and VW3A8121 remote keypad) as other ATV11 variants, making it a drop-in spare for installed base maintenance without requiring rewiring or reprogramming.

Q4: Can long-term supply continuity be guaranteed for this part?
We maintain dedicated stock of the ATV11HU09M2E to support ongoing MRO (maintenance, repair, and operations) requirements for industrial facilities with installed Altivar 11 drives. For customers with large installed bases or critical production lines, we recommend discussing a consignment stock or scheduled supply agreement to ensure parts availability during planned maintenance shutdowns or emergency replacement scenarios. Contact our sales team to discuss long-term supply arrangements.
