Schneider ATV320U40N4C Safety-Enhanced VFD for Harsh Industrial Sites

Schneider ATV320U40N4C Safety-Enhanced VFD for Harsh Industrial Sites

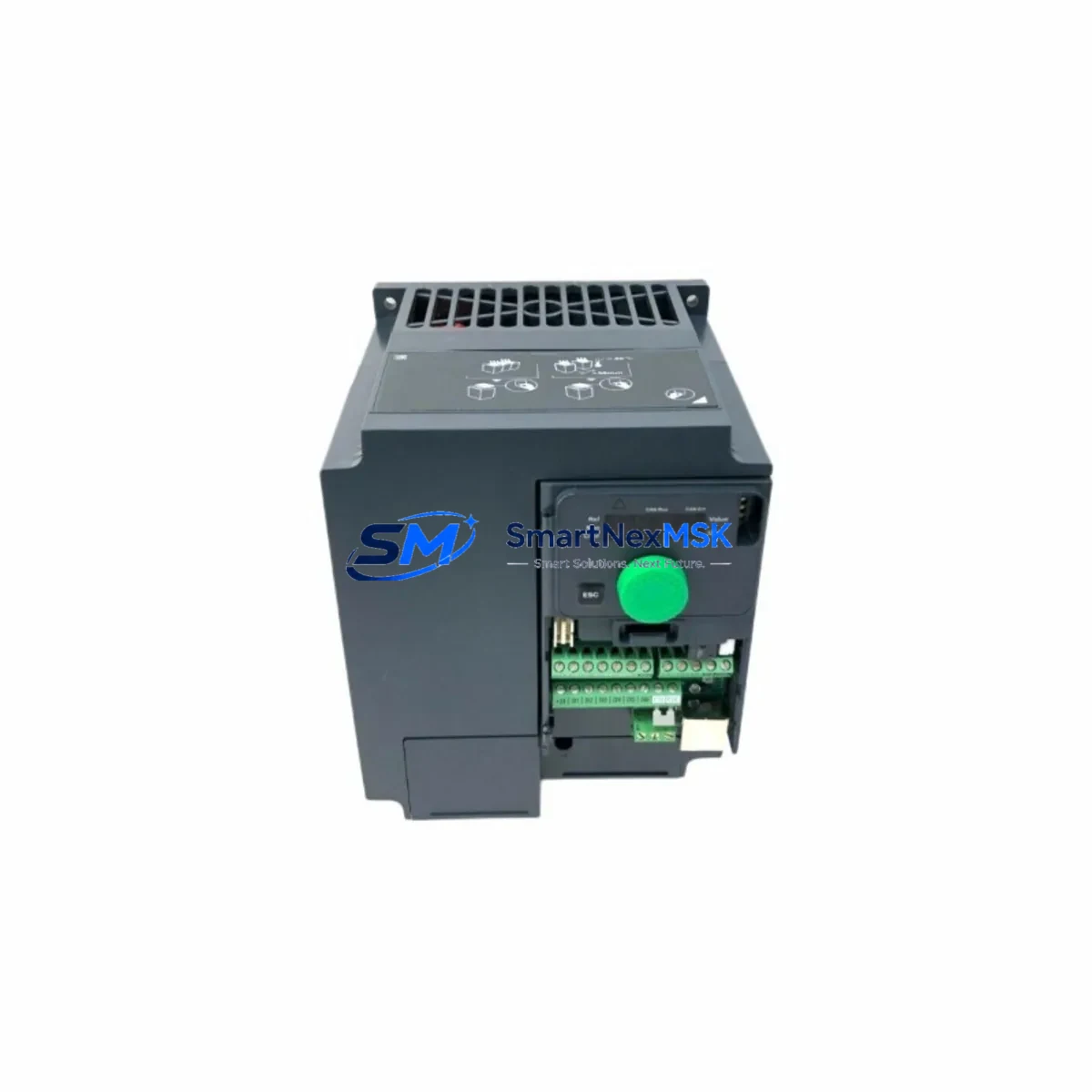

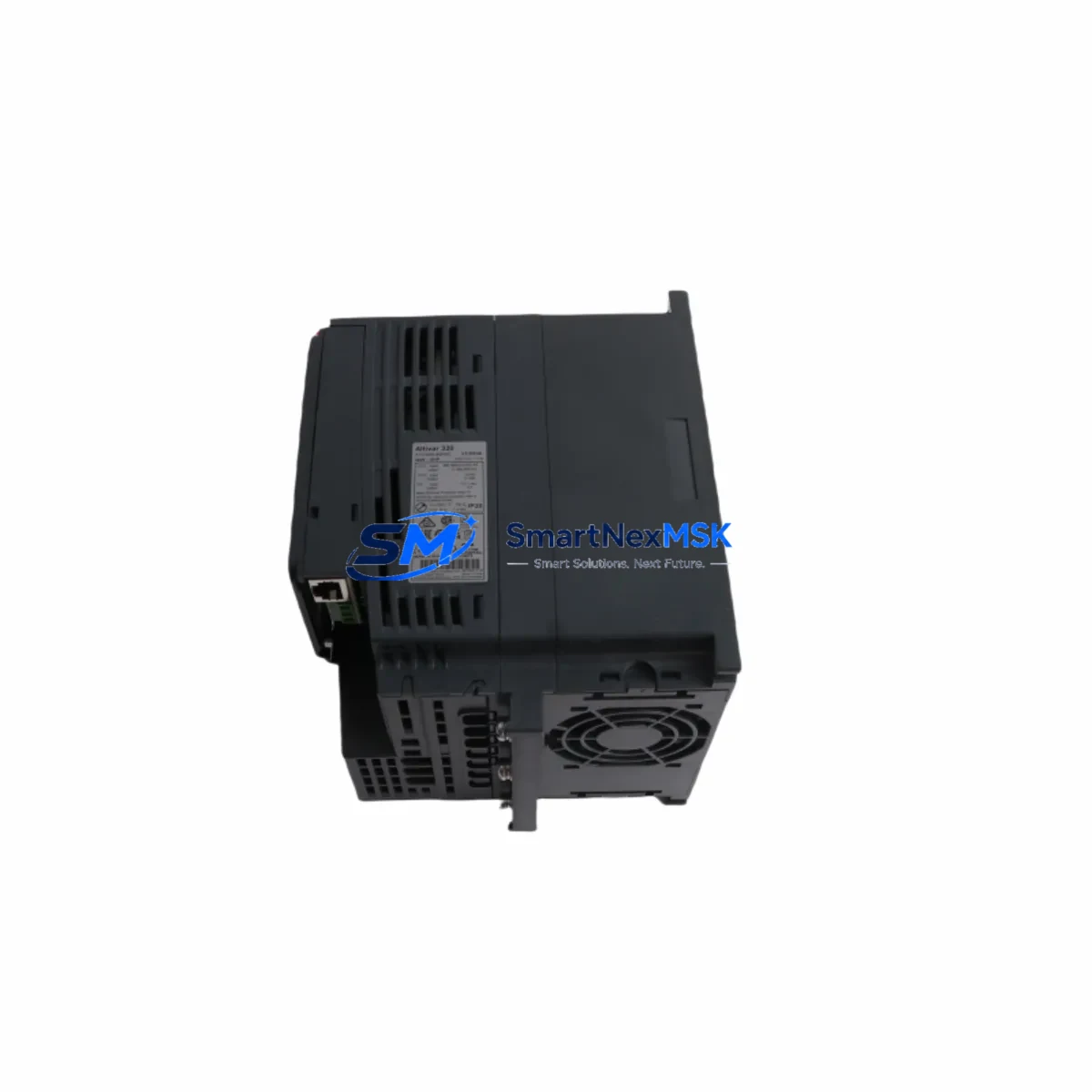

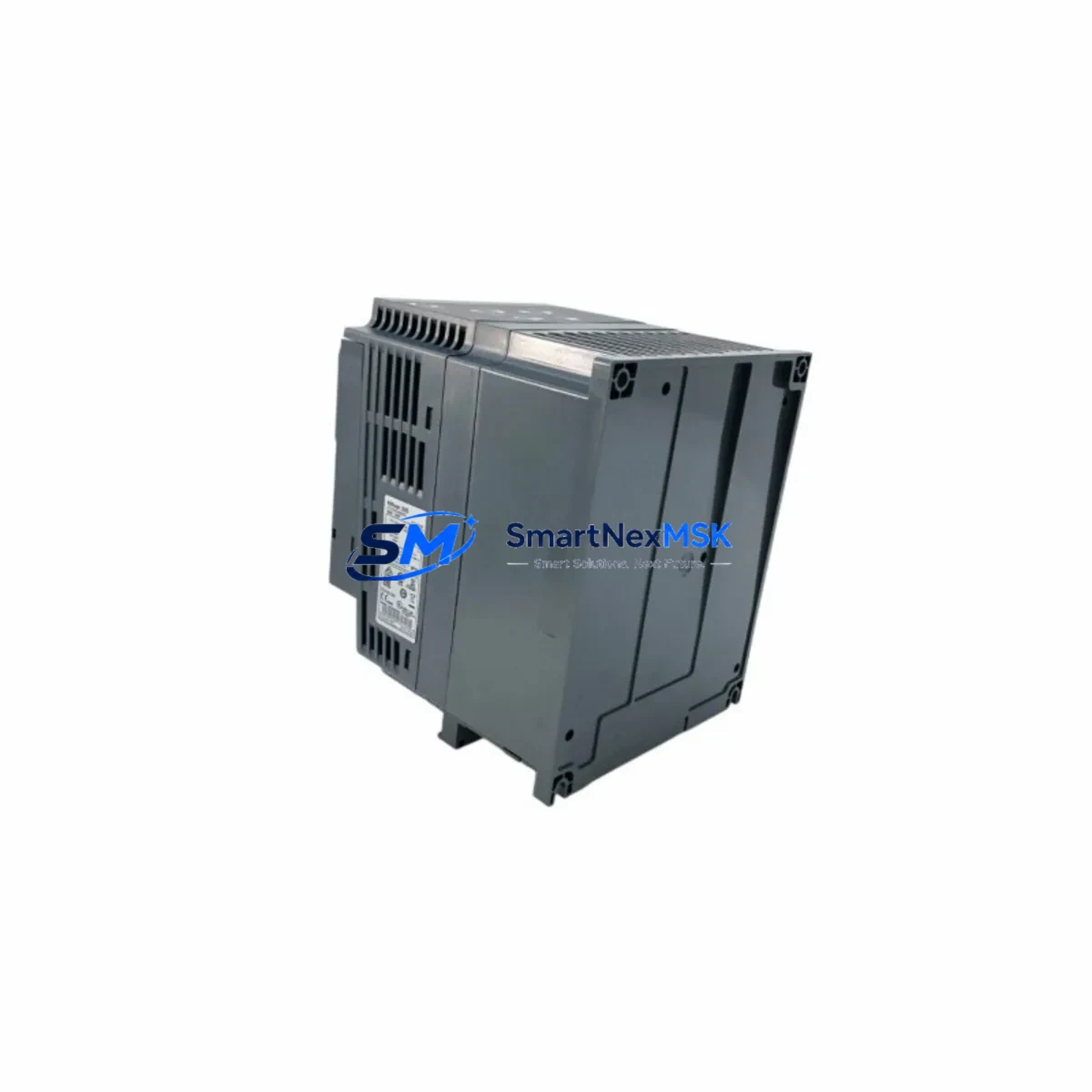

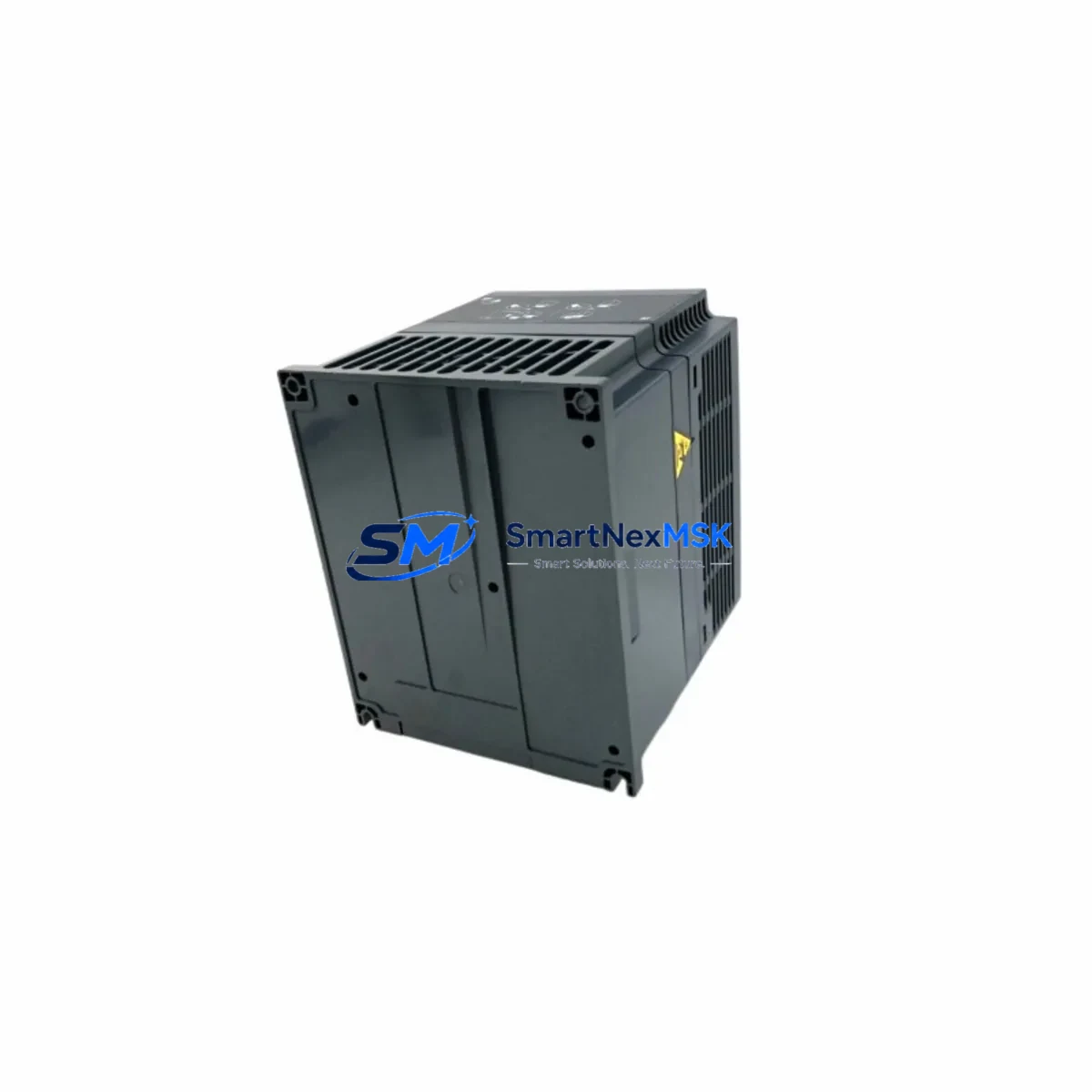

The Schneider Electric ATV320U40N4C is a 4kW (5HP) three-phase 380–500V AC variable frequency drive from the Altivar 320 series, purpose-engineered for demanding industrial environments where control continuity, personnel safety, and equipment protection are non-negotiable. Designed to meet the rigorous requirements of continuous production facilities, hazardous-area control cabinets, and critical motor-drive circuits, this drive delivers reliable speed and torque regulation while actively suppressing the electrical disturbances that cause unplanned shutdowns and process deviations.

In high-load industrial applications — petrochemical pump stations, mining conveyor systems, water treatment aeration blowers, metallurgical rolling mills, and port crane hoisting circuits — the ATV320U40N4C provides the stable, interference-resistant motor control that safety-critical operations demand. Its integrated EMC filter (Class C2 compliant) attenuates conducted and radiated emissions at the source, protecting co-located PLCs, safety relays, and field instruments from signal corruption that could trigger nuisance trips or, worse, mask genuine fault conditions.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the ATV320U40N4C within a well-engineered control cabinet architecture is the foundation of long-term operational safety. In practice, this drive is most effective when integrated alongside complementary protection and control components that address every layer of the power and signal chain.

On the power input side, a properly rated Schneider Electric GV2ME motor circuit breaker upstream of the drive provides coordinated short-circuit and overload protection, ensuring that a fault in the motor branch does not propagate to the main busbar or adjacent drives. Surge protection devices — such as the Schneider Electric iPRD series — installed at the cabinet entry point clamp transient overvoltages caused by lightning strikes or switching operations, preventing the DC bus capacitors inside the ATV320U40N4C from absorbing destructive energy spikes.

For applications requiring strict harmonic compliance or operating in facilities with sensitive medical or measurement equipment nearby, a line reactor (ACL choke) installed on the drive input reduces THDi and extends the service life of the drive’s rectifier bridge. On the motor output side, a dV/dt output filter or sine-wave filter protects motor winding insulation from the steep voltage rise times inherent in PWM switching, which is especially important for older motors or long cable runs exceeding 50 metres.

The ATV320U40N4C’s native CANopen port integrates cleanly with Schneider Electric Modicon M221 and M241 PLCs, enabling closed-loop speed reference, real-time fault diagnostics, and remote parameter adjustment without breaking the safety interlock architecture. Where functional safety is mandated — such as emergency stop circuits in press lines or hoisting applications — the drive’s SIL 2-rated Safe Torque Off (STO) input connects directly to a Schneider Electric Preventa XPSAF safety relay, eliminating the need for a main contactor in the motor circuit and reducing the number of mechanical switching elements that can fail.

For cabinet thermal management in high-ambient environments, pairing the drive with a Schneider Electric ClimaSys cabinet cooling unit or thermostat-controlled fan assembly maintains the internal temperature within the drive’s rated operating window, preventing thermal derating that would otherwise reduce available torque and increase the risk of nuisance over-temperature trips during peak production periods.

Communication integrity in noisy industrial environments is maintained by routing fieldbus cables — whether Modbus RTU via the VW3A3601 RS485 card or EtherNet/IP via the VW3A3616 Ethernet card — in dedicated cable trays separated from power conductors, and by ensuring all cable shields are terminated at a single grounding point on the cabinet’s PE busbar. This practice, combined with the drive’s integrated EMC filter, eliminates the ground loops and common-mode noise that cause intermittent communication faults and false fault registers in the drive’s event log.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In pump and compressor drive applications within classified hazardous zones, the ATV320U40N4C — installed in a purged and pressurized Ex-e enclosure — provides precise flow control while the STO function enables safe de-energization of the motor without opening high-current contactors in potentially explosive atmospheres. The drive’s configurable catch-on-the-fly function allows seamless reconnection to a spinning motor after a momentary power interruption, preventing the mechanical shock loads that damage pump seals and shaft couplings.

Mining & Mineral Processing: Conveyor belt drives in underground or open-cut mining operations are subject to extreme dust ingress, vibration, and voltage sags caused by large crusher motors starting across the line. The ATV320U40N4C’s undervoltage ride-through capability and auto-restart function maintain belt tension control during brief supply disturbances, preventing belt slip, material spillage, and the associated safety incidents. Its robust DC bus design tolerates the regenerative braking energy fed back by loaded downhill conveyors without requiring an external braking resistor in most duty cycles.

Water & Wastewater Treatment: Aeration blower and effluent pump applications demand 24/7 continuous operation with minimal maintenance intervention. The drive’s sleep-wake function optimises energy consumption during low-demand periods, while its PID controller maintains dissolved oxygen setpoints autonomously, reducing operator intervention in potentially confined-space environments. Predictive maintenance data — motor current signature, thermal state, and run-hour counters — is accessible via the drive’s Modbus register map, enabling condition-based maintenance scheduling before failures occur.

Metallurgy & Steel Mills: Rolling mill auxiliary drives — cooling water pumps, hydraulic power unit motors, and fume extraction fans — operate in environments with intense electromagnetic interference from large thyristor rectifiers and induction furnaces. The ATV320U40N4C’s Class C2 EMC filter and shielded motor cable compatibility ensure that speed reference signals remain stable and that the drive does not inject interference into the mill’s process control network, where signal corruption could cause roll gap errors and product quality deviations.

Port & Material Handling: Crane hoist and trolley travel drives require precise speed control at low frequencies to enable safe load positioning. The ATV320U40N4C’s sensorless vector control algorithm delivers high starting torque — up to 200% at 0.5 Hz — without an encoder, simplifying installation on existing crane drives while meeting the dynamic braking and anti-sway control requirements of modern port safety standards.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers all manufacturing defects, component failures, and functional faults that arise under normal operating conditions as specified in the Altivar 320 installation manual. To initiate a claim, contact sales@smartnexmsk.com with the order reference, a description of the fault symptom, and any fault codes recorded by the drive. Our technical team will assess the fault remotely where possible; if a physical return is required, a return merchandise authorisation (RMA) will be issued and replacement or repair will be completed within an agreed lead time.

Q2: What pre-shipment testing is performed on the ATV320U40N4C before dispatch?
Every unit undergoes a functional power-on test to verify display operation, parameter access, and output switching integrity. Units sourced from authorised distribution channels are supplied with original Schneider Electric factory test documentation. Where additional application-specific testing is required — such as STO circuit verification or communication port validation — this can be arranged upon request prior to shipment.

Q3: Is the ATV320U40N4C compatible with my existing Modicon PLC and motor?
The ATV320U40N4C is compatible with any standard three-phase induction motor rated 4kW / 380–500V. It integrates natively with Schneider Electric Modicon PLCs via CANopen and supports Modbus RTU, EtherNet/IP, PROFIBUS DP, and DeviceNet through optional fieldbus communication cards. For third-party PLCs and SCADA systems, the drive’s Modbus RTU register map is fully documented and compatible with any standard Modbus master. Confirm motor nameplate data and cable length before selecting output filter options.

Q4: Can long-term supply continuity be guaranteed for critical spare-part programmes?
Yes. SMARTNEXMSK maintains dedicated safety-stock inventory of the ATV320U40N4C and key Altivar 320 series variants to support planned maintenance programmes, emergency breakdown replacement, and multi-unit project requirements. For customers operating critical infrastructure where unplanned downtime carries significant safety or financial consequences, we recommend establishing a consignment or blanket-order arrangement to guarantee availability. Contact our team to discuss volume pricing and reserved-stock agreements.
