Schneider ATV630D75N4 Maintenance-Ready Spare Altivar 630

Schneider ATV630D75N4 Maintenance-Ready Spare Altivar 630

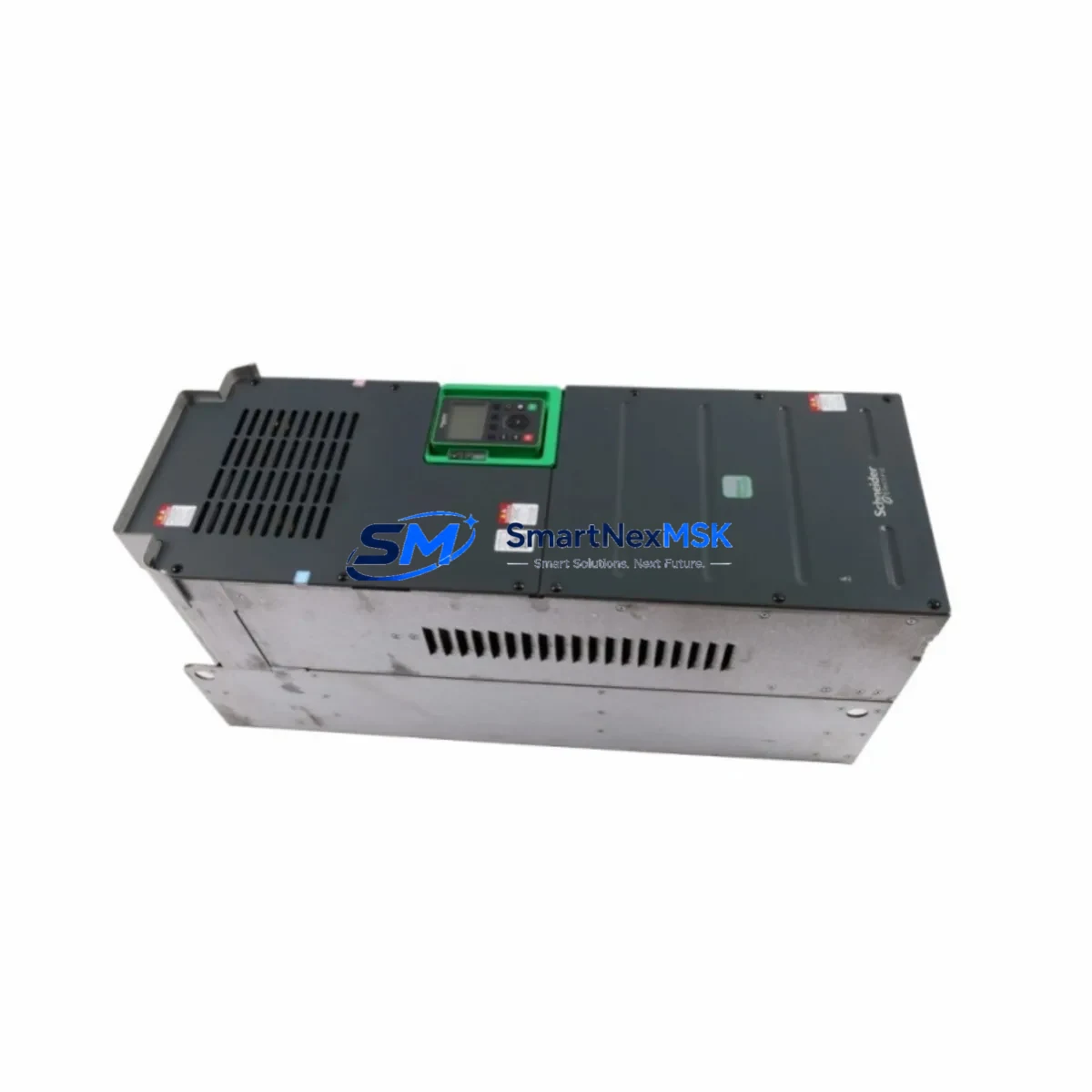

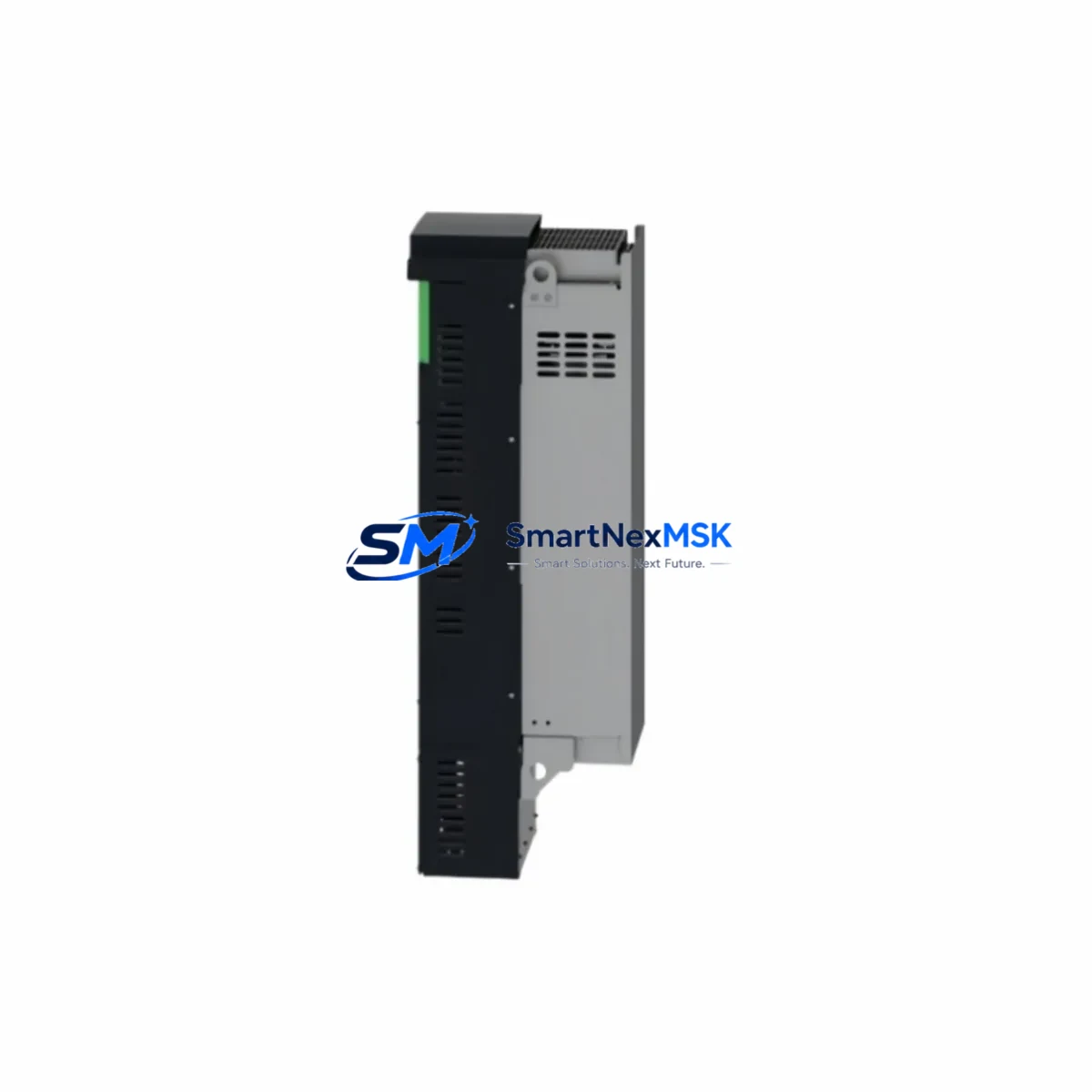

The Schneider Electric ATV630D75N4 is a 75kW (100HP) variable frequency drive from the Altivar 630 series, engineered for demanding industrial applications including pumps, fans, compressors, and conveyor systems. For maintenance engineers managing aging automation infrastructure, unplanned VFD failure represents one of the highest-risk downtime events in a production facility. Sourcing a verified, original ATV630D75N4 spare in advance is the most effective strategy to minimize mean time to repair (MTTR) and protect continuous operation.

This unit is supplied as an original Schneider Electric component, fully tested prior to shipment, and backed by a 12-month warranty. It is compatible with the Altivar 630 series control architecture and can be integrated into existing cabinet layouts without modification to motor cabling, control wiring, or communication topology. Whether you are executing a planned replacement during scheduled maintenance or responding to an emergency fault, the ATV630D75N4 is ready for immediate installation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer schedules replacement of the ATV630D75N4, the drive itself is rarely the only component that requires attention. A thorough cabinet inspection and system audit should accompany any VFD swap to prevent repeat failures and ensure long-term reliability.

Begin with the input power supply: verify that the upstream circuit breaker or molded case circuit breaker (MCCB) is rated correctly for the 75kW load and that input line reactors or EMC filters (such as the VW3A4601 line choke) are in serviceable condition. Degraded input filtering is a leading cause of premature VFD failure and is frequently overlooked during emergency replacements.

Inspect all control wiring and terminal blocks in the cabinet. Loose or corroded terminals on the ATV630 control board connector (SL1/SL2 logic inputs, AO/AI analog channels) can cause intermittent faults that are misdiagnosed as drive failure. Replace any discolored or brittle terminal ferrules and verify torque on power terminals L1/L2/L3 and U/V/W.

Check the I/O expansion modules if the application uses the VW3A3201 or VW3A3202 I/O option cards. These cards are mounted directly to the drive and must be transferred to the replacement unit or sourced as new spares. Confirm that the digital input/output wiring map matches the parameter configuration stored in the SoMove commissioning tool backup.

For systems using fieldbus communication, inspect the communication option card — whether EtherNet/IP (VW3A3720), PROFIBUS DP (VW3A3607), or DeviceNet (VW3A3609). Verify that the network address, baud rate, and timeout parameters are correctly restored after drive replacement. A communication card fault after a VFD swap is a common cause of extended downtime.

Review the braking resistor and braking unit if the application involves high-inertia loads or frequent deceleration. The ATV630 supports an external braking resistor connected to the PA/PB terminals; inspect the resistor for thermal damage and verify the braking unit contactor is functional.

Finally, assess the HMI and remote keypad (VW3A1101 or compatible Altivar graphic display terminal). If the original drive’s parameter set was not backed up via SoMove or the keypad memory, plan for a full recommissioning session. Keeping a parameter backup file as part of your spare parts documentation is strongly recommended for all Altivar 630 installations.

Site Replacement Workflow

The ATV630D75N4 is a direct form-fit-function replacement for any failed or end-of-life unit within the Altivar 630 family at the 75kW rating. For sites migrating from the older Altivar 61 (ATV61HD75N4) or Altivar 71 (ATV71HD75N4), the ATV630 series offers backward-compatible motor control algorithms with enhanced energy efficiency and expanded diagnostic capability, though control wiring adaptation and parameter remapping will be required.

Step 1 — Isolation and lockout: De-energize the drive, apply LOTO, and wait the full DC bus discharge time (minimum 15 minutes for 75kW class) before opening the cabinet.

Step 2 — Documentation: Photograph all wiring connections, record terminal assignments, and export the parameter file via SoMove or the keypad before removing the faulty unit.

Step 3 — Mechanical installation: Mount the ATV630D75N4 in the existing cabinet position. Verify that cabinet ventilation clearances (top/bottom/sides) meet the Altivar 630 installation guide requirements to prevent thermal derating.

Step 4 — Electrical reconnection: Reconnect power terminals (L1/L2/L3, U/V/W, PE), control wiring, and communication cables in sequence. Torque all power terminals to specification.

Step 5 — Parameter restore and commissioning: Load the saved parameter file, verify motor nameplate data, run a no-load test, then a loaded test at reduced speed before returning to full production speed.

This structured approach reduces average replacement time to under four hours for experienced maintenance teams and eliminates the most common post-replacement faults caused by wiring errors or parameter loss.

Spare Parts Support FAQ

Q1: What is the warranty coverage for the ATV630D75N4 supplied by SMARTNEXMSK?
All units are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing before dispatch.

Q2: Can this unit replace an Altivar 61 or Altivar 71 drive of the same power rating?
The ATV630D75N4 can replace ATV61 and ATV71 units at the 75kW rating, but it is not a plug-and-play swap. Control terminal pinouts, parameter structures, and option card slots differ between generations. A wiring adaptation and full recommissioning are required. Our technical team can provide a migration checklist upon request.

Q3: How do you verify compatibility before shipment?
We verify the SKU, firmware revision, and hardware revision against the order specification. Units are powered on and tested for basic drive function prior to packaging. A test report is available upon request for critical applications.

Q4: What is your lead time and long-term supply capability for the ATV630D75N4?
Stock units ship within 3–5 business days. For planned maintenance programs requiring multiple units or scheduled deliveries, we support blanket order arrangements to ensure supply continuity. Long-term availability is maintained through our established Schneider Electric supply chain network.
