Schneider BMXXBC008K Maintenance-Ready Spare M340 Automation

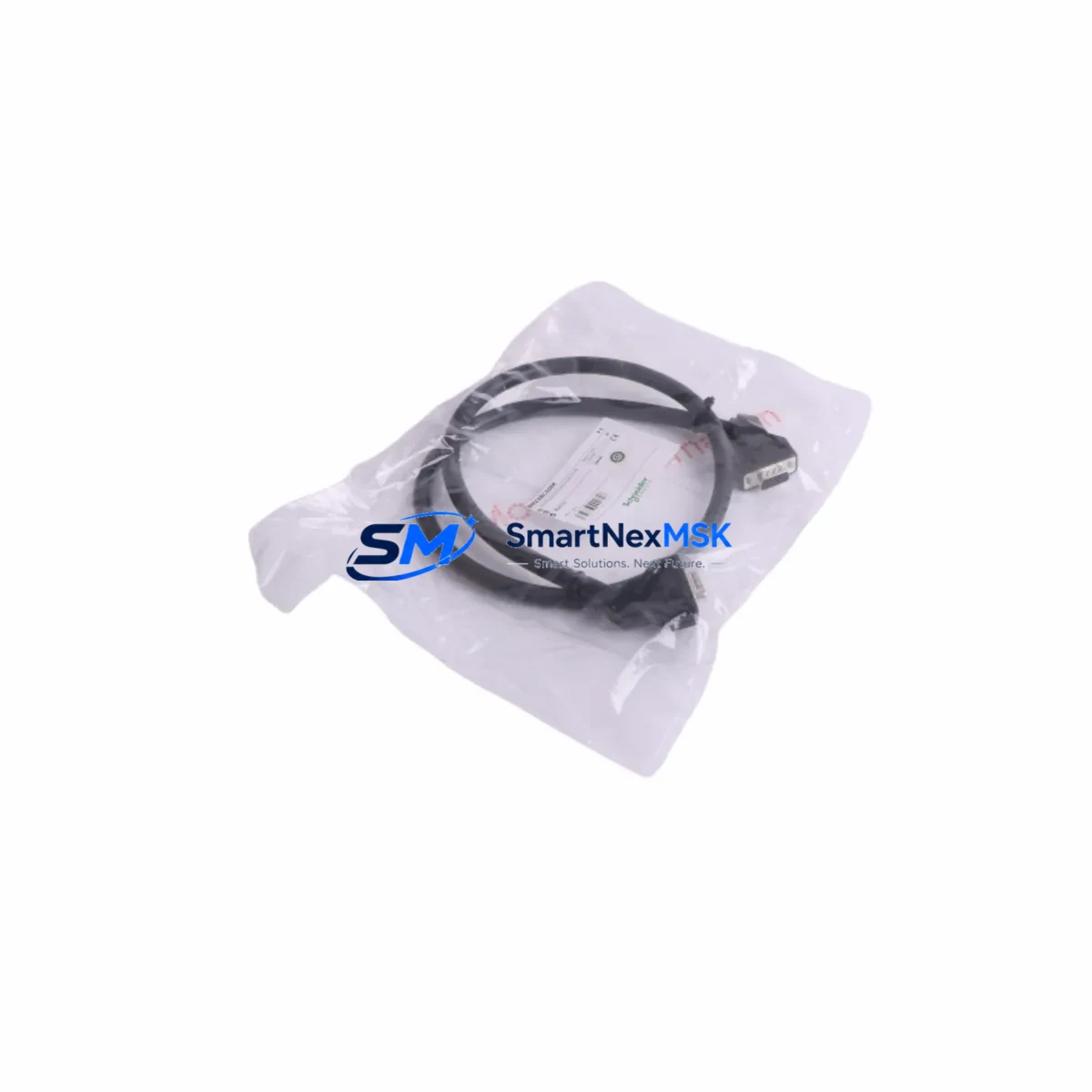

The Schneider Electric BMXXBC008K is a 0.8-metre backplane extension cable engineered for Modicon M340 PLC rack systems. In industrial environments where unplanned downtime translates directly into production loss, holding a verified original spare of the BMXXBC008K in your maintenance inventory is a proven strategy for rapid fault recovery. This cable interconnects the main rack with an extension rack, enabling distributed I/O expansion across the M340 platform — a configuration widely deployed in process control, machine automation, and utility infrastructure worldwide.
Maintenance engineers working on Modicon M340 systems understand that a failed or degraded backplane cable can cause intermittent communication faults, unexpected CPU stops, or complete rack isolation. These symptoms are often misdiagnosed as CPU or I/O module failures, leading to extended troubleshooting cycles. Stocking the BMXXBC008K as a dedicated spare eliminates this diagnostic ambiguity and restores system integrity within minutes of fault identification.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| SKU / Part Number | BMXXBC008K |
| Brand | Schneider Electric |
| Series | Modicon M340 |
| Product Type | PLC Backplane Extension Cable |
| Cable Length | 0.8 m (800 mm) |
| Compatible Racks | BMX XBP ••• series extension racks |
| Connector Type | Proprietary M340 backplane connector |
| Operating Temperature | 0 °C to +60 °C |
| Origin | France |
| Application | Rack extension, distributed I/O, process automation |
| Maintenance Role | Critical spare — single point of rack communication |
| Warranty | 12 Months |
| Condition | Original, factory-tested, sealed packaging |
| Shipping | Inspected and tested before dispatch |
Maintenance Planning for Continuous Operation
When scheduling planned maintenance or responding to an unscheduled fault on a Modicon M340 system, the BMXXBC008K backplane cable should be evaluated as part of a broader rack-level inspection. Experienced maintenance engineers treat the backplane cable as a wear item in high-vibration or thermally cycled environments, and replacement is often bundled with adjacent component checks to maximise uptime between service windows.
During a rack inspection that involves the BMXXBC008K, it is best practice to simultaneously verify the condition and firmware revision of the BMX P34 series CPU modules, which govern all rack communication timing. The BMX XBP extension rack itself should be inspected for connector oxidation or mechanical damage at the cable interface. Power supply modules such as the BMX CPS series should be load-tested, as voltage instability is a common root cause of intermittent backplane communication errors that are incorrectly attributed to the cable.
I/O modules seated in the extension rack — including BMX DDI digital input, BMX DDO digital output, and BMX AMI analogue input modules — should be reseated and functionally verified after any backplane cable replacement to confirm signal integrity across the restored rack link. Where the M340 system includes a BMX NOE Ethernet communication module or a BMX NOM serial communication module, communication diagnostics should be re-run post-replacement to validate that no configuration data was lost during the fault event.
For systems using BMXXBC008K in conjunction with a terminal block assembly or marshalling cabinet, inspect the associated wiring harnesses, DIN rail-mounted terminal strips, and any signal isolators in the I/O loop. Fuse holders and miniature circuit breakers protecting the rack power supply should also be checked as part of the same maintenance event. If the control cabinet includes a Magelis HMI panel connected to the M340 CPU, verify that the HMI communication link is restored and displaying live process data before returning the system to service.
Site Replacement Workflow
Replacing the BMXXBC008K on-site is a straightforward procedure that can be completed without specialist tooling, making it well-suited to emergency maintenance scenarios. Begin by placing the M340 CPU in STOP mode via the programming software or the physical RUN/STOP key, then de-energise the extension rack power supply. Disconnect the existing backplane cable from both the main rack and the extension rack connectors, noting the cable routing to ensure the replacement follows the same path and avoids contact with high-voltage conductors or sharp cabinet edges.
Insert the new BMXXBC008K, ensuring both connectors are fully seated and the locking tabs are engaged. Re-energise the extension rack, then return the CPU to RUN mode. Confirm that all I/O modules in the extension rack are recognised by the CPU and that no rack communication fault codes are present in the diagnostic buffer. This workflow typically restores full system operation in under 15 minutes, significantly reducing mean time to repair compared to scenarios where a spare cable is not immediately available.
For legacy M340 installations where the original BMXXBC008K has been in service for more than five years, proactive replacement during a scheduled shutdown is recommended even in the absence of visible faults. Connector wear and cable jacket degradation are not always detectable through software diagnostics alone, and a preventive swap eliminates a latent failure risk at minimal cost relative to an unplanned production stop.
Spare Parts Support FAQ
Q: Is the BMXXBC008K compatible with all Modicon M340 rack configurations?
A: The BMXXBC008K is designed for use with the Modicon M340 platform and is compatible with BMX XBP series extension racks. Always verify the rack reference and cable length requirement against your system documentation before installation. For rack configurations requiring a different cable length, alternative BMXXBC references are available.
Q: What is the recommended spare inventory strategy for the BMXXBC008K?
A: For critical production lines with a single M340 rack extension, maintaining a minimum of one BMXXBC008K spare on-site is recommended. Facilities operating multiple M340 systems or those with extended lead times from local distributors should consider holding two units to cover simultaneous fault scenarios.
Q: How is the BMXXBC008K tested before shipment?
A: Each unit is visually inspected for connector integrity and cable jacket condition prior to dispatch. Original factory packaging is preserved where possible. A 12-month warranty covers manufacturing defects and connector failures under normal operating conditions.
Q: Can the BMXXBC008K replace older or discontinued Schneider backplane cable references?
A: Compatibility with superseded references depends on the specific rack generation. Provide your existing cable reference and rack model when enquiring, and our technical team will confirm cross-compatibility before shipment to avoid installation issues.
