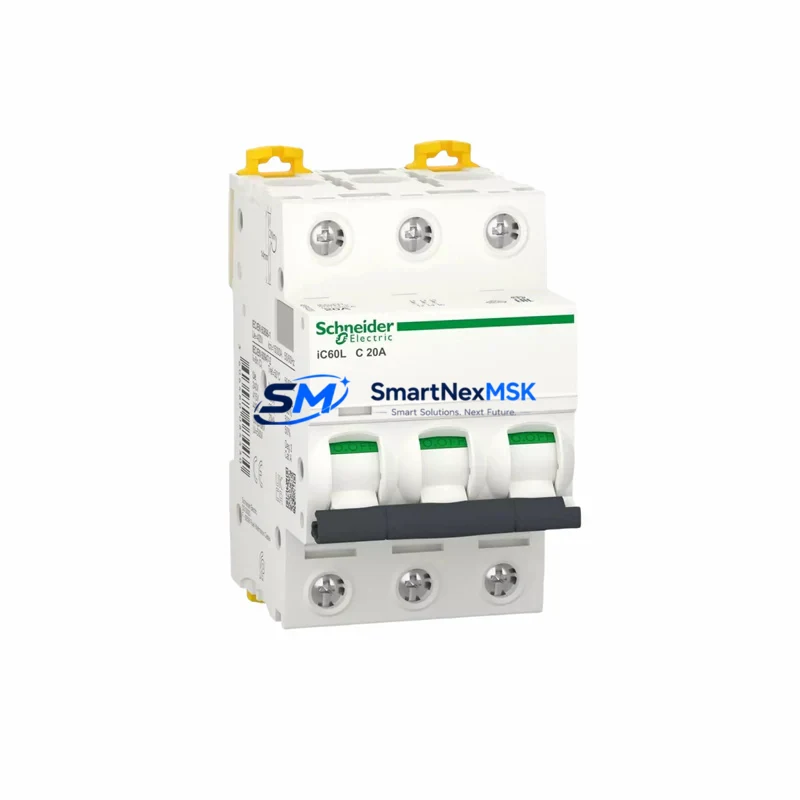

Schneider EA9L209F230 Retrofit-Ready SPD for Acti9 Control Systems
The Schneider Electric EA9L209F230 is a Type 2 Surge Protective Device (SPD) rated at 20kA, designed for 230V single-phase plus neutral (1P+N) applications within the Acti9 distribution and protection platform. As legacy control panels age and original components reach end-of-life, the EA9L209F230 serves as a proven retrofit solution for engineers and maintenance teams managing existing low-voltage switchgear, motor control centers, and building automation enclosures.
Whether you are replacing a failed surge arrester in a running production line, upgrading an older iC60 or Multi9 panel to current Acti9 standards, or migrating a legacy Merlin Gerin distribution board to a modern Schneider Electric architecture, the EA9L209F230 delivers direct form-fit-function compatibility with minimal re-engineering. Its standard 2-module DIN rail footprint integrates seamlessly into existing Acti9 enclosures, Pragma distribution boards, and Kaedra industrial enclosures without requiring busbar modification or additional mounting hardware.
Upgrade Compatibility Table
| Parameter | EA9L209F230 Specification | Retrofit Notes |
|---|---|---|
| SPD Type | Type 2 (IEC 61643-11) | Replaces Type 2 arresters in existing Acti9 / Multi9 panels |
| Nominal Discharge Current (In) | 20kA (8/20 µs) | Verify existing SPD rating; upgrade if original was ≤10kA |
| Voltage Rating | 230V AC (Un) | Confirm supply voltage before installation; not for 400V TT systems |
| Configuration | 1P+N | Single-phase + neutral; confirm wiring topology (TT/TN-S/TN-C-S) |
| Mounting | DIN rail (2 modules, 35mm) | Direct drop-in for Acti9, iC60, and Multi9 rail positions |
| Terminal Connection | Screw terminals, up to 16mm² | Re-use existing cable lugs; verify torque spec (1.5–2.5 N·m) |
| Status Indicator | Visual window (green/red) | Check indicator after energizing; red = SPD degraded or failed |
| Remote Signaling | Auxiliary contact (optional) | Wire to SCADA or BMS for remote fault monitoring if required |
| Series Compatibility | Acti9, iC60N, iC60H, iDPN | Confirm upstream OCPD rating per IEC 60364-5-53 |
| Warranty | 12 Months | Covered from date of shipment; includes functional verification |
Retrofit Planning for Existing Automation Systems
Successful integration of the EA9L209F230 into a legacy panel begins with a thorough site survey. Before ordering, confirm the existing enclosure rail space: the module occupies two 18mm DIN rail positions, so adjacent devices such as the Acti9 iC60N circuit breaker or iDPN Vigi residual current device must have sufficient clearance. In panels where space is constrained, consider relocating the Acti9 A9A26924 auxiliary contact block or the iC60 OF/SD signal contact to an adjacent DIN rail section.
Power supply integrity is critical during the changeover. If the panel feeds a Schneider Electric Phaseo ABL8 24VDC power supply that powers field instruments or PLC I/O cards, ensure the supply remains energized through a bypass or UPS during the SPD swap to avoid nuisance trips on the control side. Similarly, if the panel includes an Acti9 iEM3000 series energy meter, verify that its communication link to the building management system remains active throughout the procedure.
For panels that also house a Modicon M221 or M241 logic controller with Ethernet or serial Modbus RTU communications, document the existing IP address assignments and serial port parameters before de-energizing. The EA9L209F230 replacement itself does not affect PLC program memory, but any unplanned power interruption to the controller could trigger a cold restart, requiring confirmation of the %MW retain memory configuration in SoMachine or EcoStruxure Machine Expert.
Where the original panel uses a Schneider Electric Acti9 iACT24 remote control module for load shedding or time-of-use switching, verify that the remote control wiring harness does not obstruct access to the SPD terminal block. In older Multi9 installations, the terminal pitch may differ slightly from current Acti9 hardware; use a Linergy TB terminal block adapter if bridging between generations is required.
After physical installation, re-energize the panel in sequence: main incomer first, then branch circuits, and finally the SPD. Observe the EA9L209F230 status window — a steady green indication confirms the device is operational and the protection mode is intact. If the panel includes a Smartlink SI B communication gateway, update the device map to include the new SPD auxiliary contact input so that fault events are correctly logged in the EcoStruxure Power Monitoring Expert dashboard.
Downtime Control During System Migration
Minimizing production downtime during an SPD replacement requires advance preparation. Before the maintenance window opens, pre-stage the EA9L209F230 alongside any ancillary items — terminal ferrules, cable ties, and a calibrated torque screwdriver — so that the physical swap can be completed within a single planned outage slot, typically 15–30 minutes for a straightforward 1P+N replacement.
Where the panel feeds a continuous process that cannot tolerate a full shutdown, coordinate with the process control team to place the affected zone in manual override via the Modicon M340 or Premium PLC operator panel before isolating the incomer. This preserves field actuator states and prevents the DCS from generating spurious alarms during the brief de-energization. If the panel is part of a redundant power architecture using an Acti9 iSW-NA changeover switch, activate the alternate supply path before beginning work.
After re-energization, perform a functional check: confirm that all branch circuit breakers — including any iC60H or C120N units protecting motor starters — have re-closed correctly, and that the iEM energy meter is logging active power data. Verify communication continuity on any RS-485 Modbus or Ethernet/IP segments that pass through the panel, and confirm that the HMI screen (if present) is displaying live process values without communication fault banners. Document the replacement in the panel maintenance log with the new device serial number and installation date to support the 12-month warranty claim if required.
Retrofit Support FAQ
Q1: Is the EA9L209F230 a direct drop-in replacement for older Schneider Multi9 or Merlin Gerin SPD models?
A: In most cases, yes. The EA9L209F230 uses the same 2-module DIN rail footprint and standard screw terminal interface as previous-generation Acti9 and Multi9 surge arresters. However, always verify the upstream overcurrent protection device (OCPD) rating and the earthing system topology (TT, TN-S, or TN-C-S) before installation, as these affect the SPD’s protection voltage level and coordination with the distribution system.
Q2: Will replacing the SPD affect the PLC program or HMI configuration?
A: No. The EA9L209F230 is a passive protection device and has no data interface with the PLC or HMI. However, if the panel must be de-energized during replacement, ensure that the PLC retentive memory (%MW or %DB retain areas) is correctly configured to preserve process setpoints across a power cycle. Confirm this in EcoStruxure Machine Expert or Unity Pro before the maintenance window.
Q3: What wiring checks are required before commissioning the replacement SPD?
A: Verify that the phase (L) and neutral (N) conductors are connected to the correct terminals as marked on the device body. Confirm conductor cross-section is within the 1.5–16mm² range and that terminal screws are torqued to the manufacturer’s specification (typically 2.0–2.5 N·m). Check that the protective earth (PE) conductor is bonded to the panel earth bar and that the SPD’s earth terminal is connected with a conductor no longer than 0.5m to minimize impedance.
Q4: What does the 12-month warranty cover, and how is it claimed?
A: The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. Each unit undergoes pre-shipment functional verification. To initiate a warranty claim, contact sales@smartnexmsk.com with the order reference, device serial number, and a brief description of the fault. Replacement or refund will be processed within 5 business days of fault confirmation.
