Schneider Electric 140DAI75300 Spare for Quantum Automation

Schneider Electric 140DAI75300 Maintenance-Ready Spare for Quantum Automation

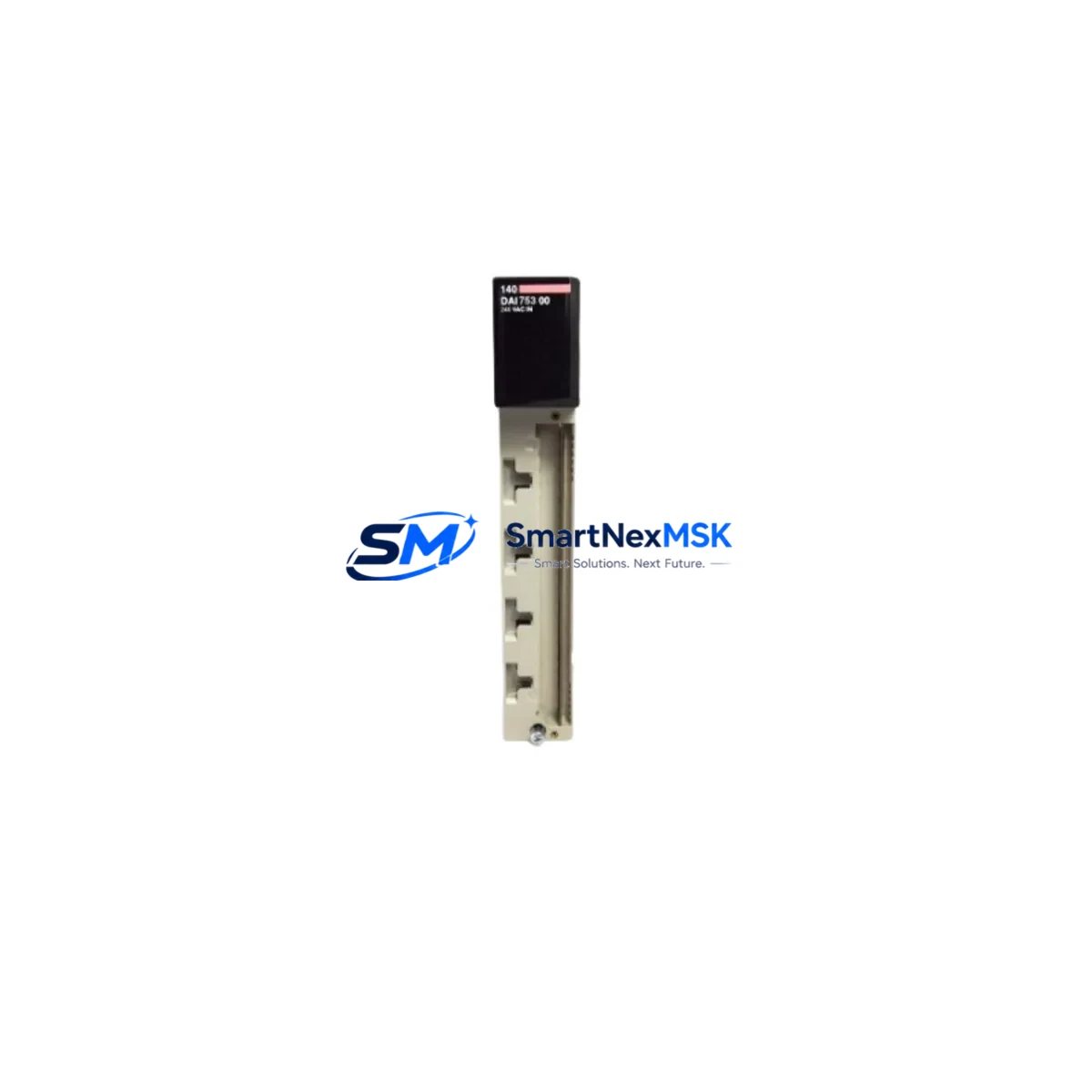

The Schneider Electric 140DAI75300 is a 32-channel, 24 VDC discrete input module designed for the Modicon Quantum PLC platform — one of the most widely deployed process and discrete automation architectures in heavy industry, utilities, oil & gas, and manufacturing. As a maintenance-ready original spare, the 140DAI75300 is engineered to deliver direct slot-compatible replacement in Quantum backplanes, enabling rapid restoration of I/O capacity without re-engineering the control program or rewiring field terminals.

For maintenance engineers managing aging Quantum systems, the 140DAI75300 represents a critical line item in any structured spare parts inventory. Unplanned failure of a discrete input module can immediately halt production by blinding the PLC to field sensor states — limit switches, proximity sensors, pushbuttons, and interlock signals all depend on reliable DI channel availability. Stocking a verified replacement eliminates the most common cause of extended downtime: waiting for a sourced module to arrive after a fault has already occurred.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 140DAI75300 discrete input module is flagged for replacement during a planned shutdown or emergency callout, experienced maintenance engineers know that the module itself is rarely the only component requiring attention. A thorough inspection of the surrounding control cabinet and I/O subsystem is essential to prevent repeat failures and ensure the restored system operates reliably through the next maintenance interval.

Begin by verifying the 140CPS11420 or 140CPS21400 Quantum power supply module — input module faults are frequently caused by marginal DC bus voltage rather than module failure. Measure the 24 VDC rail under load before condemning the 140DAI75300. Next, inspect the 140XBP01600 or 140XBP01000 backplane for bent connector pins, corrosion, or mechanical damage at the slot where the module was seated; a damaged backplane slot will cause recurring faults on any replacement module installed in that position.

Check the field wiring connector and terminal block for loose terminations, corroded contacts, or insulation breakdown — particularly in high-vibration or high-humidity environments. If the system uses 140DDO35300 or 140DDO15310 discrete output modules in adjacent slots, inspect those simultaneously as they share the same backplane bus and power distribution. For systems with 140ACI04000 or 140AVI03000 analog input modules in the same rack, verify that analog signal integrity has not been compromised by the fault event.

Review the 140CPU65150 or 140CPU67160 CPU module’s diagnostic buffer for any logged I/O bus errors that preceded the module fault — this can reveal whether the failure was isolated or symptomatic of a broader backplane or power issue. If the Quantum system communicates via Modbus Plus or Ethernet, confirm that the 140NOE77101 or 140NOM21200 network communication module is operating normally after the replacement, as I/O bus disturbances can occasionally affect network module state.

For cabinets with signal conditioning requirements, inspect any installed signal isolators or barriers between field devices and the 140DAI75300 input terminals. Fuse holders and miniature circuit breakers protecting the 24 VDC field supply circuits should be tested for continuity and correct rating. Finally, if the system includes a XBTGT series or Magelis HMI panel, verify that all I/O status displays are reading correctly after the replacement module is commissioned — this confirms end-to-end signal path integrity from field sensor through PLC to operator interface.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the replacement 140DAI75300 part number matches the installed module exactly. Check the firmware revision label if the site has mixed Quantum generations. Verify the 24 VDC field supply is within specification (20.4–26.4 VDC) before installation.

Step 2 — Safe removal: Place the CPU in Stop mode or use the Quantum hot-standby procedure if a redundant CPU (140CPU67160 or 140CPU67861) is installed. Disconnect the 40-pin field wiring connector. Release the module locking tab and extract the 140DAI75300 from the backplane slot.

Step 3 — Installation: Insert the replacement module firmly into the same backplane slot until the locking tab engages. Reconnect the field wiring connector. Confirm the module LED status indicators cycle through the normal power-on self-test sequence.

Step 4 — Commissioning: Return the CPU to Run mode. In Unity Pro or Concept programming software, force-read all 32 input channels and verify field signal states match physical sensor conditions. Clear any latched I/O faults in the CPU diagnostic buffer.

Step 5 — Documentation: Record the replacement in the site maintenance log with the date, technician ID, old module serial number, and new module serial number. Update the spare parts inventory to trigger reorder of a replacement 140DAI75300 for the next event.

This workflow minimizes mean time to repair (MTTR) and ensures the Quantum system is returned to full operational status with documented traceability — a requirement in ISO 9001 and IEC 62443 compliant facilities.

Spare Parts Support FAQ

Q1: Is the 140DAI75300 still available as a new original spare, or only as refurbished?
We supply original Schneider Electric 140DAI75300 modules sourced from authorized distribution channels and verified surplus inventory. Each unit undergoes functional testing prior to shipment. Condition is clearly stated on the order confirmation. New-original and tested-surplus options may both be available depending on current stock — contact us to confirm availability for your specific requirement.

Q2: How do I verify compatibility with my existing Quantum backplane and CPU?
The 140DAI75300 is compatible with all standard Modicon Quantum backplanes in the 140XBP series and is supported by Quantum CPUs running Unity Pro and Concept software. Compatibility is determined by the backplane slot type (standard I/O slot) rather than CPU firmware version. If your system uses a Quantum Hot Standby configuration, the module replacement procedure follows the same steps with the additional requirement of verifying redundancy switchover behavior after commissioning.

Q3: What testing is performed before the module ships?
Each 140DAI75300 is powered up and all 32 input channels are verified for correct logic response before packaging. Modules that fail any channel test are quarantined and not shipped. A test report is available upon request for critical infrastructure applications. All shipped units are covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions.

Q4: What is the recommended spare parts stocking strategy for Quantum DI modules?
For facilities operating 5 or more Quantum racks, industry best practice recommends stocking a minimum of one 140DAI75300 per 10 installed units, with a reorder trigger set at the point of first consumption. For critical process lines where a single DI module failure would cause a full production stop, a dedicated hot-spare kept in the control room is justified. Pairing the 140DAI75300 spare with a backup power supply module and a spare CPU module covers the three most common causes of unplanned Quantum system downtime.
