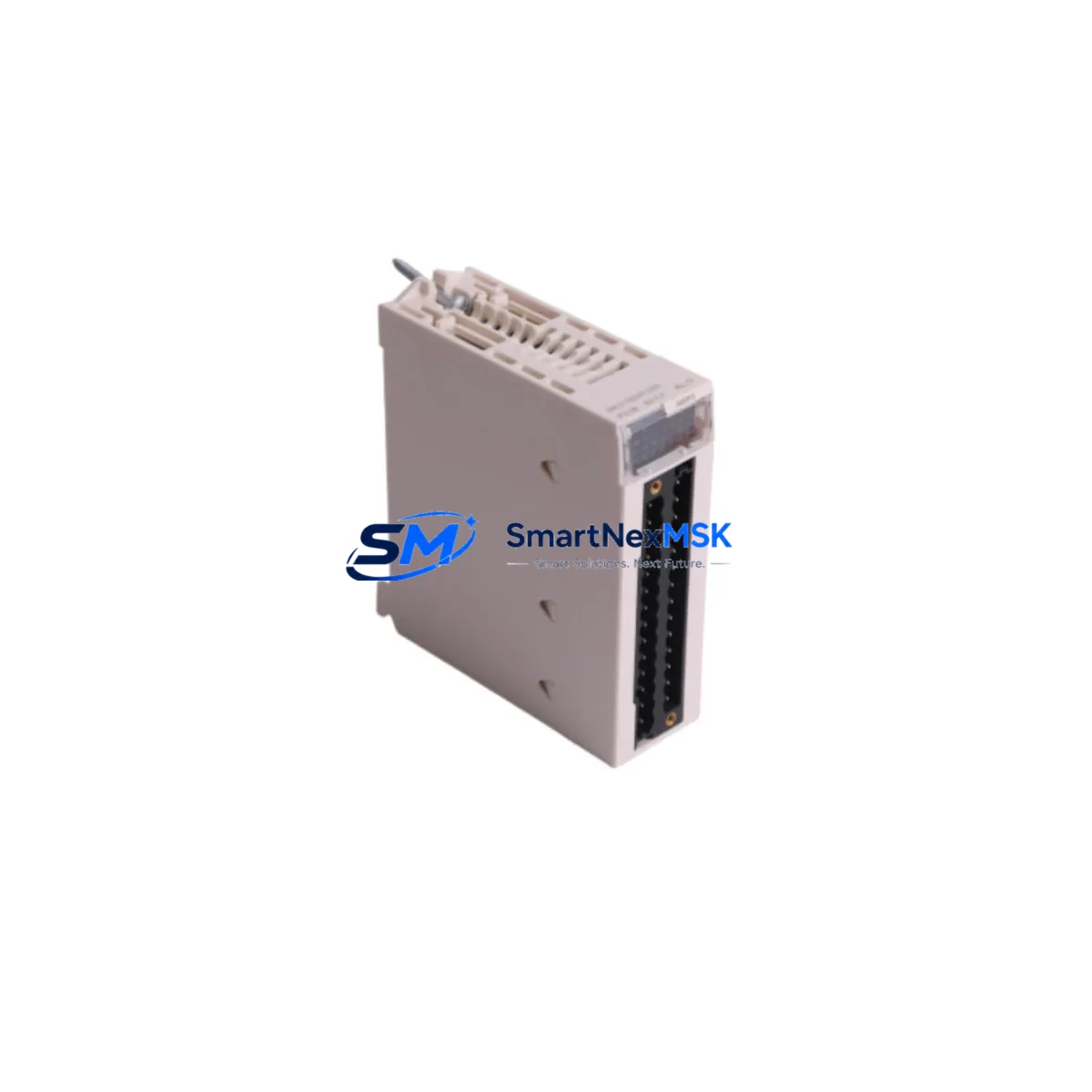

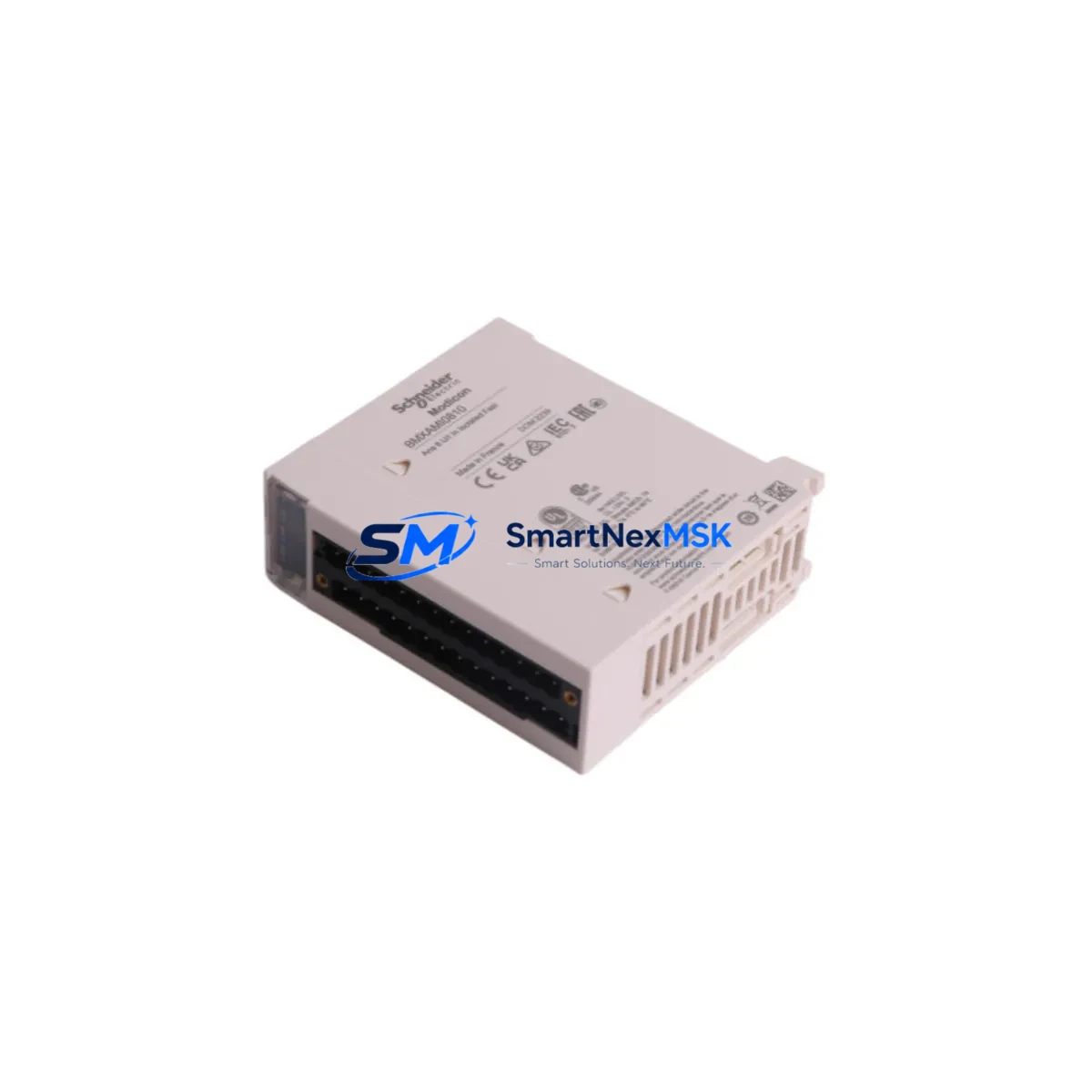

Schneider Electric BMXAMI0810 Safety-Enhanced Analog Input Module

Schneider Electric BMXAMI0810 Safety-Enhanced Analog Input Module: Precision Control for Harsh Industrial Sites

In high-stakes industrial environments — where continuous production, hazardous atmospheres, and heavy electrical interference converge — the integrity of every analog signal is a matter of operational safety. The Schneider Electric BMXAMI0810 is an 8-channel isolated analog input module engineered specifically for the Modicon M340 PLC platform, delivering the signal fidelity, channel isolation, and environmental resilience demanded by critical control loops in petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, and port automation systems.

Unlike standard analog input modules, the BMXAMI0810 is built to maintain measurement accuracy under conditions that would compromise lesser hardware: high-frequency EMI from variable-frequency drives, ground potential differences across large industrial facilities, voltage transients from motor switching, and temperature extremes in outdoor or poorly climate-controlled control cabinets. Its per-channel galvanic isolation architecture ensures that a fault or surge on one input channel cannot propagate to adjacent channels or to the backplane — a fundamental safety requirement in any SIL-rated or functionally safe control architecture.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust industrial control cabinet is only as reliable as its weakest signal path. When integrating the BMXAMI0810 into a Modicon M340 rack, system integrators and maintenance engineers should consider the full protection architecture surrounding it. The module slots directly into the BMXBP•••• backplane rack and communicates with the CPU — typically a BMXP342020 or BMXP342030 processor — via the internal backplane bus, eliminating the signal degradation risks associated with external wiring between discrete components.

On the power supply side, the BMXCPS2000 or BMXCPS3500 power supply modules provide stable, regulated 24 VDC and 3.3 V backplane power. Voltage fluctuations and micro-interruptions from the facility power grid — common in heavy industrial sites with large motor loads — are absorbed before they can affect analog measurement accuracy. For installations in areas with frequent power disturbances, pairing the M340 rack with an external APC Smart-UPS or Schneider Electric Easy UPS system adds a further layer of protection against unplanned shutdowns during critical process phases.

Signal integrity at the field wiring level is equally critical. Shielded twisted-pair cables terminated at the BMXFTB2800 or BMXFTB2010 screw terminal blocks reduce common-mode noise pickup from adjacent power cables and motor drives. For 4–20 mA loop-powered transmitters — pressure transducers, flow meters, level sensors — proper loop impedance matching and cable shielding grounded at a single point prevent ground loops that would otherwise introduce measurement offsets and drift.

In safety-critical interlock circuits, the BMXAMI0810 is often deployed alongside digital I/O modules such as the BMXDDI1602 (discrete input) and BMXDDO1602 (discrete output) to form a complete process monitoring and actuation layer. Analog values from the BMXAMI0810 — temperature, pressure, flow rate — feed into the CPU’s control logic, which then drives safety relays or solenoid valves through the digital output modules. This tightly integrated architecture, all within a single M340 rack, minimizes communication latency and eliminates the inter-device wiring faults that are a leading cause of spurious trips in distributed control architectures.

For applications requiring communication with SCADA systems or distributed control networks, the BMXNOE0100 or BMXNOE0110 Ethernet communication modules provide Modbus TCP/IP and EtherNet/IP connectivity, enabling real-time analog data transmission to supervisory systems without compromising the deterministic scan cycle of the M340 CPU. This is particularly important in continuous process industries where delayed or lost analog data can trigger unnecessary shutdowns or, worse, mask developing process hazards.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In hydrocarbon processing environments, the BMXAMI0810 monitors pressure transmitters and temperature sensors on reactor vessels, heat exchangers, and pipeline segments. Its per-channel isolation prevents a ground fault on one sensor — caused by cable insulation breakdown in a corrosive atmosphere — from corrupting readings on adjacent safety-critical channels. Accurate, uninterrupted analog data is essential for emergency shutdown system (ESD) logic and pressure relief valve control.

Power Generation and Substation Control: In thermal, hydro, or wind power facilities, the module acquires analog signals from current transformers, voltage transducers, and vibration sensors on rotating machinery. The high EMI environment generated by high-voltage switching equipment and large generators demands the module’s IEC 61000-4 compliant immunity. Reliable analog acquisition prevents nuisance trips and ensures that protection relays receive accurate input data.

Mining and Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, dust ingress, and wide temperature swings. The BMXAMI0810, housed in a sealed IP54 or IP65 control enclosure, monitors conveyor belt load cells, crusher motor current, and slurry pump flow rates. Continuous, accurate analog feedback allows the M340 CPU to optimize throughput while preventing equipment overload — a key safety concern in unmanned or remotely monitored sections of a mine.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities rely on continuous analog monitoring of pH, dissolved oxygen, turbidity, and flow. The BMXAMI0810’s 16-bit resolution captures subtle process variations that coarser modules would miss, enabling precise dosing control and early detection of sensor drift — which, if undetected, could result in non-compliant effluent discharge or treatment process failure.

Metallurgy and Steel Production: In electric arc furnaces, rolling mills, and continuous casting lines, the module acquires temperature and current signals in environments with intense electromagnetic interference from high-current bus bars and induction heating systems. Its robust isolation and EMI immunity ensure that the M340 control system maintains accurate process data even during the most electrically noisy phases of the production cycle.

Port and Material Handling Automation: Container cranes, ship loaders, and conveyor systems in port environments operate continuously under variable load conditions. The BMXAMI0810 monitors motor torque, hydraulic pressure, and wind speed sensor outputs, providing the M340 CPU with the real-time analog data needed to enforce safe operating limits and prevent structural overload events.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the BMXAMI0810?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the module fails to perform to its published specifications within the warranty period due to a manufacturing or component defect, we will provide a replacement unit or full refund. The warranty does not cover damage resulting from incorrect installation, overvoltage beyond rated limits, or physical mishandling.

Q2: What pre-shipment testing is performed on each BMXAMI0810 unit?
Every BMXAMI0810 unit undergoes functional verification prior to shipment, including power-on self-test, channel-by-channel analog input accuracy verification, and isolation integrity checks. Units sourced from authorized distribution channels are tested to confirm they meet Schneider Electric’s published specifications. A test report or certificate of conformity is available upon request for quality-critical procurement processes.

Q3: Is the BMXAMI0810 compatible with all Modicon M340 rack configurations?
Yes. The BMXAMI0810 is compatible with all standard Modicon M340 BMX backplane racks (4, 6, 8, and 12-slot configurations) and is supported by Unity Pro / EcoStruxure Control Expert software from version 2.x onwards. It is not compatible with Modicon M580, Premium, or Quantum platforms — those platforms use different module form factors and backplane protocols. Always verify rack slot availability and power budget before installation.

Q4: Can long-term supply and replacement support be guaranteed for the BMXAMI0810?
Yes. We maintain dedicated stock of the BMXAMI0810 to support both new installations and ongoing maintenance requirements for existing M340 systems. For facilities with long equipment lifecycles — common in petrochemical, power, and water treatment industries — we recommend establishing a spare parts agreement to ensure availability of replacement modules without lead-time risk. Our team can advise on appropriate spare holding quantities based on your installed base and criticality classification.
