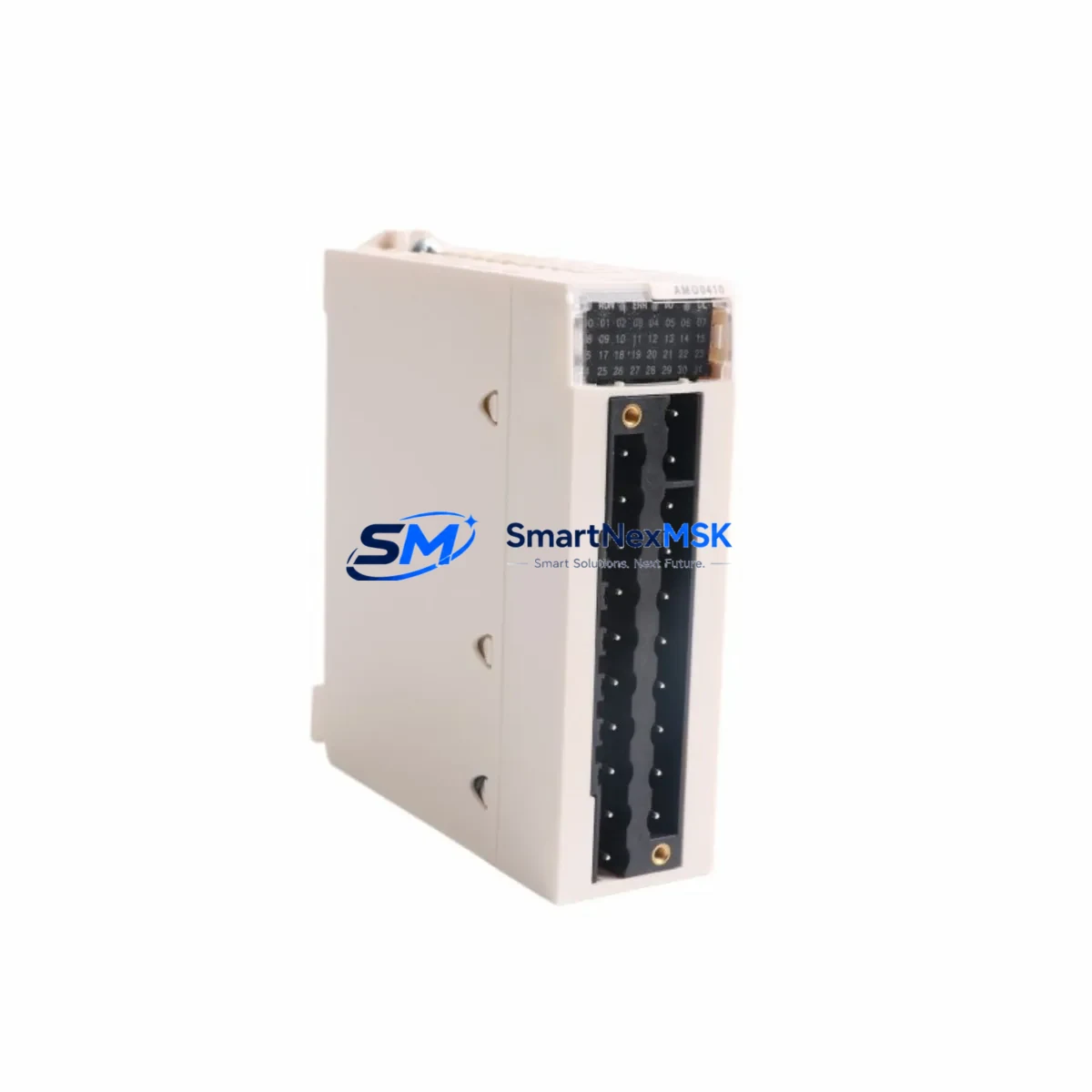

Schneider Electric MA0329001 Maintenance-Ready Spare for TeSys Automation
The Schneider Electric MA0329001 is an original connector cassette designed for TeSys series motor starters and contactor assemblies. In industrial maintenance environments where motor control centers (MCCs), control cabinets, and automation panels must remain operational around the clock, the MA0329001 plays a critical role in maintaining reliable wiring interfaces between contactors and downstream load circuits. Unplanned downtime caused by a failed or worn connector cassette can cascade into broader production losses — sourcing a verified original spare in advance is the most effective strategy for rapid fault recovery.
For maintenance engineers managing aging TeSys D or TeSys K installations, the MA0329001 provides a direct, plug-compatible replacement that preserves original wiring geometry and terminal torque specifications. Procurement engineers will find that stocking this cassette alongside other TeSys consumables significantly reduces mean time to repair (MTTR) during scheduled or emergency maintenance windows.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| SKU / Part Number | MA0329001 |
| Brand | Schneider Electric |
| Series Compatibility | TeSys D / TeSys K Motor Starters |
| Product Type | Connector Cassette |
| Origin | France (Original OEM) |
| Rated Application | Motor starter wiring interface, MCC panel integration |
| Installation Type | Snap-fit / screw-terminal cassette mount |
| Operating Environment | Industrial control cabinets, IEC 60947-4-1 compliant panels |
| Maintenance Interval | Inspect at each planned shutdown; replace on visible wear or arc damage |
| Warranty | 12 Months — tested before dispatch |
| Availability | In stock — same-week dispatch available |
Maintenance Planning for Continuous Operation
When replacing the MA0329001 connector cassette during a planned or corrective maintenance event, a thorough inspection of the surrounding control circuit is essential to prevent repeat failures and ensure system integrity. Maintenance engineers should treat this replacement as an opportunity to audit the full motor starter assembly.
Begin by verifying the condition of the associated TeSys D contactor (such as the LC1D09 or LC1D12 series) — worn main contacts or coil degradation are common co-failure points. Check the overload relay (LRD or LR9 series) for correct trip class setting and thermal element condition, as an improperly calibrated overload relay can cause nuisance trips that stress the connector cassette over time.
Inspect the 24 VDC or 230 VAC control power supply feeding the contactor coil circuit; voltage sags or ripple from an aging SMPS unit can cause coil chatter and accelerate connector wear. Review the wiring at the terminal block row adjacent to the cassette — loose ferrules or oxidized conductors on Phoenix Contact or Weidmüller-style terminals are a frequent source of intermittent faults that are misdiagnosed as cassette failure.
For panels integrating a Schneider Electric Modicon M340 or M580 PLC, confirm that the discrete output module (such as a BMX DDO 3202K) driving the contactor coil is delivering clean switching signals without excessive leakage current. If the motor starter is part of a Profibus or Modicon CANopen network segment, verify that the communication module (such as a BMXNOE0100 Ethernet module or a TSXSCP114 serial link module) is not logging coil-related faults that could indicate upstream control issues.
Additionally, inspect any signal isolators or relay output cards in the same cabinet section — a degraded PHOENIX CONTACT MCR-SL isolator or a worn intermediate relay (such as an RXM2 or RXM4 plug-in relay) can introduce signal noise that affects contactor switching reliability. Fuse holders and miniature circuit breakers (MCBs) protecting the control circuit should also be checked for correct rating and contact condition.
Stocking the MA0329001 as part of a curated TeSys spare parts kit — alongside a matched contactor, overload relay, and a set of auxiliary contact blocks (LAD8N11 or LADN11) — is a best practice for facilities operating continuous-process or safety-critical machinery where unplanned downtime is not acceptable.
Site Replacement Workflow
The MA0329001 is a direct OEM replacement for worn or damaged connector cassettes in TeSys D and TeSys K motor starter assemblies. The replacement procedure is straightforward and can typically be completed within a single maintenance shift without requiring panel rewiring:
1. Isolation & Lockout: Isolate the motor circuit at the upstream MCB or isolator switch and apply LOTO (Lockout/Tagout) per site safety procedures. Verify absence of voltage at the cassette terminals using a calibrated multimeter.
2. Documentation: Photograph the existing wiring layout and record terminal assignments before disconnection. This is especially important in older TeSys K installations where field modifications may have been made.
3. Cassette Removal: Release the snap-fit retention clips or loosen the cassette mounting screws. Carefully disconnect all conductors, noting wire labels and ferrule sizes for reinstallation reference.
4. New Cassette Installation: Seat the MA0329001 into the contactor body, ensuring correct alignment with the contactor’s terminal interface. Reconnect all conductors to the correct terminals, applying the manufacturer-specified torque (typically 1.2–2.5 Nm depending on conductor cross-section).
5. Verification & Commissioning: Restore control power and perform a functional test — energize the contactor coil and verify correct main contact closure, auxiliary contact state, and overload relay continuity. Log the replacement in the site maintenance management system (CMMS).
This workflow minimizes downtime, preserves system compatibility, and ensures the replacement is traceable for future audits. All MA0329001 units dispatched by SMARTNEXMSK are tested prior to shipment and covered by a 12-month warranty.
Spare Parts Support FAQ
Q1: Is the MA0329001 compatible with both TeSys D and TeSys K contactors?
The MA0329001 is primarily designed for TeSys D series motor starters. Compatibility with TeSys K variants depends on the specific frame size and contactor rating. We recommend confirming the contactor model number (e.g., LC1D09, LC1D18) before ordering. Our technical team can verify compatibility based on your existing installation details.
Q2: How do you verify the part is original before dispatch?
All MA0329001 units are sourced from authorized distribution channels and undergo pre-shipment inspection including visual verification of OEM markings, dimensional checks, and functional continuity testing. A test report is available upon request. Each unit ships with original packaging where available.
Q3: What is your inventory strategy recommendation for TeSys connector cassettes?
For facilities operating more than five TeSys motor starters, we recommend maintaining a minimum stock of two MA0329001 cassettes per control cabinet section. Combined with a matched set of overload relays and auxiliary contact blocks, this provides coverage for the most common corrective maintenance scenarios without requiring emergency procurement.
Q4: What warranty and after-sales support do you provide?
Every MA0329001 supplied by SMARTNEXMSK carries a 12-month warranty from the date of dispatch. In the event of a warranty claim, we provide rapid replacement dispatch and technical support via email and phone. Long-term supply agreements are available for MRO procurement teams requiring guaranteed stock availability.
