Schneider Electric PN072549P703 ATV71 Maintenance-Ready Spare

Schneider Electric PN072549P703 ATV71 Maintenance-Ready Spare: Gate Drive PCB for Industrial Downtime Control

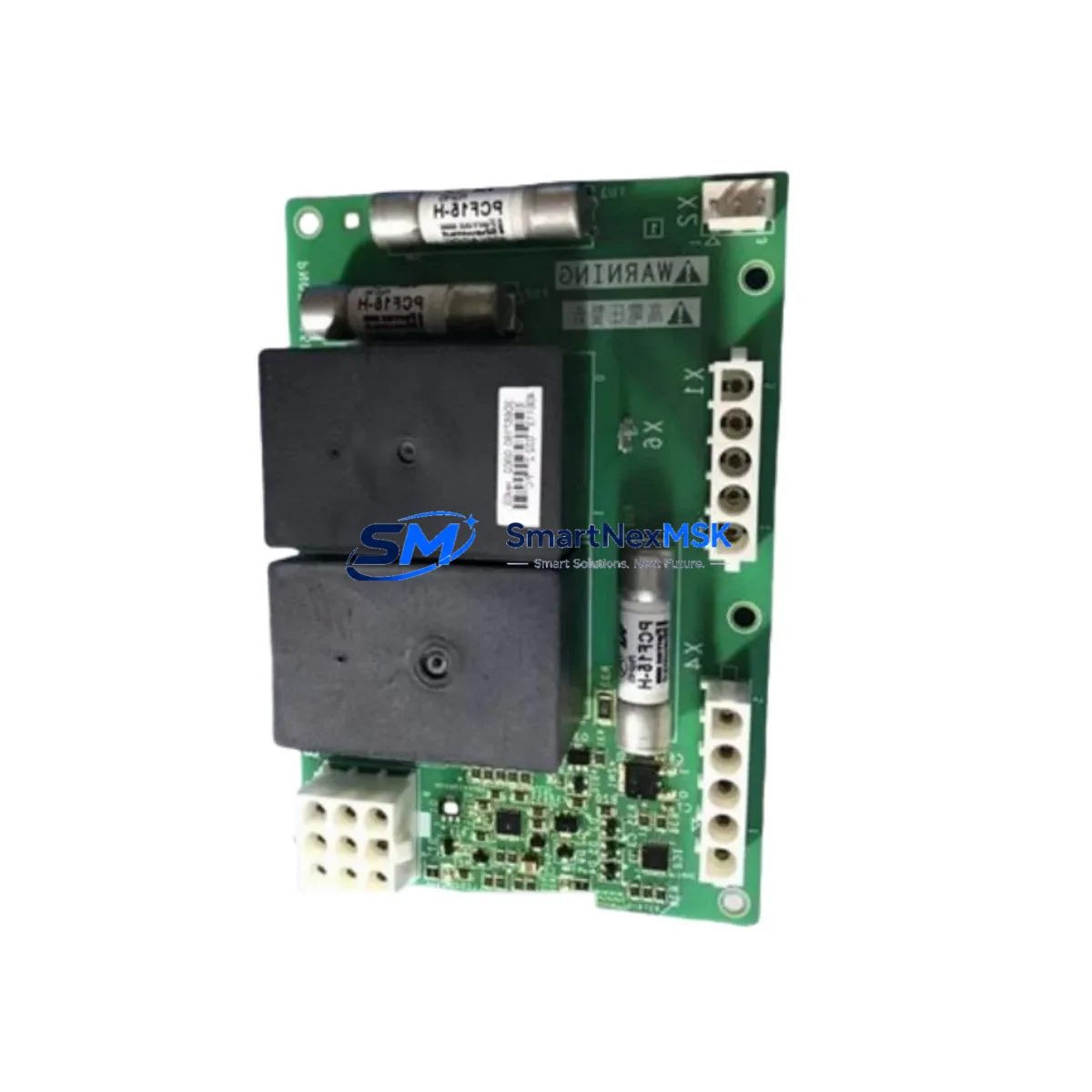

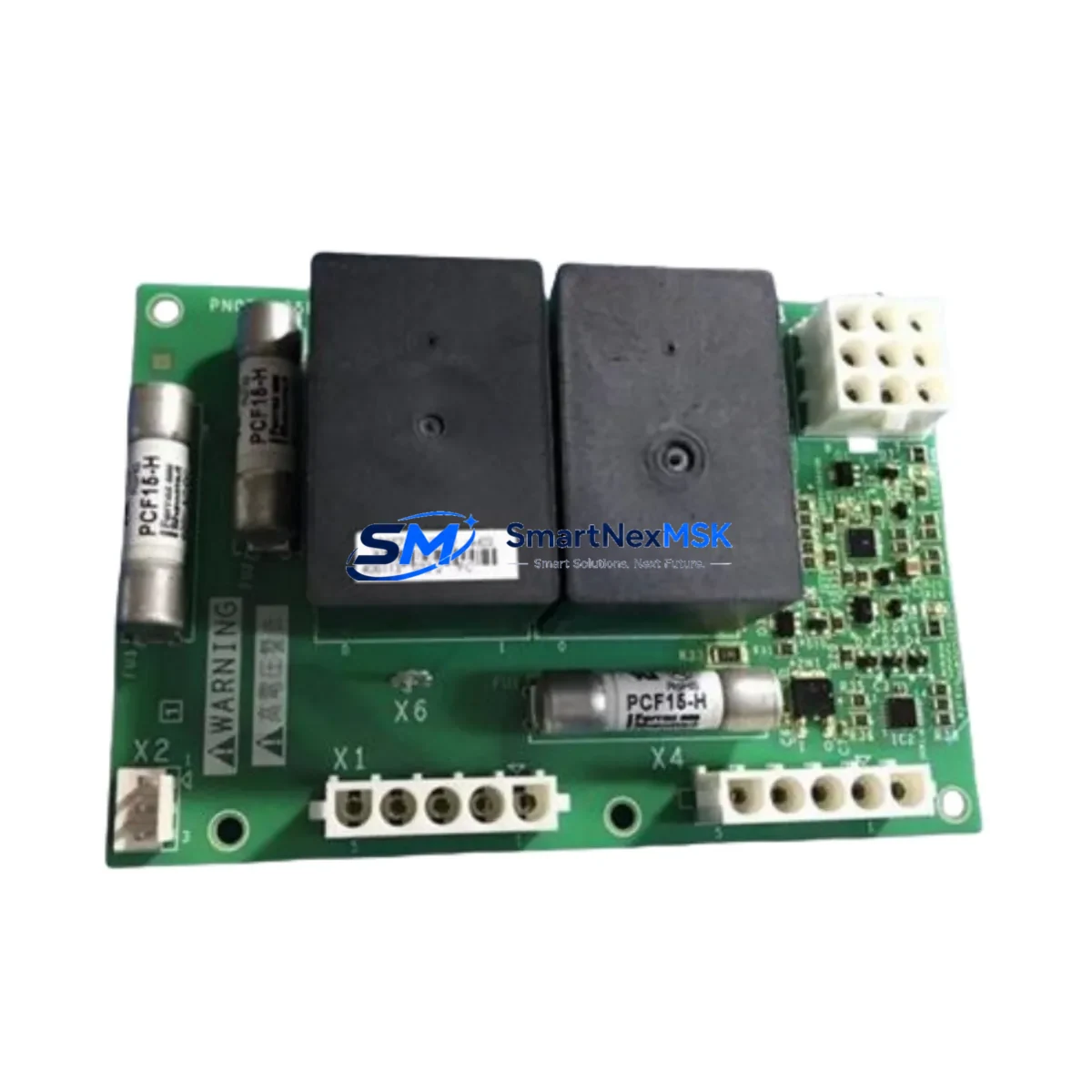

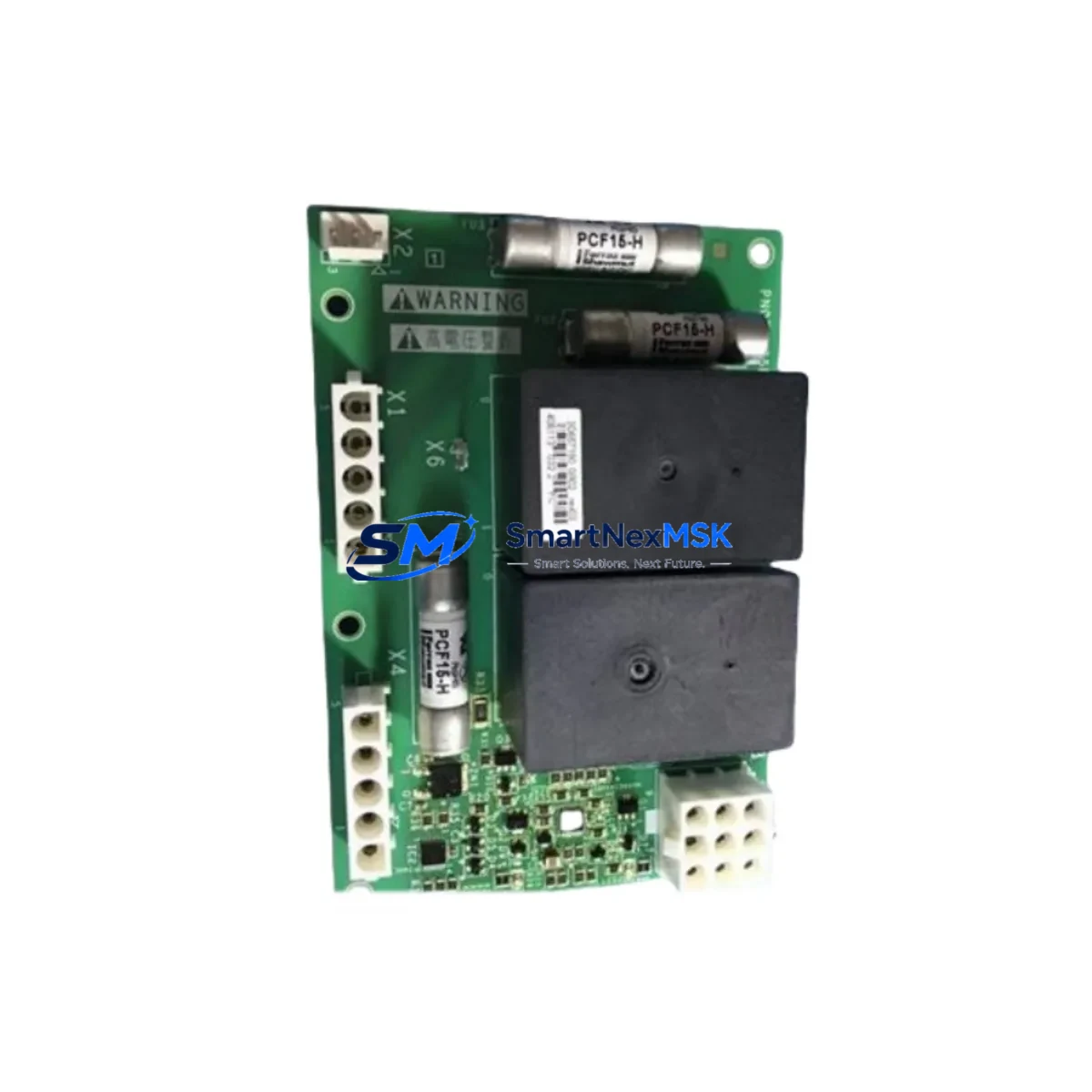

The Schneider Electric PN072549P703 is an original Gate Drive PCB Board engineered for the ATV71 variable frequency drive series. In industrial environments where motor control continuity is non-negotiable, this board sits at the heart of IGBT switching, PWM signal generation, and drive protection logic. When a gate drive fault is logged or a drive trips on an overcurrent or short-circuit event that cannot be cleared by parameter reset, the PN072549P703 is typically the first board-level component to inspect and replace. Stocking this spare eliminates the multi-week lead time risk associated with sourcing OEM boards during an unplanned shutdown.

Maintenance engineers working on ATV71 drives in pump stations, compressor rooms, conveyor lines, HVAC plants, and process automation cells will recognize this board as a critical node in the power conversion chain. Its replacement requires careful ESD handling, correct torque on connector seating, and a post-installation drive self-test before motor re-engagement. This listing supplies a tested, original-specification PN072549P703 with a 12-month warranty, backed by pre-shipment functional verification.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A gate drive board failure in an ATV71 drive rarely occurs in isolation. Experienced maintenance planners treat a PN072549P703 replacement as a trigger for a broader control cabinet inspection. Before returning the drive to service, the following associated components should be checked or replaced as part of the same maintenance window:

The ATV71 power supply board (internal SMPS) feeds logic voltage rails to the gate drive circuit — a degraded supply can stress gate drive components and cause repeat failures. Inspect the ATV71 control board for fault history, parameter integrity, and communication port condition, particularly if the drive is networked via Modbus RTU or CANopen. The IGBT power module itself should be tested for gate-emitter threshold voltage and leakage current; a weakened IGBT can destroy a new gate drive board if not identified first.

Check the DC bus capacitor bank for capacitance drift and ESR — aged capacitors generate voltage ripple that stresses gate drive timing circuits. Inspect input line reactors or EMC filters upstream of the drive for signs of overheating or insulation breakdown. The braking resistor and chopper module, if fitted, should be verified for correct resistance value and thermal condition, as braking faults can back-feed transients into the gate drive section.

On the I/O and signal side, inspect the ATV71 I/O extension card (if installed) for loose terminal connections and correct analog/digital signal levels. Verify 24 VDC control power wiring to the drive’s logic terminals — intermittent control power is a common root cause of nuisance gate drive faults. If the drive interfaces with a Schneider Electric Magelis HMI or remote keypad, confirm the communication cable integrity and parameter backup before board swap. For drives in safety-critical loops, check the safety relay module and STO (Safe Torque Off) wiring continuity. Finally, inspect terminal block connections on the motor output side for signs of arcing, loose crimps, or insulation damage that could indicate a downstream fault that triggered the original board failure.

Site Replacement Workflow

Replacing the PN072549P703 Gate Drive PCB in an ATV71 drive follows a structured sequence to minimize downtime and avoid secondary damage. Begin by isolating the drive from mains supply and confirming DC bus discharge to below 50 V using a calibrated meter — ATV71 drives retain hazardous bus voltage for several minutes after power removal. Document all parameter settings via the drive keypad or SoMove software before disconnecting any boards, as some parameter sets are stored on the control board and may need to be reloaded after the repair.

Remove the gate drive board using ESD-safe tools, noting connector orientation and any locking tab positions. Install the PN072549P703 replacement, ensuring all connectors are fully seated and latched. Restore power and run the drive’s internal self-test routine before connecting the motor load. Verify fault codes are cleared, check output voltage balance across all three phases at low speed, and confirm motor rotation direction before returning to full production speed. Log the replacement in the site maintenance record with the board serial number and warranty start date.

For legacy ATV71 installations approaching end-of-support, this replacement workflow also presents an opportunity to assess whether the drive firmware should be updated and whether the overall drive should be flagged for planned replacement within the next maintenance cycle. Stocking a second PN072549P703 as a cold spare after the first replacement is a widely adopted practice in facilities with multiple ATV71 drives on the same production line.

Spare Parts Support FAQ

Q1: Is the PN072549P703 compatible with all ATV71 power ratings?
The PN072549P703 Gate Drive PCB is designed for specific ATV71 drive variants. Compatibility depends on the drive’s power rating and hardware revision. Always cross-reference the drive nameplate catalog number and the existing board part number before ordering. Our technical team can assist with compatibility confirmation if you provide the full drive catalog number.

Q2: How is the board tested before shipment?
Each PN072549P703 unit undergoes functional verification prior to dispatch, including gate signal output checks and visual inspection for component damage, solder joint integrity, and connector condition. Units are packed in anti-static bags with foam protection to prevent transit damage.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or use outside the specified operating environment. Warranty claims are supported with return and replacement logistics.

Q4: Can this board be used to replace an older or discontinued ATV71 gate drive board?
In many cases, yes — Schneider Electric maintained consistent board interfaces across ATV71 production runs, and the PN072549P703 may serve as a direct replacement for earlier gate drive board revisions in the same power class. Confirmation against the original board’s part number and the drive’s hardware version is recommended before installation.
